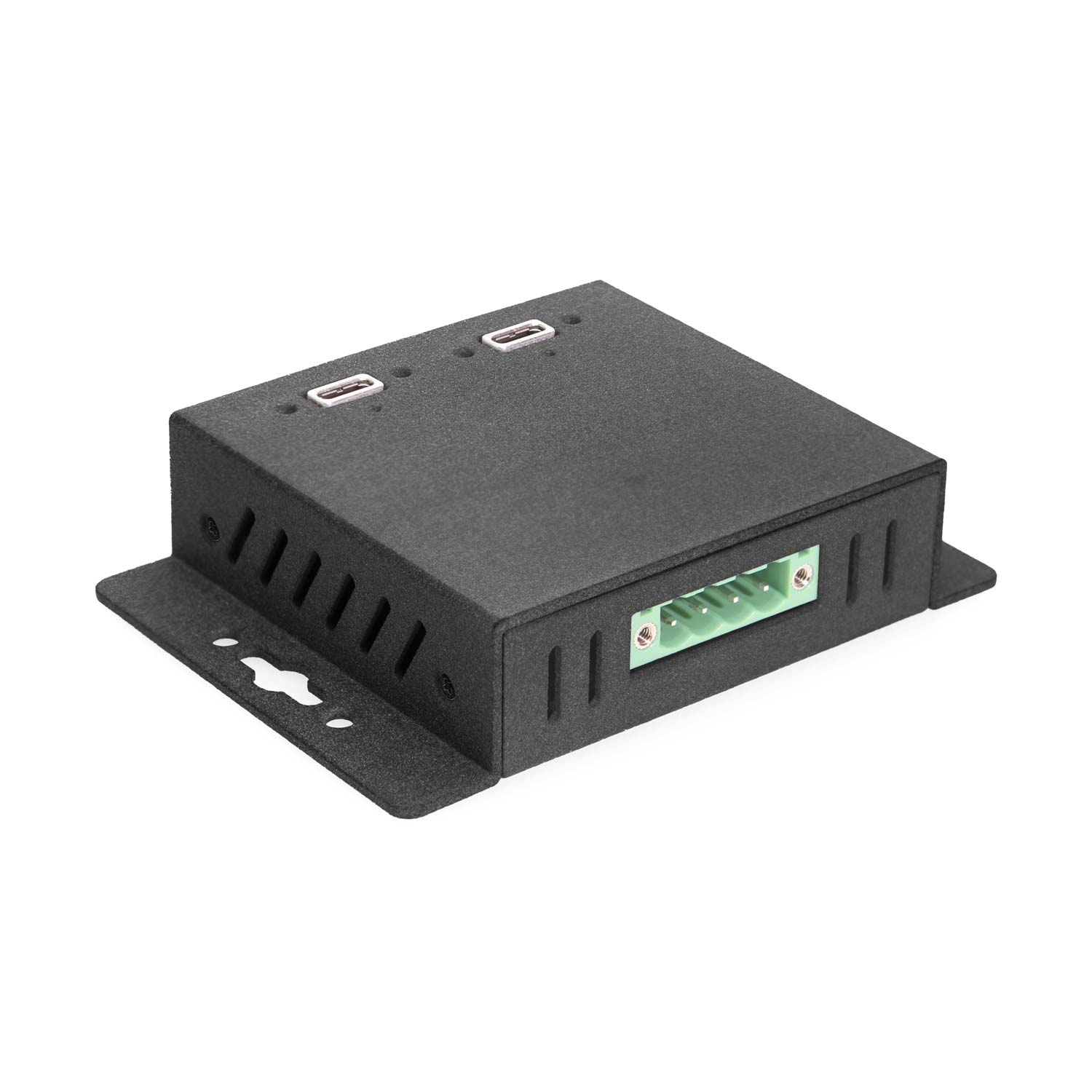

Labs Project | Dual Port USB 3.0 Power Delivery w/ Power Sharing & PPS 200Watt Module

Notice: You must be logged into an account with a business domain email to purchase this product.
This product is intended for initial testing, evaluation, and integration planning. This product is currently restricted for sale to B2B customers only. It is not designed for direct deployment or single-use applications.
Orders may be limited to 1-3 units unless approved by Coolgear Support. To place a bulk order or proceed with system integration, please contact our support team to discuss your requirements. For full terms, refer to our DEVELOPMENT PRODUCT TERMS.


Project No. MSPD-200×10

  • Industrial temp device with variable voltage input from +9V ~ 30V DC
  • Buck-Boost Design providing All USB PD 3.0 PDOs 5/9/12/15/20V and supporting E-marker tech to provide up to 100Watt per port
  • Fully programable to support all custom Voltages and current capabilities and PPS options
  • ESD Protection on Input and Output ports, Thermal Shutdown Over Current And Over Voltage as well as Under Voltage lock out and input current programing
  • Based on Infinion CCG7 (formerly Cypress Semi.)
  • Just Quality Components on our PCB boards
  • Infinion, AMPHENOL, Molex, ,TDK , YAGEO , Samsung, Kyocera, ROHM, Nexperia, Texas Instruments, Wurth Elektronik , Murata Electronics , TDK , Littelfuse, UNI-ROYAL
  • Operating Temperature Range: -40 C° – 115 C°
  • Material Type: FR-4 TG155
  • Surface Finish: ENIG-RoHS Gold Thickness:2 U”

Model No. MSPD-200x10
This product is currently restricted to shipping within the US only.

Submit Product Inquiry

Quick Links:

Project Inquiries

Description

Component Selection

1. Amphenol Commercial Industrial USB Type-C Connectors

2. Wurth Electronics’ HCI SMD Flat Wire Inductors have a low stray field, operating temperature of -40ºC to +125ºC/+150ºC

3. Cypress Automotive Grade High-Temperature withstanding CCG7

4. Kyocera AVX Tantalum Capacitors High-Temp Series





Labs Project | Dual Port USB 3.0 Power Delivery w/ Power Sharing & PPS 200Watt Module b2b-only

Coolgear Labs is constantly researching and always innovating. See what projects we’re working on and how we can get you dialed in when your project requires a custom solution.

Specifications

Product Specifications

Power
Input Voltage

+9~30V DC

Physical Characteristics
Ports

2 USB-C Ports

Performance & Safety
ESD Protection

15KV Surge Protection

Over Current Protection

Yes

Over Voltage Protection

Yes

Other Data
PPS PD Support

Yes

Support

Product Documentation & Drivers


Need drawings, CAD files, or other compliance documentation? Click HERE
