FEATURES
Compact and
Functional
Hubs with compact, rugged metal casings and
surface-mount flanges for secure, long-term
installations in any environment.
- USB-A & USB-C Downstream Port Variations Available
- USB-C Upstream Ports with Screw-Locking
- DC Barrel Jack for Power Input
- Vents for Heat Dissipation

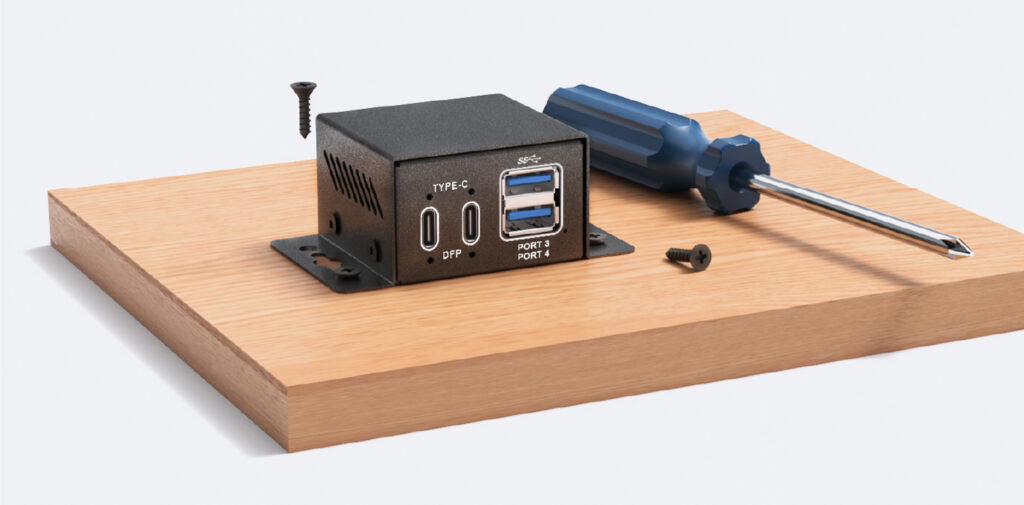

Integrated Mounting
Affix the hub where you need with surface mounting flanges built into the steel chassis.
Small-Scale
These powered hubs fit in the palm of your hand with the same performance as our popular USB hubs.
Multi-TT Architecture
Ensures that downstream ports guarantee Full-Speed bandwidth under heavy loads.
Screw-Lock USB-C
Hubs with USB Type-C ports offer screw-lock capabiities to avoid accidental disconnections.

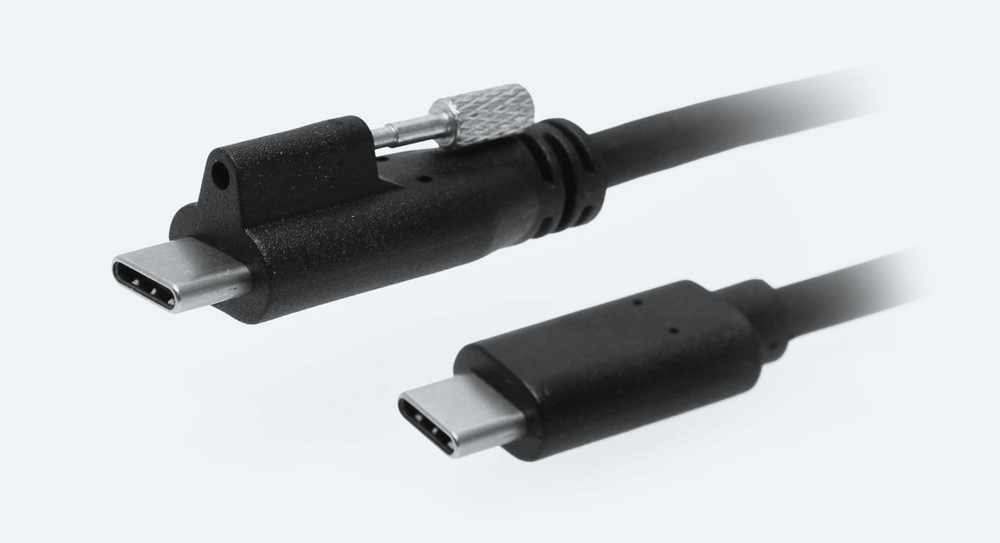

Looking for Compatible Cables?
Each USB-C port on our series of micro and mini hubs feature screw-locking ports to interface with screw-lock cables. Need to know more about screw-locking cables and their benefit? Read more about them here!

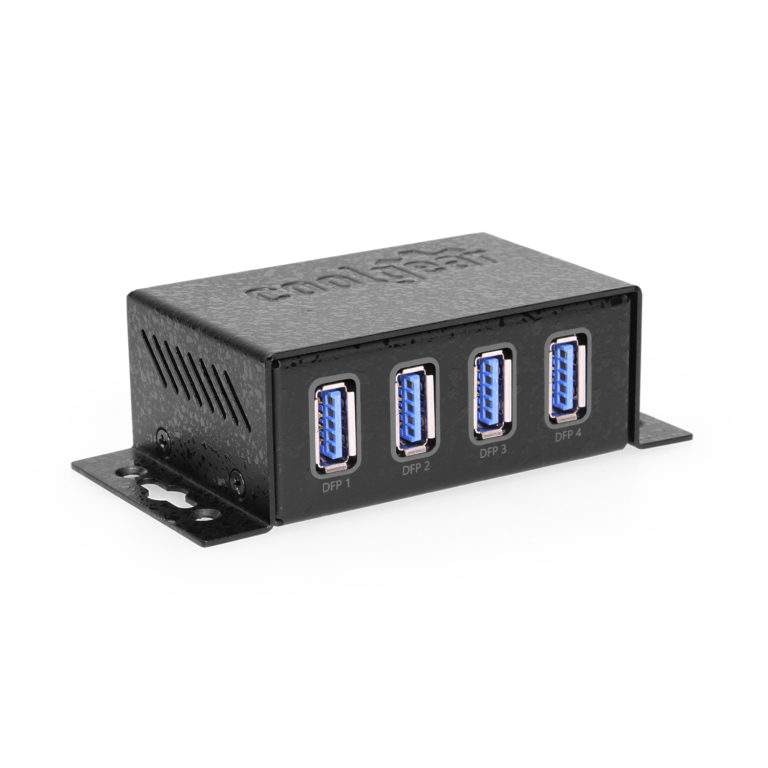

Micro Series
Width: 2.90 in. (74mm)
Mini Series
Width: 4-Ports 3.80 in. (96mm), 7-Port 5.60 in. (142mm)
Browse our collection of Micro and Mini Powered USB Hubs. Unsure of what you need for your install? Read about how to choose the right USB hub here or reach out to our staff of engineers to get you dialed in with the right solution.
Filters Sort results
Reset Apply
Name | Data Rate | Downstream Ports | Upstream Ports | Input Voltage | MSRP | ||
|---|---|---|---|---|---|---|---|
 | 5Gbps | 4 Type-A Female USB | 1 Type-C Female USB | +7~14V DC | $91.29 | ||
 | 5Gbps | 4 Type-A Female USB | 1 Type-B Female USB | +5V DC | $53.29 | ||
 | 5Gbps | 2 Type-A Female USB ⋅ 2 Type-C Female USB | 1 Type-C Female USB | +7~14V DC | $92.49 | ||
 | 10Gbps | 4 Type-A Female USB | 1 Type-C Female USB | +12V DC | $104.99 | ||
 | 10Gbps | 4 Type-C Female USB | 1 Type-C Female USB | +7~12V DC | $110.49 | ||
 | 5Gbps | 7 Type-A Female USB | 1 Type-B Female USB | +5V DC | $59.29 |
Can’t find the right fit?
We’ll Build It!
We’re excited to get to work! Reach out if you can’t find what you need for your install. Our team of engineers will get you squared away with an off-the-shelf or a custom solution!
Let's Talk Solutions
