ChargeIT Mini 82W USB Type-C PD Charger High w/ 24~48V DC Input
Notice:This product is intended for initial testing, evaluation, and integration planning. It is not designed for direct deployment or single-use applications.
Orders are limited to 1-3 units unless approved by Coolgear Support. To place a bulk order or proceed with system integration, please contact our support team to discuss your requirements. For full terms, refer to our EVALUATION PRODUCT TERMS.
Orders are limited to 1-3 units unless approved by Coolgear Support. To place a bulk order or proceed with system integration, please contact our support team to discuss your requirements. For full terms, refer to our EVALUATION PRODUCT TERMS.
Model No.
CG-PD82HVV
This High Power Single Port USB Type-C Industrial hub that complies with the latest USB-C and PD standards. Intended for use in PC power adapters, mobile chargers, car chargers and power bank applications. This charging hub provides one 82W USB Type-C PD port.
- USB Type-C PD with PD 3.0 support
- BC v1.2, Apple Charging, AFC, Qualcomm Charging 4.0, QC3.0, QC2.0, Huaiwei FCP/SCP
- Utilizes CCG3PA and SIC461 BUCK
- Input Voltage Range of 24 ~ 48V DC
- Extensive protection including ESD, over/under current, and short circuit protection
- Compatible with screw-lock USB-C cables to keep your connections secure.
- PD Profiles: 5V-3A, 9V-3A, 12V-3A, 15V-3A, 20V-4.2A
Product Documents
Quick Links:
Description

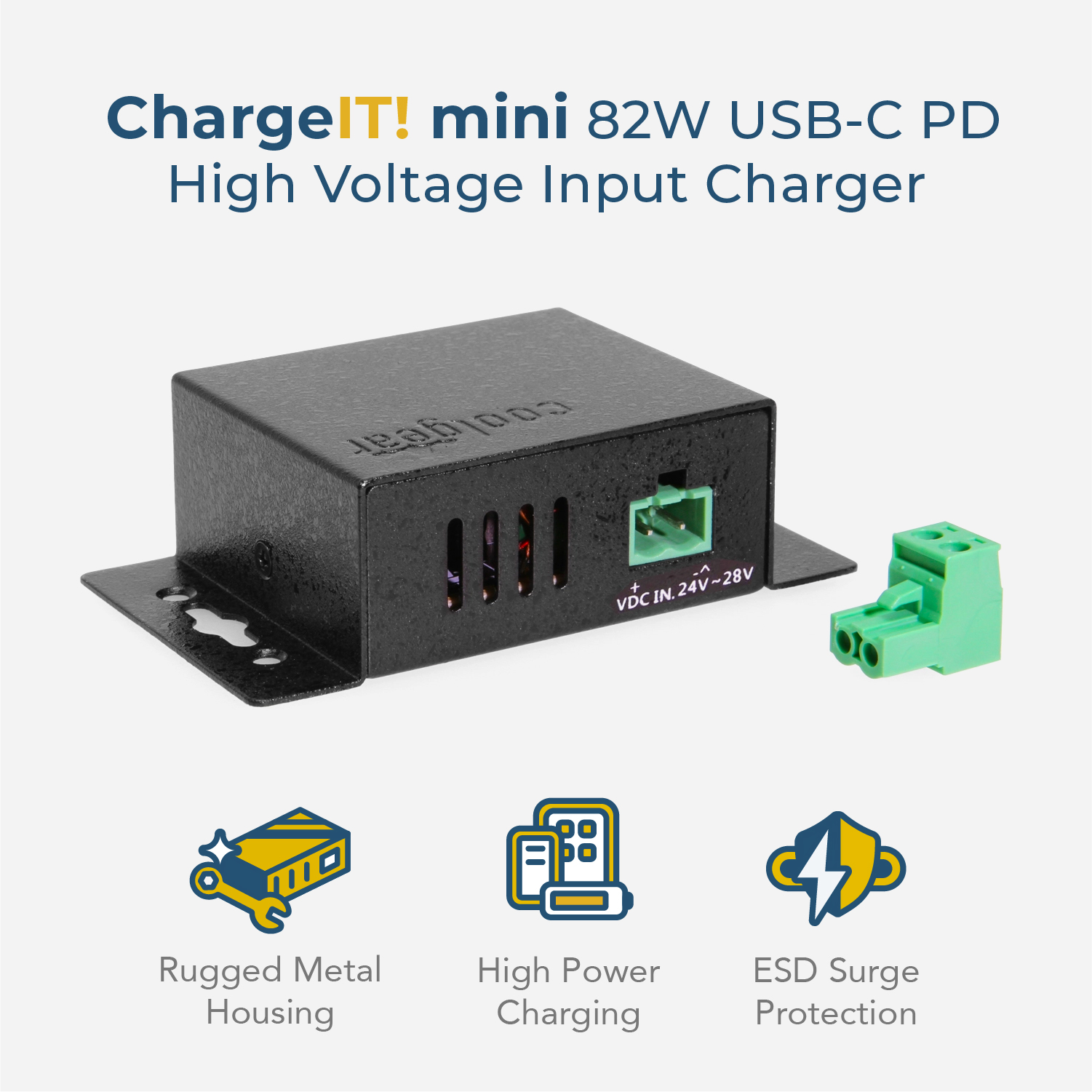

ChargeIT Mini 82W USB Type-C PD Charger
Streamline high-powered charging with the ChargeIT Mini — a compact, industrial-grade USB Type-C PD charger built for demanding environments. Delivering up to 82W via a single USB-C port, it supports multiple charging standards including PD 3.0, QC 4.0, and more. Designed for integration in automotive, industrial, and mobile power applications, the ChargeIT Mini operates on a wide 24–48V DC input range, with robust protection and reliable performance in every setting.
Key Features and Benefits
- High Power Delivery Support: Provides up to 82W through a single USB Type-C port with PD 3.0 compliance for ultra-fast device charging.
- Wide Input Voltage Range: Accepts 24–48V DC input (momentary tolerance up to 60V), making it ideal for automotive, industrial, and mobile power setups.
- Multiple Charging Standards: Supports PD 3.0, QC 4.0/3.0/2.0, Apple Charging, BC v1.2, AFC, and Huawei FCP/SCP for universal compatibility across devices.

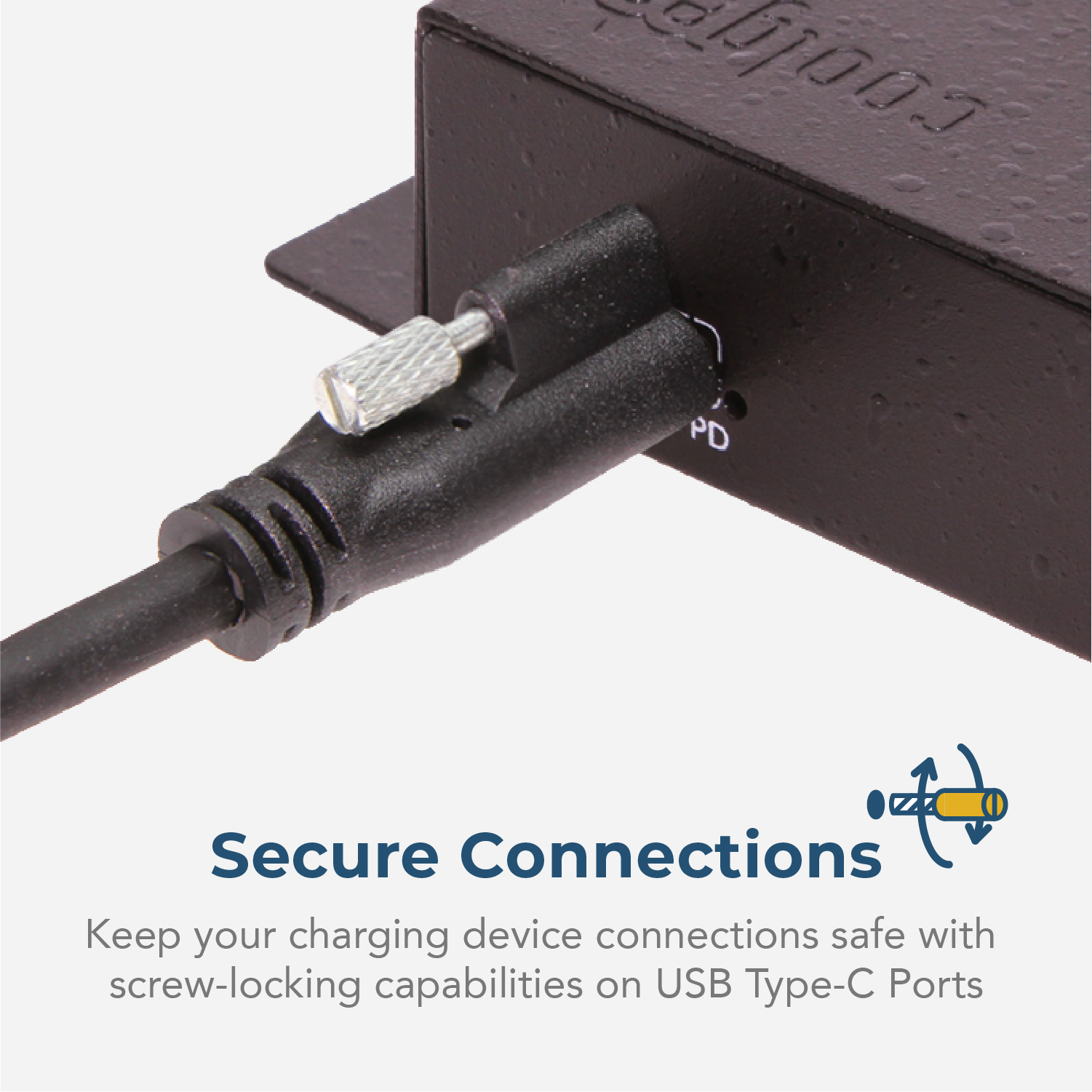

- Secure Connections: Compatible with screw-lock USB-C cables to ensure stable, secure connections even in vibration-prone environments.
- Advanced Power Components: Utilizes CCG3PA and SIC461 BUCK for efficient, high-reliability power conversion and delivery.
- Comprehensive Protection: Includes built-in safeguards for ESD, overcurrent, undervoltage, and short circuit protection, ensuring device and user safety.

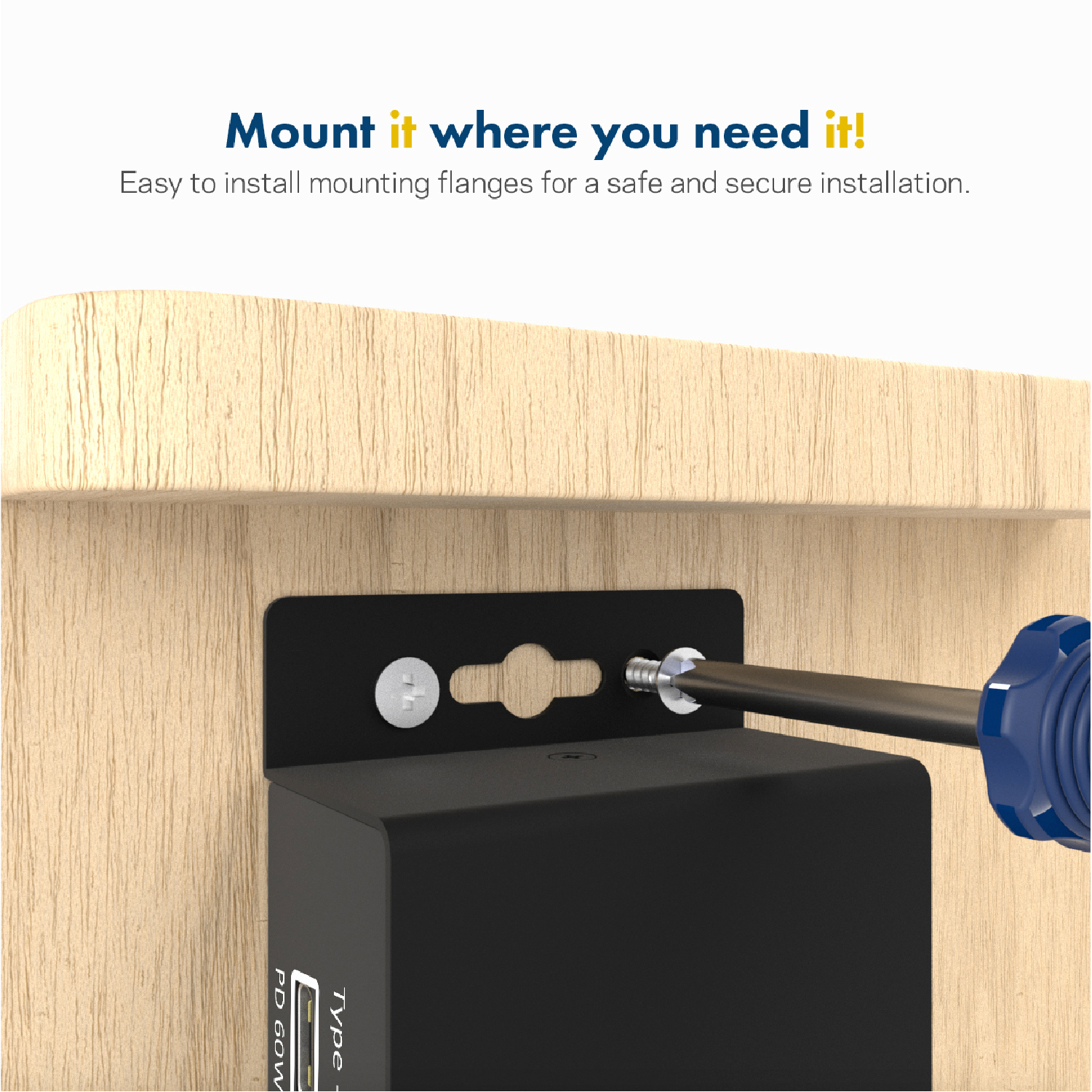

- Compact Industrial Design: Small footprint and rugged build for easy integration in confined or demanding installation scenarios.
Package Contents
- ChargeIT Mini 82W USB Type-C PD Charger
- Terminal block connector (for DC input)
Optional Accessories
Optional Accessories
Super Fast Speeds: This USB cable is 3.2 Gen 2 compliant, ensuring super-fast 10Gbps data transfer speeds. It supports super speed +, super speed, high…
Model# CG-G2CCTSSL-1.8M
$20.49In stock
Super Fast Speeds: This USB cable is 3.2 Gen 2 compliant, ensuring super-fast 10Gbps data transfer speeds. It supports super speed +, super speed, high…
Model# CG-G2CCTSSL-1M
$19.49In stock
Super Fast Speeds: This USB cable is 3.2 Gen 2 compliant, ensuring super-fast 10Gbps data transfer speeds. It supports super speed +, super speed, high…
Model# CG-G2CCTSSL-05M
$18.49In stock

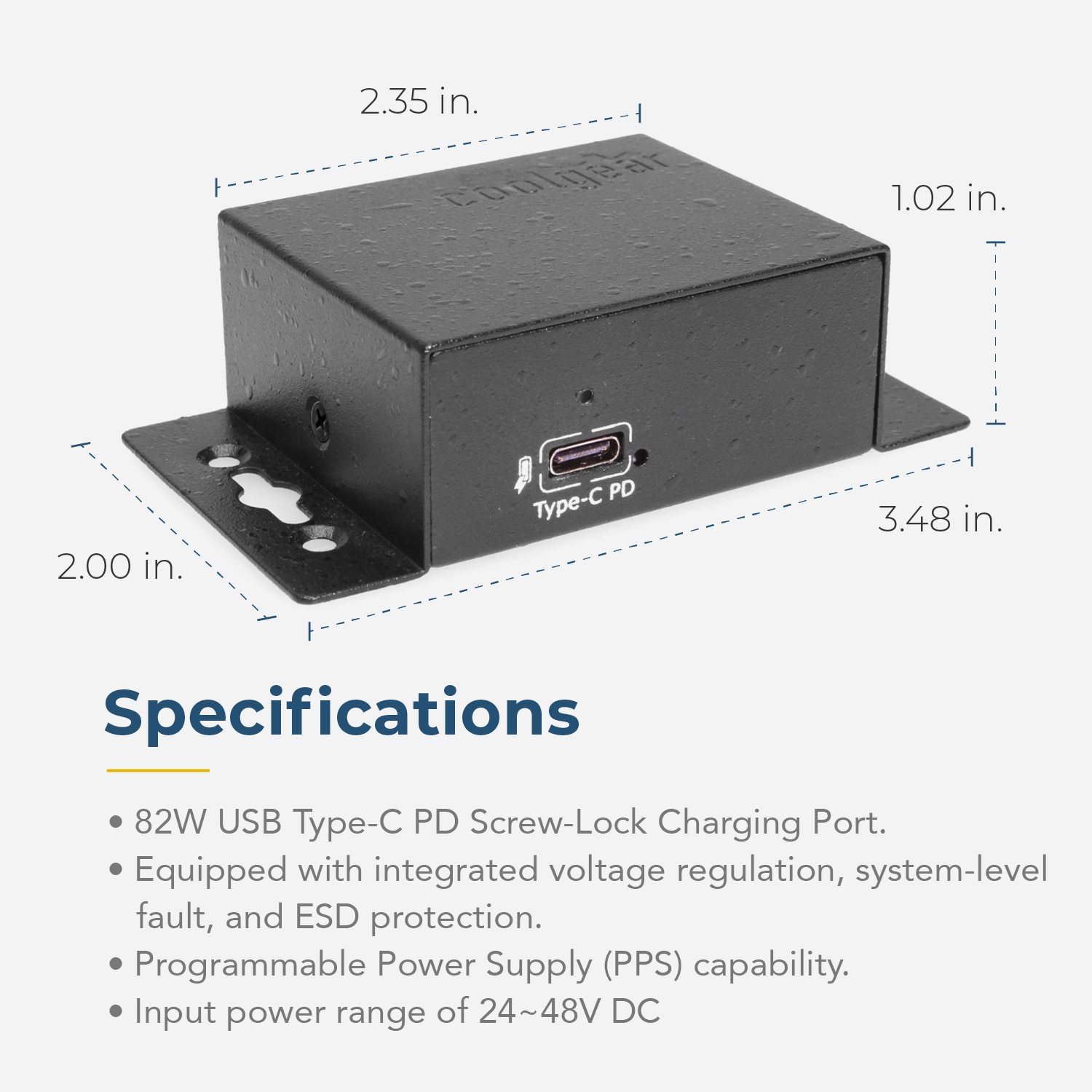

Specifications
Product Specifications
| Power |
| ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Compliance |
| ||||||||||
| Performance & Safety |
| ||||||||||
| Other Data |
|
Support
Product Documentation & Drivers
Product Documents
Product Documentation
Need drawings, CAD files, or other compliance documentation? Click HERE
