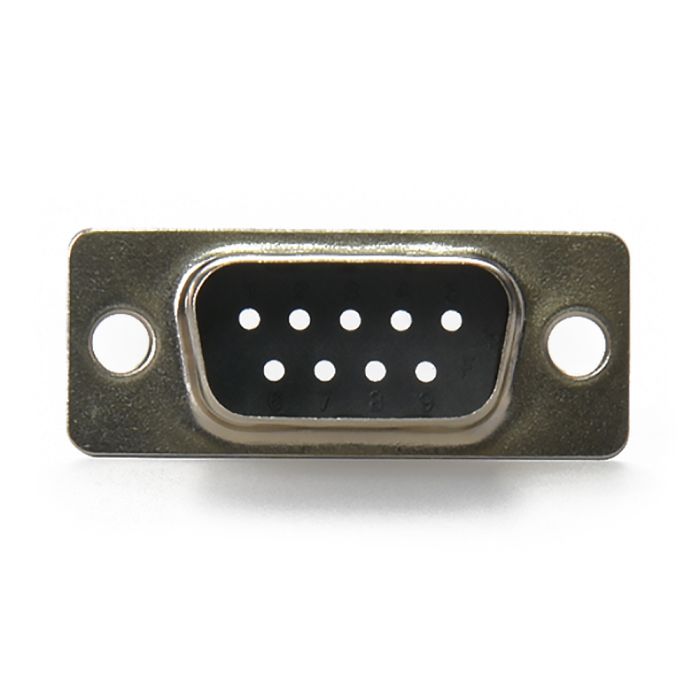

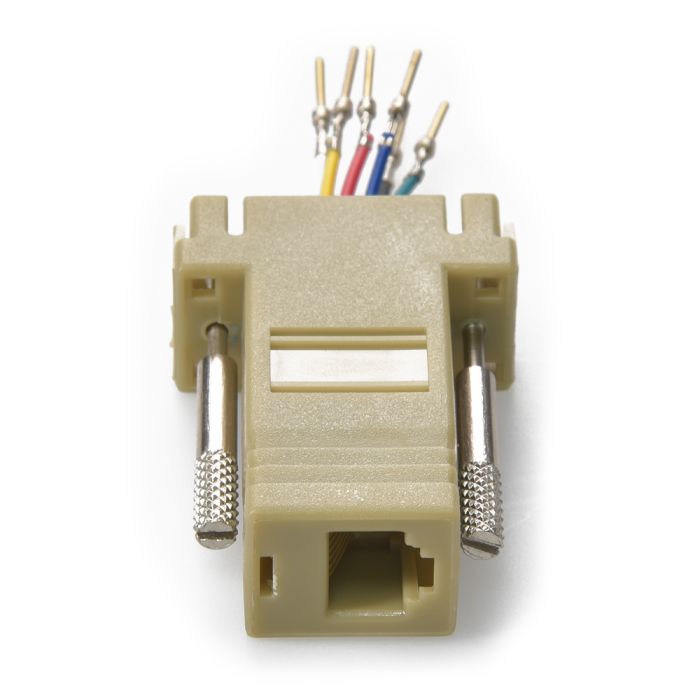

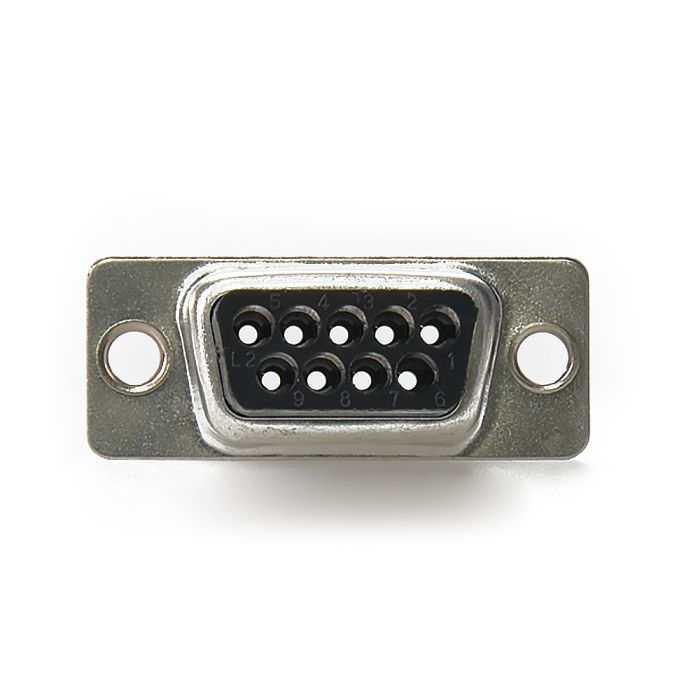

DB9 Male to RJ11/12 Modular Serial Adapter

DB9 Male to RJ11/12 (6 Wire) Modular Adapter

Bridge the gap between RS-232 serial connections and modular cabling with the DB9 Male to RJ11/12 Modular Adapter. Designed for versatility and reliability, this modular adapter simplifies RS-232 serial device connections by converting a DB9 male interface into an RJ11 or RJ12 connection, making it an essential tool for networking professionals, industrial integrators, and system engineers.

Key Features and Benefits

• DB9 to RJ11/12 Conversion: Converts a standard DB9 RS-232 male serial port to an RJ11/12 modular interface for streamlined serial communication over network-style cabling.

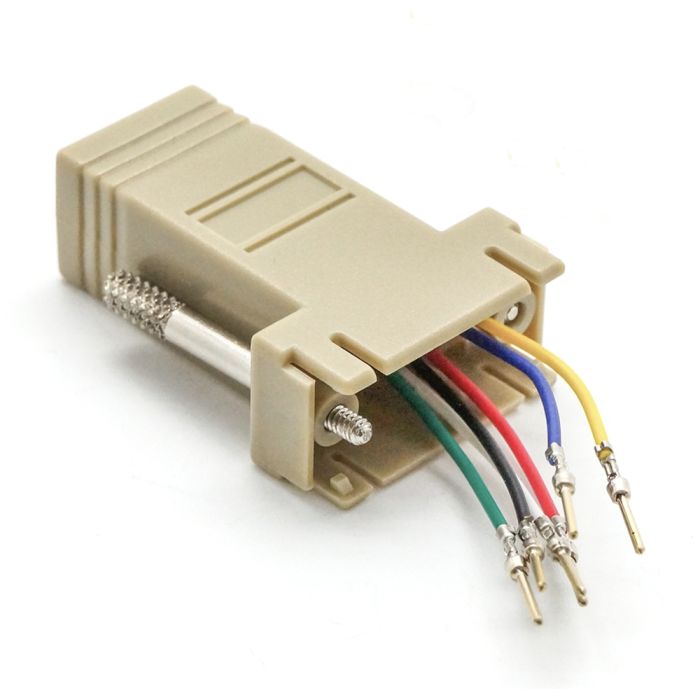

• Color-Coded Wiring: Features clearly labeled 6-pin RJ11/12 lead wires with standard color coding for straightforward signal identification and custom pin mapping.
• Robust Connector Design: Gold-plated copper pins ensure strong electrical contact and minimize corrosion, enhancing signal integrity and lifespan.
• Durable Housing: Molded ABS shell provides mechanical strength and environmental resistance for long-term reliability.
• Thumbscrew Locking Mechanism: Secures the adapter firmly to DB9 ports for a stable connection in mission-critical applications.
• Compact and Lightweight: Slim profile and light build allow for easy deployment in dense equipment setups or compact enclosures.

RJ12 Pinout

• Pin 1 – White
• Pin 2 – Black
• Pin 3 – Red
• Pin 4 – Green
• Pin 5 – Yellow
• Pin 6 – Blue

Package Contents

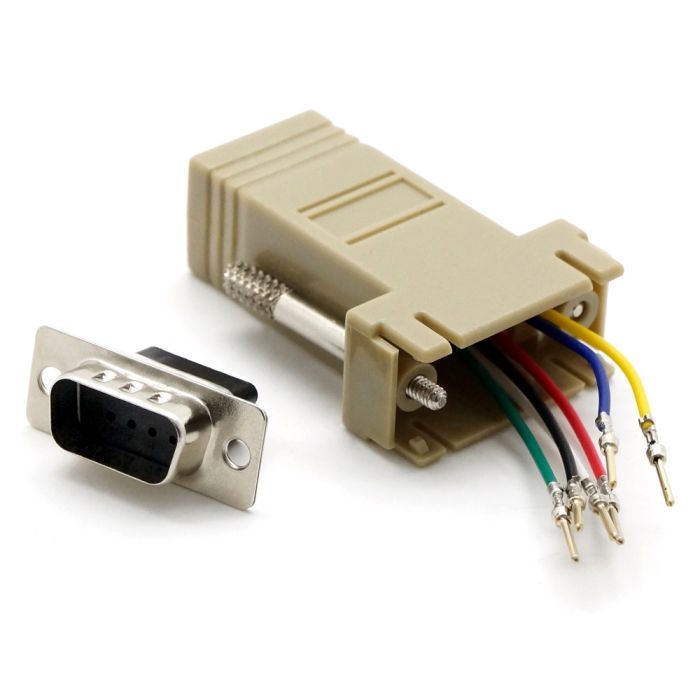

• DB9 Male to RJ11/12 Modular Adapter
