135W 3-Port Type-C PD Injector Hub 45W per USB-C Port

**Notice: Reference Product for Development & Evaluation Purposes



Industrial Grade | +7~12V DC Input | Over Voltage & Current Protection | Surface Mountable

  • Simultaneous Charging: Charge  tablets, phones, or other USB-charged in charge mode devices, while the built in PD chipset dynamically detects devices to deliver optimum power level for maximum battery life and performance.
  • Quick Charging: Provides up to 135W of combined charging. 2x 45W USB Type-C DFP Ports, 1x 45W USB Type-C UFP Port
  • Superior Build Quality: Housed in a rugged metal chassis, the 3-port charger hub is perfect for installations in workstations, offices, labs, warehouses, classrooms, heavy machinery, automation equipment, and other industrial applications

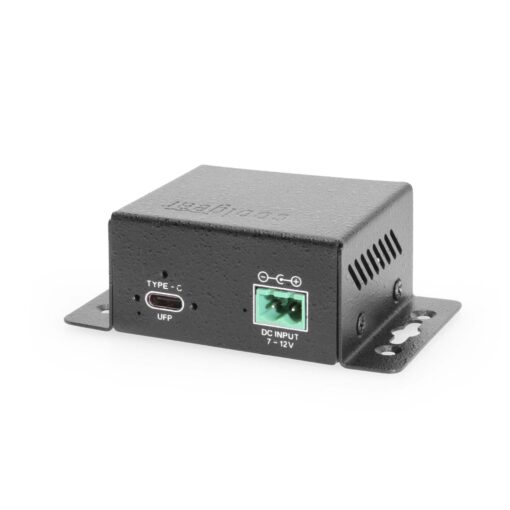

  • Charging Ports: 3 USB Type-C PD Screw-Lock Compatible Ports
  • Power Connector: 2-Pin Terminal Block
  • Mounting Options: Wall & Surface
  • LED Indicators: Power

$129.99

Out of Stock

Model No. CG-CSPDINH-3

Quick Links:

Product Inquiries

Description

Features:

  • 3 Port USB 3.2 Gen 2 USB Type-C ports with up to 45 Watts per port for up to 135Watt of total output power from any DC source including solar
  • Compliant with USB 3.2 Gen 2 Specification
  • Upstream USB Type-C port supports Super-Speed (SS), High-Speed (HS) and Full-Speed (FS) traffic
  • 2 USB Type-C downstream ports support Super-Speed (SS), High-Speed (HS) and Full-Speed (FS) traffic
  • ESD protection per port: ±15 kV(Air), ±15 kV(Contact)
  • Supports High Speed Full Speed and Super Speed transmit and Receive
  • Provides power to Three USB-C PD Hosts/Devices
  • Plug and play USB-C power, no configuration is needed, simple to use.

Specifications:

  • PD 3.0 & PPS 5-12V
  • 5V / 3A PDO provided
  • 9V / 3A PDO provided
  • 12V / 2.2A PDO provided
  • 15V / 3A PDO Provided
  • 20V / 2.25A Provided
  • DC input range is 12-24 Volt DC with ESD protection
  • Inject PD to all Ports
Specifications

Product Specifications

Performance
ESD Protection

15KV Surge Protection

Over Current Protection

Y

Over Voltage Protection

Y

Power
Input Voltage

+12~24V DC

Over Current Protection

Y

Over Voltage Protection

Y

Power Source

2-Pin Terminal Block

PD Profile Support
Voltage Profiles

5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A, 20V/5A

Mechanical
Item Dimensions (L × W × H)

3.48 × 2.00 × 1.18 in.

Item Weight

0.395 lbs.

Weight

0.395 lbs

Dimensions

3.48 × 2.00 × 1.18 in

UPC: 045079164154
