The CG-3X2C3AM is a USB 3.2 Gen 1 Type-C PD (Power Delivery) Metal Hub that complies with the Universal Serial Bus (USB) Specifications Revision 3.2 Gen 1 and works up to 5Gbps. It provides 1 USB-C PD-Source capable upstream port and 4 downstream facing ports with1 USB-C and 3 USB-A connectors.
The upstream port can charge the host PC or tablet PC and the USB-C downstream device simultaneously. Only one single power supply is required for both host and devices.
The hub works backward compatible even when any one of downstream port is connected to an USB2.0/1.1 compliant device, or when the upstream port is connected to a USB2.0/1.1 compliant host.
The CG-3X2C3AM provides a unique self-power mode to support fast USB charging specifications by turning its downstream ports from a Standard Downstream Port (SDP) into Charging Downstream Port (CDP) or Dedicated Charging Ports (DCP).
Since the USB is the most popular external port for the devices to connect to PCs, the CG-3X2C3AM provides an ideal solution to expand your USB ports immediately and save your investment.
- Provides 4 USB downstream ports (1 USB-C and 3 USB-A) which managing up to 5Gbps:
- Compliant with USB 3.2 Gen 1 Specifications
- Provides 1 USB 3.2 Gen 1 Upstream Port with USB-C PD connector
- Provides 4 USB 3.2 Gen 1 Downstream Facing Ports (1 USB-C and 3 USB-A connectors)
- PD Supports power source: 20V/5A, 15V/3A, 12V/3A and 5V/3A
- Full-Featured USB-C Port Enables Reversible Plug Orientation and Cable Direction
- Supports 5Gbps, 480Mbps, 12Mbps and 1.5Mbps Speed
- Supports Multi Transaction Translators per Hub
- Supports +12~24V DC Self-power Input Power
- Supports 15KV ESD Surge Protection for Each Port.
For Systems with USB3.2, USB2.0, or USB1.1 Ports
Supports keyboard, mouse, monitor, scanner, printer, PC Camera, telephone, DVD drive, joystick, virtual reality helmet, modem, PBX and many more USB devices
- Supports 1 USB-C PD Upstream Port Connector, 1 USB-C and 3 USB-A Downstream Port Connectors.
- Supports a 2-pin Terminal Block Connector for external power input from AC adapter
Operating Temp.: 0 to 558C (32 to 1318F)
Storage Temp: -20 to 858C (-4 to 1858F)
Operating Humidity: 5 to 95% RH
5.98”(L)x2.35”(W)x0.93”(H) (15.20 x 5.96 x 2.35 cm)

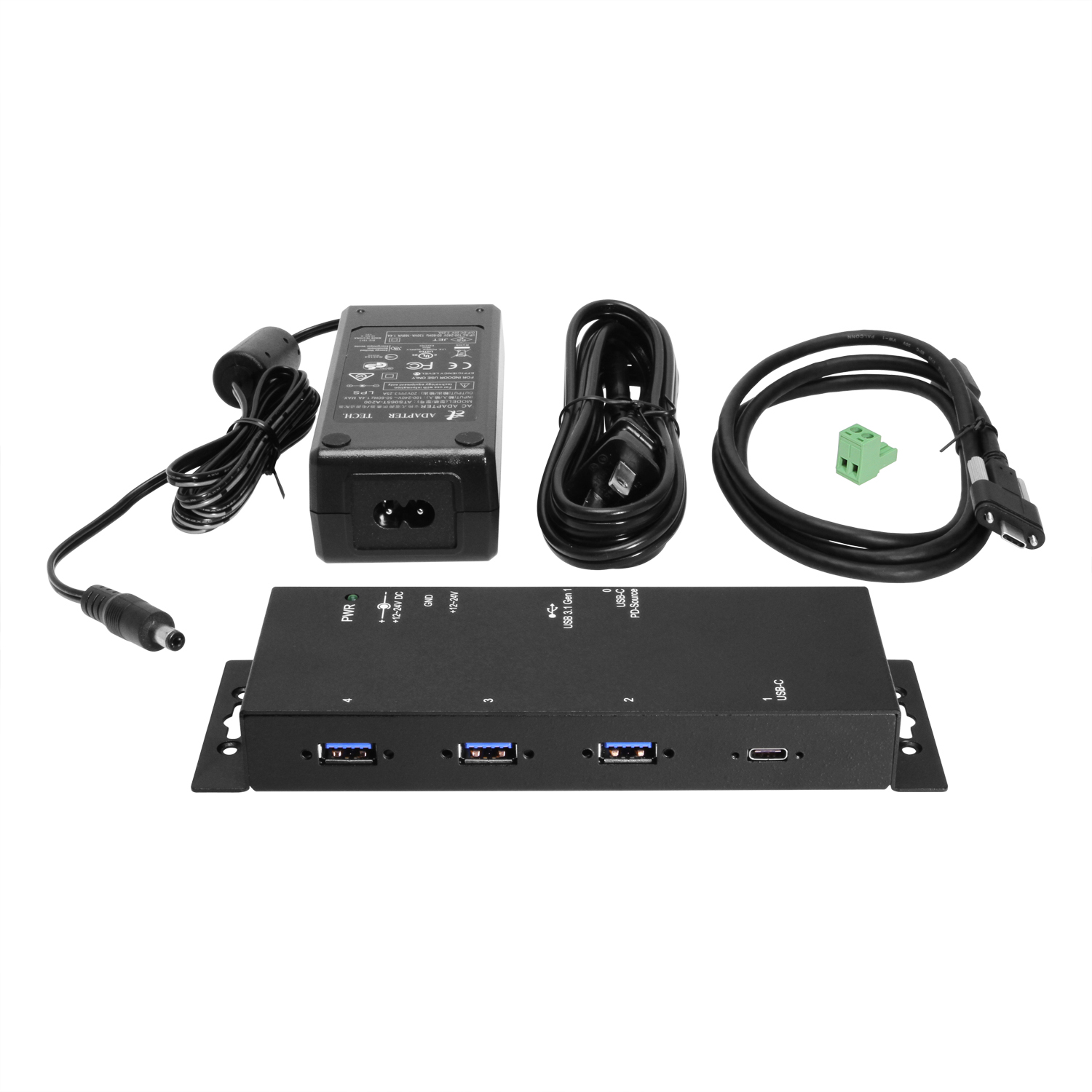

- 4 Port USB 3.2 Gen 1 Type-C PD Hub
- USB-C to Screw Lock USB-C Cable
- 2-Pin Terminal Block
- Power Adapter
*Surface Mounting screws not included.
