DEV Product | 4-Port USB 3.2 Gen 1 High Power & Current Mini Hub PCBA w/ ESD Surge Protection

DEV Product | 4-Port USB 3.2 Gen 1 High Power & Current Mini Hub PCBA w/ ESD Surge Protection - Image 2

DEV Product | 4-Port USB 3.2 Gen 1 High Power & Current Mini Hub PCBA w/ ESD Surge Protection

Notice: You must be logged into an account with a business domain email to purchase this product.
This product is intended for initial testing, evaluation, and integration planning. This product is currently restricted for sale to B2B customers only. It is not designed for direct deployment or single-use applications.
Orders may be limited to 1-3 units unless approved by Coolgear Support. To place a bulk order or proceed with system integration, please contact our support team to discuss your requirements. For full terms, refer to our DEVELOPMENT PRODUCT TERMS. 

Upstream: 1 USB port, Type B connector
Downstream: 4 USB ports, Type A connectors
Power Connector: 2-Pin Terminal Block, DC Barrel 2.5mm ID × 5.5mm OD, Center Pin Positive
Input Voltage: +8~26V DC
Up to 2.4A per port output current
Over Voltage & Over Current Protection

$55.49

Model No. CGL-3510X4AX1Bv01-DEV

This product is currently restricted to shipping within the US only.

Not in stock - Backorder allowed

Submit Product Inquiry

Product Documentation

Quick Links:

Project Inquiries

Description

Introduction:

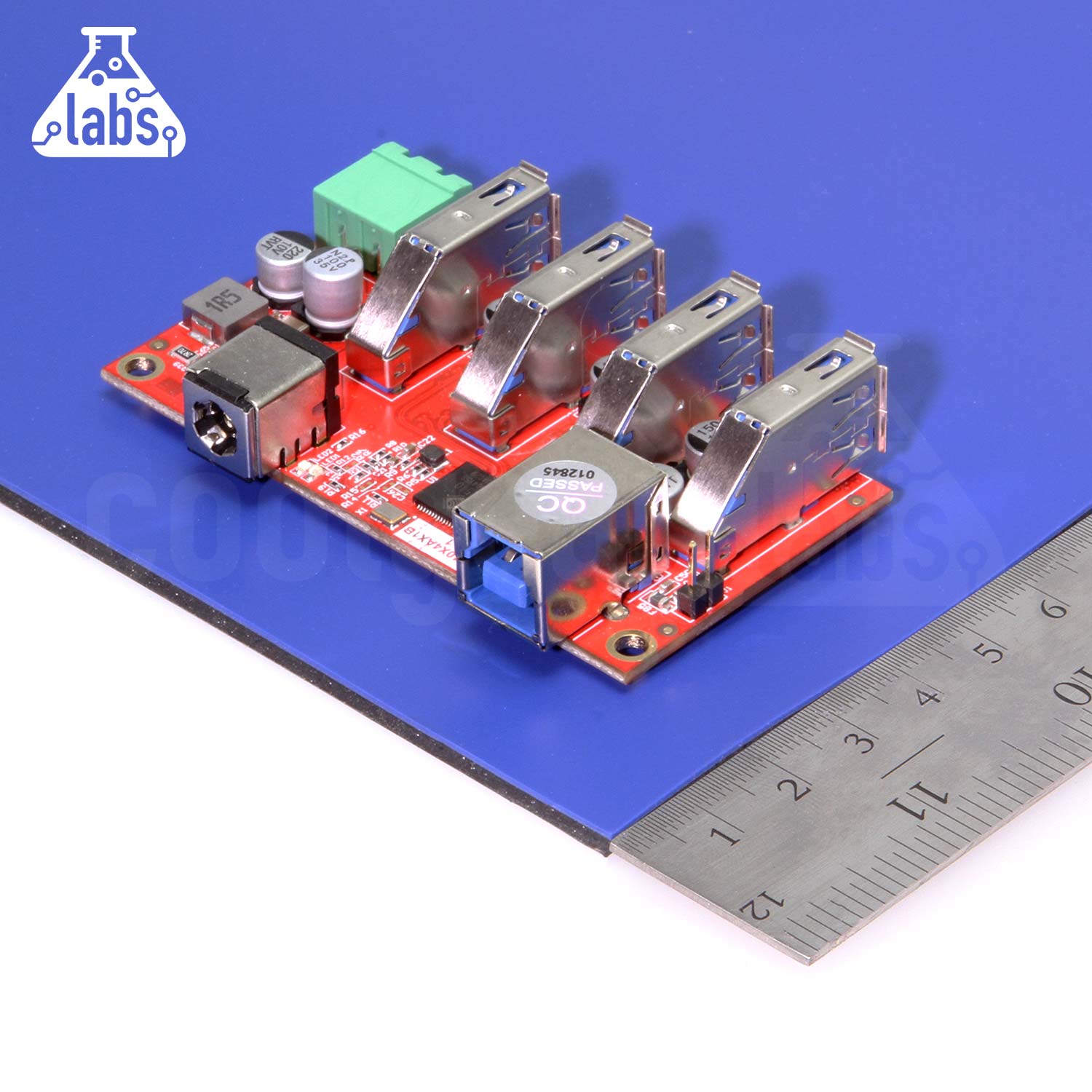

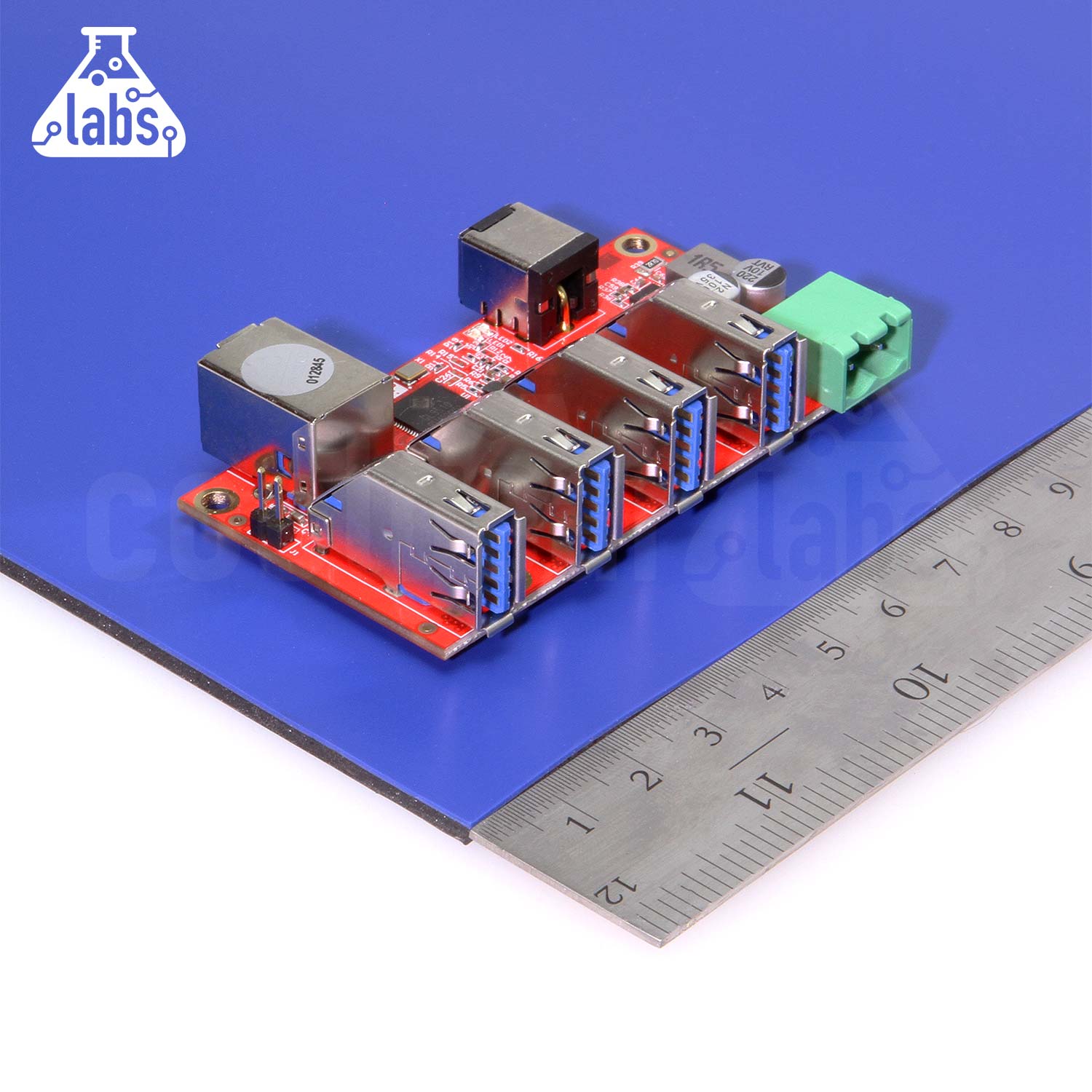

USB 3.2 Gen 1 USB hub board with ESD and surge protection. The Coolgear CGL-3510X4AX1Bv01-DEV features a variable voltage input range of 8~26V DC (self or bus powered), USB 3.2 Gen 1 hub circuit board for incorporating into equipment, assemblies, or a custom enclosure. Supporting 2.4 per port output current.

Each port is individually protected to help protect your peripheral investments. The USB 3.2 Hub component board uses a GL3510 chip. The GL3510 Hub controller chip features native fast-charging and complies with USB-IF battery charging specification rev1.2.

Suited and tested in Automotive Applications with 12~24V power source.

Specifications:

Compliant with USB 3.2 Gen 1 Specification
Utilizes USB IF Certified USB Hub Controller with Fully Qualified Driverless operation in most applications
Upstream USB Type-B port supports Super-Speed (SS), High-Speed (HS) and Full-Speed (FS) traffic
4 USB Type-A downstream ports support Super-Speed (SS), High-Speed (HS) and Full-Speed (FS) traffic
ESD protection per port: ±15 kV(Air), ±15 kV(Contact)
Backward compatible to USB specification 2.0/1.1
Self Power Mode, requires item to be connected to a DC power source
Compliant with Battery Charging 1.2 Specification
Downstream Type-A ports can be used as a Standard Downstream Port (SDP) or Charging Downstream Port (CDP) or Dedicated Charging Port (DCP)
Over current and over voltage protection on each downstream port
Hub Controller Chip: GL3510
2-Pin Terminal Block input or DC Barrel: 2.5mm Inner Diameter, 5.5mm Outer Diameter, Positive Polarity on Center Pin
Item Dimensions: 60.33mm(L) x 39.98mm(W) x 17.67mm(H to connector top)

Specifications

Product Specifications

Power	Input Voltage Range: 8 ~ 26V DC Power Source: DC Barrel Jack 2.5mm ID × 5.5mm OD Bus Power Support: Y – Supports Bus Power Per USB Port Current: 2.4A
Compliance	Country of Origin: China
Physical Characteristics	Color: Red Item Dimensions (L × W × H): 2.87 × 1.57 × 0.68 in. Item Weight (Oz.): 0.0813 lbs. Mounting Style: Bare PCB Ports: 4 USB Ports Screw Lock Compatible: No
What's in the Box	Package Contents: Hub – Board Only
Software	OS Support / Compatibility: OS independent – No software or drivers required
Environmental	Operating Temperature Range: 0C ~ 60C Storage Temperature: -20C ~ 70C
Hardware	Chipset: GL 3510 Downstream USB Ports: 4 Type-A Female USB Upstream Port Types: 1 Type-B Female USB
Performance & Safety	ESD Protection: 15kV Max Data Transfer Rate: 5Gbps
Additional Details	USB Specification: USB 3.2 Gen 1 (5Gbps) Weight: 0.0800 lbs Dimensions: 2.87 × 1.57 × 0.68 in
