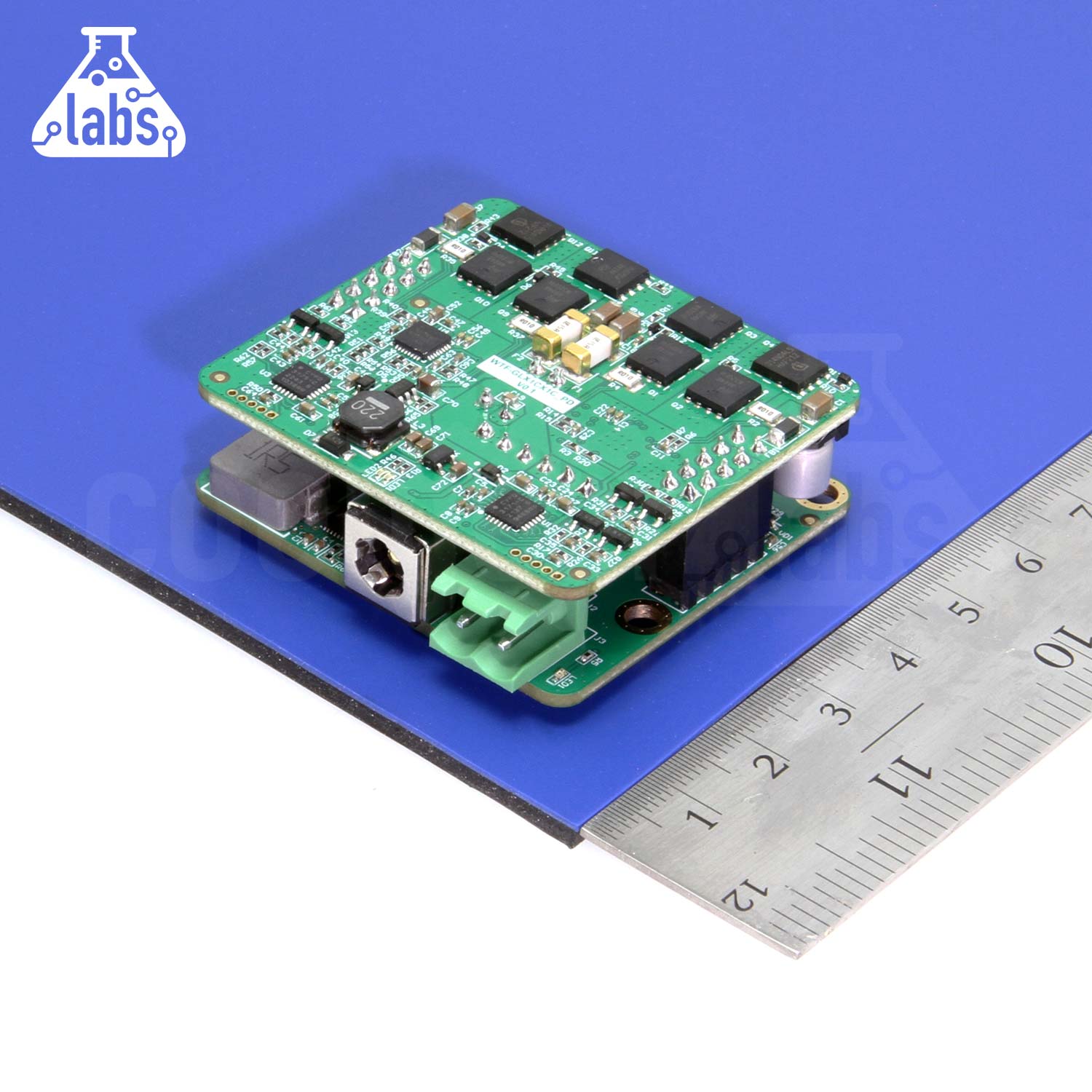

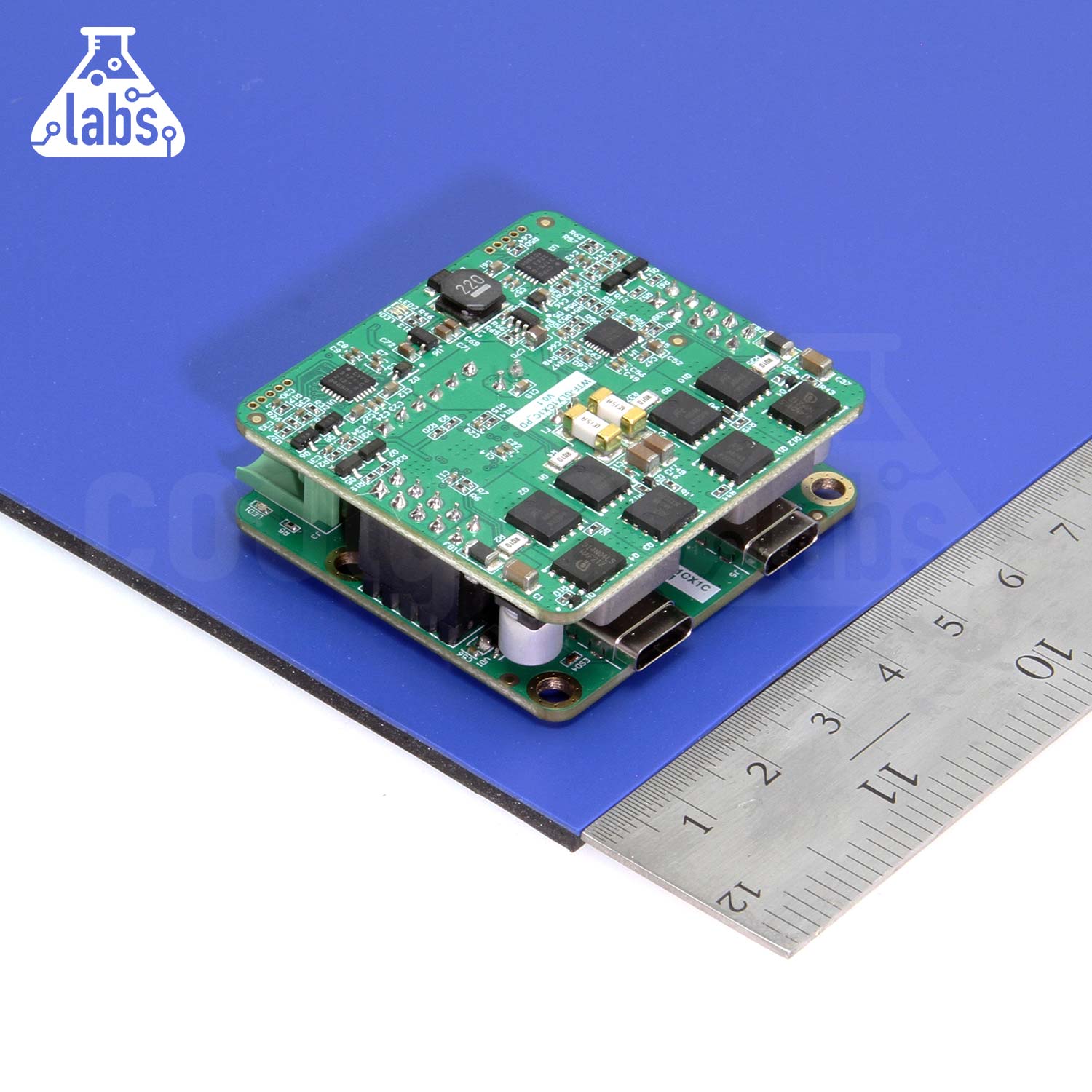

DEV Product | Dual PD Injector PCBA 60W UFP & 60W DFP w/ PPS

ESD Protection: Ensure the safety of your data and devices with ESD protection on all data and CC lines, safeguarding against electrostatic discharge.

Variable Voltage Input: Adapt to your power source seamlessly with a variable voltage input ranging from 12V to 24V, ensuring compatibility with a wide range of setups.

High-Powered Performance: With two PD 3.0 ports, each delivering up to 60 watts, this PCBA supports a range of PD profiles, including 5 / 9 / 12 / 15 / 20, and can be custom-programmed to meet your specific requirements.

**Notice: This product is currently under development and is only available for purchase in quantities of 1 (One) to ensure availability for all customers wishing to evaluate the product. Development products are intended for evaluation and testing purposes only and are not meant to be treated as full, finished products. Designs may change at any time. For more information please refer to the Development Product Terms. Read our full DEVELOPMENT PRODUCT TERMS here.


Out of Stock


Quick Links:

Product Inquiries



Elevate your power and data connectivity with our new Dual PD Injector PCBA 60W UFP & 60W DFP w/ PPS. This PCB assembly seamlessly combines USB-C PD 3.0 and dual USB 3.2 Gen 1 / Gen 2 dual ports, offering both data transfer and power injection per USB PD 3.0 standards. With two 60W PD 3.0 ports, customizable profiles, variable voltage input, ESD protection, and compatibility with extended USB Super Speed Cables, it’s the ultimate solution for high-performance power and data integration. Upgrade your devices and systems with this versatile and reliable PCBA.


  • USB-C full PD 3.0 and USB 3.2 Gen1/Gen2 (option) Dual Port One to Host and One to Device that passes data through and Injects both ports with power as defined in USB PD 3.0
  • 2x PD 3.0 Ports up to 60 Watt each with PD profiles 5 / 9 / 12 / 15 / 20 and can be custom programed
  • Variable Voltage Input +12~24V DC
  • TVs and ESD protection on all Data and CC line
  • Works with up to 15Meter USB Super Speed Cables in UFP and DFP Port

Product Specifications

ESD Protection

15KV Surge Protection

Input Voltage

+12~24V DC

Item Dimensions (L × W × H)

1.93 × 1.84 × 0.69 in.

Item Weight

0.259 lbs.


3 USB-C Ports

Other Data
Power Delivery Support

PD 3.0


0.259 lbs


1.93 × 1.84 × 0.69 in


Product Documentation & Drivers

Need drawings, CAD files, or other compliance documentation? Click HERE
