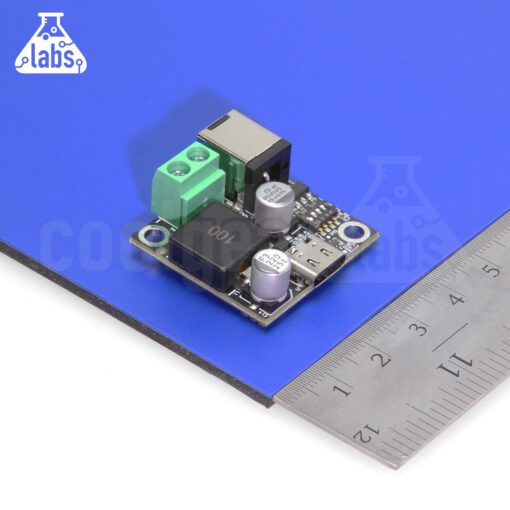

This Micro High Power Single Port USB Type-C Industrial PCBA that complies with the latest USB-C and PD standards. Intended for use in PC power adapters, mobile chargers, car chargers and power bank applications. This charging board provides one 65W USB Type-C PD port.

USB Type-C 65-Watt Capable with PPS Buck-Boost with variable 12~24V input
PD Voltage Profiles: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A, 20V/5A
Extensive protection including ESD, over/under current, and short circuit protection
USB Type-C PD with PD 2.0 & 3.0 support

**Notice: This product is currently under development and is only available for purchase in quantities of 1 (One) to ensure availability for all customers wishing to evaluate the product. Development products are intended for evaluation and testing purposes only and are not meant to be treated as full, finished products. Designs may change at any time. For more information please refer to the Development Product Terms. Read our full DEVELOPMENT PRODUCT TERMS here.

$79.99

In stock

Model No. WTF-1xIP6559_V03-DEV

Download Sales Flyer

Product Documentation

WTF-1xIP6559_V01-DEV - 3D Model (CAD)

Quick Links:

Project Inquiries

Description

Features:

USB type C 65-Watt Capable with PPS Buck-Boost with variable 12-24V input
Type-C and PD protocol
Support 5V/9V/12V/15V/20V output
PD Voltage Profiles: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A, 20V/5A
Supports PD2.0/PD3.0 protocol
Supports E-MARK cable

Protection:

ESD protection on input and output
Over and under-voltage
Output over-current protection
Short circuit protection

*100W Version in Aluminum Shell Coming Soon

Specifications

Product Specifications

Performance

ESD Protection	15KV Surge Protection
Over Current Protection	Y
Over Voltage Protection	Y

Power

Input Voltage	+12~24V DC
Over Current Protection	Y
Over Voltage Protection	Y
Power Source	2-Pin Terminal Block

PD Profile Support

Voltage Profiles

5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A, 20V/5A

Mechanical

Item Dimensions (L × W × H)	1.30 × 1.21 × 0.57 in.
Item Weight	0.031 lbs.

Weight	0.03 lbs
Dimensions	1.30 × 1.21 × 0.57 in

Support

Product Documentation & Drivers

Need drawings, CAD files, or other compliance documentation? Click HERE
