Industrial USB 3.2 Gen 1 to Gigabit Ethernet Adapter w/ Screw Locking USB-C Port
Model No.
CG-31CG1EA
Industrial USB-C to Gigabit Ethernet adapter with screw-locking cable and rugged metal housing. Supports 10/100/1000 Mbps, ESD and surge protection, and secure mounting options for factory, kiosk, and field applications.
Product Documents
Product Documents
Software & Drivers
Quick Links:
Description
Introducing the Industrial USB 3.2 Gen 1 to Gigabit Ethernet Adapter

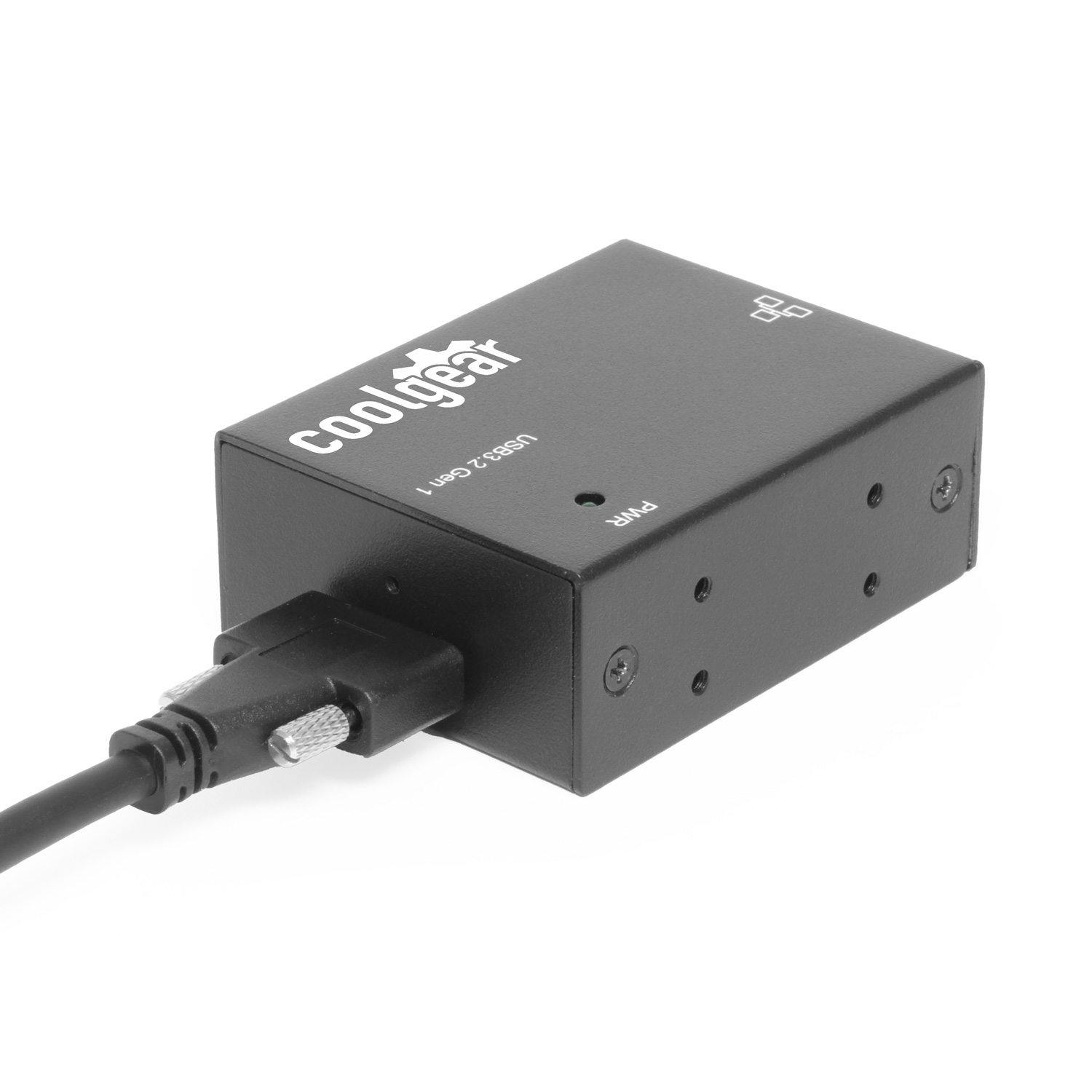

The CG-31CG1EA is engineered for stable and secure networking in industrial and field-deployed environments. This rugged USB-C to RJ45 adapter supports Gigabit Ethernet and is housed in a hardened metal enclosure with optional DIN rail and wall mount support. It includes a detachable USB-C cable with screw-lock functionality for dependable connections—ideal for automation systems, kiosks, embedded devices, and mobile field stations.
Key Features and Benefits
- Industrial-Grade Durability: Housed in a rugged metal chassis for dependable operation in harsh environments like factories, labs, and mobile systems.
- Secure USB-C Connection: Features a detachable USB-C cable with a screw-locking mechanism to prevent accidental disconnections during operation.
- Gigabit Ethernet Speeds: Supports 10/100/1000 Mbps connections with full-duplex IEEE 802.3x flow control and half-duplex backpressure flow control.
- Surge and ESD Protection: Integrated 600W surge protection and 15KV ESD safeguard sensitive components from electrical hazards.
- Wide Compatibility: Compatible with Windows 7/8/10/11, Mac OS, and Linux kernel up to 6.9.0.
- Energy Efficient Ethernet: Supports IEEE 802.3az for reduced power consumption during idle times.
- Visual Status Indicators: LED indicators display real-time power and Ethernet connection status for easy diagnostics.
- Bus-Powered Operation: Requires no external power supply, drawing power directly from the USB port for streamlined deployment.

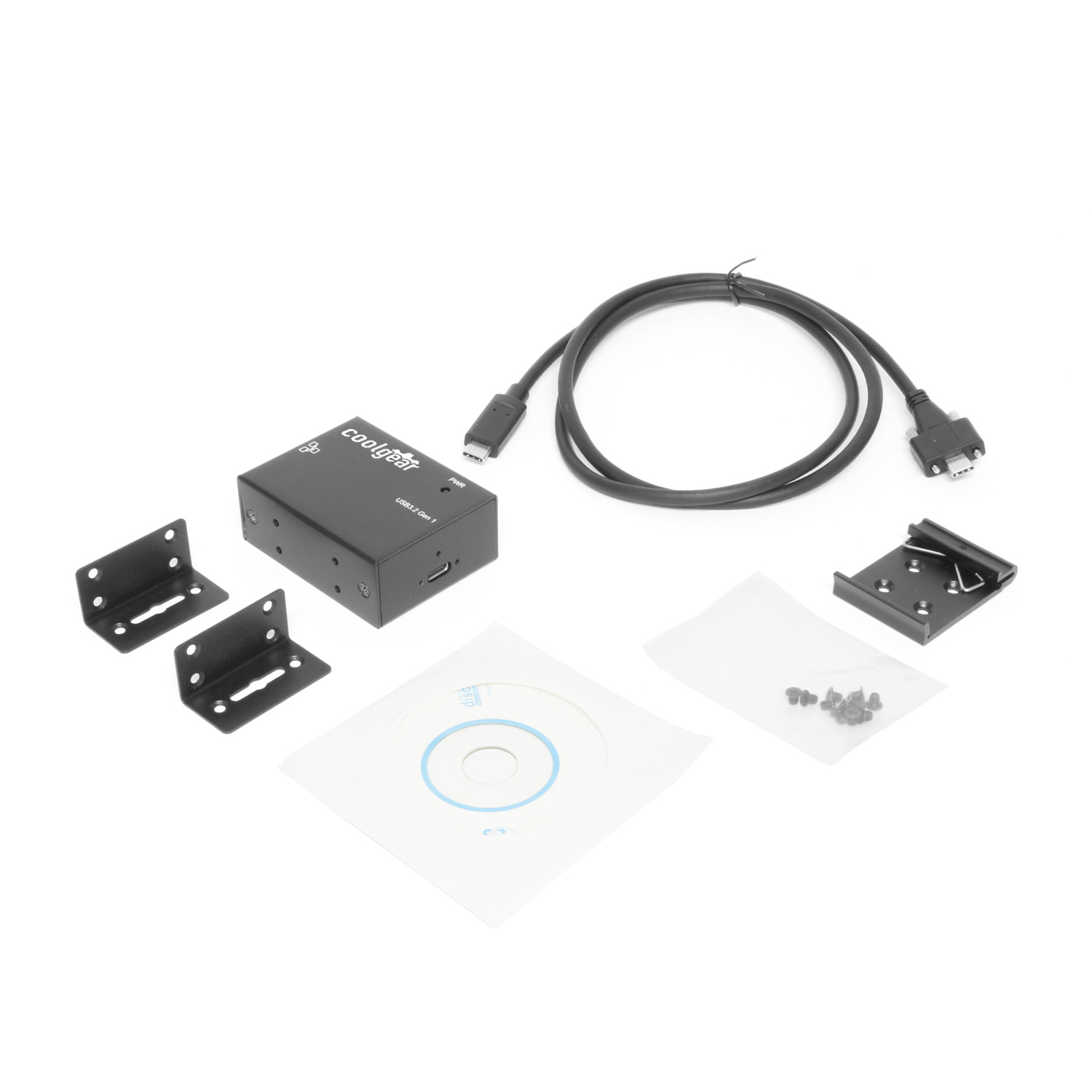

Package Contents
- CG-31CG1EA USB-C to Ethernet Adapter
- USB-C Screw Lock Cable
- DIN Rail Clip (Optional)
- 2x Wall Mount Flanges
- Screw Pack
Use Cases
Use Cases:
Industrial & Automation
- Factory Floor Networking: Provides stable Gigabit Ethernet for PLCs, HMIs, and machine control systems.
- Machine Vision & Robotics: Ensures uninterrupted data transmission for automated machinery and visual inspection setups.
Kiosk & Embedded Systems
- Interactive Kiosks: Delivers reliable Ethernet for self-service stations and digital signage.
- POS Terminals: Maintains continuous LAN connection in transaction-heavy environments.
Field Service & Diagnostics
- Portable Laptop Networking: Allows technicians to access isolated or secured networks from USB-C laptops.
- Remote Monitoring Tools: Facilitates field deployment of network-connected monitoring and logging equipment.
IT & Engineering Labs
- LAN Extension for Workstations: Adds Gigabit Ethernet to newer laptops and desktops without native RJ45 ports.
- Test Bench Networking: Provides quick network integration for development hardware and diagnostic stations.
Specifications
Product Specifications
| Compliance |
| ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Physical Characteristics |
| ||||||||||
| Software |
| ||||||||||
| Environmental |
| ||||||||||
| Hardware |
| ||||||||||
| Performance & Safety |
| ||||||||||
| Other Data |
|
Support
Product Documentation & Drivers
Product Documents
Product Documents
Software & Drivers
Need drawings, CAD files, or other compliance documentation? Click HERE
