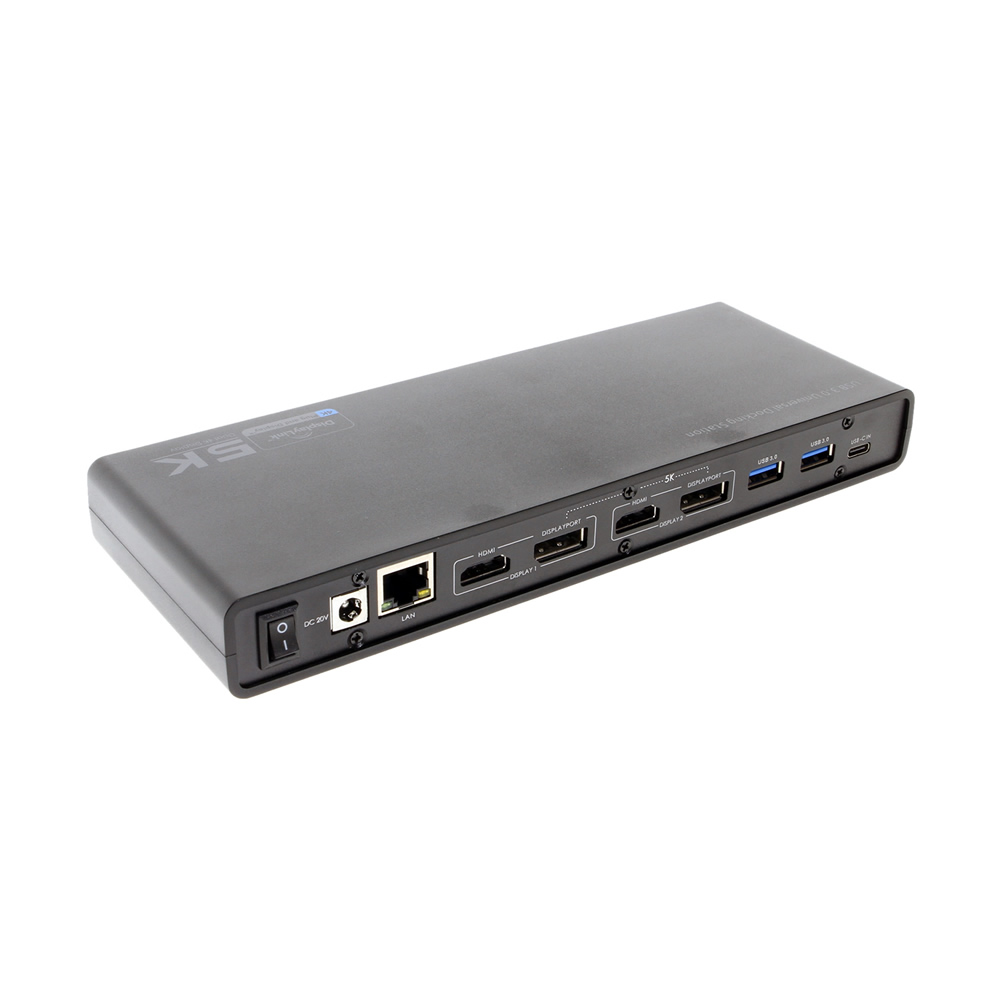

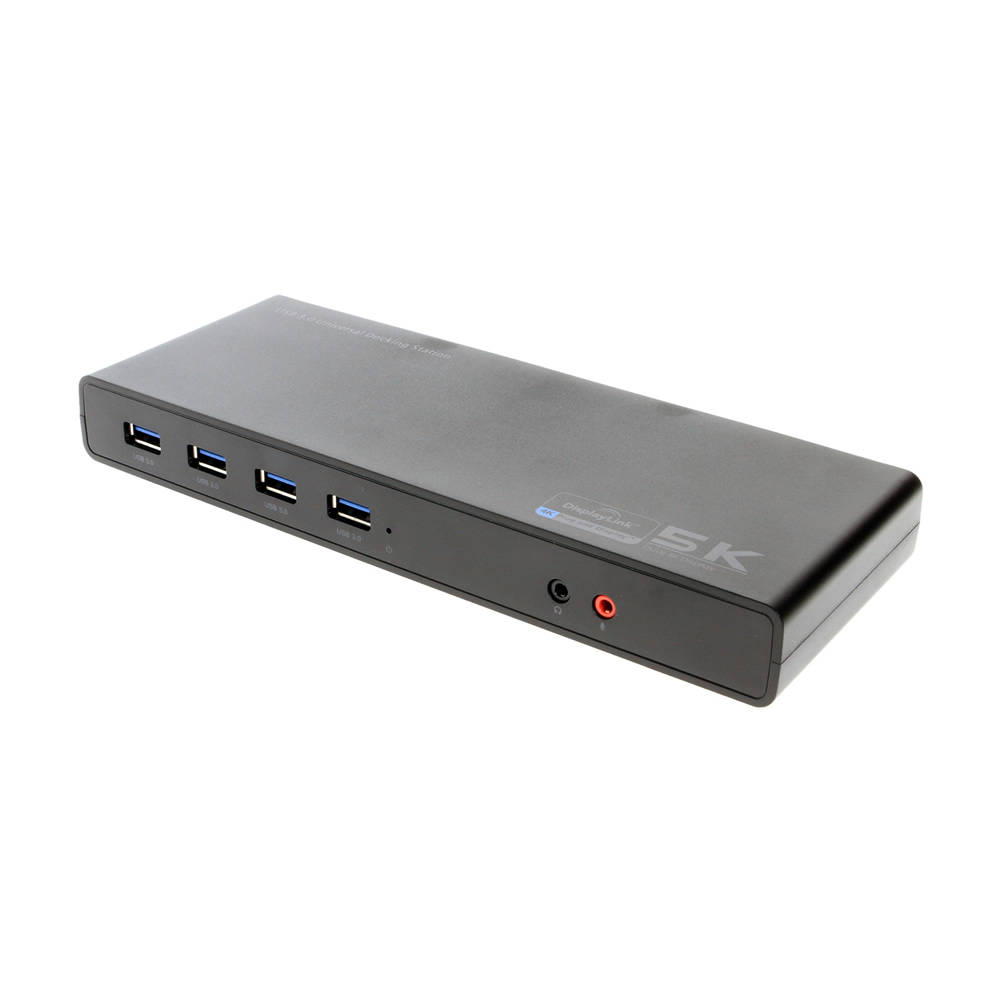

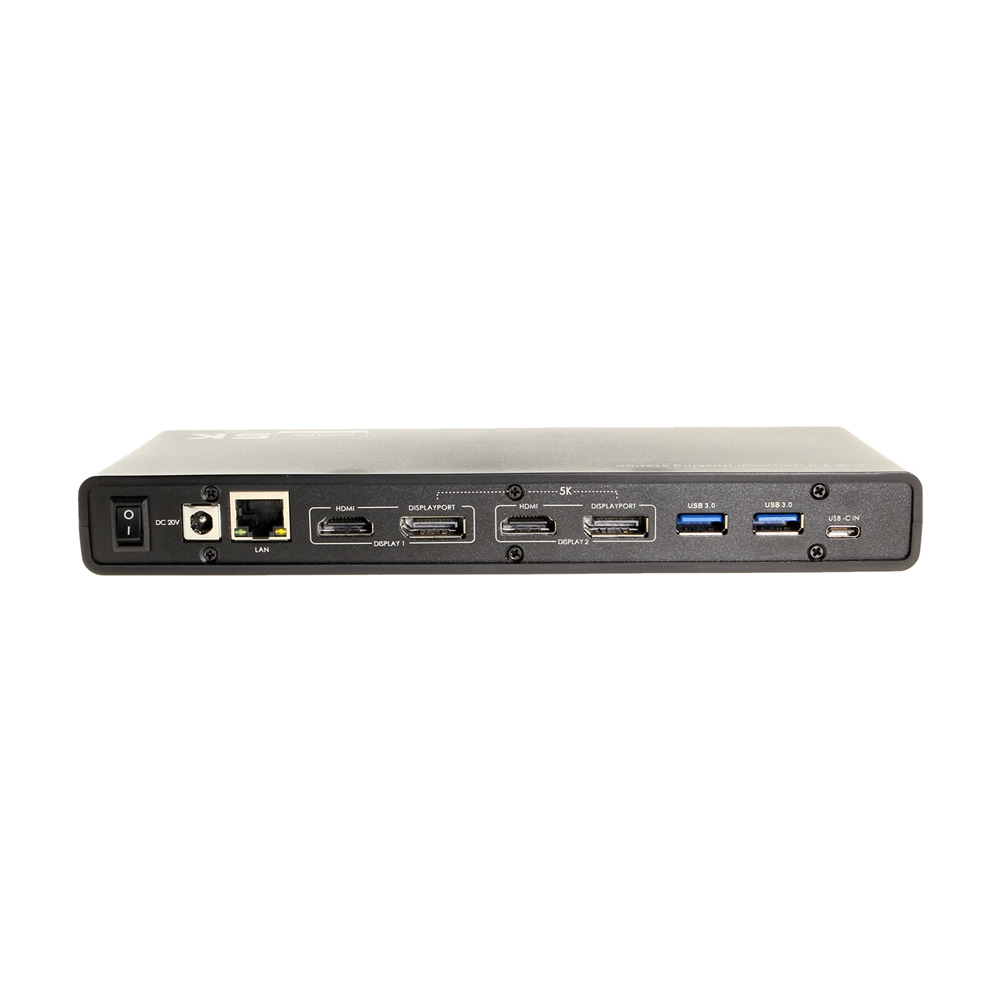

USB C Docking Station with Ultra 5K DisplayPort & Gigabit Ethernet

Universal Connections through USB C

Universally connect all your accessories from USB to Video and audio through the USB C Docking Station. Connect up to 14 accessories to expand your working environment from USB Type-C technology

  • Compatible with both Type-C and Type-A Laptop/Desktop Computer
  • Dual 4K HDMI / Dual 4K DisplayPort / 4K HDMI plus 4K DisplayPort output
  • Built-in 10/100/1000 Base-T Gigabit Ethernet RJ45
  • Super-speed USB 3.0, speed up to 5Gbps and backward compatible with 2.0/1.1

$230.95

Out of Stock

Model No. CG-UC5KUDS15

Quick Links:

Description

USB C Docking Station for Universal Connectivity

This USB C docking station is a universal connection point between super-speed USB 3.0 data transmission, up to 5K DisplayPort, and audio functions. The PC connection is formed from the host USB Type-C port connection. The USB C docking station works seamlessly as it allows you to connect up to two additional monitors and 14 accessories through a single USB C Cable.

The universal 5K USB C docking station is compatible with Windows 10, 8.1, and 7 or Apple Mac OS. Its software allows full configuration of all additional USB displays, see list below:

  • Support for up to 6 additional USB Displays (Windows)
  • Support for up to 4 additional USB Displays (Mac OS X)
  • Expand USB 3.0 connectivity
  • Supports dual DP or dual HDMI display
  • Gigabit Ethernet
  • Mic in and Audio out
  • Extended, Mirrored, Primary Display
  • Extended left, right, above, or below
  • Rotation
  • Layout of displays
  • Color Depth

USB C Docking Station Features and Requirements

  • Compatible with both Type-C and Type-A Laptop/Desktop Computer
  • Supports resolutions up to 5K (5120 x 2880 @ 60Hz) when using dual DP ports simultaneously
  • Dual 4K HDMI / Dual 4K DisplayPort / 4K HDMI plus 4K DisplayPort output
  • Supports and Extend and Mirror Video Mode
  • Supports 5.1 Channel Surround Sound
  • Built-in USB 3.0 GPU, Plug and Display
  • Separate microphone input and audio output
  • Super-speed USB 3.0, speed up to 5Gbps and backward compatible with 2.0/1.1
  • Built-in 10/100/1000 Base-T Gigabit Ethernet RJ45 for increased network performance
  • Microsoft Windows or Mac OS X required

Note:
Display1 or Display2 of HDMI and DP if connected to the monitor at the same time will enable DP priority mode

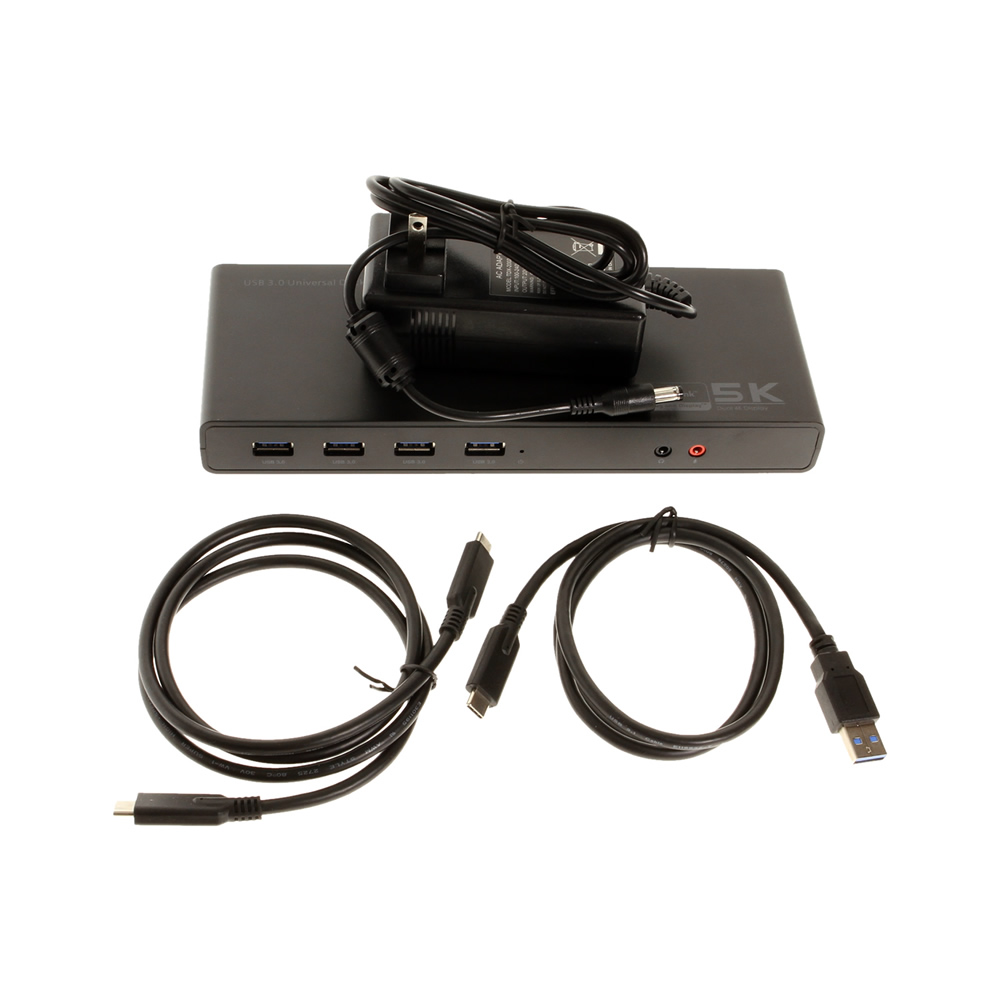

Package Contents

  • 1 x USB C Universal Docking Station
  • 1 x USB 3.1 C to C Cable
  • 1 x USB 3.0 A to C
  • 1 x User Manual
  • 1 x Software CD
  • 1 x DC20V Certified Power Adapter
Specifications

Product Specifications

Identifier
UPC

045079159501

Mechanical
Color

Smoke

Ports

7 USB Ports

USB
USB Type

Type-C, USB 3.0

Other Data
Connector

HDMI, RJ45, Type-C, USB Type-A Female, USB Type-C Female

Weight

2.050 lbs

Dimensions

12.500 × 6.125 × 2.375 in

UPC: 045079159501
