7 Port USB 3.2 Gen 1 Mini Powered Hub w/ ESD Protection & Power Adapter

Model No. CG-U3MINI7PH

Industrial Grade | +5V DC Input | Surge Protection | Desk Mount USB Hub | 5 Gbps

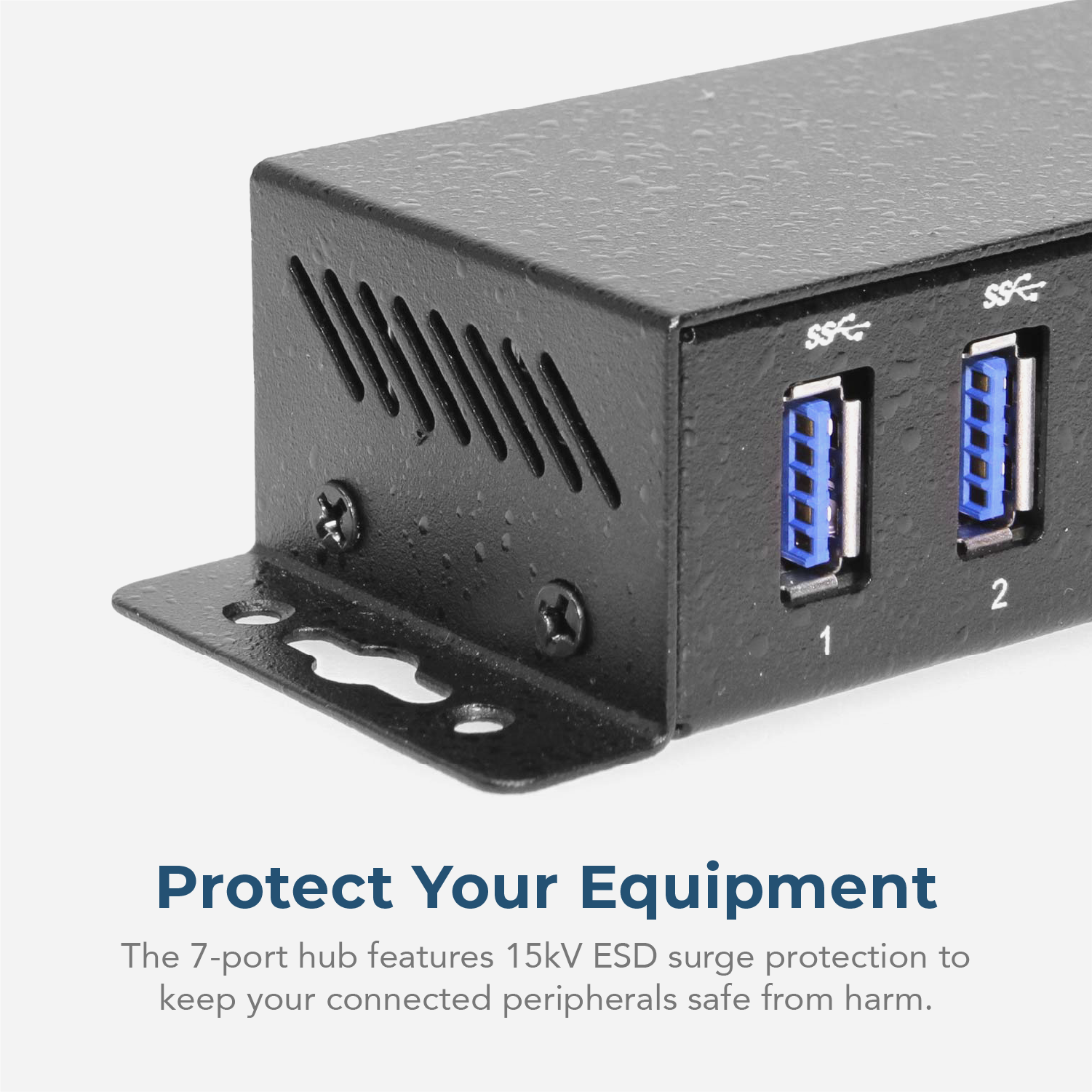

  • Protect Your Equipment: The 7-port hub features 15kV ESD surge protection to keep your connected peripherals safe from harm.
  • Super Fast Speeds: This USB hub is 3.2 Gen 1 compliant, ensuring super-fast 5Gbps data transfer speeds. It supports super speed, high speed and full speed which enables it to be compatible with USB 2.0 / 1.1.
  • Small-Scale Quality: Housed in a compact steel chassis, the 7-port hub is perfect for discreet installations in offices, labs, warehouses, heavy machinery, automation equipment, and other industrial applications.

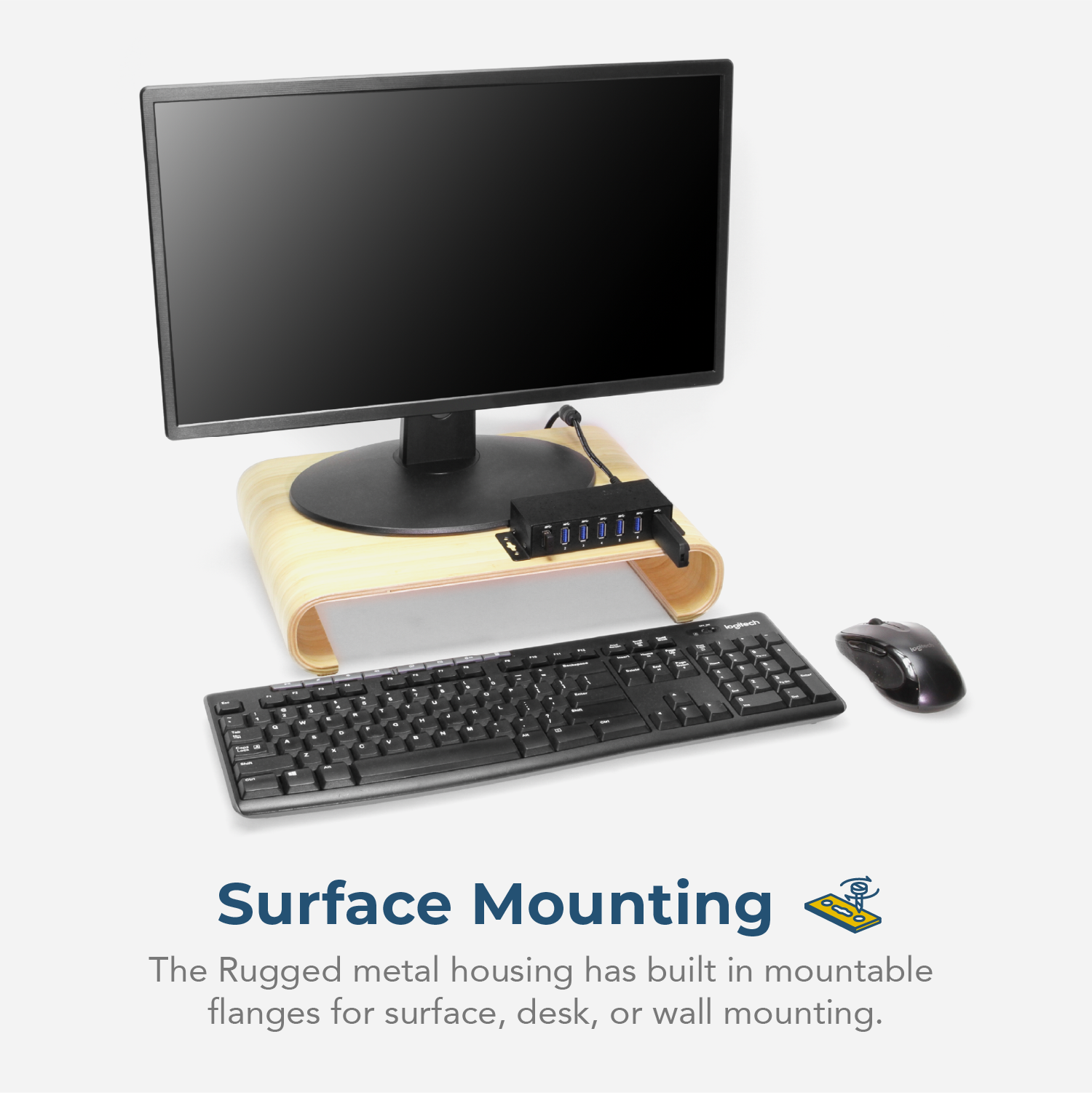

  • Workstation ready: Boost your productivity with this desk mount USB hub ideal for integrating into your workstation setup, featuring built-in surface mounting flanges for easy installation on or under your desk.

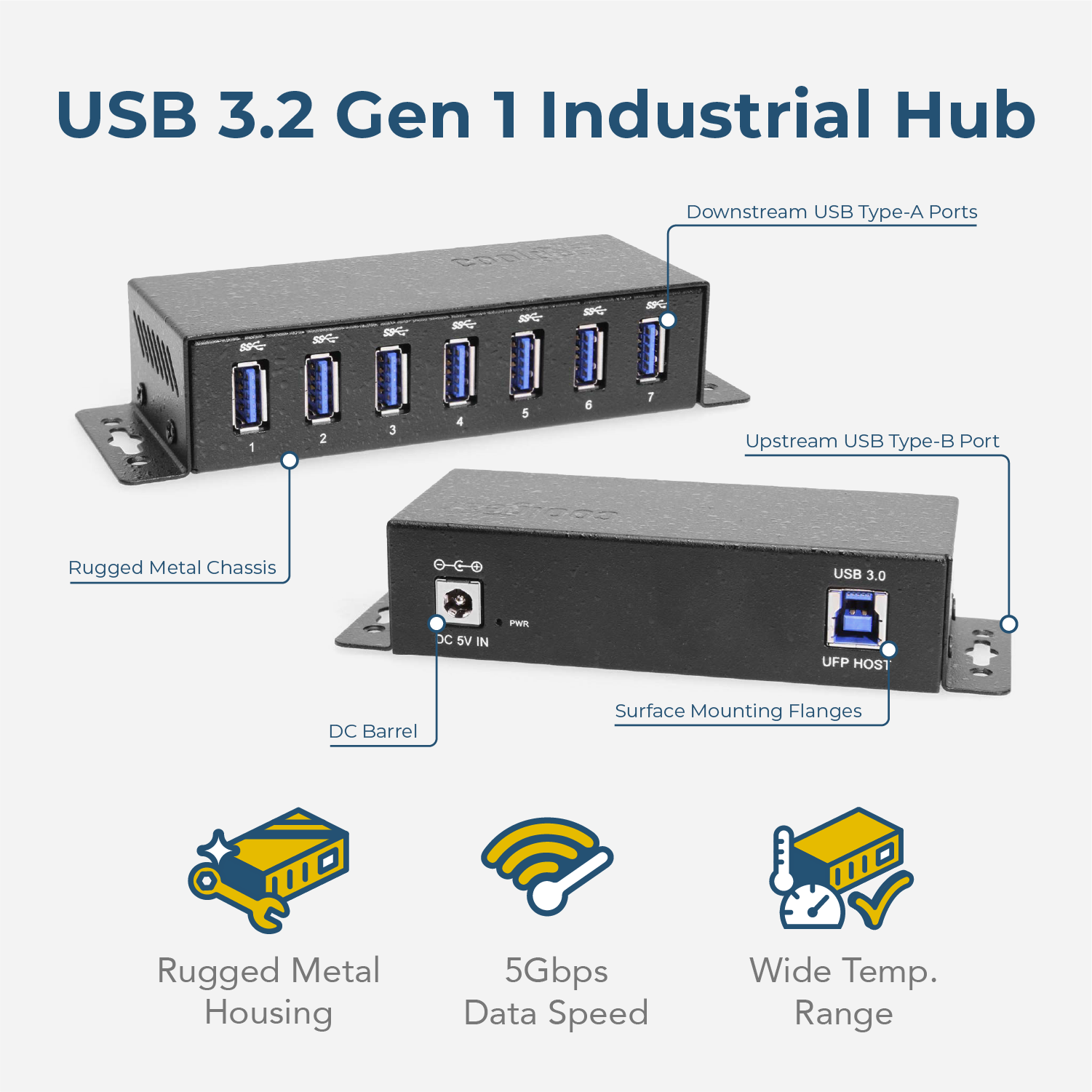

  • Upstream: 1 USB port, Type B connector
  • Downstream: 7 USB ports, Type A connectors
  • Power Connector: DC Barrel 2.5mm ID × 5.5mm OD, Center Pin Positive
  • Mounting Options: Wall & Surface

4-port version available

$54.95

Bulk Pricing

Model No. CG-U3MINI7PH

In stock

Also available from:

Volume Pricing

Units Discount Price
1 - 4 $54.95
5 - 11 2 % $53.85
12 - 24 5 % $52.20
25 - 49 7 % $51.10
50+ 10 % $49.46
Need some help? Contact us.
Description

Introduction:

USB 3.2 Gen 1 powered desk mount USB hub with industrial-grade chassis and surface mounting flanges. The CG-U3MINI7PH is a 5V DC input, USB 3.2 Gen 1 hub with ESD and Surge protection. This USB 3.2 Gen 1 Hub will support fast charging for Apple and Samsung Galaxy devices. Each port is protected individually to help keep your peripherals safe. The USB 3.2 Gen 1 Hub uses a GL 3510 chip, each port is on an individual circuit to maintain high current and protection. The GL3510 Hub controller chip features native fast-charging and complies with USB-IF battery charging specification rev1.2.

Desk Mount USB Hub Features:

  • Compliant with USB 3.2 Gen 1 Specification
  • Upstream port supports Super-Speed (SS), High-Speed (HS) and Full-Speed (FS) traffic
  • Downstream ports support SS, HS, FS, and Low-Speed (LS) traffic
  • 1 control pipe and 1 interrupt pipe
  • Backward compatible to USB specification Revision 2.0/1.1
  • Compliant with USB Battery Charging Revision v1.2, supporting CDP, DCP, and ACA-Dock
  • Downstream ports can be turned from a Standard Downstream Port (SDP) into Charging Downstream Port (CDP) or Dedicated Charging Port (DCP)
  • Downstream devices can be charged while upstream VBUS is not present, which can be applied on wall charger applications
  • Upstream port is capable of charging and data communicating simultaneously for portable devices supporting ACA-Dock or proprietary charging protocols
  • Compatible with Windows 7, 8,10,11, Linux and Mac OS X
  • Perfect for desk and workstation applications, this desk mount USB hub features integrated mounting flanges for a simple install

Specifications:

  • Chip: GL3510
  • USB 3.2 Gen 1 Compliant
  • Supports High Speed and Full Speed transmit and Receive
  • Complies with USB-IF battery charging specification rev1.2
  • Automatic switching between self-powered and bus-powered modes

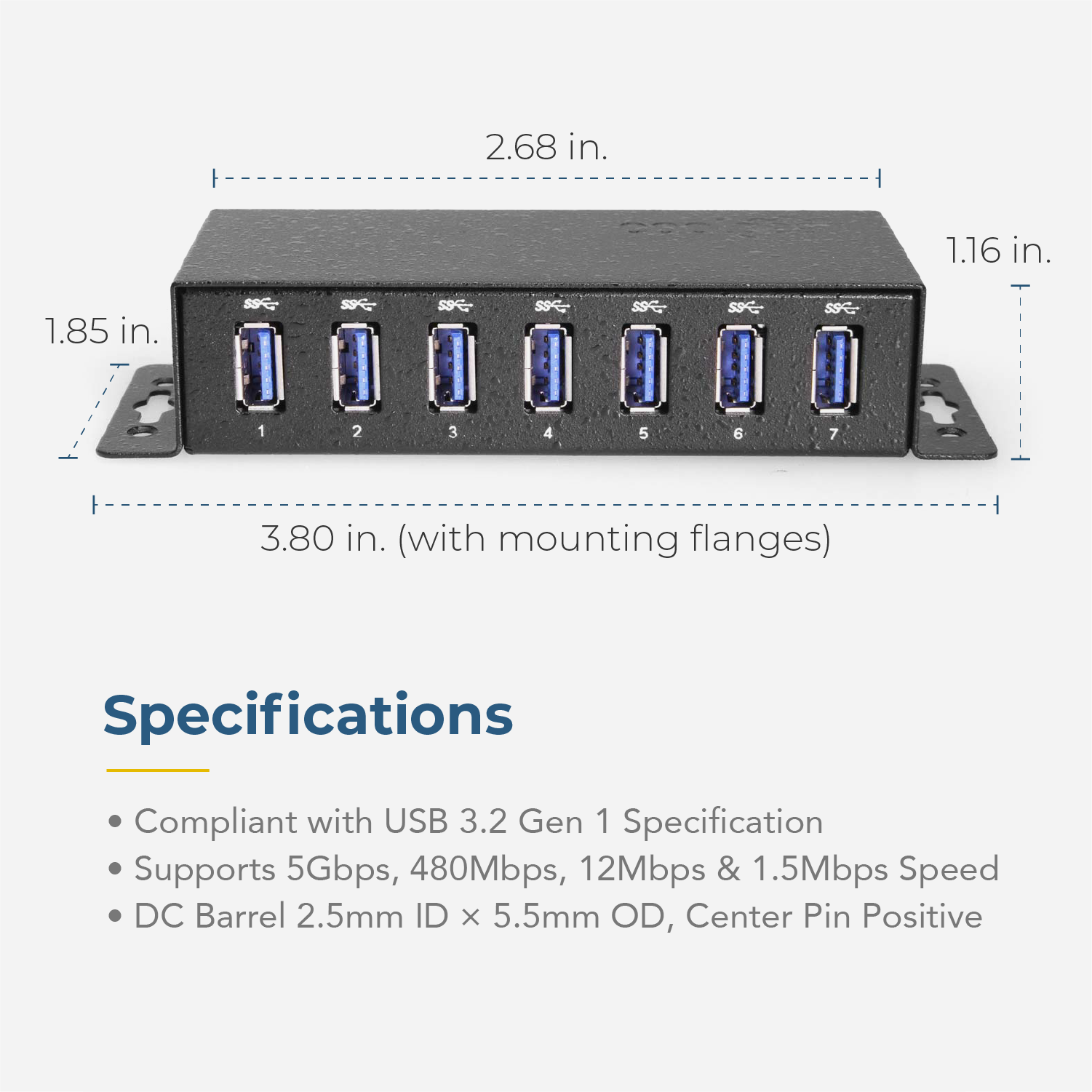

  • Item Dimensions: 4.61″(L 5.57″ w/ears) x 1.85(W) x 1.16(H)
  • Item Weight: .56 lbs. (5.2 oz)

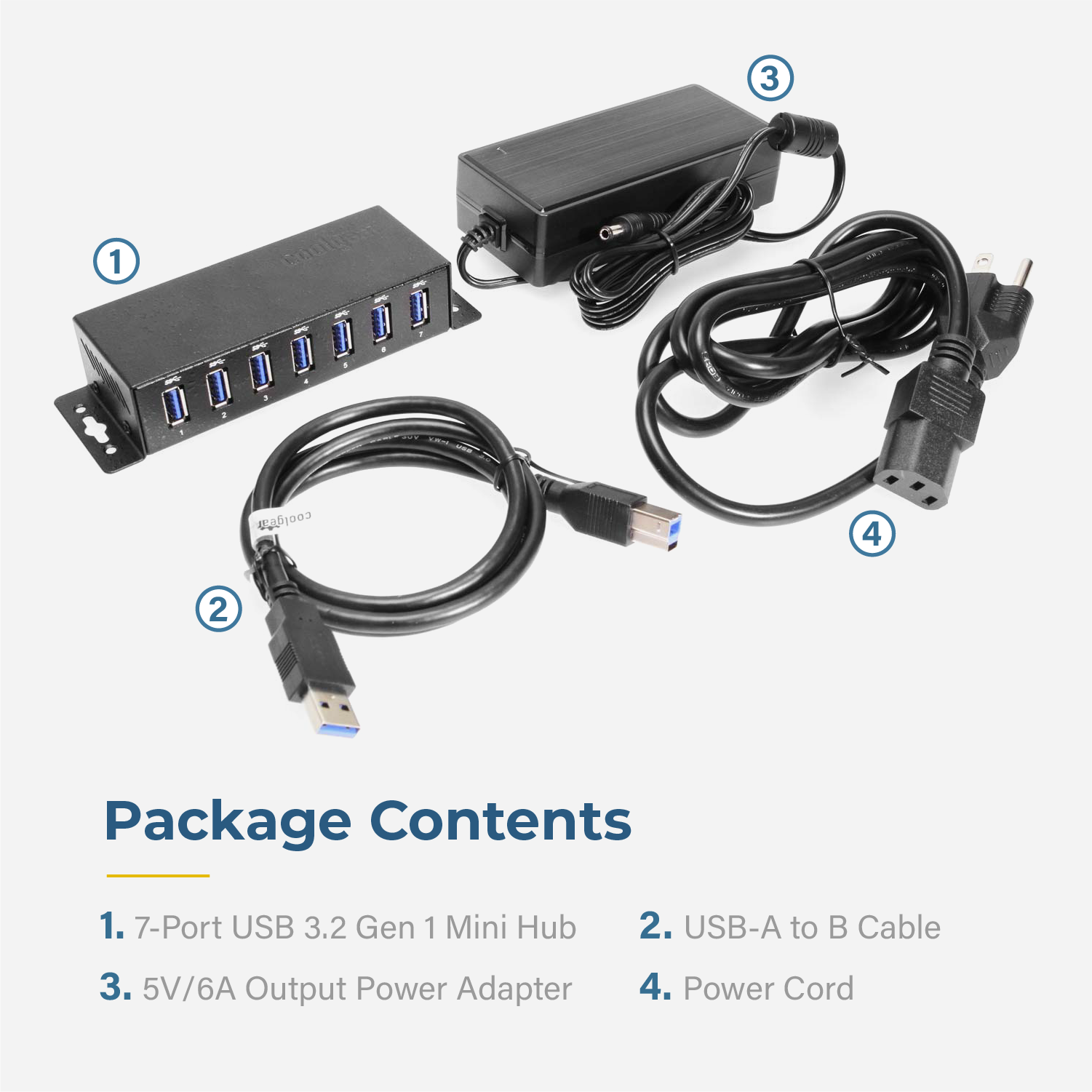

Package Contents:

  • USB 3.2 Gen 1 7-Port Hub
  • 6 Amp 5V DC Mini-Switching Power Adapter
  • 3ft. USB A to B Cable for Hub

*Surface Mounting screws not included.

Specifications

Product Specifications

Power
Input Voltage

+5V DC

Power Source

AC Adapter Included, DC Barrel Jack 2.5mm ID × 5.5mm OD

Idle Consumption

57mA @ 5V / 35.6mA Bus Power

External Power Required

No

Charging Protocols

BC 1.2, Charging Downstream Port (CDP), Dedicated Charging Port (DCP), Samsung, Standard Downstream Port (SDP)

Per USB Port Current

2A

Compliance
Country of Origin

China

Physical Characteristics
Color

Black

Item Dimensions (L × W × H)

5.57 × 1.85 × 1.16 in.

Item Weight

0.56 lbs.

Mounting Style

Surface / Wall Mount

Ports

7 USB Ports

Material of Construction

Galvanized Steel

What's in the Box
Package Contents

Hub, Power Adapter, Power Cable, USB-A to USB-B Cable

Software
OS Support

Win 11, Linux, Mac OSX, Win 10, Win 7, Win 8

Environmental
Operating Temperature

0°C to 55°C (32°F to 131°F)

Storage Temperature

-20 to 75°C (-4 to 167°F)

Humidity

5% ~ 95% (non-condensing)

Product Information
Warranty

1 year from date of purchase

Hardware
Chipset

GL3510

Downstream USB Ports

7 Type-A Female USB

Upstream USB Ports

1 Type-B Female USB

Performance & Safety
ESD Protection

15KV Surge Protection for Each Port

Isolated/Surge Protected

Yes

Max Data Transfer Rate

5Gbps

Over Current Protection

Yes

Over Voltage Protection

Yes per buck

Surge Protection

350W

Other Data
USB Interface

USB 3.2 Gen 1

UPC

045079163706

Series

Weight

0.95 lbs

Dimensions

5.25 × 4.50 × 1.500 in

UPC: 045079163706
Support
Hubs F.A.Q.

Product F.A.Q.

View frequently asked product questions below. Still need help? Reach out!

  • Can the hub be used without a power supply?
    In some cases, yes. USB peripherals that only require low power (i.e. keyboards & mice) can be used without a power adapter. Power in this case is drawn from the host’s USB port.

    When high-power USB peripherals are used, a power supply for the USB hub may be required. In other cases, the USB peripheral may require their own power adapters, in this case, a power supply for the hub may not be required. Without ample power though, the USB hub or connected peripherals may not operate correctly. It is recommended to use an included power supply when possible.

  • After waking up from sleep mode, my computer/host no longer recognizes my USB device.
    If the USB device does not function properly after your computer or host has been in sleep mode, it is likely that Windows turned off the USB Root hub in order to save power.

    To prevent this, follow the steps below (depending on your operating system).

    Windows 10 / 8

    1. On your keyboard, press the Windows key + X and select Control Panel.
    2. Click Hardware and Sound, then click Power Options.
    3. Click Change plan settings for the plan you want to change.
    4. Click Change advanced power settings.
    5. Click the plus sign (+) next to “USB settings” and “USB selective suspend setting” to expand the options and change the setting to Disabled.
    6. Click OK to apply the setting.

    Note: You may need to disconnect and re-connect your USB device after applying these settings.

    Windows 7 / Vista

    1. Click the Start button and select Control Panel.
    2. Click Hardware and Sound, then click Power Options.
    3. Click Change plan settings for the plan you want to change.
    4. Click Change advanced power settings.
    5. Click the plus sign (+) next to “USB settings” and “USB selective suspend setting” to expand the options and change the setting to Disabled.
    6. Click OK to apply the setting.

    Note: You may need to disconnect and re-connect your USB device after applying these settings.

    Windows XP

    1. On your desktop, right-click the My Computer icon and select Properties.
    2. Click the Device Manager tab.
    3. Expand Universal Serial Bus controllers by clicking the arrow to the left of it.
    4. Right-click the first USB Root Hub device and select Properties.
    5. Click the Power Management tab.
    6. Clear the box next to Allow the computer to turn off this device to save power.
    7. Click OK to apply the setting.
    8. Repeat steps 4-7 for any remaining devices in the Universal Serial Bus Controllers section with “Root Hub” in the name.

    Note: You may need to disconnect and re-connect your USB device after applying these settings.

  • The hub is properly hooked up, but is not functioning correctly. What can I do?
    Testing all setup components is the best place to begin troubleshooting. To determine the source of the issue, individually test your:

    • USB Cable by using it in another setup, or trying another cable.
    • Host USB Port by connecting another device or thumb drive.
    • Connected Peripherals by connecting directly to the host.

    Moving on to troubleshooting the hub itself. Attach a USB peripheral. The USB hub itself will not appear in hardware listings on your host’s system. USB devices connected however, will appear when connected. If the connected device is still not being found, try:

    • Installing the required drivers for the USB peripheral.
    • Install the most recent drivers for the USB controller and/or motherboard chipset.

    USB hubs do not require drivers or software.

    Troubleshooting the desired USB peripheral may be in order. If the peripheral is still not being recognized, attempt:

    • Attaching external power to the peripheral, if required.
    • Confirming if the peripheral functions on a standard USB port.
    • Testing if basic USB peripherals work, such as keyboards or mice.
  • How can external power be connected to the industrial USB hub?

    External power is supplied by connecting to the terminal block located on the hub. For when an external power adapter is required check out the Accessories & Replacement Parts section on this product page. To view all of our hub accessories and power supplies, visit the category here.

    To determine the power requirements, the equation to use is P = 5 * I * N, where:

    P is the power wattage.

    is the USB port voltage.

    I is the current of the USB port in Amps (USB 2.0 is 0.5A, USB 3.0 is 0.9A.

    N is the number of USB ports.



    As an example using the equation, a 4 port hub would reflect a minimum wattage of 18 watts.

    Knowing the minimum requirement, a proper power adapter can be chosen. In this case the voltage of a power supply should be within 7 to 24 or 7 to 40 Volts DC, depending on the specifications of the USB hub. Also, the power supply must convert AC to DC (no AC output).

    Power supplies often come with a voltage (V) rating and an amperage (A) rating. To determine the current in amps, use I = P / V, where the following is true:

    I is the current of the power supply.

    P is the calculated power of the hub.

    V is the chosen voltage of the power supply

    Continuing the example, the 4 port hub requires 18 W and the power supply you choose is 12V, the current of the power supply would be I = 18/12, I = 1.5A.
