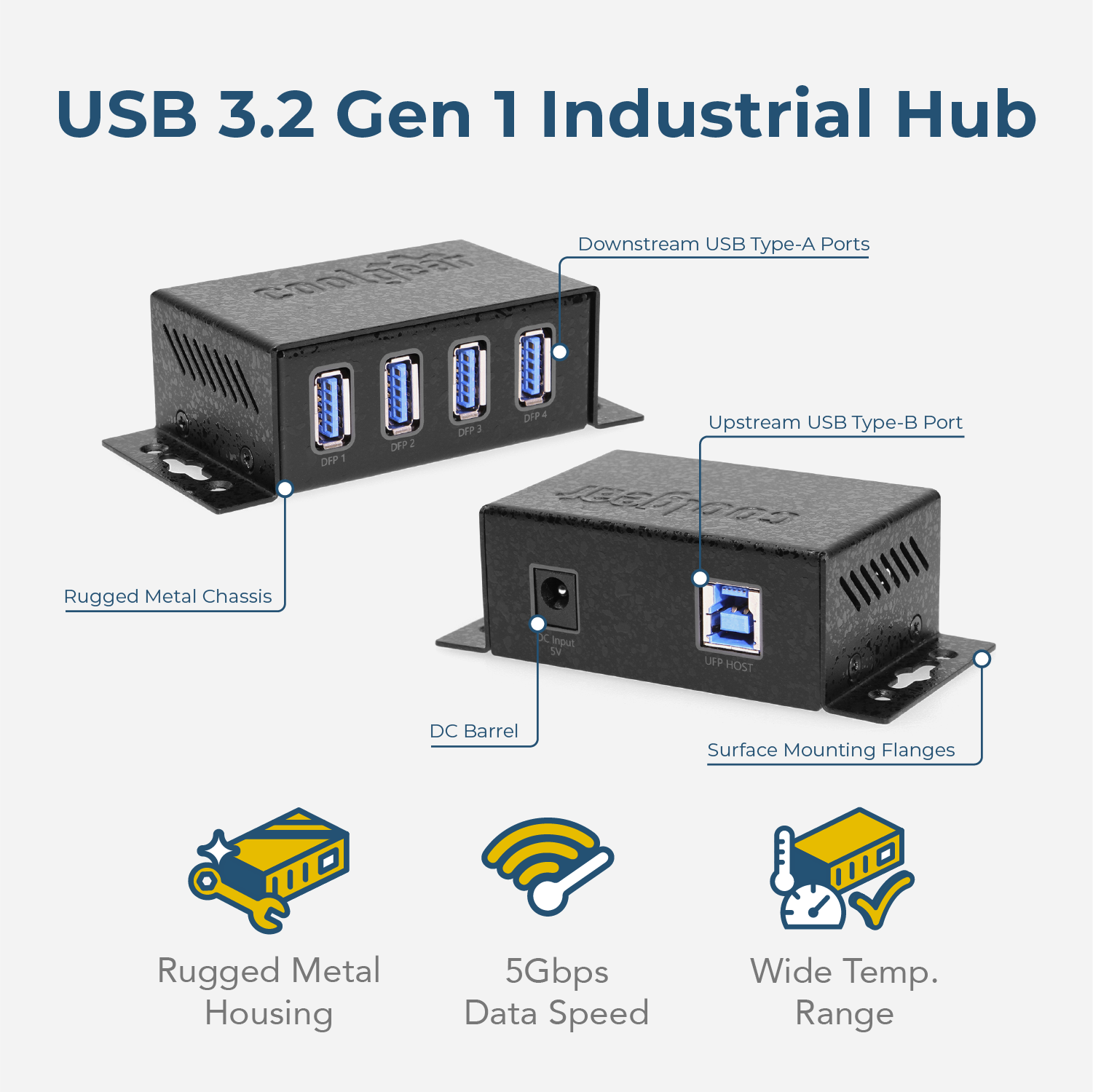

Introduction:

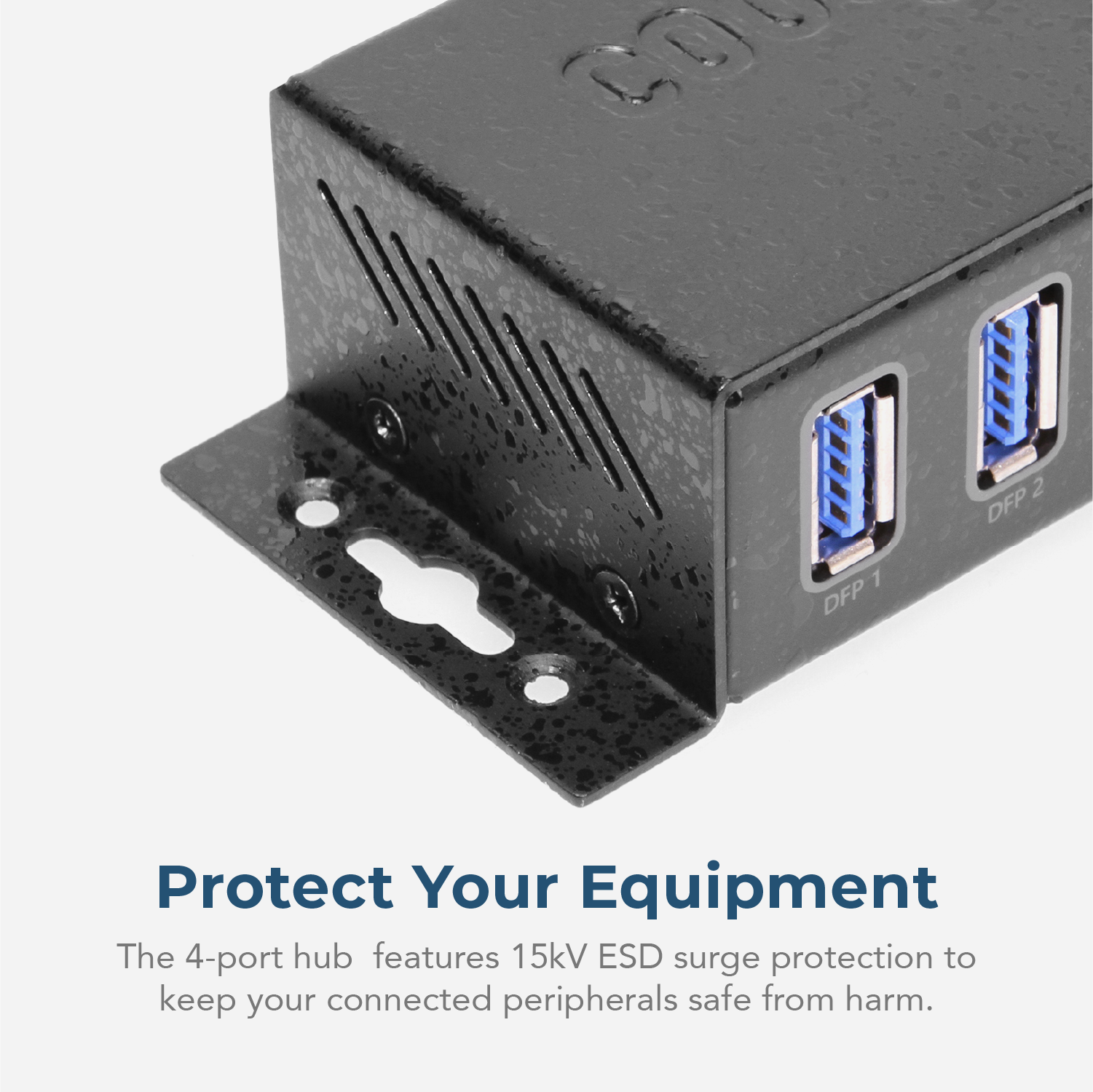

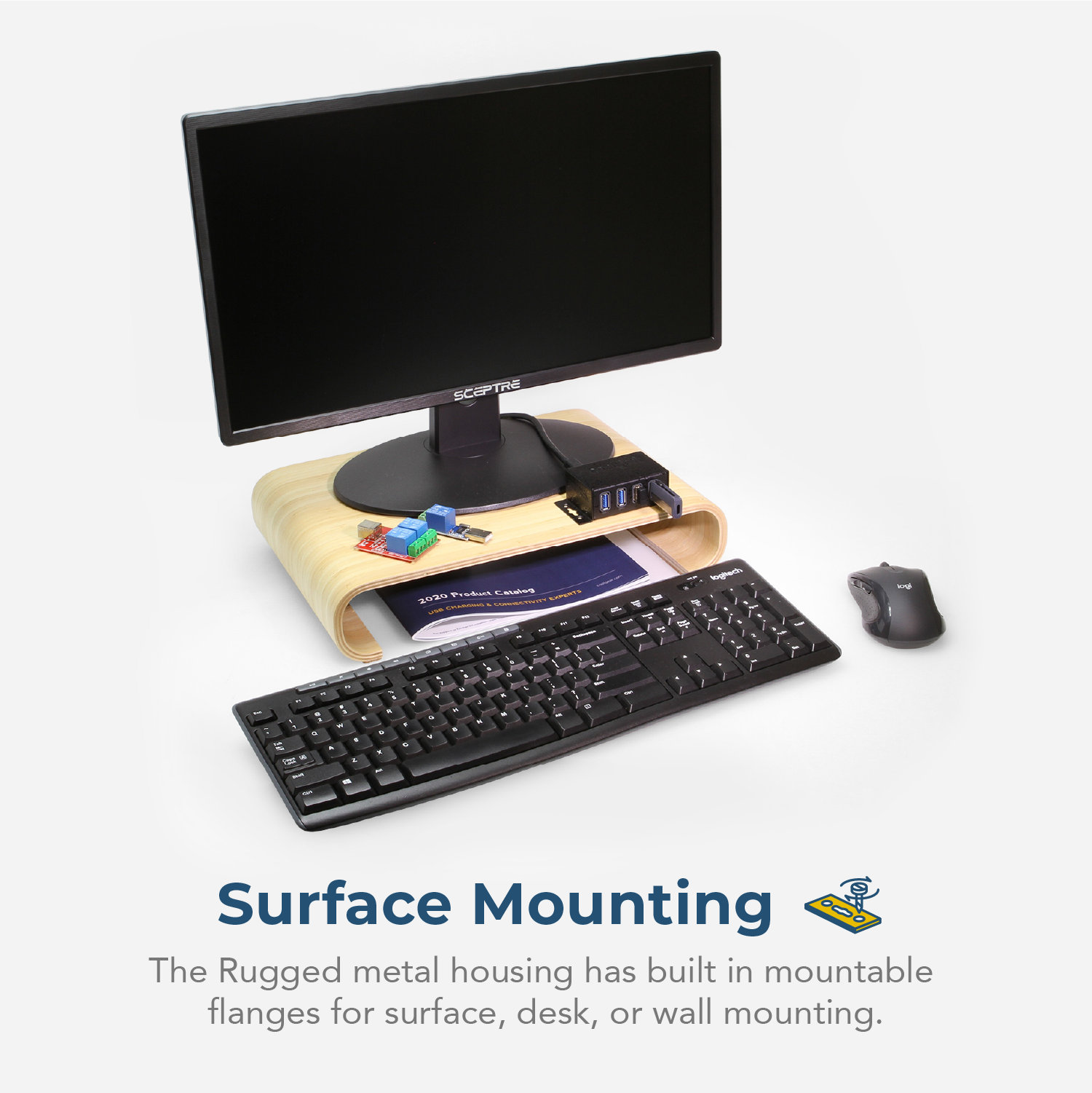

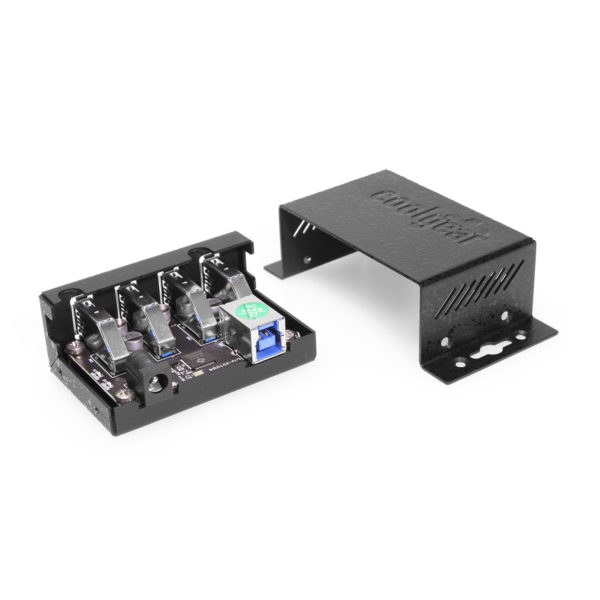

USB 3.2 Gen 1 powered hub with industrial-grade chassis and surface mounting flanges. The CG-U3MINI4PH is a 5V DC input, generation 1 USB 3.2 Gen 1 hub with ESD and Surge protection. This USB 3.1 Hub will support fast charging for Apple and Samsung Galaxy devices. Each port is protected individually to help keep your peripherals safe. The USB 3.2 Gen 1 Hub uses a GL 3510 chip, each port is on an individual circuit to maintain high current and protection. The GL3510 Hub controller chip features native fast-charging and complies with USB-IF battery charging specification rev1.2.
Features:
- Compliant with USB 3.2 Gen 1 Specification
- Upstream port supports Super-Speed (SS), High-Speed (HS) and Full-Speed (FS) traffic
- Downstream ports support SS, HS, FS, and Low-Speed (LS) traffic
- 1 control pipe and 1 interrupt pipe
- Backward compatible to USB specification Revision 2.0/1.1
- Compliant with USB Battery Charging Revision v1.2, supporting CDP, DCP, and ACA-Dock
- Downstream ports can be turned from a Standard Downstream Port (SDP) into Charging Downstream Port (CDP) or Dedicated Charging Port (DCP)
- Downstream devices can be charged while upstream VBUS is not present, which can be applied on wall charger applications
- Upstream port is capable of charging and data communicating simultaneously for portable devices supporting ACA-Dock or proprietary charging protocols
- Compatible with Windows XP, 7, 8,10, and Mac OS X
Specifications:
- Chip: GL3510
- USB 3.2 Gen 1 Gen Compliant
- Supports High Speed and Full Speed transmit and Receive
- Complies with USB-IF battery charging specification rev1.2
- Automatic switching between self-powered and bus-powered modes
- Built-in 5 to 3.3V and 5 to 1.2V regulator
- RISC-like architecture

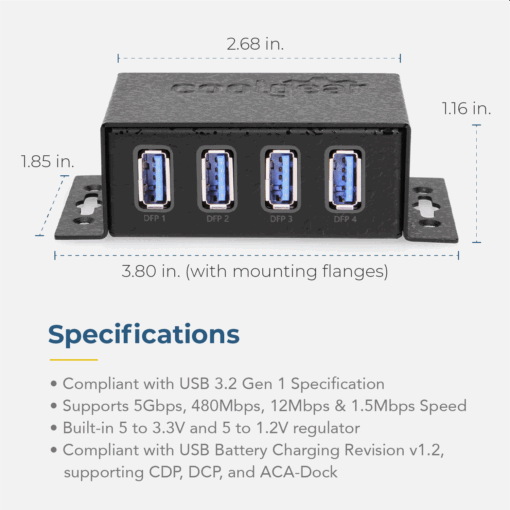

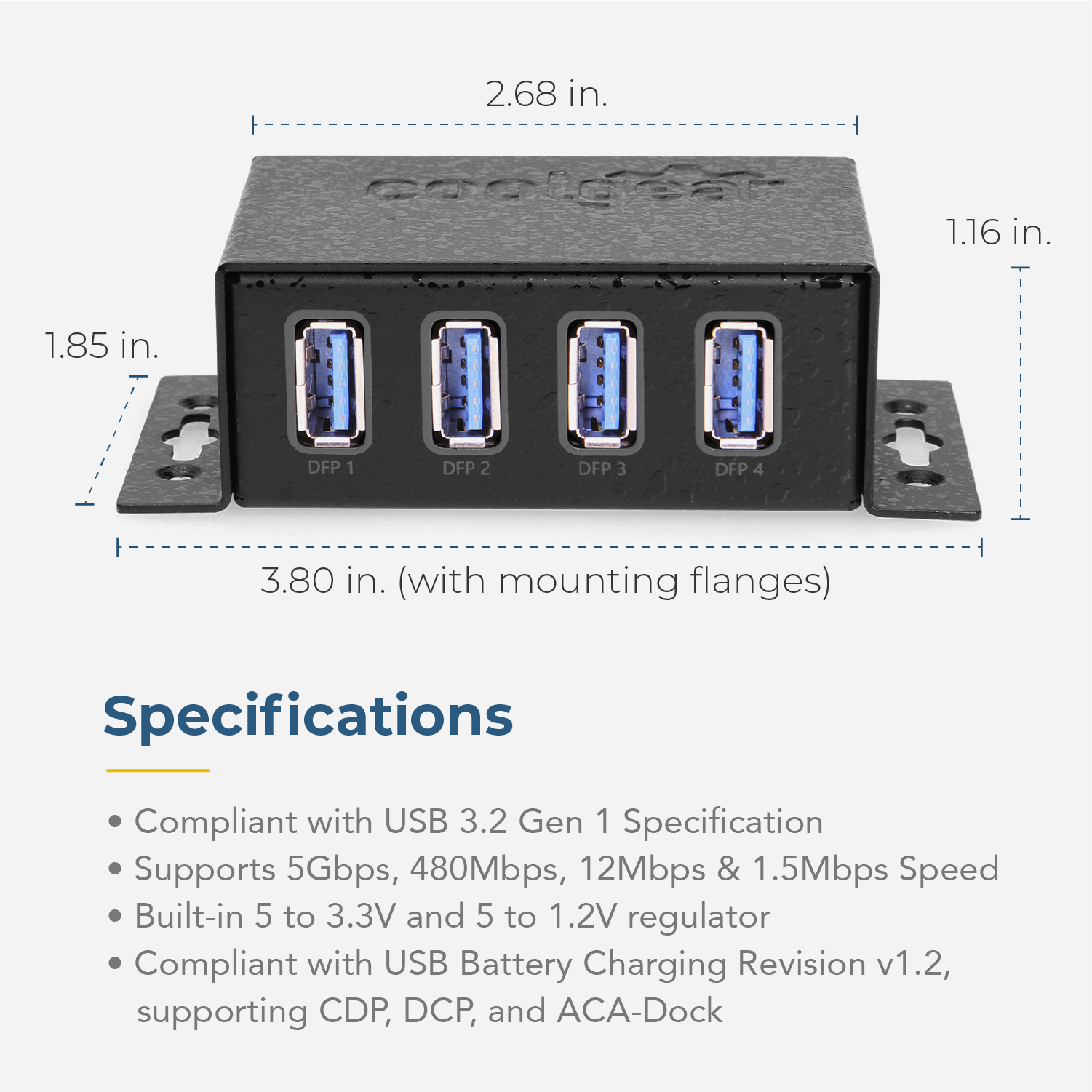

- Item Dimensions: 2.86″(L 3.8″ w/ears) x 1.85(W) x 1.16(H)
- Item Weight: .32 lbs. (5.2 oz)

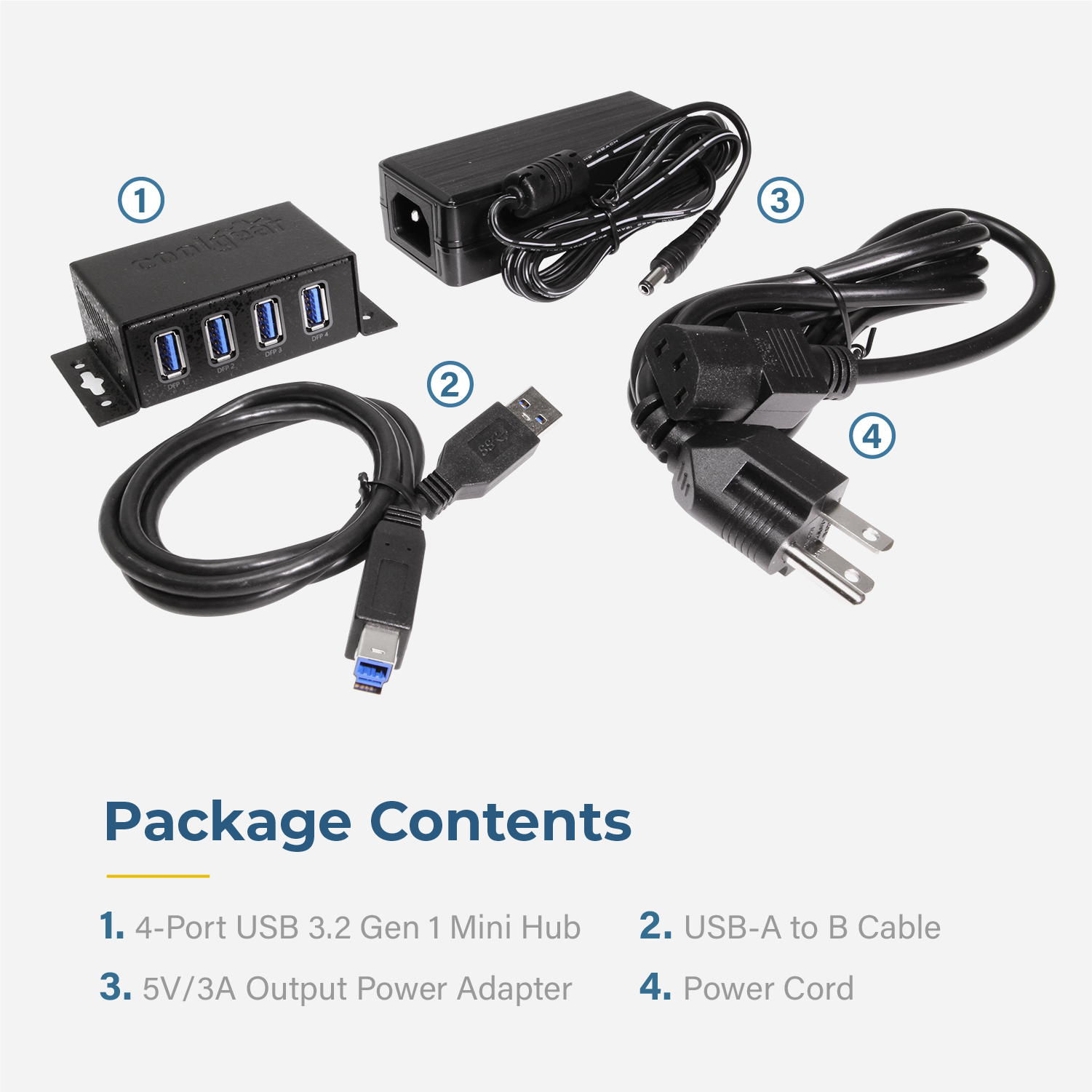

Package Contents:
- USB 3.2 Gen 1 4-Port Hub
- 4 Amp 5V DC Mini-Switching Power Adapter
- 3ft. USB A to B Cable for Hub
*Surface Mounting screws not included.
