3-Port 180W USB 3.2 Gen 2 PD 3.0 Hub w/ 60W PD Upstream & ESD Surge Protection

Notice: You must be logged into an account with a business domain email to purchase this product.
This product is intended for initial testing, evaluation, and integration planning. This product is currently restricted for sale to B2B customers only. It is not designed for direct deployment or single-use applications.
Orders may be limited to 1-3 units unless approved by Coolgear Support. To place a bulk order or proceed with system integration, please contact our support team to discuss your requirements. For full terms, refer to our DEVELOPMENT PRODUCT TERMS. 

Upstream Female Port: 1x USB-C PD USB 3.2 Gen 1 Connector
Downstream Female Port: 3x USB-C PD connectors
Compatible with single and double screw locking USB-C cables
Supply 60W of power to all connected peripherals as well as the host computer
Supports 5 PD profiles 20V / 15V / 12V / 9V / 5V
USB 3.2 Compliant to Gen 1 Specifications
Variable Voltage Input of +12~24V DC
Built-in surface & wall mounting flanges

$299.99

Model No. CG-4PDU3-3PH

This product is currently restricted to shipping within the US only.

In stock

Submit Product Inquiry

Product Documentation

Quick Links:

Description

Introduction:

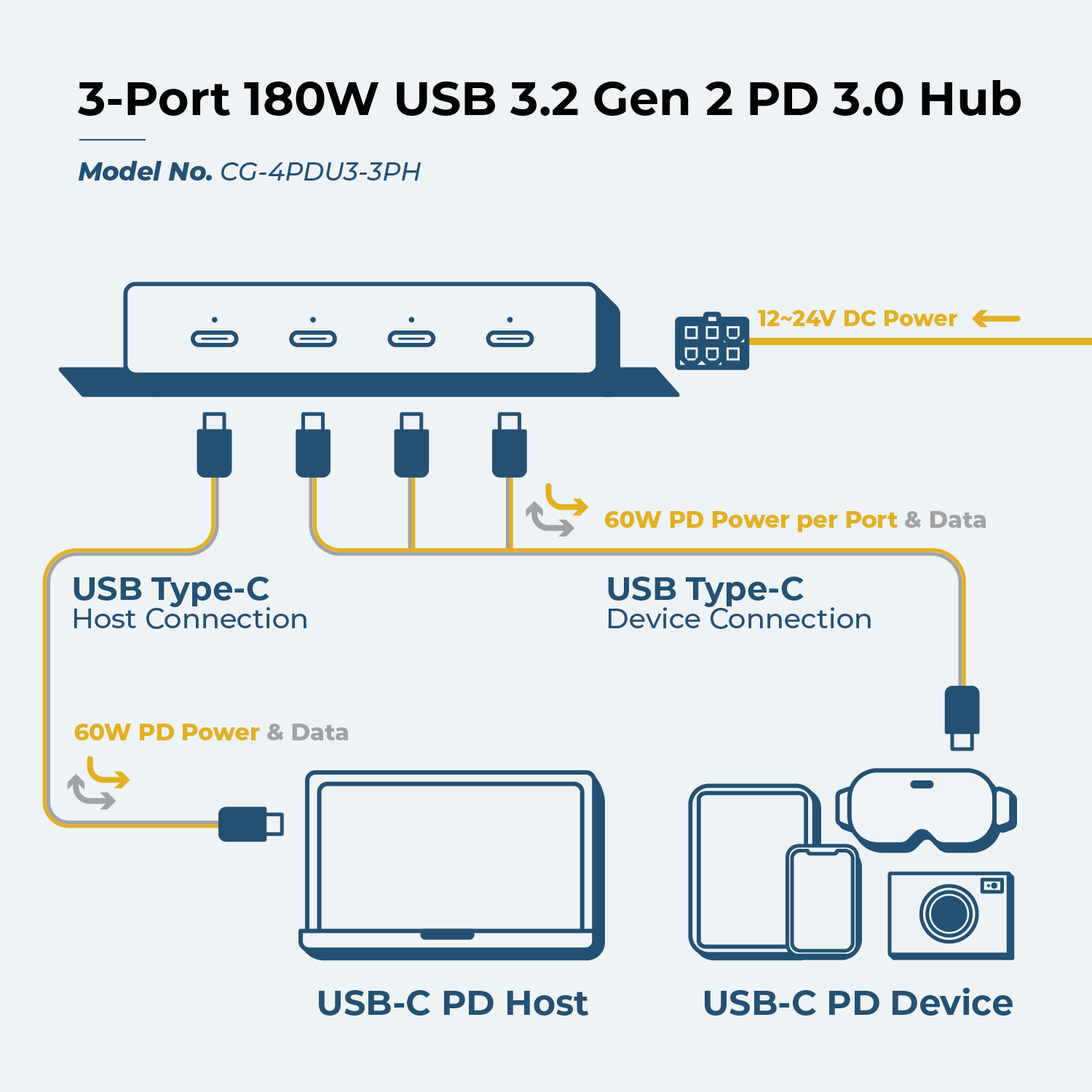

Coolgear’s CG-4PDU3-3PH USB 3.2 Gen 2 USB hub features ESD protection and 60 Watts of power per port. The CG-4PDU3-3PH features a variable voltage input range of 12~24V DC supplied through a 6-Pin Molex Connector. Each port is individually protected to help protect your peripheral investments. Provide 60 Watts of power to each connected peripheral as well as the host computer.

Features:

Upstream female port: 1x USB-C PD USB 3.2 Gen 1 Connector
Downstream female port: 3x USB-C PD connectors
Power Delivery 3.0 present on downstream and upstream ports
Supports 5 PD profiles 20V / 15V / 12V / 9V / 5V
USB 3.2 Compliant to Gen 1 Specifications
Compatible with single and double screw locking USB-C cables
Multi-platform compatible with a wide range of laptops that use USB-C
Supports 10Gbps, 5Gbps, 480Mbps, 12Mbps, and 1.5Mbps speeds
ESD protection per port: ±15 kV(Air), ±15 kV(Contact)
Input Voltage of +12~24V DC
At 12V input, total power is limited to 180W. With 24V input, total power is increased to 240W total.
DC Input through 6-Pin Molex Mini-Fit Jr. connector
Built-in surface & wall mounting flanges
Quickly check your ports’ status with built in LED indicators

Package Contents:

3-Port 180W USB 3.2 Gen 2 PD 3.0 Hub

Accessories & Replacement Parts

Out of stock

6 Pin Power Connector and RoHS Wire

Power connector and RoHS wire for Coolgear USB PD Integrator boards 180 and 240W versions.

Model# 0116-17-M

$9.29

Out of stock

300 Watt 24 Volt / 12.5 Amp AC Power Supply

24V – 12.5A External Power Supply with 6-Pin Molex connector for Coolgear USB commercial and industrial chargers. (Find a full compatibility list below). Input: AC…

Model# ATS300T-P240

$148.99

In stock

6-Pin 12in. Power Connector & RoHS Wire

Power connector and RoHS wire for Coolgear USB PD Integrator boards and high power USB PD chargers. For Use With: CGL-PD4-GL3590V106-DEV CG-PD5_GL_3590_V01-DEV CG-4PDU3-3PH CG-5PDU3EPR-4PH CG-5PDU3-4PH…

Model# 0116-16-M

$9.99

In stock

Specifications

Product Specifications

Power

Input Voltage	+12~24V DC
Power Source	6-Pin Molex Power Connector

Physical Characteristics

Item Dimensions (L × W × H)	5.65 × 3.46 × 1.00 in.
Item Weight	0.594 lbs.
Mounting Style	Surface Mount, Wall Mount
Material of Construction	Metal

Hardware

Downstream USB Ports	3 Type-C Female USB
Upstream USB Ports	1 Type-C Female USB

Performance & Safety

Max Data Transfer Rate

10Gbps

Other Data

USB Interface	USB 3.2 Gen 2
UPC	045079164178
Weight	0.594 lbs
Dimensions	5.65 × 3.46 × 1.00 in

UPC: 045079164178
