4-Port 320W USB 3.2 Gen 2 PD 3.1 EPR PCBA w/ 140W PD EPR Upstream & ESD Surge Protection

Notice: You must be logged into an account with a business domain email to purchase this product.
This product is intended for initial testing, evaluation, and integration planning. This product is currently restricted for sale to B2B customers only. It is not designed for direct deployment or single-use applications.
Orders may be limited to 1-3 units unless approved by Coolgear Support. To place a bulk order or proceed with system integration, please contact our support team to discuss your requirements. For full terms, refer to our DEVELOPMENT PRODUCT TERMS.


  • Upstream Female Port: 1x USB-C PD 3.1 EPR Connector
  • Downstream Female Port: 3x 60W USB-C Power Delivery Spec 3.0 Connectors, 1x USB-C Power Delivery Spec 3.1 EPR Connector
  • Supply 140W (EPR) of power to one connected peripheral as well as 140W (EPR) to the host computer
  • Supply 60W of power to three connected peripherals
  • USB 3.2 Compliant to Gen 2 Specifications
  • Fixed Input Voltage of +24V DC

$228.99

Model No. DPPD-EPR2X_V001-DEV
This product is currently restricted to shipping within the US only.

Out of stock

Submit Product Inquiry

Quick Links:

Product Inquiries
Description

Introduction:

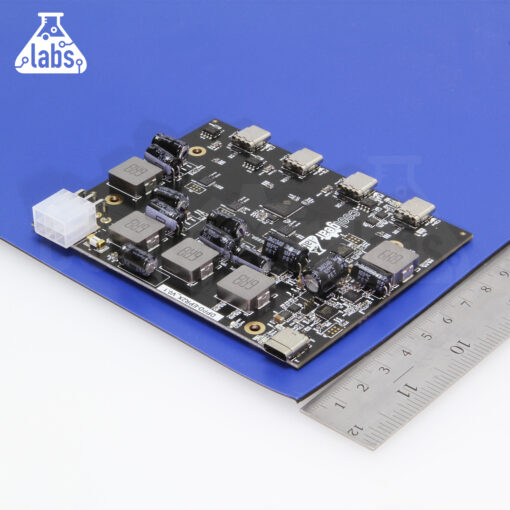

Coolgear’s DPPD-EPR2X_V001-DEV USB 3.2 Gen 2 USB PCBA features ESD protection, 1 Upstream EPR port supplying 140W, 1 Downstream EPR port supplying 140W, and 3 Downstream ports offering 60 Watts of power. The DPPD-EPR2X_V001-DEV features a voltage input of 24V DC supplied through a 6-Pin Molex Connector. Each port is individually protected to help protect your peripheral investments.

Features:

  • Upstream Female Port: 1x USB-C PD 3.1 EPR Connector
  • Downstream Female Port: 3x 60W USB-C PD 3.0 Connectors, 1x USB-C PD 3.1 EPR Connector
  • Supply 140W (EPR) of power to one connected peripheral as well as 140W (EPR) to the host computer
  • Supply 60W of power to three connected peripherals
  • Power Delivery Spec 3.0 present on 3 downstream ports
  • Power Delivery Spec 3.1 Extended Power Range present on 1 downstream port and the upstream port
  • USB 3.2 Compliant to Gen 2 Specifications
  • Multi-platform compatible with a wide range of laptops that use USB-C
  • Supports 10Gbps, 5Gbps, 480Mbps, 12Mbps, and 1.5Mbps speeds
  • ESD protection per port:  ±15 kV(Air), ±15 kV(Contact)
  • Input Voltage of +24V DC
  • DC Input through 6-Pin Molex Mini-Fit Jr. connector
  • Quickly check your ports’ status with built in LED indicators
Specifications

Product Specifications

Power
Input Voltage

+24V DC

Physical Characteristics
Item Dimensions (L × W × H)

3.54 × 3.34 × 0.52 in.

Item Weight

0.125 lbs.

Material of Construction

Steel

Hardware
Upstream USB Ports

1 Type-C EPR Female USB

Performance & Safety
Max Data Transfer Rate

10Gbps

Other Data
USB Interface

USB 3.2 Gen 2

Weight

0.125 lbs

Dimensions

3.54 × 3.34 × 0.52 in

Support

Product Documentation & Drivers


Need drawings, CAD files, or other compliance documentation? Click HERE
