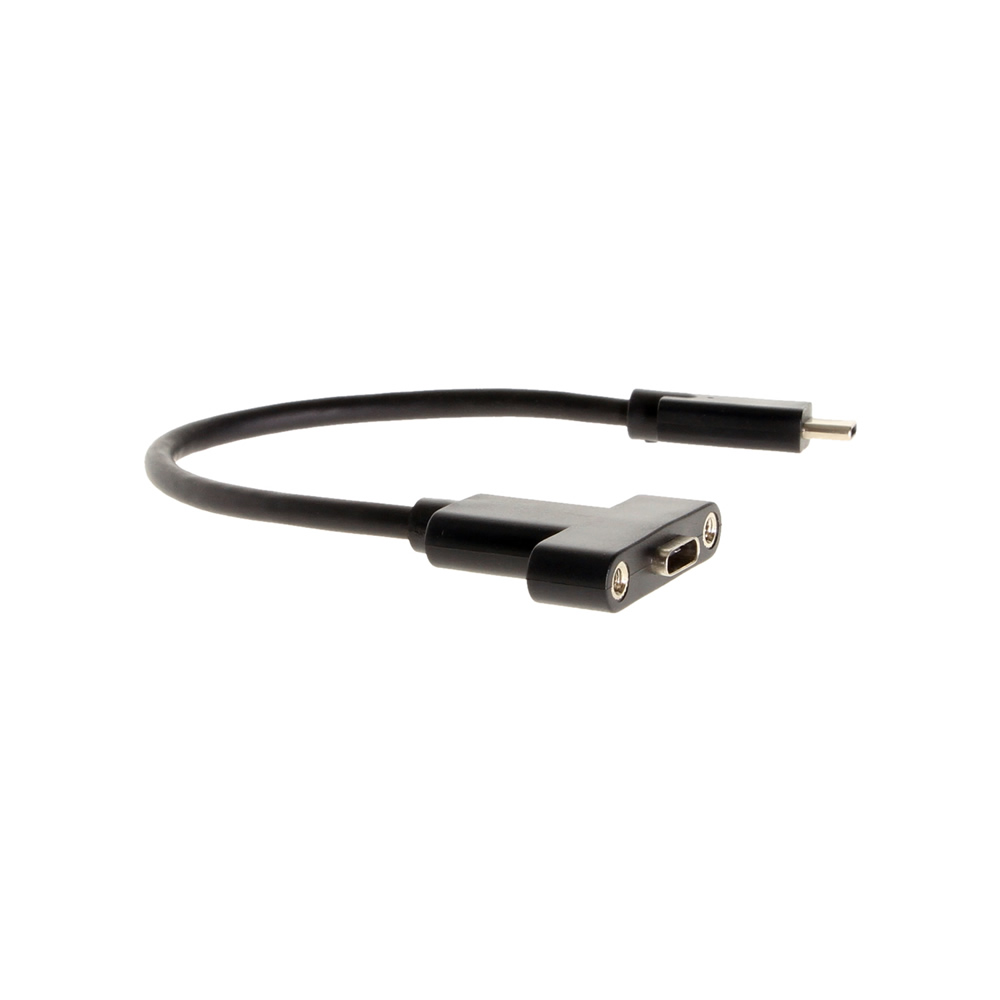

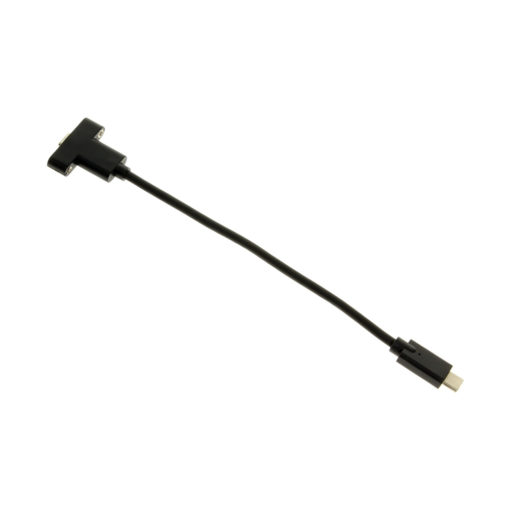

USB 3.2 Gen 2 Type-C Male to Female High Quality Panel Mount Cable

  • Super Fast Speeds: This USB cable is 3.2 Gen 2 compliant, ensuring super-fast 10Gbps data transfer speeds. It supports super speed+, super speed, high speed and full speed which enables it to be compatible with USB 2.0 / 1.1.
  • Reversible Design: The USB-C connector eliminates the orientation for more efficient connecting.
  • Panel-Mounting: A great solution to continuing your USB-C connection to your cabinet device. Connect your USB 3.2 Gen 2 Type-C male cable to the female panel mount to continue your USB signal.
  • Peripherals: Connect mobile devices, laptops, tablets, and any peripheral using a Type-C connector. Data and power can be used at the same time.
  • Connector A: USB Type-C Female Dual Screw-Lock Panel Mount
  • Connector B: USB Type-C Male

$13.95$15.95

(1 customer review)

$13.95$15.95

Length
This option is required
8 inches 20 inches 36 inches
Clear selection

Also available from:

Description

Description:

The ideal short USB 3.2 Gen 2 Type-C Male to Female cable for making USB-C panel mount connections. Connect your USB 3.2 Gen 2 Type-C male cable to the female panel mount to continue your USB signal. The cable is short and designed for minimal signal loss providing transfer rates up to 10 Gbps.

It easily attaches to any USB-C device with its Foil and braid shielded construction and provides protection from EMI/RFI interference. The twisted pair construction helps reduce cross-talk ensuring high speed, error-free data transfer.

Features:

  • Super Speed USB 3.2 Gen 2 Type C (USB-C) Male to Female Panel Mount Cable.
  • The screw design helps to connect the device tightly.
  • Convenient way to combine two USB Type C cables through a panel without any signal loss.
  • Ultra-Fast Data Transfer/Sync (up to 10 Gbps), also support USB quick charging up to 5V/3A, and high performance video and audio transfer.
  • Flexible PVC jacket, Foil and braid shielding, and the twisted pair construction make a better performance.
Electrical Specifications:
  • Maximum Bend Radius – 90mm
  • Temperature Rating – 80°C
  • Operating Temperature Range – -20°C- 80°C
  • Storage Temperature Range – -25°C- 85°C
  • Approvals – RoHS, CE, UL Compliant

Package Contents:

  • USB 3.2 Gen 2 Type-C Male to Female High Quality Panel Mount Cable

Connectors:


1x Female USB 3.2 Gen 2 Type-C Panel Mount

1x Male USB 3.2 Gen 2 Type-C
Specifications

Product Specifications

Mechanical
Color

Black

Length

8 inches, 20 inches, 36 inches

Mounting Style

Panel Mount

USB
USB Type

USB 3.2 Gen 2

Screw Lock Compatible

Yes

Product Information
Warranty

1 year from date of purchase

Hardware
Connector A

USB Type-C Female

Connector B

USB Type-C Male

Performance
Max Data Transfer Rate

10Gbps

Other Data
UPC

045079159525

Weight

N/A

Dimensions

N/A

Reviews (1)

1 review for USB 3.2 Gen 2 Type-C Male to Female High Quality Panel Mount Cable

  1. Lanny Tiefer

    While I suspect the product is fine, your mechanical drawing is missing some very important dimensions. For instance, the overall width of the panel mount connector could be important in cramped spaces, and most of all, the center-to-center spacing of the mounting holes is very important. I guess I may just have to buy one and measure it for myself, if I can’t find another product that fully describes their part.
