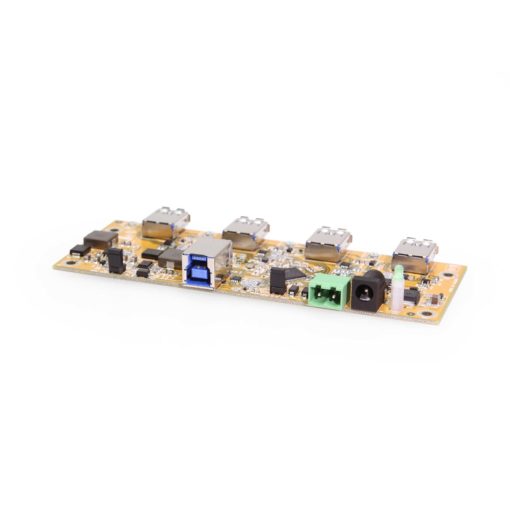

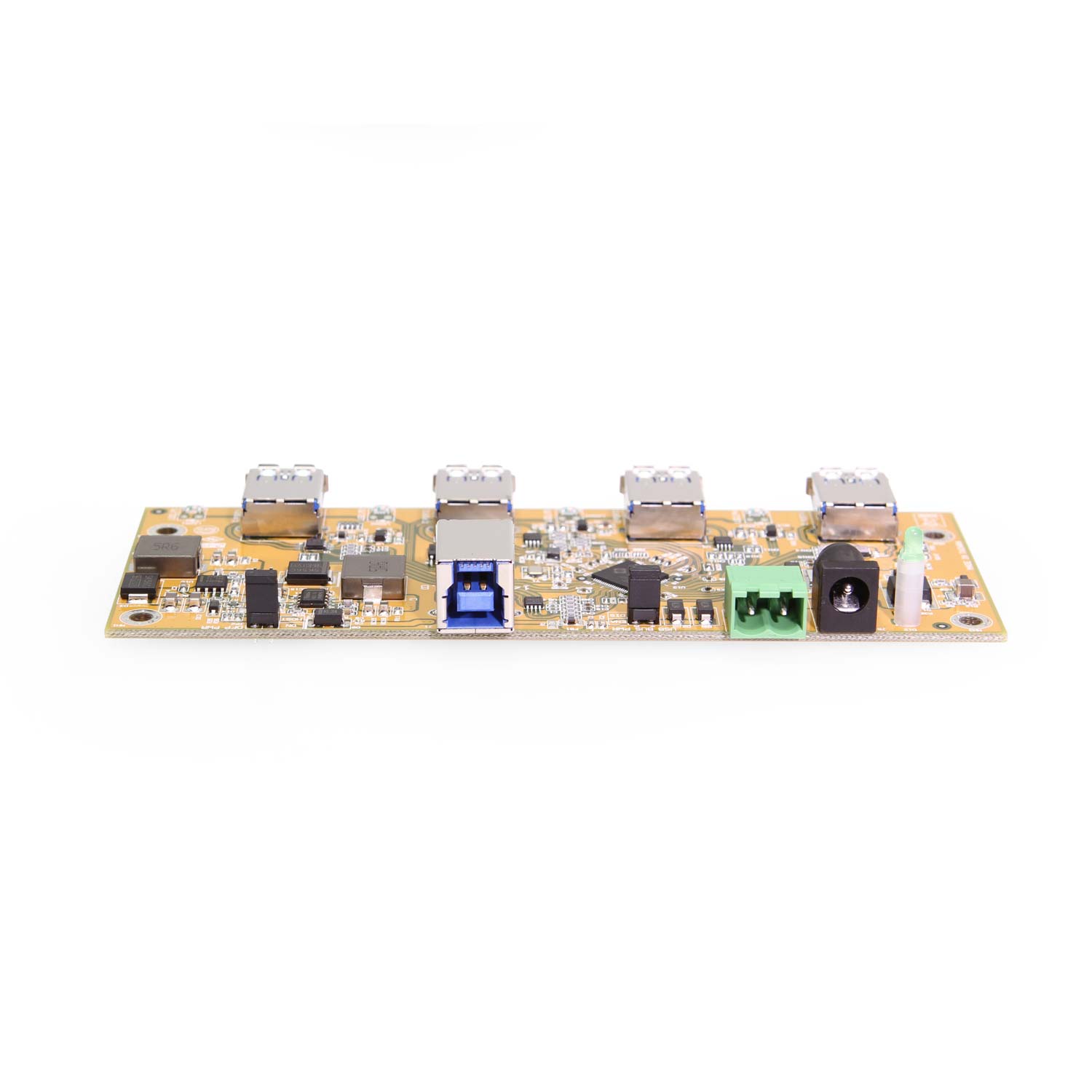

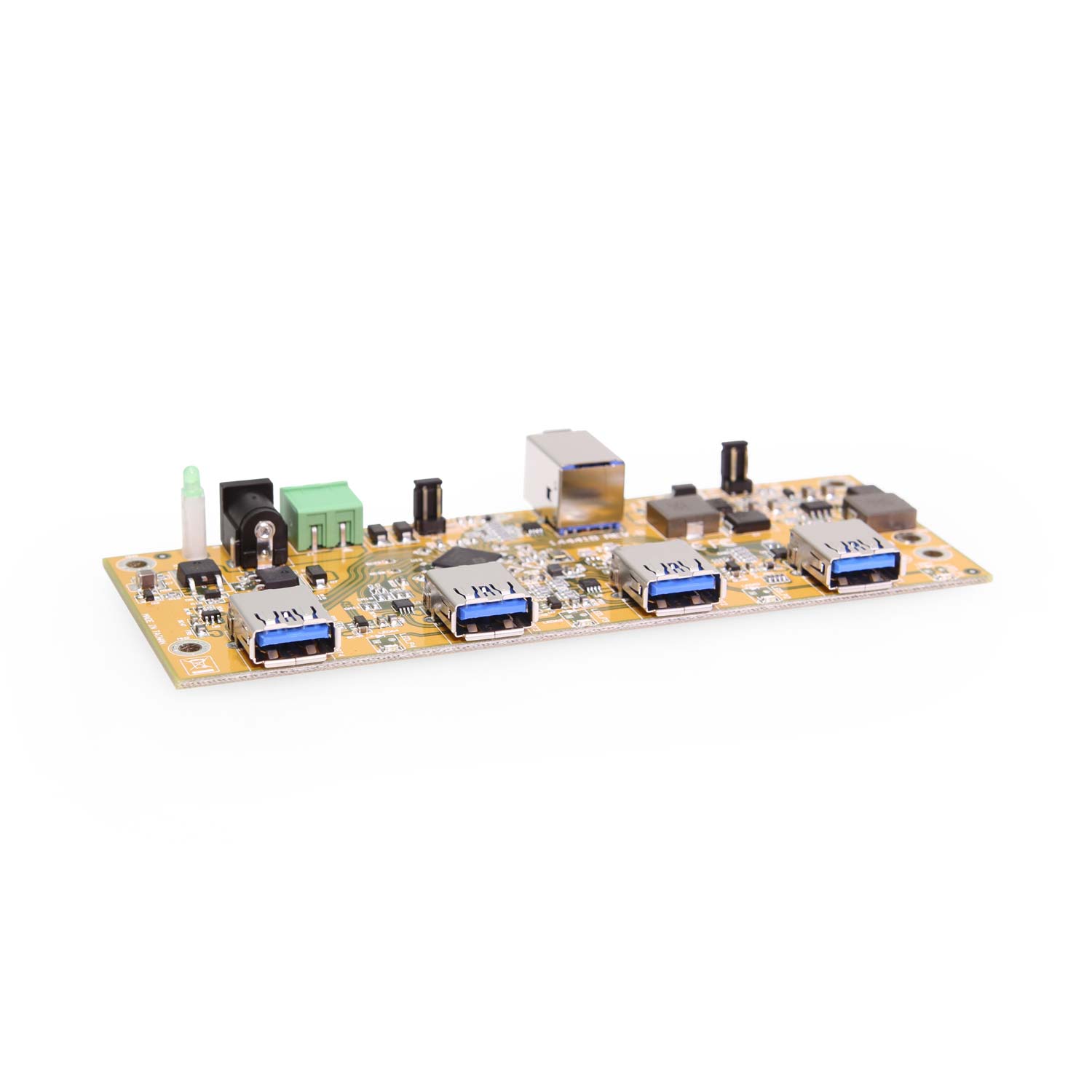

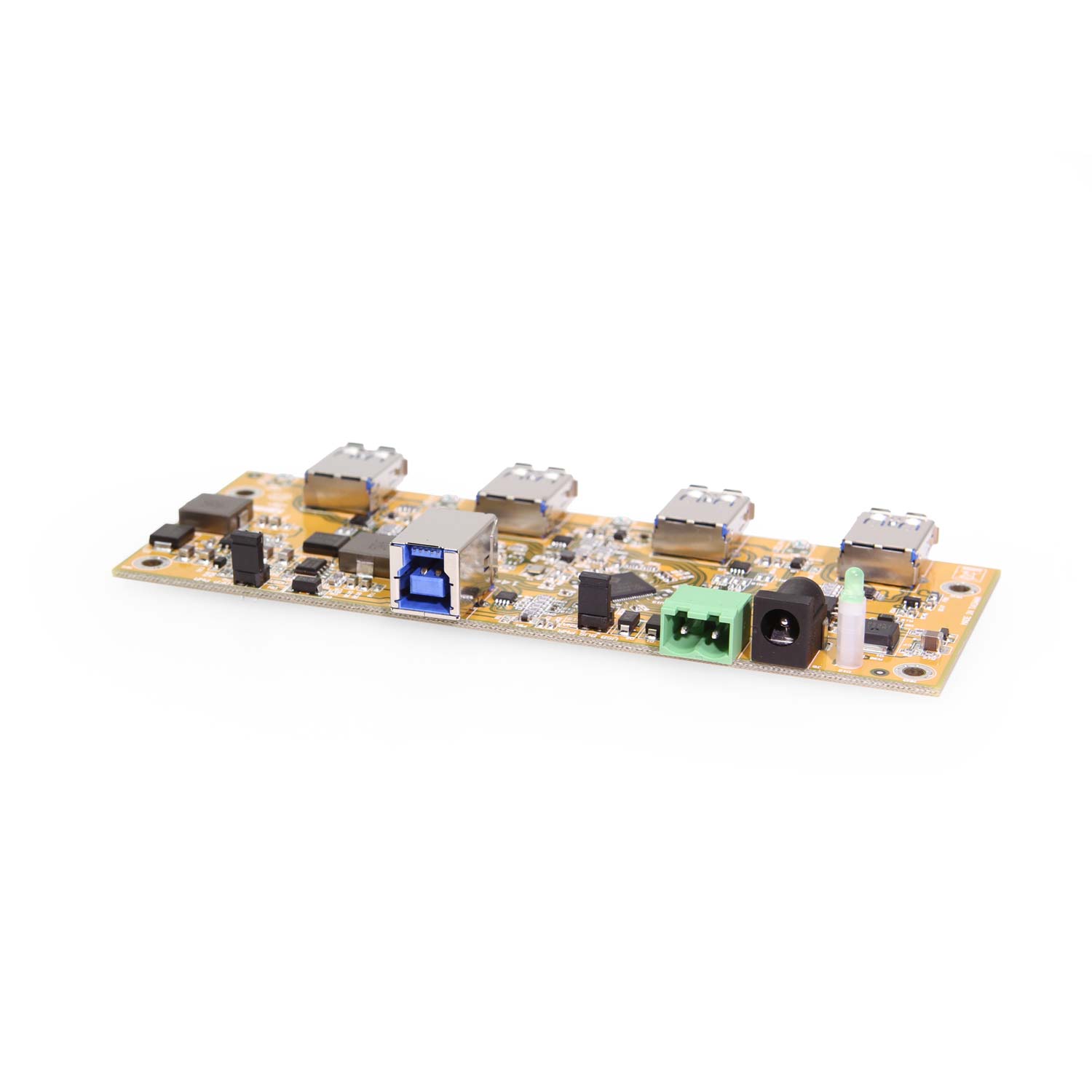

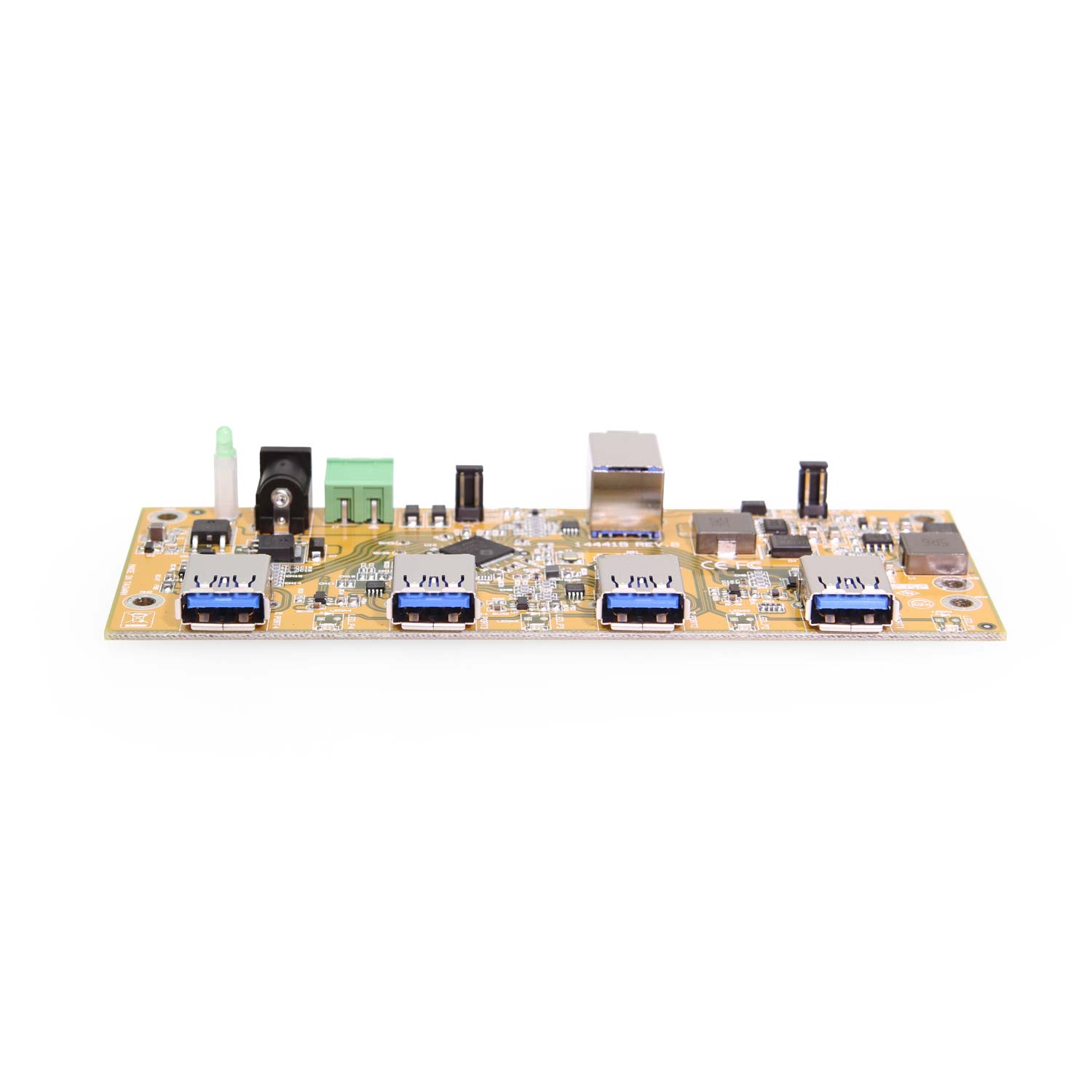

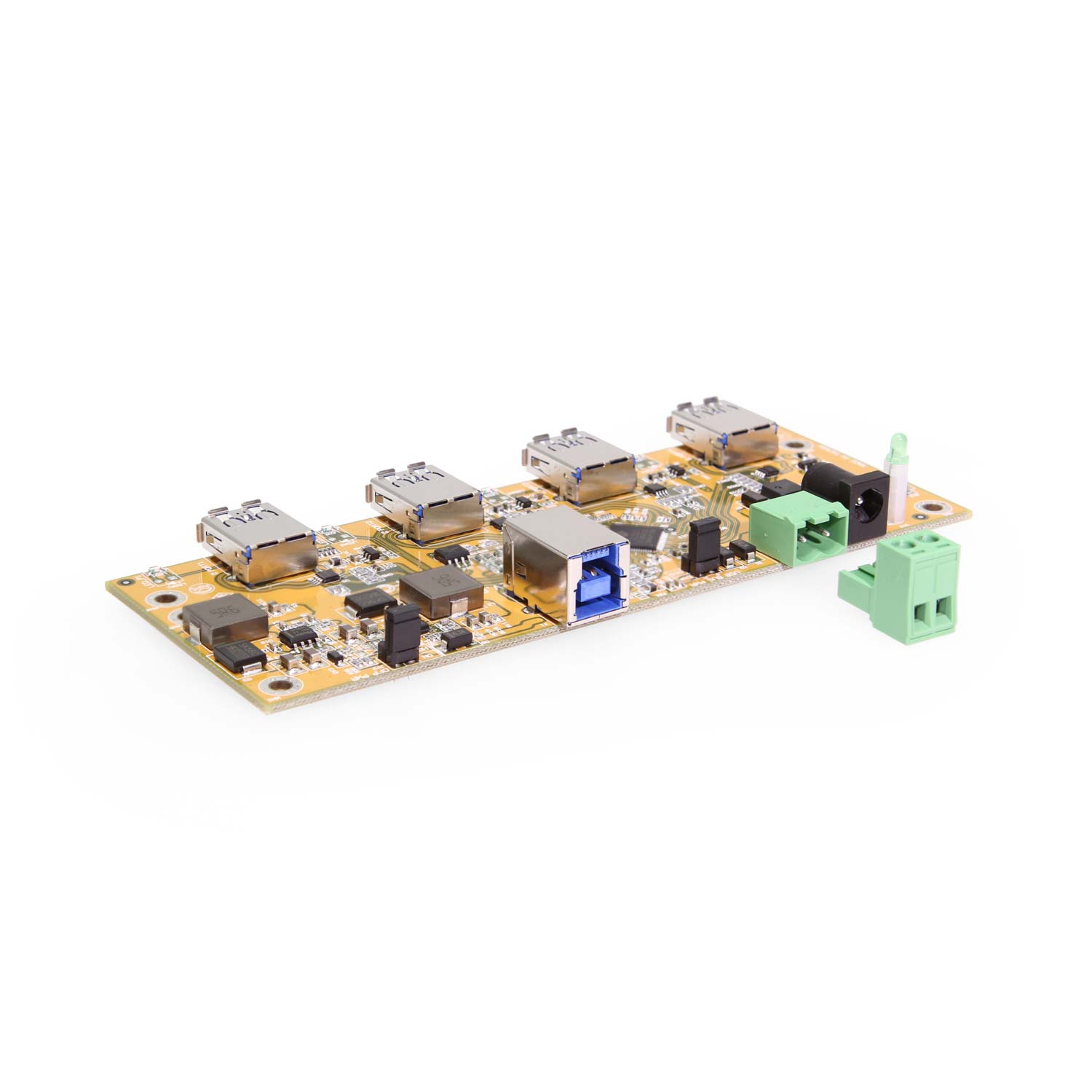

4 Port USB 3.2 Gen 1 Hub PCBA w/ ESD Surge Protection & Port Status LEDs
Model No.
USBG-3X4MR2-PCBA
+7~48V DC Input | 5 Gbps | LED Indicators
- Protect Your Equipment: The 4-port USB 3.2 Gen 1 features 15kV ESD surge protection per port to keep your connected peripherals safe from harm.
- Super Fast Speeds: This USB hub is 3.2 Gen 1 compliant, ensuring super-fast 5Gbps data transfer speeds. It supports super speed, high speed and full speed which enables it to be compatible with USB 2.0 / 1.1.
- Check Your Ports’ Status: Quickly check the status of each port individually with built in LED indicators.
- Upstream: 1 USB port, Type B connector
- Downstream: 4 USB ports, Type A connectors
- Power Connector: 2-Pin Terminal Block, DC Barrel 2.1mm ID × 5.5mm OD
- Supply Current: 900mA USB Bus Power for Each Down-stream Port
Quick Links:
Description
Introduction:
The USBG-3X4MR2-PCBA is a USB hub board that complies with the Universal Serial Bus (USB) Specifications Revision and work up to 5Gbps. It provides 4 downstream facing ports with standard A-type USB . With the RISC-like USB controller, it works backwards compatible with USB2.0/1.1 compliant devices and hosts. The USBG-3X4MR2-PCBA provides a unique self-power mode to work with wide range (+7~24V) input DC power from its terminal block. It supports USB charging specifications by turning its downstream ports from a Standard Downstream Port (SDP) into Charging Downstream Port (CDP) or Dedicated Charging Ports (DCP).
Features & Specifications:
- Compliant with USB Specification Revision
- Provides 4 Downstream USB Facing Ports
- Provides 4 LEDs Indicating Data Transferring for each Port
- Supports 5Gbps (Super-speed), 480Mbps (High-speed)
- 12Mbps (Full-speed) and 1.5Mbps (Low-speed) Speed
- Supports 15KV ESD Surge Protection for Each Port
- Multi Transaction Translators (TT) per Hub
- Supports +7~48V DC Wide Range Self-power Input
- Supports USB Battery Charging v1.2 : CDP, DCP modes
- Charges all 4 USB Ports up to 1.5A Each Simultaneously
Environmental:
- Operating Temp.: 0 to 708C (32 to 1588F)
- Storage Temp: -20 to 858C (-4 to 1858F)
- Operating Humidity: 5 to 95% RH
Package Contents:
Specifications
Product Specifications
| Power | Input Voltage Range: 7 ~ 48V DC Power Source: 2-Pin Terminal Block Idle Consumption: 0.47mA – 12V Terminal Power ||| 28.43mA – Bus Powered Bus Power Support: No Charging Protocols: DCP Per USB Port Current: 900mA maximum Charging Downstream Port (CDP): No Dedicated Charging Port (DCP): Yes |
|---|---|
| Compliance | Country of Origin: Taiwan Certifications: TAA, CE, FCC, REACH, RoHS |
| Physical Characteristics | Color: Yellow Item Dimensions (L × W × H): 5.55 × 2.24 × 0.7 in. Item Weight (Oz.): 0.12 lbs. Mounting Style: Bare PCB Ports: 4 USB Ports Screw Lock Compatible: No |
| What's in the Box | Package Contents: Hub – Board Only |
| Software | OS Support / Compatibility: Mac OS, OS independent – No software or drivers required, Windows 10, Windows 11, Windows 7, Windows 8, Linux Managing Software Utilities?: N/A |
| Environmental | Operating Temperature Range: 0C ~ 55C Storage Temperature: -20C ~ 75C Humidity: 5% to 95% RH |
| Product Information | Warranty: One Year |
| Hardware | Chipset: GL 3520 LED Indicators: Port Status, Power Downstream USB Ports: 4 Type-A Female USB Upstream Port Types: 1 USB-B Port |
| Performance & Safety | ESD Protection: 15kV Isolated: Yes Max Data Transfer Rate: 5Gbps Over Current Protection: Yes Over Voltage Protection: No |
| Additional Details | UPC: 045079163522 USB Specification: USB 3.2 Gen 1 (5Gbps) UPC: 045079163522 Weight: 0.1400 lbs Dimensions: 7 × 4.75 × 0.8 in |
