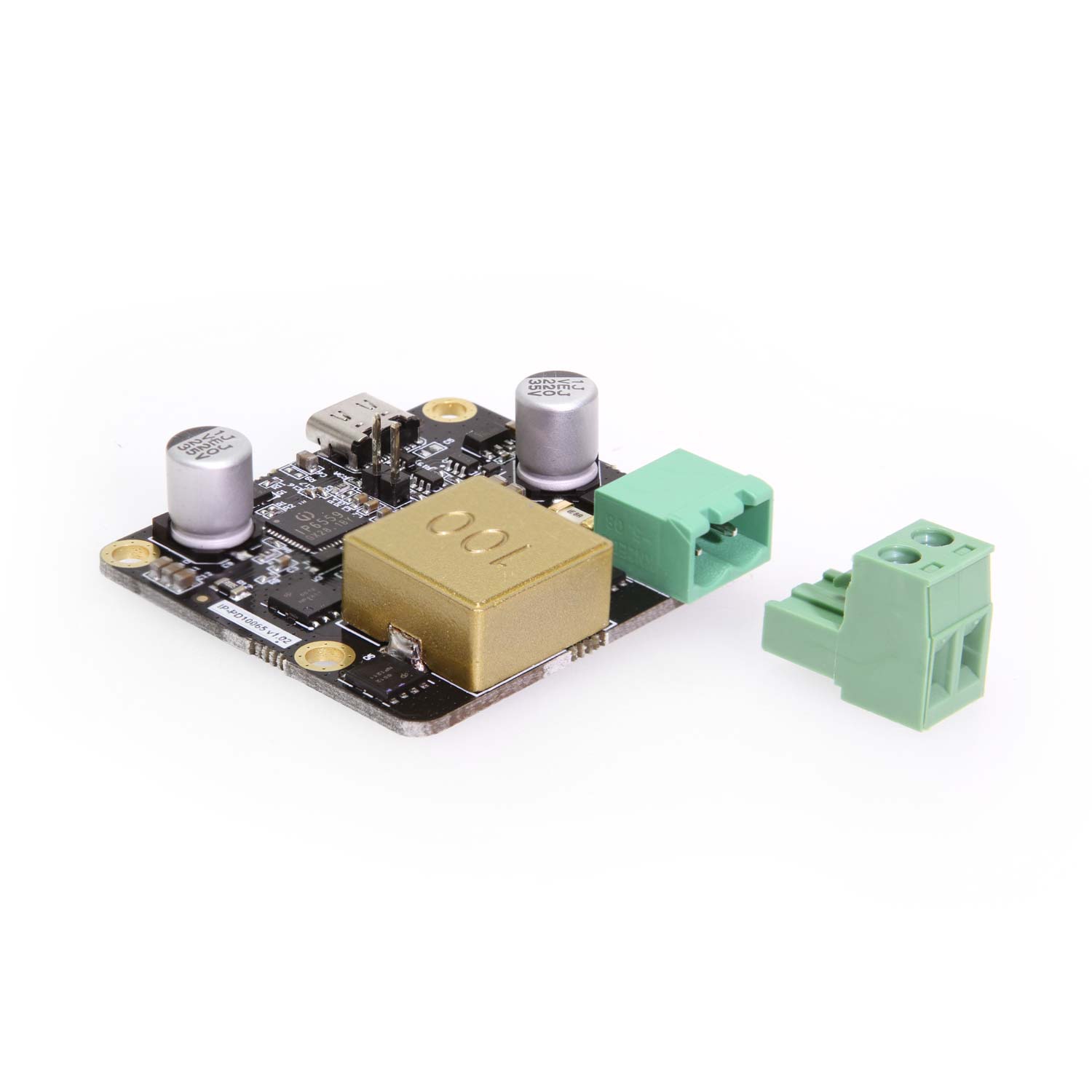

ChargeIT! 100 Watt USB Type C Charging Board
Model No.
CG-PDC100W-PCBA
This High Power Single Port USB Type-C Industrial PCBA that complies with the latest USB-C and PD standards. Intended for use in PC power adapters, mobile chargers, car chargers and power bank applications. This charging board provides one 100W USB Type-C PD port.
- USB Type-C PD with PD 2.0 & 3.0 support
- BC v1.2, Apple Charging, Qualcomm Charging 4.0, Huaiwei FCP/SCP
- Extensive protection including ESD, over/under current, and short circuit protection
**Notice: Coolgear strongly recommends purchasing one to two (1–2) units for initial evaluation. This product is intended for integration, evaluation, and testing purposes only, to assess its suitability and identify potential modifications for a specific use case. It is not designed for single-use scenarios. Before integrating this product into your project or placing a large-quantity order, please contact Coolgear to discuss your project requirements. For more details, refer to the Development Product Terms. Read our full DEVELOPMENT PRODUCT TERMS here.
Quick Links:
Description
Features:
- USB type C 100-Watt Capable with PPS Buck-Boost with variable 12-24V input
- Type-C and PD protocol
- Support 5V/9V/12V/15V/20V output
- PD Voltage Profiles: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A, 20V/5A
- Supports PD2.0/PD3.0 protocol
- Supports E-MARK cable
Protection:
- ESD protection on input and output
- Over and under-voltage
- Output over-current protection
- Short circuit protection
Specifications
Product Specifications
| Power |
| ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Compliance |
| ||||||||||||||
| Physical Characteristics |
| ||||||||||||||
| What's in the Box |
| ||||||||||||||
| Software |
| ||||||||||||||
| Product Information |
| ||||||||||||||
| Performance & Safety |
| ||||||||||||||
| Other Data |
|
Support
Product Documentation & Drivers
Product Documents
Need drawings, CAD files, or other compliance documentation? Click HERE
