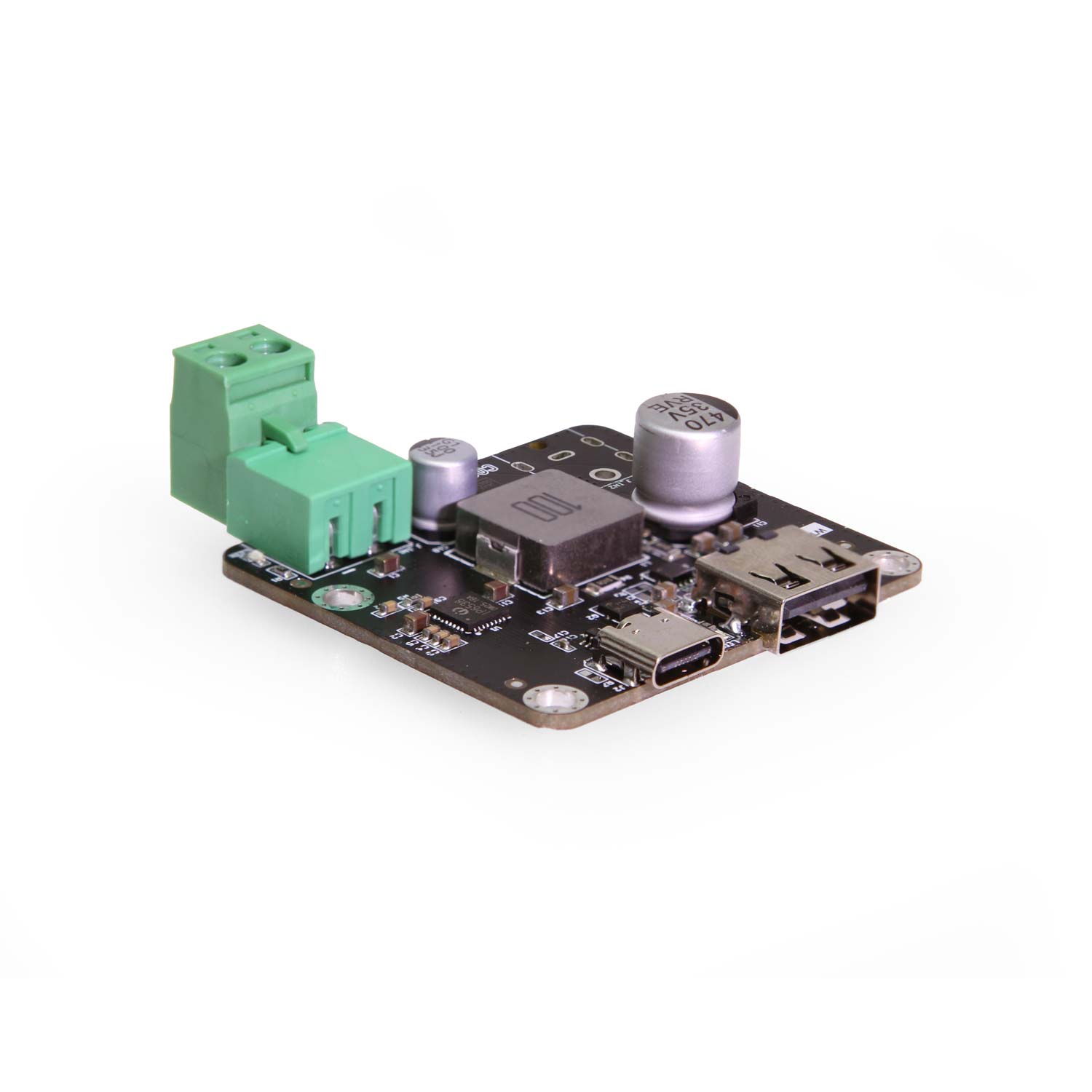

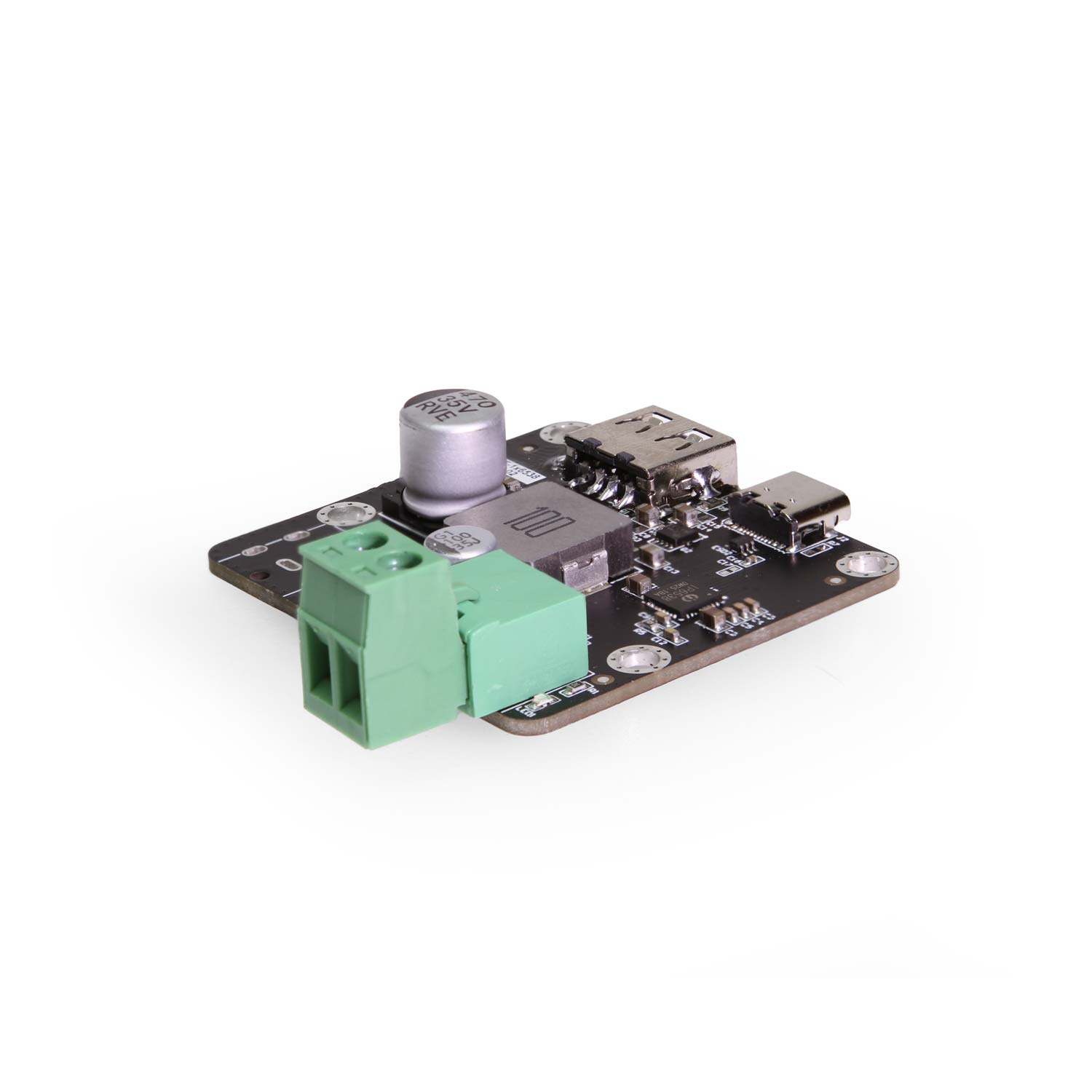

ChargeIT! Dual Port USB Charger 1 Type-C PD 27W, 1 Type-A 15W, Variable Voltage 12~28V Input – PCBA

The Low Power ChargeIT! Dual Port Charger provides an effective amount of Charging power ideal for Chromebooks, Tablets, Cell phones, and light duty laptops. The USB PD charger board incorporates both Standard Type-A and USB PD Type-C charging ports.The wide DC input voltage range is ideal for 12V DC and 24V DC Vehicle applications.

  • DC Input Voltage: 10~28V
  • Output Voltage: 3~12V, Adjustable
  • Power Connector: 2-Pin Terminal Block
  • Provides one USB Type-A 15watt or one USB-C PD 27watt PPS port.
  • Multi-protection for high reliability including ESD, over-voltage and over-temperature protection.

$19.95

In stock

View Volume Pricing

Units Price
1 - 5 $19.95
6+ $17.99

Model No. CG-CCJPD27

Quick Links:

Description

Description:

Coolgear’s Chargeit! mini USB PD Low Power Charger features 1 USB Type-A and 1 USB-C charging port. It is designed to handle industrial and commercial charging applications. This low-power dual port adapter provides an effective amount of Charging power ideal for Chromebooks, Tablets, Cell phones, and light duty laptops.

Supports USB PD3.0 including Programmable Power Supply:

Programmable Power Supply (PPS) capability allows for small step-wise changes in voltage and current. PPS capability allows for constant current charging (with gradual voltage increase), followed by constant voltage charging (with gradual current reduction).

The USB PD adapter supports full-featured PD profiles on USB 3.1 Type-C Port 27 Watt maximum output. It connects to a standard 12V automotive power input or industrial 24V power input via 2-Pin Phoenix Connector. The USB PD adapter with type C port supports up to 27 Watts of PD Power, 5~12 Volt profiles and compatible with ALL USB power delivery devices.

Features:

  • Wide range input voltage +12~28V DC, ideal for 12V DC and 24V DC Vehicle applications
  • Dual USB Port Charger PCB: USB C (Type-C) port with power delivery + USB-A Port
  • USB-A provides up to 15W of charging power & USB-C with Power Delivery that enables up to 27W with Fast Charge Protocols of PD3.0 / PPS / PD2.0, QC3.0 / QC2.0, FCP, AFC Auto Sense to give Maximum Power to Connected Device. (simultaneous charging not supported)
  • Supports input over voltage and under voltage protection.
  • Supports output short circuit, over current and over temperature protection.
  • ESD 4KV, DC withstand voltage of 40V

Package Contents:

  • ChargeIT! Dual Port USB-C Low Power Charger Board
  • 2-Pin Terminal Block



Specifications

Product Specifications

Power
Input Voltage

+12~28V DC

Over Current Protection

Y

Over Voltage Protection

Y

Mechanical
Color

Black

Item Dimensions (L × W × H)

3.48 × 2.00 × 1.03 in.

Product Information
Warranty

1 year from date of purchase

Hardware
Charging Protocols

Apple 2.4A, Dedicated Charging Port (DCP), Samsung

PD Profile Support
Voltage Profiles

5V/2.4A, 9V/3A, 12V/2.25A

Performance
ESD Protection

4KV Surge Protection

Over Current Protection

Y

Over Voltage Protection

Y

Other Data
UPC

045079163249

Weight

0.221 lbs

Dimensions

3.48 × 1.99 × 1.03 in

UPC: 045079163249
