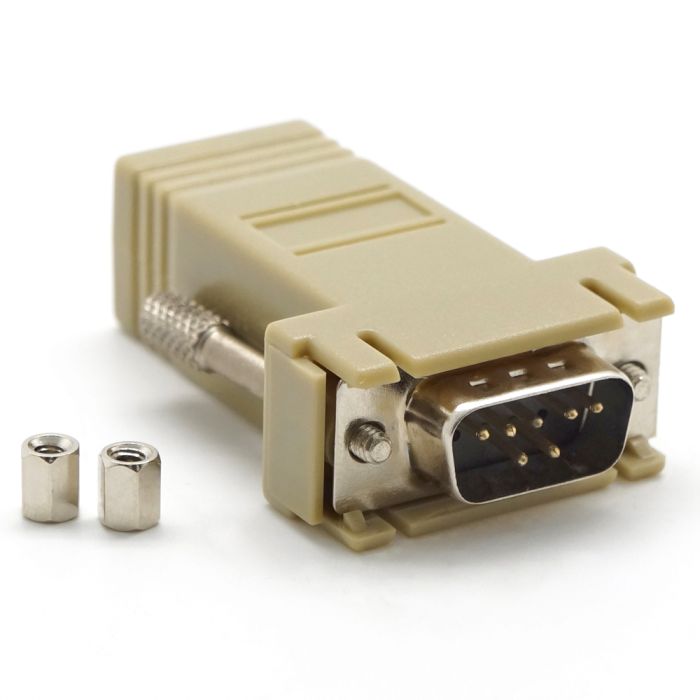

DB9 Male to RJ45 Preassembled Modular Adapter with Hex Nut

DB9 Male to RJ45 Preassembled Modular Adapter with Hex Nut

Simplify RS-232 serial connections with this preassembled DB9 Male to RJ45 Modular Adapter, engineered for quick deployment and secure integration. Built with precision-mapped color-coded leads and outfitted with thumbscrews and hex nuts, this adapter offers a durable and dependable solution for bridging DB9 serial interfaces to RJ45-based cabling in data, telecom, and industrial setups.

Key Features and Benefits

• DB9 to RJ45 Conversion: Converts a standard DB9 RS-232 male serial port to an RJ45 modular interface for streamlined serial communication over network-style cabling.
• Secure Connection: Integrated thumbscrews and dual hex nuts provide enhanced mechanical stability for vibration-prone environments.
• High-Quality Contacts: Gold-plated copper conductors ensure strong electrical contact and long-lasting corrosion resistance.
• Durable Housing: Molded ABS shell in a neutral color finish offers rugged protection while maintaining a low profile for tight installations.
• Slim and Efficient: Compact footprint supports use in dense rack environments or where space-saving is critical.
• Flexible 28AWG Wiring: Pre-crimped and color-coded UL1007 28AWG wires for easy signal identification and reliability.

RJ45 Pinout

• RJ45 — Color — DB9 Male
• 1 —— Blue — 8
• 2 —-Orange — 7
• 3
• 4 —– Red —– 3
• 5 —–Green —-2
• 6 —–Yellow — 5
• 7 —–Brown — 1
• 8 —–White —-4

Package Contents

• 1x DB9 Male to RJ45 Modular Adapter (Preassembled)
• 2x Hex Nuts (4.75mm x 5.8mm, pre-installed)

Use Cases:
