DEV Product | 3-Port 180W USB 3.2 Gen 2 PD 3.0 Hub w/ 60W Power per Port & ESD Surge Protection

DEV Product | 3-Port 180W USB 3.2 Gen 2 PD 3.0 Hub w/ 60W Power per Port & ESD Surge Protection - Image 2

DEV Product | 3-Port 180W USB 3.2 Gen 2 PD 3.0 Hub w/ 60W Power per Port & ESD Surge Protection

Upstream: 1 USB port, Type C connector
Downstream: 3 USB ports, Type C connectors
Power Connector: 6-Pin Molex Connector
Input Voltage: +12~24V DC
Power per Port: 60W
LED Indicators: Power, Port Status
Protection: ESD Surge Protection, Over Voltage & Over Current Protection

**Notice: This product is currently under development and is only available for purchase in limited quantities to ensure availability for all customers wishing to evaluate the product. Development products are intended for evaluation and testing purposes only and are not meant to be treated as full, finished products. Designs may change at any time. For more information please refer to the Development Product Terms. Read our full DEVELOPMENT PRODUCT TERMS here.

$172.99

In stock

Model No. CGL-PD4-GL3590V106-DEV

Product Documents

CGL-PD4-GL3590V106-DEV - Technical Data Sheet

Quick Links:

Project Inquiries

Description

Introduction:

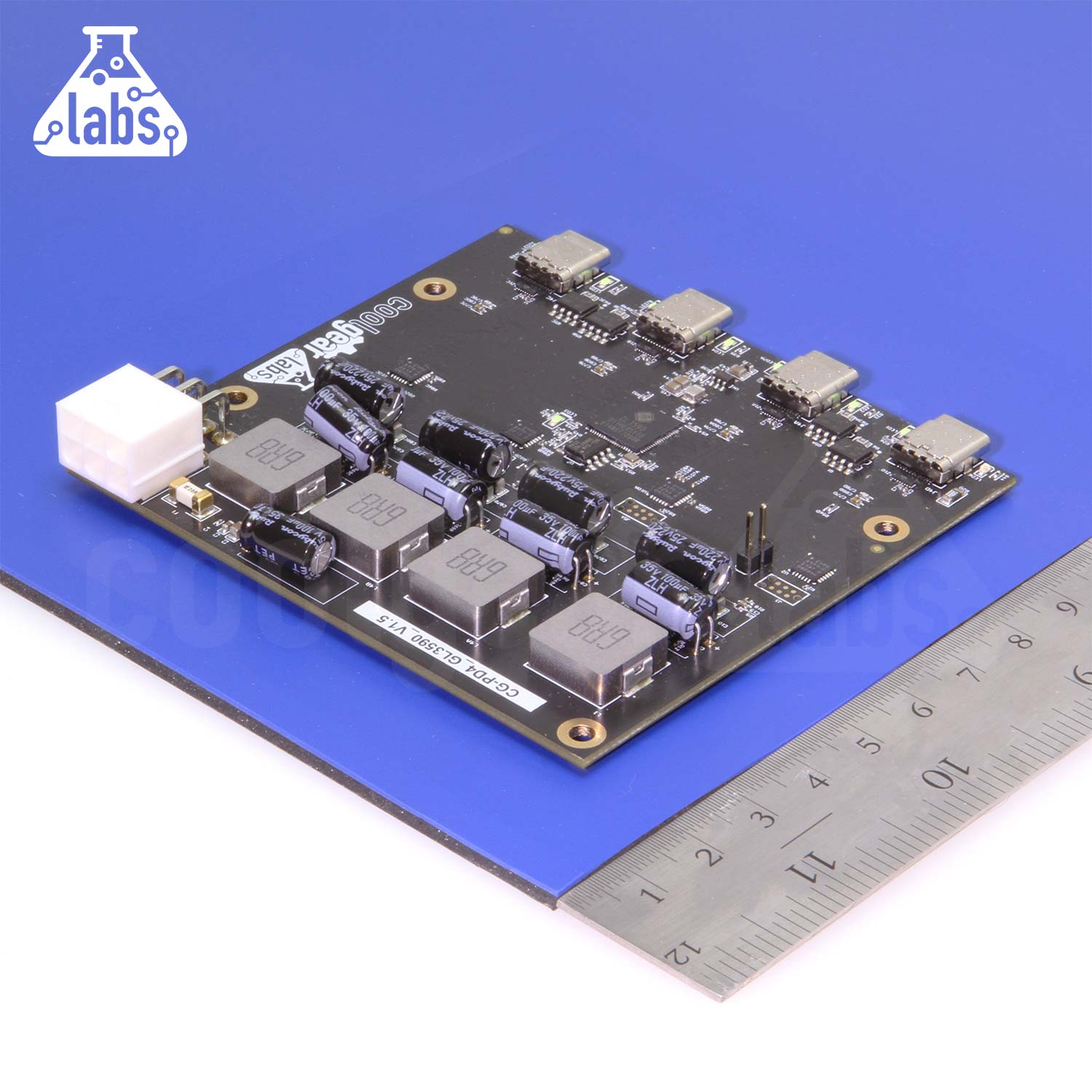

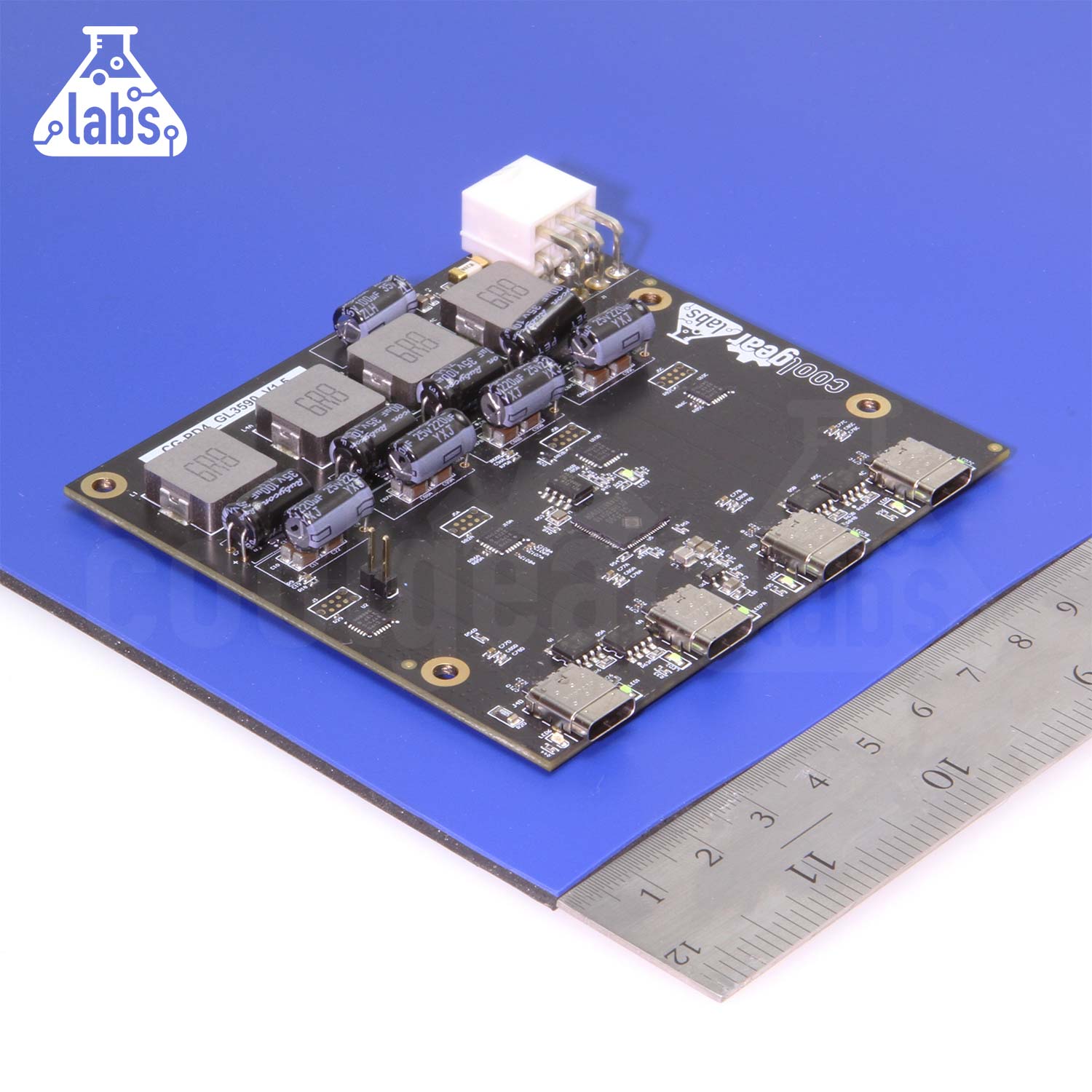

Coolgear’s CGL-PD4-GL3590V106-DEV USB 3.2 Gen 2 USB hub board features ESD protection and 60 Watts of power per port. The CGL-PD4-GL3590V106-DEV PCBA features a variable voltage input range of 12~24V DC supplied through a 6-Pin Molex Connector. Each port is individually protected to help protect your peripheral investments.

Specifications:

Compliant with USB 3.2 Gen 2 Specification
Upstream USB Type-B port supports Super-Speed Plus (SS+), Super-Speed (SS), High-Speed (HS) and Full-Speed (FS) traffic
Adds 3 downstream USB Type-C ports

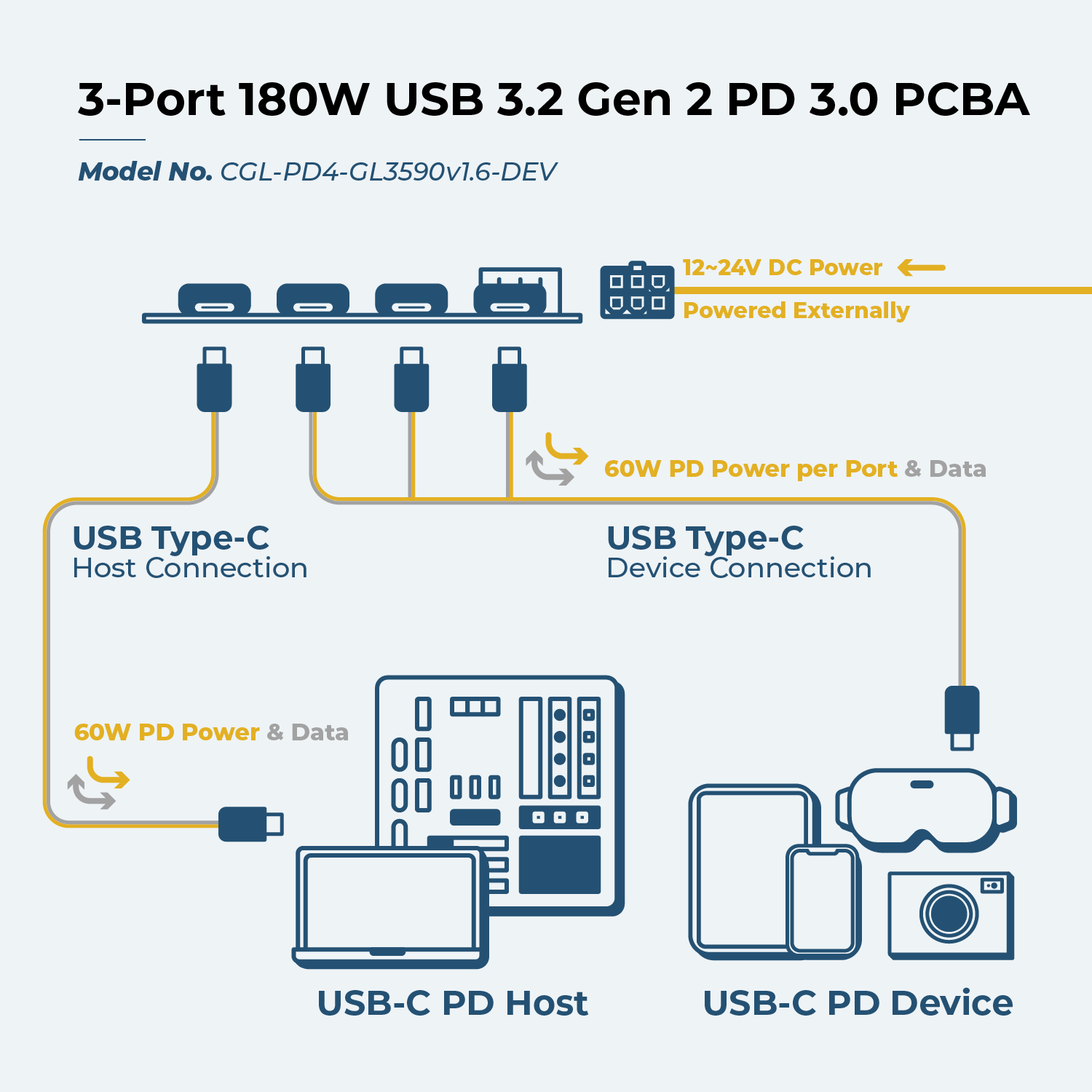

1 upstream USB Type-C UFP port providing up to 60watt PD 3.0 to Host Computer
12~24V 6 pin Molex Connection (can be direct power via Pads on PCB) or Breakout connector
At 12V input Total power is limited to 180 Watt with 24V input source power is increased to 240 Watt total
Quickly check your ports’ status with built in LED indicators
ESD protection per port: ±15 kV(Air), ±15 kV(Contact)
Up to 60watt PD power per Port
Multi Transaction Translators (TT) per Hub
Buck/Boost Individual Channels for all 4 PD Type-C connections, 5 / 9 / 12 / 15 / 20 V Profiles and PPS available
Amphenol & Molex Connectors
Cypress/MPS/Genesis Logic Based PCB

*5-Port Version available upon request.

Accessories & Replacement Parts

Out of stock

6 Pin Power Connector and RoHS Wire

Power connector and RoHS wire for Coolgear USB PD Integrator boards 180 and 240W versions.

Model# 0116-17-M

$9.29

Out of stock

300 Watt 24 Volt / 12.5 Amp AC Power Supply

24V – 12.5A External Power Supply with 6-Pin Molex connector for Coolgear USB commercial and industrial chargers. (Find a full compatibility list below). Input: AC…

Model# ATS300T-P240

$148.99

In stock

6-Pin 12in. Power Connector & RoHS Wire

Power connector and RoHS wire for Coolgear USB PD Integrator boards and high power USB PD chargers. For Use With: CGL-PD4-GL3590V106-DEV CG-PD5_GL_3590_V01-DEV CG-4PDU3-3PH CG-5PDU3EPR-4PH CG-5PDU3-4PH…

Model# 0116-16-M

$9.99

In stock
