3 Port USB 3.2 Gen 1 Over IP Network Device Sharing Hub w/ Port Status LEDs

Industrial Grade | +9~30V DC Input | 5 Gbps | DIN Rail | LED Indicators

  • Network Device Sharing: USB devices connected to the 3-Port USB 3.2 Gen 1 Over IP Network Hub can be made available to remote clients over LAN. The USB 3.2 Gen 1 Over IP Network 3-Port Hub shares USB devices over the TCP/IP network.
  • Super Fast Speeds: This USB hub is 3.2 Gen 1 compliant, ensuring super-fast 5Gbps data transfer speeds. It supports super speed, high speed and full speed which enables it to be compatible with USB 2.0 / 1.1.
  • Superior Build Quality: Housed in a rugged steel chassis, the 3-port hub is perfect for installations in offices, labs, warehouses, heavy machinery, automation equipment, and other industrial applications.
  • Upstream: 1 USB port, Type B connector
  • Downstream: 3 USB ports, Type A connectors
  • Power Connector: 2-Pin Molex Power Connector
  • Mounting Options: Desktop & DIN Rail
  • Supply Current: 900mA USB Bus Power for Each Down-stream Port

$98.95

In stock

View Volume Pricing

Units Price
1 - 4 $98.95
5 - 11 $96.97
12 - 24 $94.00
25 - 49 $92.02
50+ $89.06

Model No. ANYPLACEUSB-H3

Description

Introduction:

AnyplaceUSB-H3 Superspeed USB over IP Hub supports three USB 3.2 Gen 1 ports. It is designed not only for USB ports expansion but also for extension. The Hub is featured with USB 3.2 Gen 1 over network sharing functionality. The USB devices inserted to this Superspeed USB over IP Hub can be shared and accessed by network computers over wired or wireless network from anyplace in the world. Each USB 3.2 Gen 1 port can transfer data and files at blazing speeds up to 5 Gbps – up to 10 times faster than USB 2.0. The USB 3.2 Gen 1 over IP Hub, when used in conjunction with TITAN’s AnyplaceUSB software, enables USB remote connection. The app makes all the USB ports on this Hub available to be accessed, shared and used over IP, LAN, WAN, VLAN, VPN and the Internet from any remote locations.

Features:

• Empowers USB ports with USB device networking and sharing functionality
• USB 3.2 Gen 1 over Ethernet Device Hub allows USB devices to be accessed and shared by multiple client computers over network or across the internet
• Network-enables remote USB peripherals and devices as if they were connected directly to the local PC
• Supports wide variety of USB devices, i.e. printers, webcams, conference cams, cameras, fingerprint readers, scanners, barcode scanners, ID card scanners, security dongles, USB dongles, hard drives and flash drives, USB to RS-232/422/485 adapters, iPhones, iPads, Android devices and many more
• USB plug-and-play and hot-swap functions same as onboard USB ports
• USB ports compliant with the USB 3.2 Gen 1 specification
• Provides three networked USB 3.2 Gen 1 over Ethernet device ports
• Data rates: USB 3.2 Gen 1 5Gbps (super speed), USB 2.0 480Mbps (high speed), USB 2.0 12Mbps (full speed) and USB 1.1 1.5Mbps (low speed)
• User-friendly and convenient AnyplaceUSB software program with both server and client functionality
• Shares your USB devices and connects remote shared USB devices over a network at the same time
• Password authorization and traffic encryption for data security and safety
• Any authorized users in an office next door or in another country may remotely access your USB devices through AnyplaceUSB app client
• Supports standard USB webcam functions such as video transfer over a network (Internet/LAN/WAN)
• Supports high speed isochronous USB devices
• Able to share USB security software protection dongles conveniently using features of AnyplaceUSB software program
• Redirects USB devices to virtual machines such as VMWare, Virtual PC, Citrix Xen Desktop, Microsoft Hyper-V, QEMU (KMV), etc. On a virtual machine, easy to establish a passthrough for USB devices from host OS to a guest OS
• Multiple transaction translator (TT) architecture to each USB downstream (DS) port
• LEDs for power and USB status indication
• Includes a DC 12V 1A switching power adapter
• Power supply with latch locking to the hub preventing from accidental disconnection
• Individual port power management
• Overcurrent protection
• Industrial-grade Superspeed USB 3.2 Gen 1 over Ethernet device hub with SECC metal case for DIN rail mounting. Two mounting holes on bottom case
• CE, FCC approval

Package Contents:

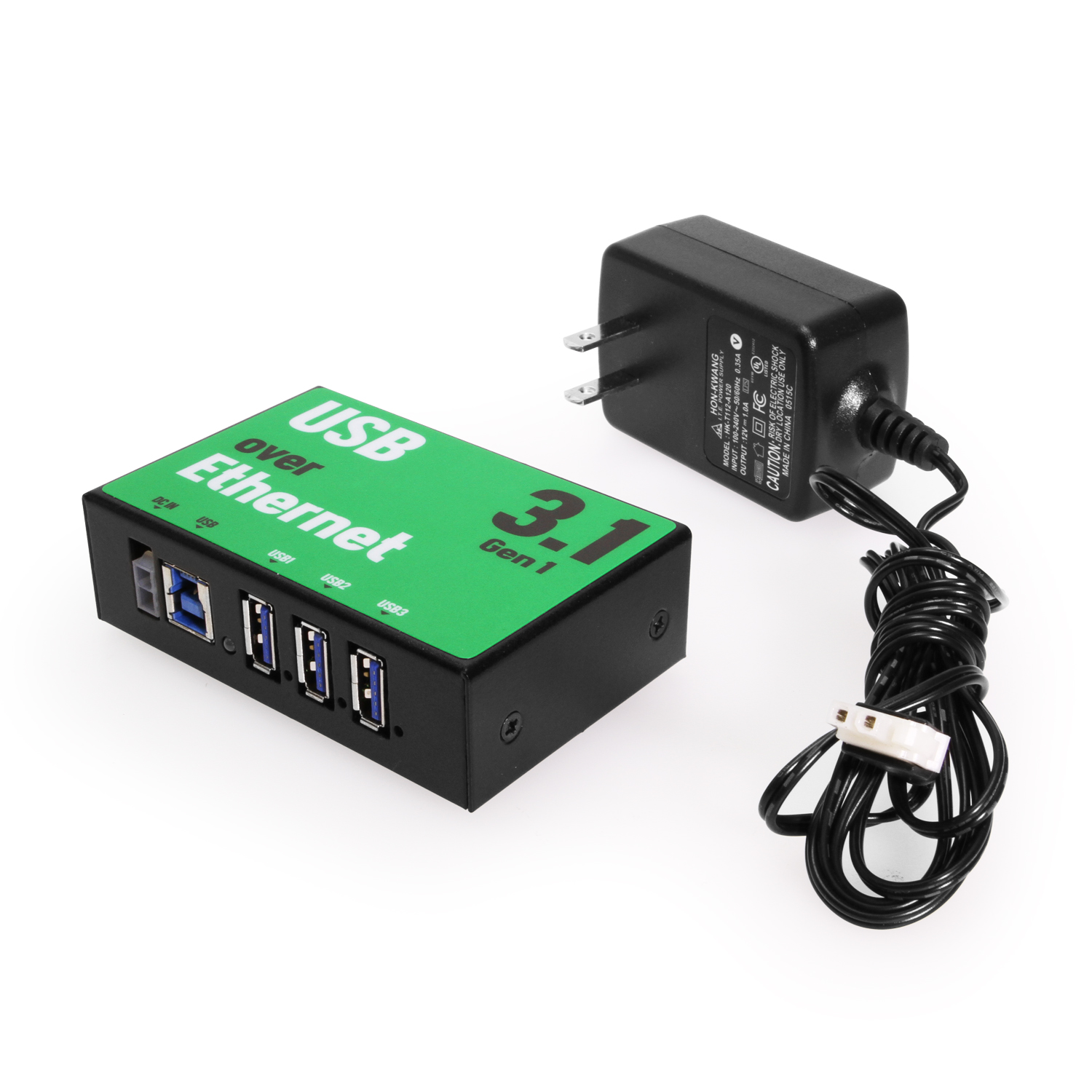

  • 3 Port USB 3.2 Gen 1 Over IP Hub
  • Power Adadpter
Specifications

Product Specifications

Power
Input Voltage

+9~30V DC

Power Source

2-Pin Molex Power Connector, AC Adapter Included

Adapter Input Current

0.35A

Adapter Input Voltage

100~240V AC

Adapter Output Current

1A

Adapter Output Voltage

12V DC

External Power Required

No

Compliance
Country of Origin

Taiwan

Certifications

,

Mechanical
Color

Black, Green

Item Dimensions (L × W × H)

3.62 × 2.28 × 1.14 in.

Item Weight

0.463 lbs.

Mounting Style

Desktop

Ports

3 USB Ports

Material of Construction

Galvanized Steel

USB
USB Type

USB 3.2 Gen 1

Upstream USB Ports

1 Type-B Female USB

Downstream USB Ports

3 Type-A Female USB

Software
OS Support

Win 11, Linux, Mac OSX, Win 10, Win 7, Win 8

Environmental
Operating Temperature

0°C to 45°C

Storage Temperature

-20°C to 70°C

Humidity

0% ~ 90% (non-condensing)

Product Information
Warranty

1 year from date of purchase

Hardware
LED Indicators

Power

Per USB Port Current

900mA maximum

What's in the Box
Package Contents

Hub, Power Adapter

Performance
Max Data Transfer Rate

5Gbps

Other Data
UPC

045079162730

Weight

0.46 lbs

Dimensions

3.62205 in

UPC: 045079162730
Support

Product Documentation & Drivers

Product Documents


Need drawings, CAD files, or other compliance documentation? Click HERE

Hubs F.A.Q.

Product F.A.Q.

View frequently asked product questions below. Still need help? Reach out!

  • Can the hub be used without a power supply?
    In some cases, yes. USB peripherals that only require low power (i.e. keyboards & mice) can be used without a power adapter. Power in this case is drawn from the host’s USB port.

    When high-power USB peripherals are used, a power supply for the USB hub may be required. In other cases, the USB peripheral may require their own power adapters, in this case, a power supply for the hub may not be required. Without ample power though, the USB hub or connected peripherals may not operate correctly. It is recommended to use an included power supply when possible.

  • After waking up from sleep mode, my computer/host no longer recognizes my USB device.
    If the USB device does not function properly after your computer or host has been in sleep mode, it is likely that Windows turned off the USB Root hub in order to save power.

    To prevent this, follow the steps below (depending on your operating system).

    Windows 10 / 8

    1. On your keyboard, press the Windows key + X and select Control Panel.
    2. Click Hardware and Sound, then click Power Options.
    3. Click Change plan settings for the plan you want to change.
    4. Click Change advanced power settings.
    5. Click the plus sign (+) next to “USB settings” and “USB selective suspend setting” to expand the options and change the setting to Disabled.
    6. Click OK to apply the setting.

    Note: You may need to disconnect and re-connect your USB device after applying these settings.

    Windows 7 / Vista

    1. Click the Start button and select Control Panel.
    2. Click Hardware and Sound, then click Power Options.
    3. Click Change plan settings for the plan you want to change.
    4. Click Change advanced power settings.
    5. Click the plus sign (+) next to “USB settings” and “USB selective suspend setting” to expand the options and change the setting to Disabled.
    6. Click OK to apply the setting.

    Note: You may need to disconnect and re-connect your USB device after applying these settings.

    Windows XP

    1. On your desktop, right-click the My Computer icon and select Properties.
    2. Click the Device Manager tab.
    3. Expand Universal Serial Bus controllers by clicking the arrow to the left of it.
    4. Right-click the first USB Root Hub device and select Properties.
    5. Click the Power Management tab.
    6. Clear the box next to Allow the computer to turn off this device to save power.
    7. Click OK to apply the setting.
    8. Repeat steps 4-7 for any remaining devices in the Universal Serial Bus Controllers section with “Root Hub” in the name.

    Note: You may need to disconnect and re-connect your USB device after applying these settings.

  • The hub is properly hooked up, but is not functioning correctly. What can I do?
    Testing all setup components is the best place to begin troubleshooting. To determine the source of the issue, individually test your:

    • USB Cable by using it in another setup, or trying another cable.
    • Host USB Port by connecting another device or thumb drive.
    • Connected Peripherals by connecting directly to the host.

    Moving on to troubleshooting the hub itself. Attach a USB peripheral. The USB hub itself will not appear in hardware listings on your host’s system. USB devices connected however, will appear when connected. If the connected device is still not being found, try:

    • Installing the required drivers for the USB peripheral.
    • Install the most recent drivers for the USB controller and/or motherboard chipset.

    USB hubs do not require drivers or software.

    Troubleshooting the desired USB peripheral may be in order. If the peripheral is still not being recognized, attempt:

    • Attaching external power to the peripheral, if required.
    • Confirming if the peripheral functions on a standard USB port.
    • Testing if basic USB peripherals work, such as keyboards or mice.
  • How can external power be connected to the industrial USB hub?

    External power is supplied by connecting to the terminal block located on the hub. For when an external power adapter is required check out the Accessories & Replacement Parts section on this product page. To view all of our hub accessories and power supplies, visit the category here.

    To determine the power requirements, the equation to use is P = 5 * I * N, where:

    P is the power wattage.

    is the USB port voltage.

    I is the current of the USB port in Amps (USB 2.0 is 0.5A, USB 3.0 is 0.9A.

    N is the number of USB ports.



    As an example using the equation, a 4 port hub would reflect a minimum wattage of 18 watts.

    Knowing the minimum requirement, a proper power adapter can be chosen. In this case the voltage of a power supply should be within 7 to 24 or 7 to 40 Volts DC, depending on the specifications of the USB hub. Also, the power supply must convert AC to DC (no AC output).

    Power supplies often come with a voltage (V) rating and an amperage (A) rating. To determine the current in amps, use I = P / V, where the following is true:

    I is the current of the power supply.

    P is the calculated power of the hub.

    V is the chosen voltage of the power supply

    Continuing the example, the 4 port hub requires 18 W and the power supply you choose is 12V, the current of the power supply would be I = 18/12, I = 1.5A.



    Our full collection of power adapters can be found here.
