4 Port USB 2.0 Powered Hub w/ Port Status LEDs & Screw Locking Ports

Industrial Grade | +5V DC Input | Surface Mountable | 480 Mbps | Screw Lock

  • High Speeds: This USB hub is 2.0 compliant, ensuring fast 480Mbps data transfer speeds. It supports high speed and full speed which enables it to be compatible with USB 1.1.
  • Superior Build Quality: Housed in a rugged steel chassis with built in mountable flanges, the 4-port hub is perfect for installations in offices, labs, warehouses, heavy machinery, automation equipment, and other industrial applications.
  • Power Your Way: The 4-port hub works in either bus-powered mode or self-powered mode with the included power adapter.
  • Upstream: 1 USB port, Type B connector, Screw-lock type
  • Downstream: 4 USB ports, Type A connectors, Screw-lock type
  • Power Connector: DC Barrel Jack
  • Mounting Options: Wall & Surface

$60.95

(2 customer reviews)

In stock

View Volume Pricing

Units Price
1 - 4 $60.95
5 - 11 $59.73
12 - 24 $57.90
25 - 49 $56.68
50+ $54.86

Also available from:

Model No. USBG-4SU2MLA

Description

Introduction:

The USBG-4SU2MLA is a Metal 4-Port USB 2.0 Hub that complies with Universal Serial Bus (USB) Specifications Revision 2.0 and work up to 480Mbps. It provides 4 downstream facing ports with standard A-type USB 2.0 connectors. It also supports screw-lock features for both upstream (USB type A) and downstream (USB type B) connectors with the screw-lock USB cables. It prevents from disconnecting the USB cables accidentally.

With NEC uPD720114 USB 2.0 controller, it works backward compatible either when any one of downstream port is connected to an USB 1.1 compliant device, or when the upstream port is connected to a USB 1.1 compliant host.

The USBG-4SU2MLA metal 4-Port USB 2.0 hub also provides a unique feature to work in the bus-powered mode without an external AC power adapter. It’s very convenient for light power consumption USB devices to work in this mode without an extra power supply. Simply plug and proceed to transfer data. Otherwise, the external DC jack is used for self-powered mode if you need more power on the 4 downstream ports.

Since the USB is the most popular external port for the devices to connect to PCs, the USBG-4SU2MLA provides an ideal solution to expand your USB ports immediately and save your investment.

USBG-4SU2MLA - Metal 4-Port USB 2.0 Hub connected for use image



Specifications:

  • For Systems with USB 2.0 or USB 1.1 Ports
  • Provides 4 USB downstream ports which managing up to 480Mbps:
  • Compliant with USB Specifications 2.0
  • High-speed or Full-speed Packet Protocol Sequencer for Endpoint 0/1
  • Provides 4 Downstream Facing Ports
  • 1 Upstream and 4 Downstream Screw Lock USB Ports, Ideal for Critical Applications
  • Supports 480Mbps, 12Mbps and 1.5Mbps Speed
  • One Transaction Translator per Hub and Supports 4 Concurrent Non-periodic Transactions
  • Supports Self-powered and Bus-powered Mode
  • Supports Downstream Port Status with LED
USB Devices:
  • Supports keyboard, mouse, monitor, scanner, printer, PC Camera, telephone, CD-ROM drive, joystick, virtual reality helmet, modem, PBX and many more
I/O Hardware:
  • Supports 4 external USB 2.0 Type-A connectors and 1 Type-B Upstream connector, supports screw lock features with screw lock type cables
  • Supports 1 screw lock type DC Jack for external power input from AC adapter
Form Factor:
  • 5.98”(L) x 2.35”(W) x 0.93”(H)  (15.20 x 5.96 x 2.35 cm)
  • 7.032″(L) x 2.35″(W) x 0.93″(H) (17.861 x 5.96 x 2.35 CM) with mounting flange
OS Support:
  • Windows XP, Vista, Windows 7, Windows 8, and Windows 10
  • Linux and Mac OS 10.X
Environmental Specs:
  • Operating Temp: 0 to 55°C (32 to 131°F)
  • Operating Humidity: 5 to 95% RH

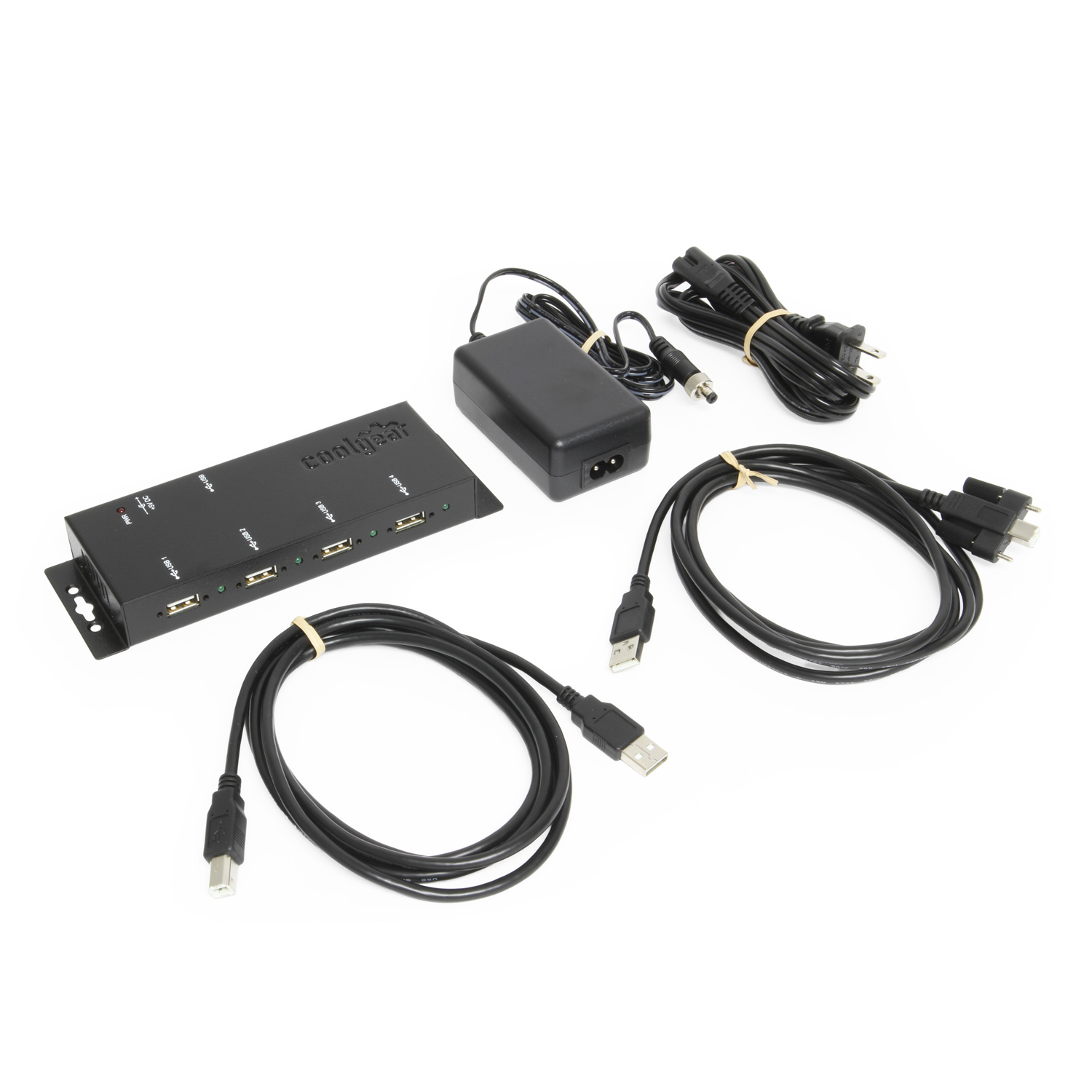

Package Contents:

  • USB 2.0 4 port hub
  • 1x USB A to B cable with USB-B locking
  • 1x USB a to B cable
  • 5V 2A output power adapter
  • Paper installation manual

*Surface Mounting screws not included.

Specifications

Product Specifications

Power
Input Voltage

+5V DC

Over Current Protection

Y

Power Source

AC Adapter Included, DC Barrel Jack 2.1mm ID x 5.5mm OD

Idle Consumption

21.5mA Bus Powered, 22mA @ 5V Barrel Power

Adapter Input Current

0.3A

Adapter Input Voltage

100~240V AC

Adapter Output Current

2A

Adapter Output Voltage

5V DC

External Power Required

No

Compliance
Country of Origin

Taiwan

Certifications

, ,

Mechanical
Color

Black

Item Dimensions (L × W × H)

7.02 × 2.34 × 0.91 in.

Item Weight

0.588 lbs.

Mounting Style

Surface / Wall Mount

Ports

4 USB Ports

Material of Construction

Galvanized Steel

USB
USB Type

USB 2.0

Upstream USB Ports

1 Type-B Female USB

Downstream USB Ports

4 Type-A Female USB

Screw Lock Compatible

Yes

Software
OS Support

Win 11, Linux, Mac OSX, Win 10, Win 7, Win 8

Environmental
Operating Temperature

0°C to 55°C (32°F to 131°F)

Storage Temperature

-20 to 75°C (-4 to 167°F)

Humidity

5% ~ 95% (non-condensing)

Product Information
Warranty

1 year from date of purchase

Hardware
Chipset

NEC D720114

Charging Protocols

Charging Downstream Port (CDP), Dedicated Charging Port (DCP)

LED Indicators

Port Status, Power

What's in the Box
Package Contents

Hub, Power Adapter, USB-A to Screw Lock USB-B Cable, USB-A to USB-B Cable

Performance
Max Data Transfer Rate

480Mbps

Over Current Protection

Y

Other Data
UPC

736983900395

Weight

1.5 lbs

Dimensions

11 × 6 × 2 in

UPC: 736983900395
Accessories & Replacement Parts

Accessories & Replacement Parts

USB 2.0 Cable for close connections Use this USB 2.0 cable to connect your desktop or laptop using a USB hub, printer, or scanner. Transfer…

Model# USB2-AB

$2.95$10.95

In stock

Select options

Hubs F.A.Q.

Product F.A.Q.

View frequently asked product questions below. Still need help? Reach out!

  • Can the hub be used without a power supply?
    In some cases, yes. USB peripherals that only require low power (i.e. keyboards & mice) can be used without a power adapter. Power in this case is drawn from the host’s USB port.

    When high-power USB peripherals are used, a power supply for the USB hub may be required. In other cases, the USB peripheral may require their own power adapters, in this case, a power supply for the hub may not be required. Without ample power though, the USB hub or connected peripherals may not operate correctly. It is recommended to use an included power supply when possible.

  • After waking up from sleep mode, my computer/host no longer recognizes my USB device.
    If the USB device does not function properly after your computer or host has been in sleep mode, it is likely that Windows turned off the USB Root hub in order to save power.

    To prevent this, follow the steps below (depending on your operating system).

    Windows 10 / 8

    1. On your keyboard, press the Windows key + X and select Control Panel.
    2. Click Hardware and Sound, then click Power Options.
    3. Click Change plan settings for the plan you want to change.
    4. Click Change advanced power settings.
    5. Click the plus sign (+) next to “USB settings” and “USB selective suspend setting” to expand the options and change the setting to Disabled.
    6. Click OK to apply the setting.

    Note: You may need to disconnect and re-connect your USB device after applying these settings.

    Windows 7 / Vista

    1. Click the Start button and select Control Panel.
    2. Click Hardware and Sound, then click Power Options.
    3. Click Change plan settings for the plan you want to change.
    4. Click Change advanced power settings.
    5. Click the plus sign (+) next to “USB settings” and “USB selective suspend setting” to expand the options and change the setting to Disabled.
    6. Click OK to apply the setting.

    Note: You may need to disconnect and re-connect your USB device after applying these settings.

    Windows XP

    1. On your desktop, right-click the My Computer icon and select Properties.
    2. Click the Device Manager tab.
    3. Expand Universal Serial Bus controllers by clicking the arrow to the left of it.
    4. Right-click the first USB Root Hub device and select Properties.
    5. Click the Power Management tab.
    6. Clear the box next to Allow the computer to turn off this device to save power.
    7. Click OK to apply the setting.
    8. Repeat steps 4-7 for any remaining devices in the Universal Serial Bus Controllers section with “Root Hub” in the name.

    Note: You may need to disconnect and re-connect your USB device after applying these settings.

  • The hub is properly hooked up, but is not functioning correctly. What can I do?
    Testing all setup components is the best place to begin troubleshooting. To determine the source of the issue, individually test your:

    • USB Cable by using it in another setup, or trying another cable.
    • Host USB Port by connecting another device or thumb drive.
    • Connected Peripherals by connecting directly to the host.

    Moving on to troubleshooting the hub itself. Attach a USB peripheral. The USB hub itself will not appear in hardware listings on your host’s system. USB devices connected however, will appear when connected. If the connected device is still not being found, try:

    • Installing the required drivers for the USB peripheral.
    • Install the most recent drivers for the USB controller and/or motherboard chipset.

    USB hubs do not require drivers or software.

    Troubleshooting the desired USB peripheral may be in order. If the peripheral is still not being recognized, attempt:

    • Attaching external power to the peripheral, if required.
    • Confirming if the peripheral functions on a standard USB port.
    • Testing if basic USB peripherals work, such as keyboards or mice.
  • How can external power be connected to the industrial USB hub?

    External power is supplied by connecting to the terminal block located on the hub. For when an external power adapter is required check out the Accessories & Replacement Parts section on this product page. To view all of our hub accessories and power supplies, visit the category here.

    To determine the power requirements, the equation to use is P = 5 * I * N, where:

    P is the power wattage.

    is the USB port voltage.

    I is the current of the USB port in Amps (USB 2.0 is 0.5A, USB 3.0 is 0.9A.

    N is the number of USB ports.



    As an example using the equation, a 4 port hub would reflect a minimum wattage of 18 watts.

    Knowing the minimum requirement, a proper power adapter can be chosen. In this case the voltage of a power supply should be within 7 to 24 or 7 to 40 Volts DC, depending on the specifications of the USB hub. Also, the power supply must convert AC to DC (no AC output).

    Power supplies often come with a voltage (V) rating and an amperage (A) rating. To determine the current in amps, use I = P / V, where the following is true:

    I is the current of the power supply.

    P is the calculated power of the hub.

    V is the chosen voltage of the power supply

    Continuing the example, the 4 port hub requires 18 W and the power supply you choose is 12V, the current of the power supply would be I = 18/12, I = 1.5A.



    Our full collection of power adapters can be found here.
