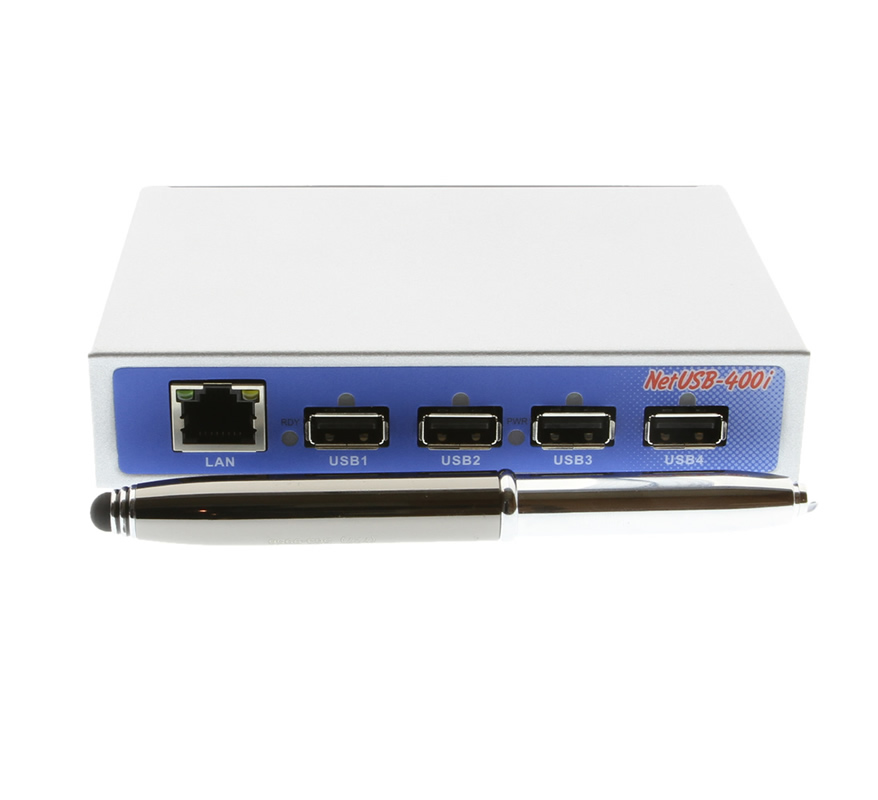

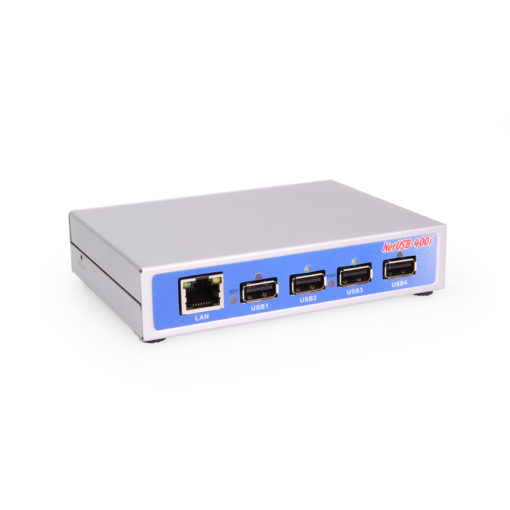

4 Port USB 2.0 Over IP Network Device Sharing Hub w/ Port & Network Status LEDs

Industrial Grade | +9~30V DC Input | Surface Mountable | 480 Mbps

  • Network Device Sharing: USB devices connected to the 4-Port USB 2.0 Over IP Network Hub can be made available to remote clients over LAN. The USB 2.0 Over IP Network 4-Port Hub shares USB devices over the TCP/IP network.
  • High Speeds: This USB hub is 2.0 compliant, ensuring fast 480Mbps data transfer speeds for devices shared over the network. It supports high speed and full speed which enables it to be compatible with USB 1.1.
  • Superior Build Quality: Housed in a solid metal chassis, the 4-port hub is perfect for installations in offices, data centers, labs, warehouses, kiosks, and other applications.
  • LED Indicators: Network, Port Status, & Power
  • LAN Port: 1 RJ45 Connector
  • Downstream: 4 USB ports, Type A connectors
  • Power Connector: 3-Pin Terminal Block Power Adapter
  • Mounting Options: Desktop, Wall, Surface, & DIN Rail

$113.95

(1 customer review)

Out of Stock

Model No. USBNET-400i

Description

Introduction:

The USBNET-400i USB 2.0 Over IP Network 4-Port Hub is an industrial-strength network-based USB Server for connecting four USB devices directly to the 10/100Mbps Ethernet network running TCP/IP. By adding this USB Server to LAN, you can network-enable the USB devices and break the traditional five meter (16.5 feet) USB cabling distance limitation. By this implementation, USB devices connected to the 4-Port USB 2.0 Over IP Network Hub can be made available to remote clients over LAN. The USB 2.0 Over IP Network 4-Port Hub shares USB devices over the TCP/IP network, Share any USB device with others by using USB 2.0 networking hub.

Connect to any USB device anywhere on TCP/IP network. The USB to Ethernet Connector ensures hot Plug-and-Play installation including support for Isochronous devices. Share your USB device with others over local network using a single application. The USB 2.0 Over IP Network Hub will Auto-connect to new USB devices whenever they are plugged in. It also features network traffic encryption for sharing among secure devices.

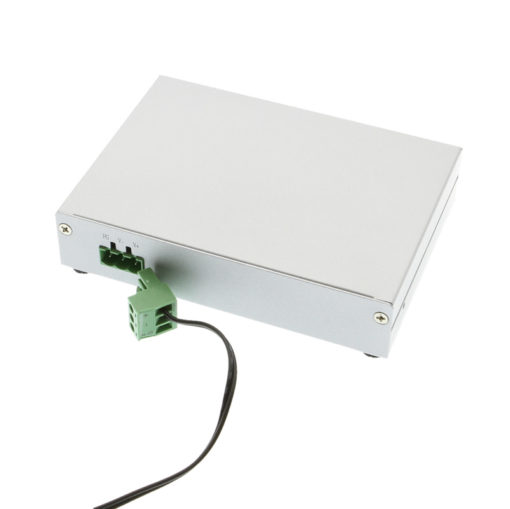

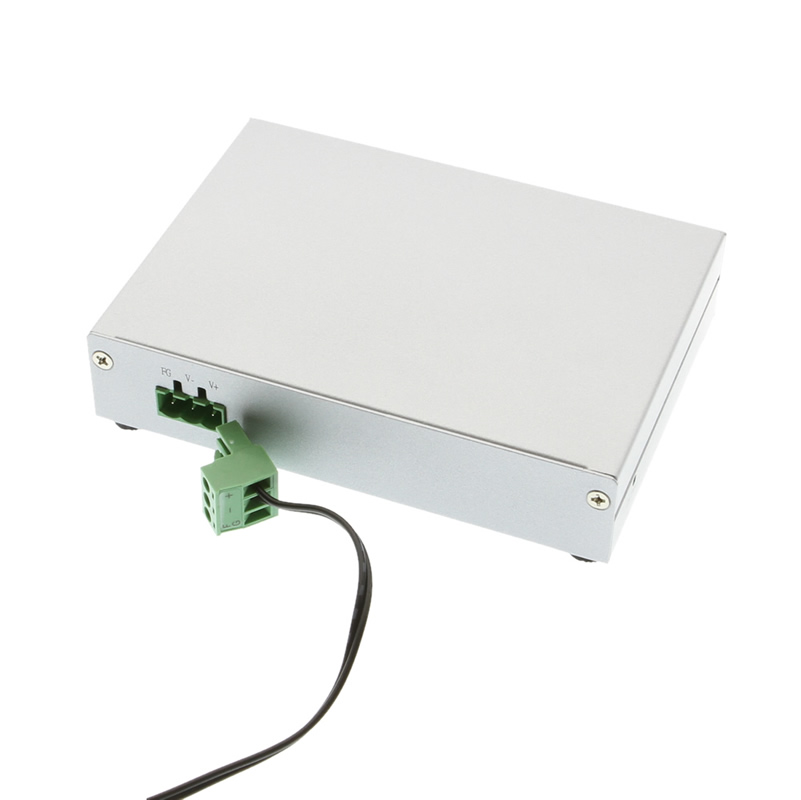

USB 2.0 Over IP Network 4-Port Hub Power connector

Cross-connectivity: ability to connect to a USB device which is shared on x64 PC from Windows XP x32, and vice versa new! The shared USB ports on the device are automatically re-configured. This device is fully compatible with Windows 7 / 8 / 10. Currently supports OHCI, UHCI and EHCI standards. This device is also fully compatible with hyper threaded and multi-processor systems.

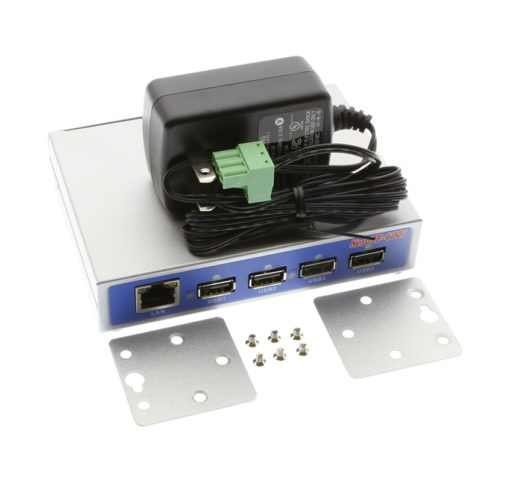

USB 2.0 Over IP Network 4-Port Hub Package

Features:

  • Extends USB cabling distance beyond five meters.
  • Allows USB Devices to be used and shared by client PCs over LAN.
  • Supports wide variety of USB devices.
  • Supports Printer Auto Connect while sharing the printer to different client PCs.
  • Compatible with bulk, interrupt and isochronous type USB devices.
  • Provides Plug and Play function same as on board USB port.
  • Access and monitor USB devices over a User-Friendly Application interface.
  • Allows USB Devices to be used and shared by client PCs over LAN.
  • Supports wide variety of USB devices.
  • Industrial metal case.
  • USB port supports over current protection.
  • The NetUSB USB Server provides: RJ45 Ethernet to 4 USB ports.
  • Supports IP addressing as Static or by DHCP.
  • LEDs for system/Ethernet/USB ports.
  • Field-upgradeable firmware.

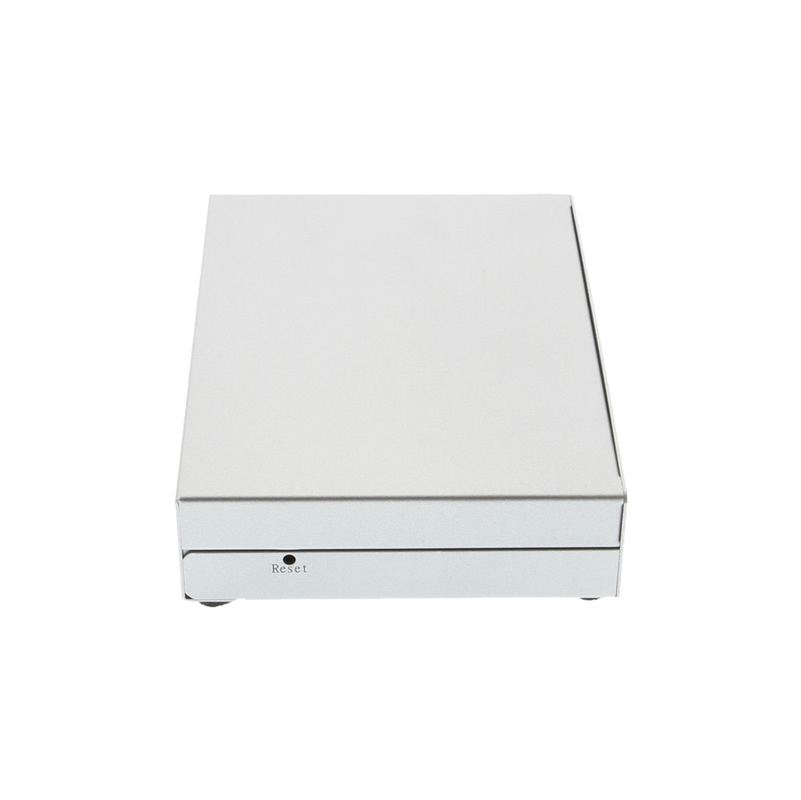

  • Supports Reset button for system reset.
  • Supports Default button for configuration to default setting.

Specifications:

  • The NetUSB USB Server provides: RJ45 Ethernet to 4 USB ports.
  • Supports wide input power range: DC 9-30V.
  • 4 USB 2.0 High Speed Ports up to 480Mbps speed.
  • Full 500mA power provided to each USB port.
  • 10BaseT/100BaseTx Fast Ethernet support.
  • Input power range: DC9V~DC30V.
  • Made from SECC Sheet Metal
  • Compatible with Windows 7 / 8 / 10.
  • Regulatory approvals: FCC Class B (DoC) and CE.
  • RoHS compliant.
  • Product Dimensions: 4.967in(L) x 3.594in(W) x 1.149in(H)
  • Operating Temperature: 0 to 55 °C (32 to 131 °F)
  • Operating Humidity: 5 to 95% RH
  • Storage Temperature: -20 to 75 °C (-4 to 167 °F)
  • Safety Approvals: CE, FCC
Supported USB Devices:
  • Cameras
  • Scales
  • Barcode Scanners
  • Cash Registers
  • IO Devices
  • Scanners
  • Webcams
  • USB Hard Drives
  • USB RAID
  • USB Storage
  • MULTI Function Printer Devices
  • Multifunctionals
  • Handhelds
  • USB to Serial RS-232/422/485 Cables
  • Card Readers
  • Fingerprint Readers

Package Contents:

  • 4 port USB 2.0 over IP network hub

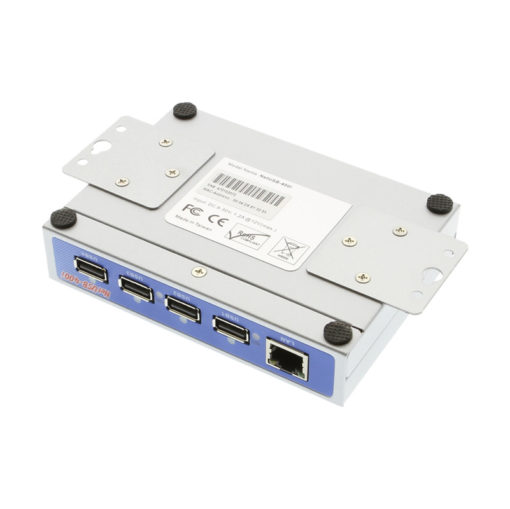

  • Din Rail mounting plates and screws
  • 12V 1A output power adapter with 3 pin Phoenix connector
  • Driver / installation disc

*Surface Mounting screws not included.

Specifications

Product Specifications

Power
Over Current Protection

Y

Power Source

3-Pin Terminal Block, AC Adapter Included

Idle Consumption

120V AC adapter to 12V DC .03A draw

Adapter Input Current

0.35A

Adapter Input Voltage

100~240V AC

Adapter Output Current

1A

Adapter Output Voltage

12V DC

External Power Required

Yes

Compliance
Country of Origin

Taiwan

Certifications

Mechanical
Color

Black

Item Dimensions (L × W × H)

4.96 × 3.59 × 1.15 in.

Item Weight

0.631 lbs.

Mounting Style

Desktop, Surface / Wall Mount, Din-Rail Mount

Ports

4 USB Ports

Material of Construction

Metal

USB
USB Type

USB 2.0

Downstream USB Ports

4 Type-A Female USB

Isolated/Surge Protected

Yes

Software
OS Support

Win 11, Linux, Mac OSX, Win 10, Win 7, Win 8

Environmental
Operating Temperature

0°C to 55°C (32°F to 131°F)

Storage Temperature

-20 to 75°C (-4 to 167°F)

Humidity

5% ~ 95% (non-condensing)

Product Information
Warranty

1 year from date of purchase

Hardware
Chipset

E3868M4-B, GL 852G

LED Indicators

Network, Port Status, Power

What's in the Box
Package Contents

3-Pin Terminal Block, Hub, Mounting Plate, Power Adapter, Screw Pack

Performance
Isolated/Surge Protected

Yes

Max Data Transfer Rate

480Mbps

Over Current Protection

Y

Network
Protocols

DHCP, DNS, HTTP, ICMP, TCP/IP, UDP

Ethernet Interface

100BaseTx, 10BaseT

Other Data
UPC

736983901705

Weight

1.5 lbs

Dimensions

11.25 × 5.75 × 2.3 in

UPC: 736983901705
Reviews (1)

1 review for 4 Port USB 2.0 Over IP Network Device Sharing Hub w/ Port & Network Status LEDs

  1. Redfred1

    I needed a way to add a security dongle for my networked application running on a thin client. Works great… It was easy to setup and no issues so far. The 4 ports gives me some expansion capability for not much more than some of the single port units I saw.

Add a review

Hubs F.A.Q.

Product F.A.Q.

View frequently asked product questions below. Still need help? Reach out!

  • Can the hub be used without a power supply?
    In some cases, yes. USB peripherals that only require low power (i.e. keyboards & mice) can be used without a power adapter. Power in this case is drawn from the host’s USB port.

    When high-power USB peripherals are used, a power supply for the USB hub may be required. In other cases, the USB peripheral may require their own power adapters, in this case, a power supply for the hub may not be required. Without ample power though, the USB hub or connected peripherals may not operate correctly. It is recommended to use an included power supply when possible.

  • After waking up from sleep mode, my computer/host no longer recognizes my USB device.
    If the USB device does not function properly after your computer or host has been in sleep mode, it is likely that Windows turned off the USB Root hub in order to save power.

    To prevent this, follow the steps below (depending on your operating system).

    Windows 10 / 8

    1. On your keyboard, press the Windows key + X and select Control Panel.
    2. Click Hardware and Sound, then click Power Options.
    3. Click Change plan settings for the plan you want to change.
    4. Click Change advanced power settings.
    5. Click the plus sign (+) next to “USB settings” and “USB selective suspend setting” to expand the options and change the setting to Disabled.
    6. Click OK to apply the setting.

    Note: You may need to disconnect and re-connect your USB device after applying these settings.

    Windows 7 / Vista

    1. Click the Start button and select Control Panel.
    2. Click Hardware and Sound, then click Power Options.
    3. Click Change plan settings for the plan you want to change.
    4. Click Change advanced power settings.
    5. Click the plus sign (+) next to “USB settings” and “USB selective suspend setting” to expand the options and change the setting to Disabled.
    6. Click OK to apply the setting.

    Note: You may need to disconnect and re-connect your USB device after applying these settings.

    Windows XP

    1. On your desktop, right-click the My Computer icon and select Properties.
    2. Click the Device Manager tab.
    3. Expand Universal Serial Bus controllers by clicking the arrow to the left of it.
    4. Right-click the first USB Root Hub device and select Properties.
    5. Click the Power Management tab.
    6. Clear the box next to Allow the computer to turn off this device to save power.
    7. Click OK to apply the setting.
    8. Repeat steps 4-7 for any remaining devices in the Universal Serial Bus Controllers section with “Root Hub” in the name.

    Note: You may need to disconnect and re-connect your USB device after applying these settings.

  • The hub is properly hooked up, but is not functioning correctly. What can I do?
    Testing all setup components is the best place to begin troubleshooting. To determine the source of the issue, individually test your:

    • USB Cable by using it in another setup, or trying another cable.
    • Host USB Port by connecting another device or thumb drive.
    • Connected Peripherals by connecting directly to the host.

    Moving on to troubleshooting the hub itself. Attach a USB peripheral. The USB hub itself will not appear in hardware listings on your host’s system. USB devices connected however, will appear when connected. If the connected device is still not being found, try:

    • Installing the required drivers for the USB peripheral.
    • Install the most recent drivers for the USB controller and/or motherboard chipset.

    USB hubs do not require drivers or software.

    Troubleshooting the desired USB peripheral may be in order. If the peripheral is still not being recognized, attempt:

    • Attaching external power to the peripheral, if required.
    • Confirming if the peripheral functions on a standard USB port.
    • Testing if basic USB peripherals work, such as keyboards or mice.
  • How can external power be connected to the industrial USB hub?

    External power is supplied by connecting to the terminal block located on the hub. For when an external power adapter is required check out the Accessories & Replacement Parts section on this product page. To view all of our hub accessories and power supplies, visit the category here.

    To determine the power requirements, the equation to use is P = 5 * I * N, where:

    P is the power wattage.

    is the USB port voltage.

    I is the current of the USB port in Amps (USB 2.0 is 0.5A, USB 3.0 is 0.9A.

    N is the number of USB ports.



    As an example using the equation, a 4 port hub would reflect a minimum wattage of 18 watts.

    Knowing the minimum requirement, a proper power adapter can be chosen. In this case the voltage of a power supply should be within 7 to 24 or 7 to 40 Volts DC, depending on the specifications of the USB hub. Also, the power supply must convert AC to DC (no AC output).

    Power supplies often come with a voltage (V) rating and an amperage (A) rating. To determine the current in amps, use I = P / V, where the following is true:

    I is the current of the power supply.

    P is the calculated power of the hub.

    V is the chosen voltage of the power supply

    Continuing the example, the 4 port hub requires 18 W and the power supply you choose is 12V, the current of the power supply would be I = 18/12, I = 1.5A.



    Our full collection of power adapters can be found here.
