4-Port 240W USB 3.2 Gen 2 PD 3.0 Hub w/ 60W PD Upstream & ESD Surge Protection

4-Port 240W USB 3.2 Gen 2 PD 3.0 Hub w/ 60W PD Upstream & ESD Surge Protection - Image 2

4-Port 240W USB 3.2 Gen 2 PD 3.0 Hub w/ 60W PD Upstream & ESD Surge Protection - Image 3

4-Port 240W USB 3.2 Gen 2 PD 3.0 Hub w/ 60W PD Upstream & ESD Surge Protection - Image 4

4-Port 240W USB 3.2 Gen 2 PD 3.0 Hub w/ 60W PD Upstream & ESD Surge Protection

Notice: You must be logged into an account with a business domain email to purchase this product.
This product is intended for initial testing, evaluation, and integration planning. This product is currently restricted for sale to B2B customers only. It is not designed for direct deployment or single-use applications.
Orders may be limited to 1-3 units unless approved by Coolgear Support. To place a bulk order or proceed with system integration, please contact our support team to discuss your requirements. For full terms, refer to our DEVELOPMENT PRODUCT TERMS. 

Upstream Female Port: 1x USB-C PD USB 3.2 Gen 2 Connector
Downstream Female Port: 4x USB-C PD connectors
Compatible with single and double screw locking USB-C cables
Supply 60W of power to all connected peripherals as well as the host computer
Supports 5 PD profiles 20V / 15V / 12V / 9V / 5V
USB 3.2 Compliant to Gen 2 Specifications
Variable Voltage Input of +12~24V DC
Built-in surface & wall mounting flanges

$349.99

Model No. CG-5PDU3-4PH

This product is currently restricted to shipping within the US only.

Not in stock - Backorder allowed

Submit Product Inquiry

Product Documentation

Quick Links:

Description

Introduction:

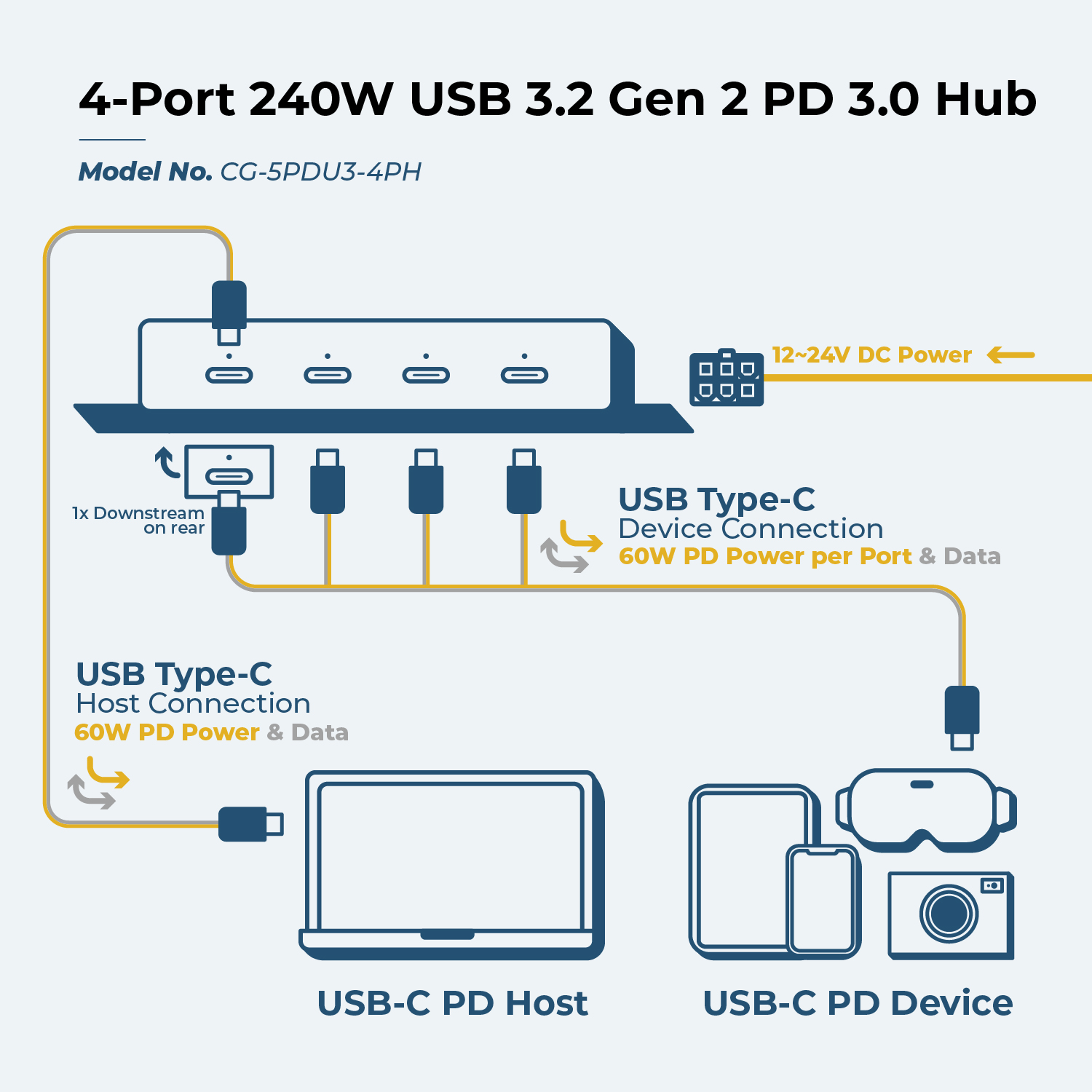

Coolgear’s CG-5PDU3-4PH USB 3.2 Gen 2 USB hub features ESD protection and 60 Watts of power per port. The CG-5PDU3-4PH features a variable voltage input range of 12~24V DC supplied through a 6-Pin Molex Connector. Each port is individually protected to help protect your peripheral investments. Provide 60 Watts of power to each connected peripheral as well as the host computer.

Features:

Upstream female port: 1x USB-C PD USB 3.2 Gen 2 Connector

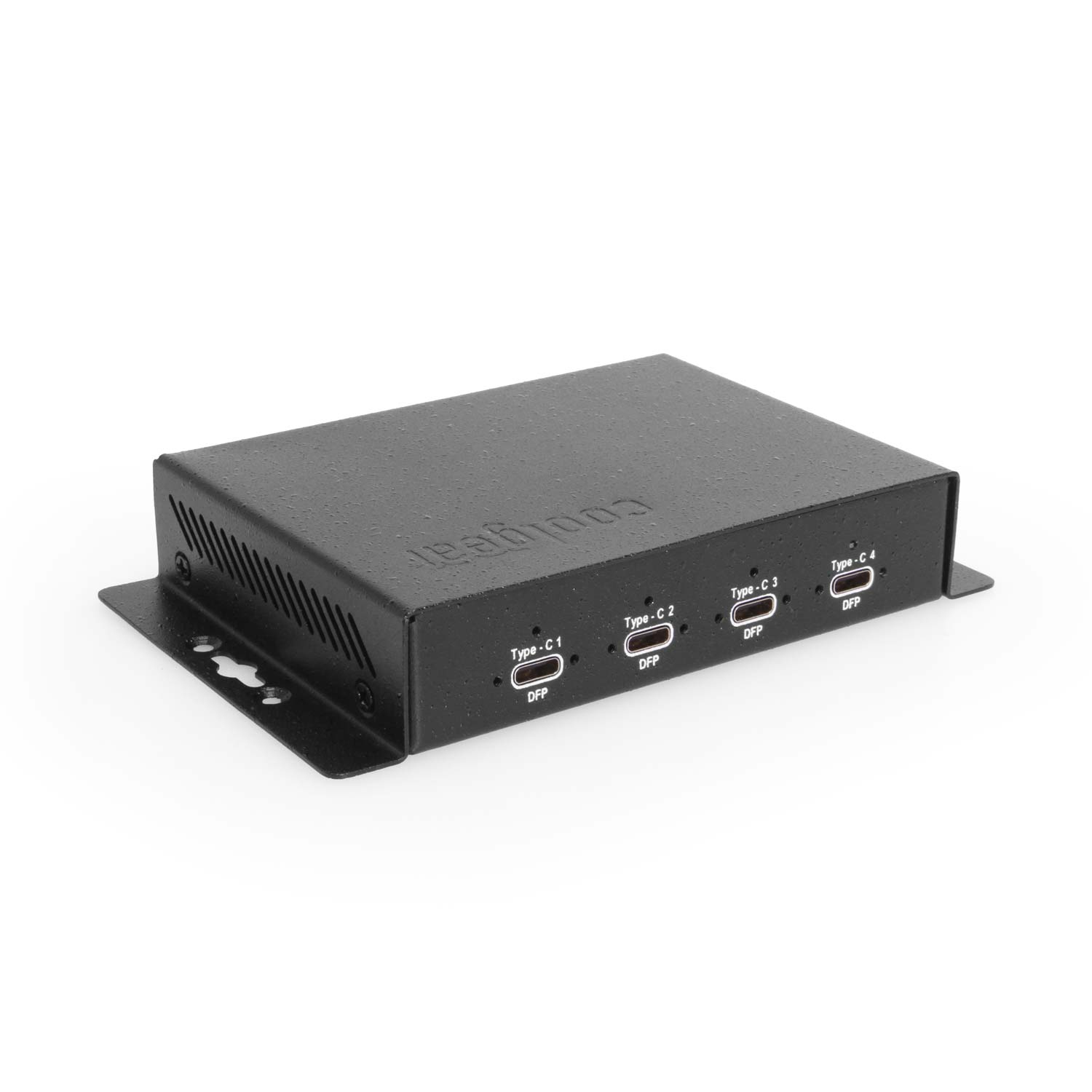

Downstream female port: 4x USB-C PD connectors
Power Delivery 3.0 present on downstream and upstream ports
Supports 5 PD profiles 20V / 15V / 12V / 9V / 5V
USB 3.2 Compliant to Gen 2 Specifications
Compatible with single and double screw locking USB-C cables
Multi-platform compatible with a wide range of laptops that use USB-C
Supports 10Gbps, 5Gbps, 480Mbps, 12Mbps, and 1.5Mbps speeds
ESD protection per port: ±15 kV(Air), ±15 kV(Contact)
Input Voltage of +12~24V DC
At 12V input, total power is limited to 240W. With 24V input, total power is increased to 300W total.

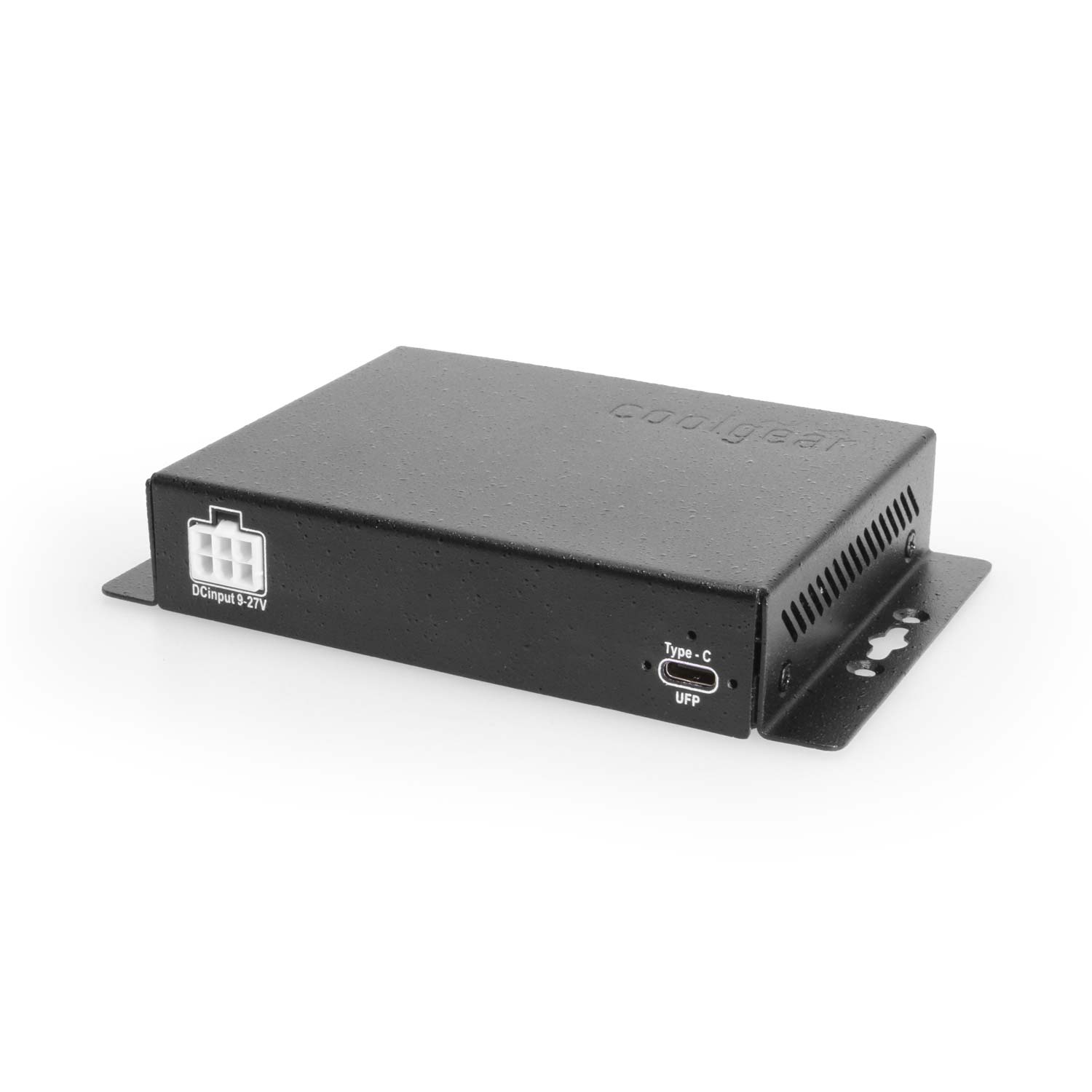

DC Input through 6-Pin Molex Mini-Fit Jr. connector
Built-in surface & wall mounting flanges
Quickly check your ports’ status with built in LED indicators

Package Contents:

4-Port 240W USB 3.2 Gen 2 PD 3.0 Hub

Accessories & Replacement Parts

Out of stock

6 Pin Power Connector and RoHS Wire

Power connector and RoHS wire for Coolgear USB PD Integrator boards 180 and 240W versions.

Model# 0116-17-M

$9.29

Out of stock

Specifications

Product Specifications

Power

Input Voltage	+12~24V DC
Power Source	6-Pin Molex Power Connector

Physical Characteristics

Item Dimensions (L × W × H)	5.65 × 3.46 × 1.00 in.
Item Weight	0.594 lbs.
Mounting Style	Surface Mount, Wall Mount
Material of Construction	Metal

Hardware

Downstream USB Ports	4 Type-C Female USB
Upstream USB Ports	1 Type-C Female USB

Performance & Safety

Max Data Transfer Rate

10Gbps

Other Data

USB Interface	USB 3.2 Gen 2
UPC	045079164185
Weight	0.594 lbs
Dimensions	5.65 × 3.46 × 1.00 in
