4 Port USB 3.2 Gen 1 Type-C Hub w/ ESD Surge Protection

USB C cable and USB 3.1 Type-B Connection

Find Similar Products

4 Port Hubs Hubs USB 3 Hub USB 3.0 Hubs USB Hub Din Rail USB-C Hubs Variable Voltage USB Hubs

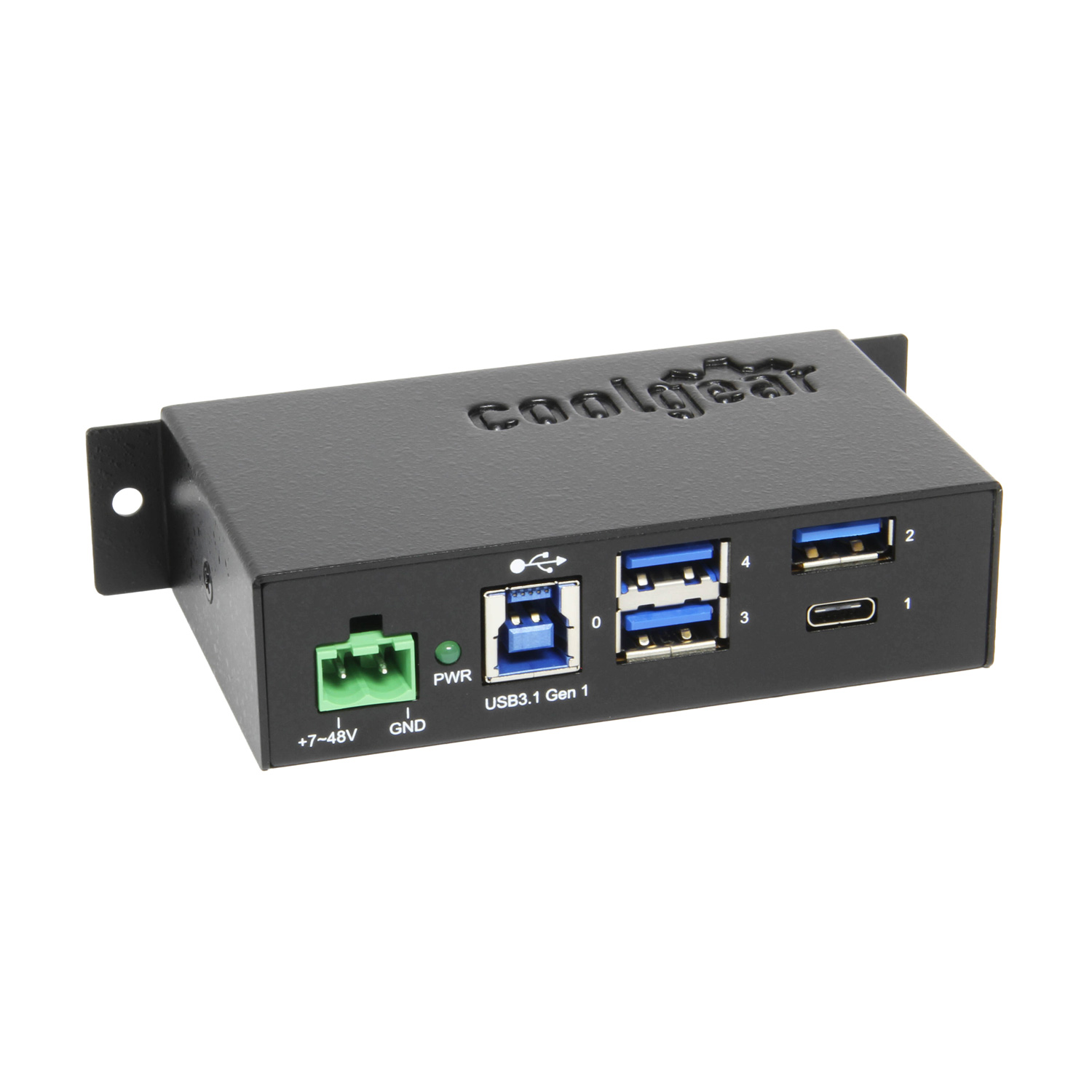

4 Port USB 3.2 Gen 1 Type-C Hub w/ ESD Surge Protection

Model No. CG-4PU31C1B1

Industrial Grade | +7~48V DC Input | Surface Mountable | DIN Rail | 5 Gbps | Screw Lock

Protect Your Equipment: The 4-port Type-C hub supports 15KV ESD surge protection for each port to keep your connected peripherals safe from harm.
Super Fast Speeds: This USB hub is 3.2 Gen 1 compliant, ensuring super-fast 5Gbps data transfer speeds. It supports super speed, high speed and full speed which enables it to be compatible with 2.0 / 1.1.
Superior Build Quality: Housed in a rugged steel chassis with built in mountable flanges, the 4-port hub is perfect for workstations installations in offices, labs, warehouses, and other industrial applications.

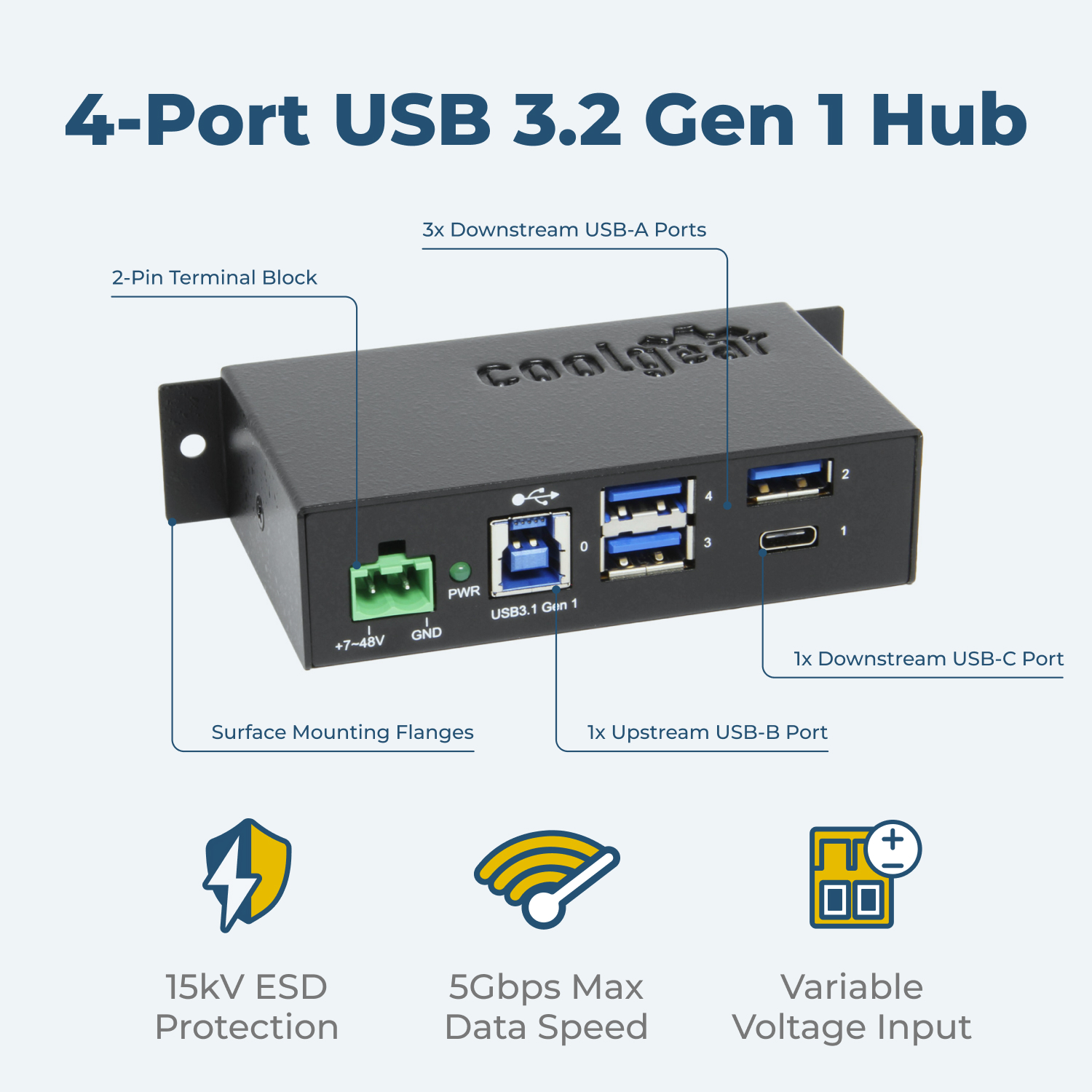

Upstream: 1 USB port, Type B connector
Downstream: 1 USB ports, Type C connectors & 3 USB ports, Type A connectors

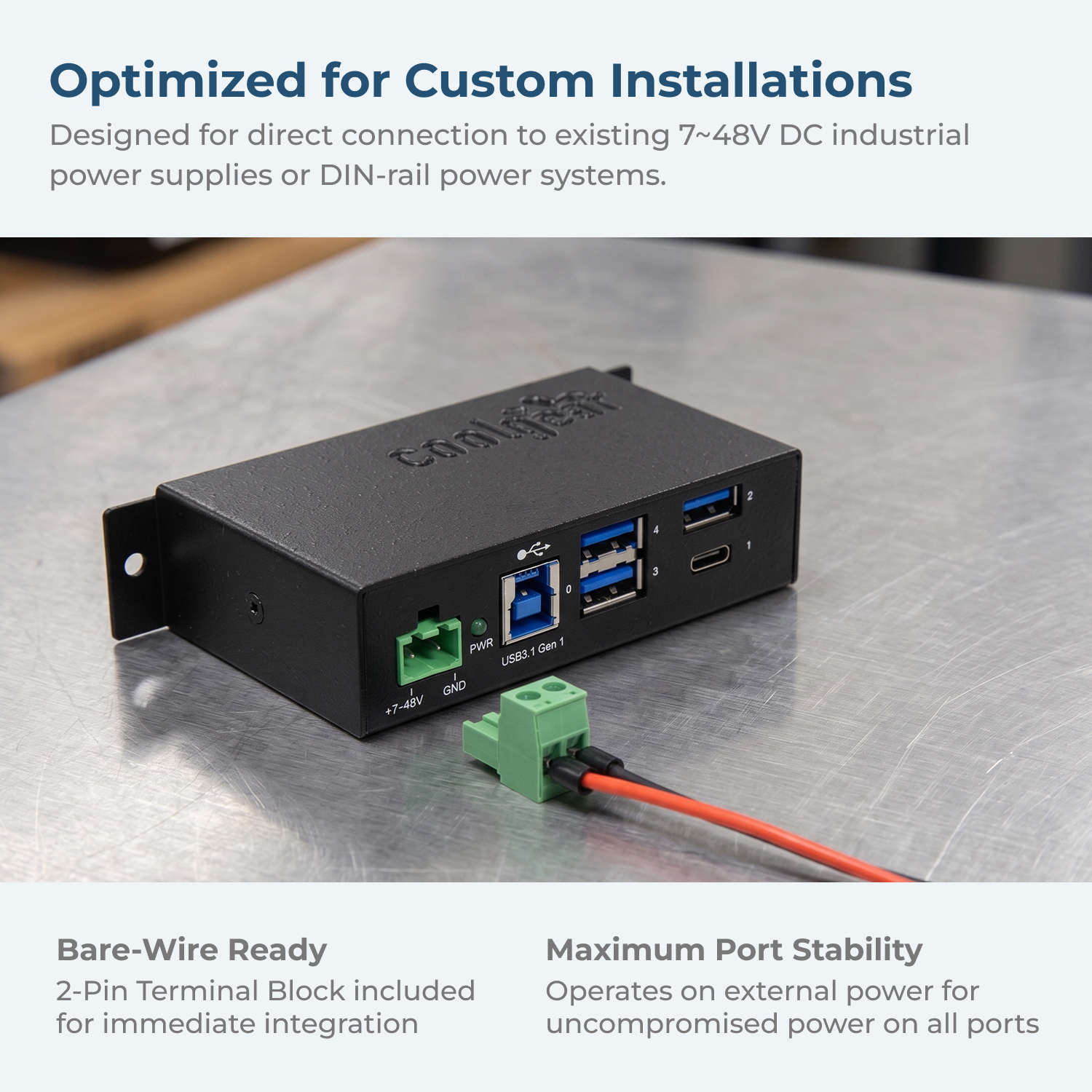

Power Connector: 2-Pin Terminal Block

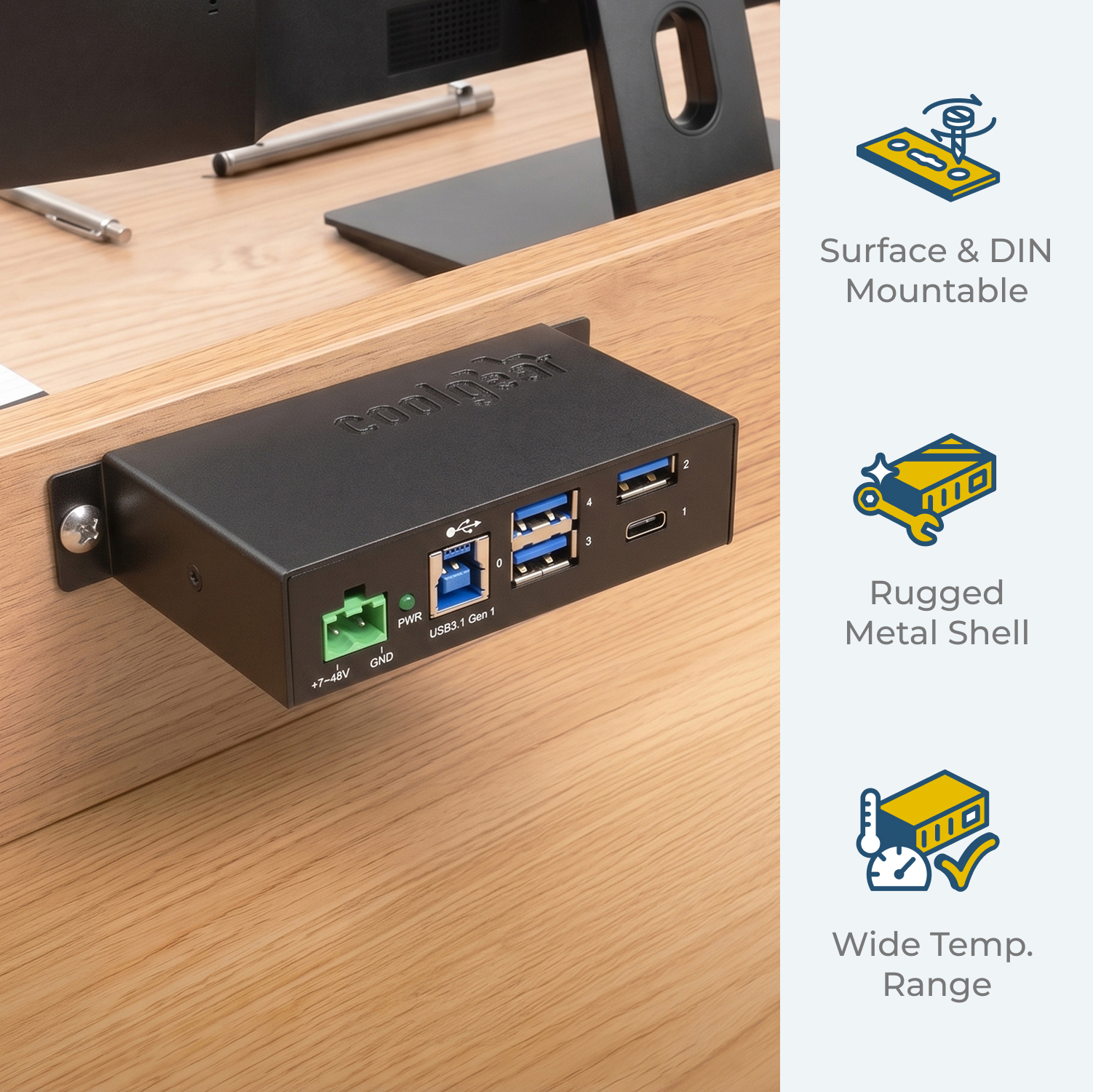

Mounting Options: Wall, Surface, & DIN Rail

$109.95

In stock

View Volume Pricing

Units	Price
1 - 4	$109.95
5 - 11	$107.75
12 - 24	$104.45
25 - 49	$102.25
50+	$98.96

4 Port USB 3.2 Gen 1 Type-C Hub w/ ESD Surge Protection

$109.95

Also available from:

Need Help?

Compare

Product Documents

Description

Introduction:

CoolGear’s new USB-C hub for industrial applications is compact and mountable with 4 downstream ports comprising of (3) USB-A and (1) USB C port.

The USB C hub is a generation 1 hub of USB 3.2 Gen 1 supporting Super-Speed 5Gbps data transmission speeds and the reversible type-C port. This hub is self powered with a 2-pin terminal block connector to supply power input of +7 ~ 48V DC sold separately.

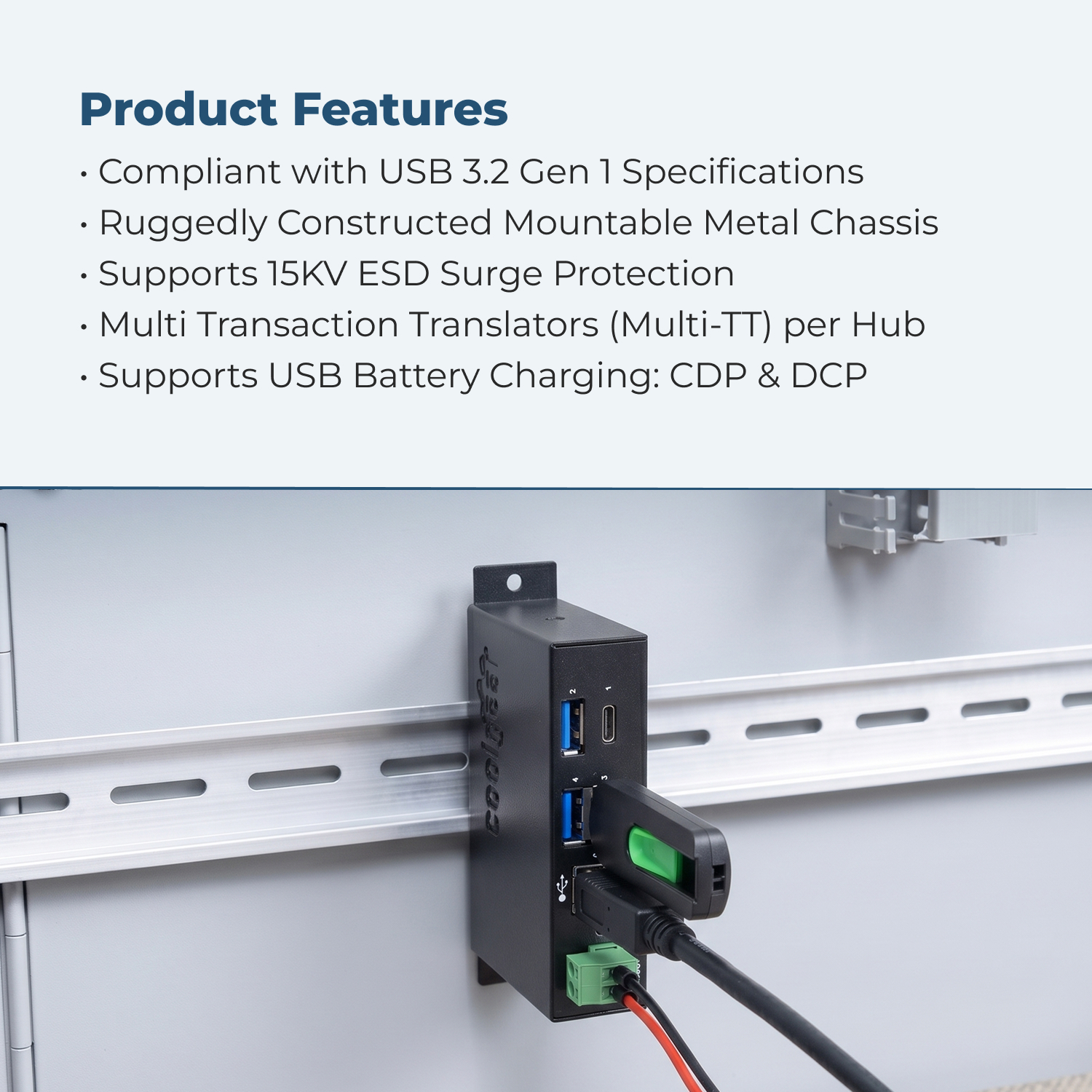

Features:

Compliant with USB 3.2 Gen 1 Gen 1 Specifications

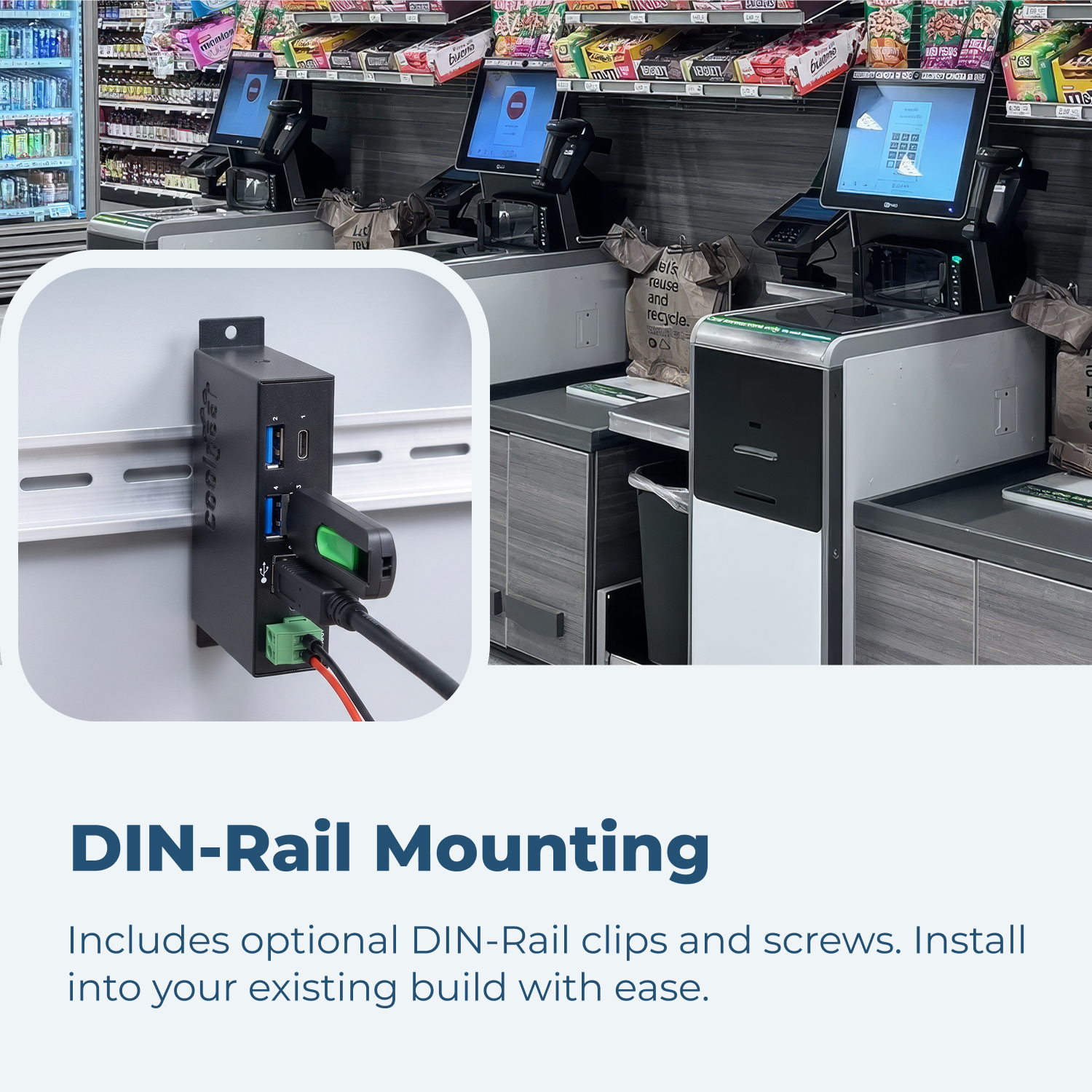

Ruggedly constructed DIN Rail mountable metal chassis
Can be wall mounted via attached flange
Provides 4 (1 USB-C and 3 USB-A) downstream facing USB 3.2 Gen 1 ports
Uses included USB 3.2 Gen 1 A to B cable for upstream data.
Supports 5Gbps (super-speed), 480Mbps (High-Speed), 12Mbps (Full-Speed), and 1.5Mbps (low-speed) speeds
Supports 15KV ESD Surge Protection
Multi Transaction translators (TT) per hub
Supports USB battery charging: CDP and DCP modes
3.74(L)(4.51 with ears)x2.23(W)x1.03(H)

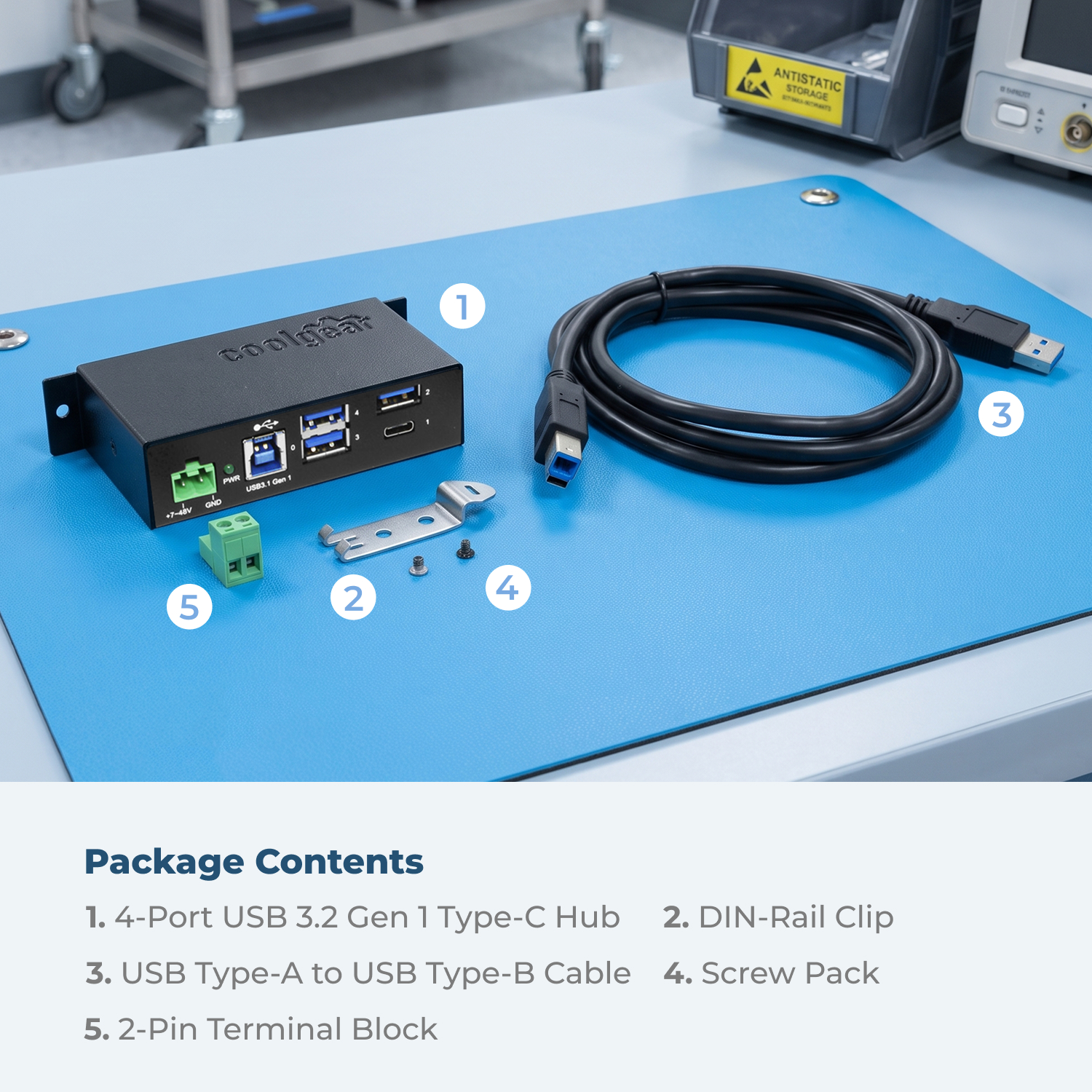

Package Contents:

1x USB-C 3.2 Gen 1 4 port Hub
1x 6ft. USB 3.2 Gen 1 A to B cable
1x DIN Rail clip and screws
User manual

*Surface Mounting screws not included.

*Power Supply not included; available as an optional accessory: Model No. 12V7A2P-B

Specifications

Product Specifications

Power

Input Voltage	+7~48V DC
Over Current Protection	Y
Over Voltage Protection	Y per buck
Power Source	2-Pin Terminal Block, AC Adapter Not Included
External Power Required	No

Compliance

Country of Origin	Taiwan
Certifications	REACH, TAA Hubs, RoHS

Mechanical

Color	Black
Item Dimensions (L × W × H)	4.50 × 2.26 × 1.03 in.
Item Weight	0.381 lbs.
Mounting Style	Surface / Wall Mount, Din-Rail Mount
Ports	4 USB Ports
Material of Construction	Galvanized Steel

USB

USB Type	USB 3.2 Gen 1
Upstream USB Ports	1 Type-B Female USB
Downstream USB Ports	1 Type-C Female USB, 3 Type-A Female USB
Isolated/Surge Protected	Yes

Software

OS Support

Win 11, Linux, Mac OSX, Win 10, Win 7, Win 8

Environmental

Operating Temperature	0°C to 55°C (32°F to 131°F)
Storage Temperature	-20 to 75°C (-4 to 167°F)
Humidity	5% ~ 95% (non-condensing)

Product Information

Warranty

1 year from date of purchase

Hardware

Chipset	GL 3523
Charging Protocols	Charging Downstream Port (CDP), Dedicated Charging Port (DCP)
LED Indicators	Power

What's in the Box

Package Contents

2-Pin Terminal Block, DIN Rail Clip(s), Hub, Screw Pack, USB-A to USB-B Cable

Performance

ESD Protection	15KV Surge Protection for Each Port
Isolated/Surge Protected	Yes
Max Data Transfer Rate	5Gbps
Over Current Protection	Y
Over Voltage Protection	Y per buck

Other Data

Connector	Type-C
UPC	045079158429
Weight	0.937 lbs
Dimensions	9.625 × 6.625 × 2.125 in
