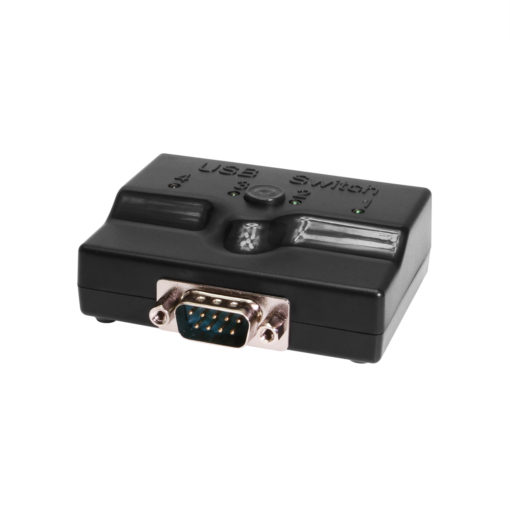

4 Port USB 2.0 to RS 232 Auto Switch FTDI Chipset
Model No.
CG-4URS232A
You can now easily attach 4 computers to 1 DB9 RS232 port. This device automatically shares your DB9 RS232 serial port among four systems, data/jobs sent are processed on a first come first serve basis.
$81.29
Model No. CG-4URS232A
In stock
Product Documents
Description
Additional Features:
- RS-232 Meets EIA/TIA-232F and CCITT V.2 8/V.24 Spec.
- w/ FTDI chipset * 4 / MCU control.
- Auto Mode :First come first serve (w/Time out 5 Seconds)
- Data Rate: Over 250K bps
- ESD Protection for RS-232 I/O’ +-15KV
- Power supply: Power free / DC5V USB Support
- Easy to install , Plug & Play
- DB9-M / RS-232 for DTE Mode
- With Green / Red double color LED *4
- Green indicate PC Selected / Red indicate TXD data Transfer
- Manual & Auto mode with 5 seconds time out
- Compliant with USB1.1/2.0 /3.0/3.1 Spec.
- For Win-98/se/Me, Win-2000, Win-Vista/Win-NT up 5.0 Ver., Win-XP, Win-7 / 8 / 10 / 11 / MAC OS. 8.6 up ,Linux
- Operating temperature : -0 TO 70 C
- Dimension: 72 * 51 * 24 mm 60g
DB9-M RS-232 (DTE Mode) Pin Assignment
Pin |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
|---|---|---|---|---|---|---|---|---|---|
Signal |
DCD | RXD | TXD | DTR | GND | DSR | RTS | CTS | RI |
I/O |
IN | IN | OUT | OUT | GND | IN | OUT | IN | IN |
Auto (LED 1/2/3/4 Light) =>1 => 2 =>3=>4=> Auto (LED 1/2/3/4 Light) => 1 => 2=>3=>4 => Auto (LED 1/2/3/4 Light)
OS Support:
- Windows XP, Vista, Windows 7, Windows 8, Windows 10, and Windows 11
- Linux and Mac OS 10.X
Package Contents:
- USB 2.0 to RS-232 Manual & Auto Switch
Specifications
Product Specifications
| Physical Characteristics |
| ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Serial Attributes |
| ||||||||
| Software |
| ||||||||
| Hardware |
| ||||||||
| Performance & Safety |
| ||||||||
| Other Data |
|
