ChargeIt! Mini 110W Dual Type-C PD Charger 65W USB-C Port & 45W USB-C Port
Industrial Grade | +12~24V DC Input | Over Voltage & Current Protection | Surface Mountable
- Simultaneous Charging: Charge tablets, phones, or other USB-charged in charge mode devices, while the built in PD chipset dynamically detects devices to deliver optimum power level for maximum battery life and performance.
- Quick Charging: Provides up to 110W of combined charging. Port 1: 65W USB Type-C PD & Port 2: 45W USB Type-C PD
- PPS: Programmable power supply capability allows for small step-wise changes in voltage, current, and for constant current charging (with gradual voltage increase), followed by constant voltage charging (with gradual current reduction).
- Superior Build Quality: Housed in a rugged metal chassis, the 2-port charger hub is perfect for installations in workstations, offices, labs, warehouses, classrooms, heavy machinery, automation equipment, and other industrial applications.
- Downstream: 2 USB Type-C PD Screw-Lock Compatible Ports
- Power Connector: 2-Pin Terminal Block
- Mounting Options: Wall & Surface
- LED Indicators: Power
Product Documents
Quick Links:
Description

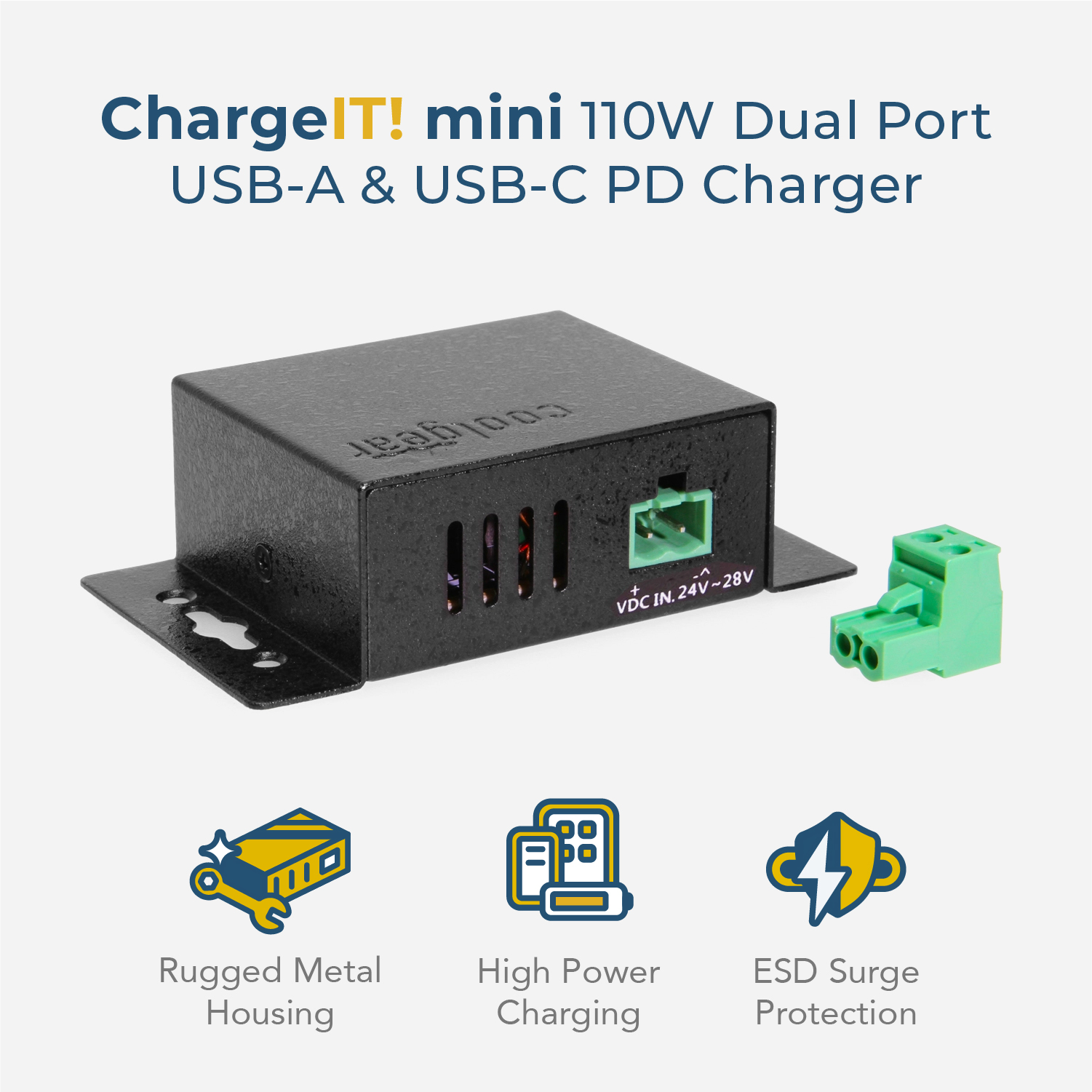

Introducing the ChargeIt! Mini 110W Dual Type-C PD Charger
The ChargeIt! Mini 110W Dual Type-C PD Charger is designed to deliver powerful, reliable charging for two devices simultaneously. Equipped with one 65W USB-C PD port and one 45W USB-C PD port, this compact yet durable charger provides a combined total output of 110W. Perfect for workstations, industrial applications, and on-the-go setups, it ensures that your devices receive the optimal power for maximum performance.
Key Features and Benefits
- 110W Combined Output: Charges two devices simultaneously with a total output of 110W (65W on Port 1, 45W on Port 2), ideal for laptops, tablets, and other USB-C devices.
- Dual USB-C Ports: One 65W and one 45W USB Type-C PD port, ensuring efficient power delivery for multiple devices.
- USB-C PD Compatibility: Supports USB-C PD 3.0 and PPS protocols, allowing for fast charging and programmable power supply adjustments.
- Industrial-Grade Protection: Features multi-level protection including over-voltage, under-voltage, over-current, and short-circuit protection, safeguarding both the charger and your devices.

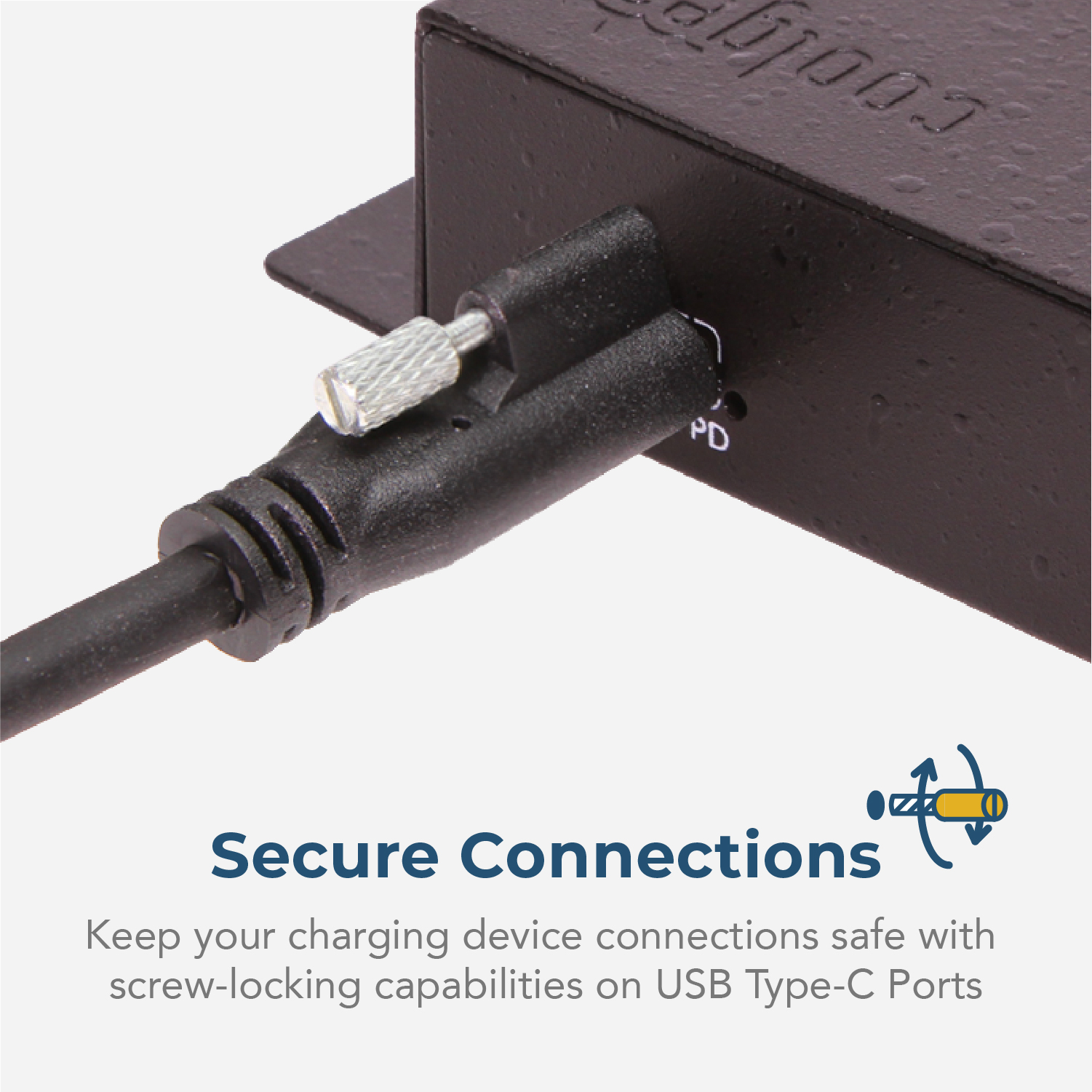

- Screw-Lock USB-C Ports: Compatible with screw-lock USB-C cables for secure connections in demanding environments.
- Wide Input Voltage Range: Operates within a 12V-24V DC range, making it adaptable for various power sources in industrial settings.
- Rugged Metal Chassis: Built to last with a durable metal enclosure, making it ideal for use in offices, labs, warehouses, and more.

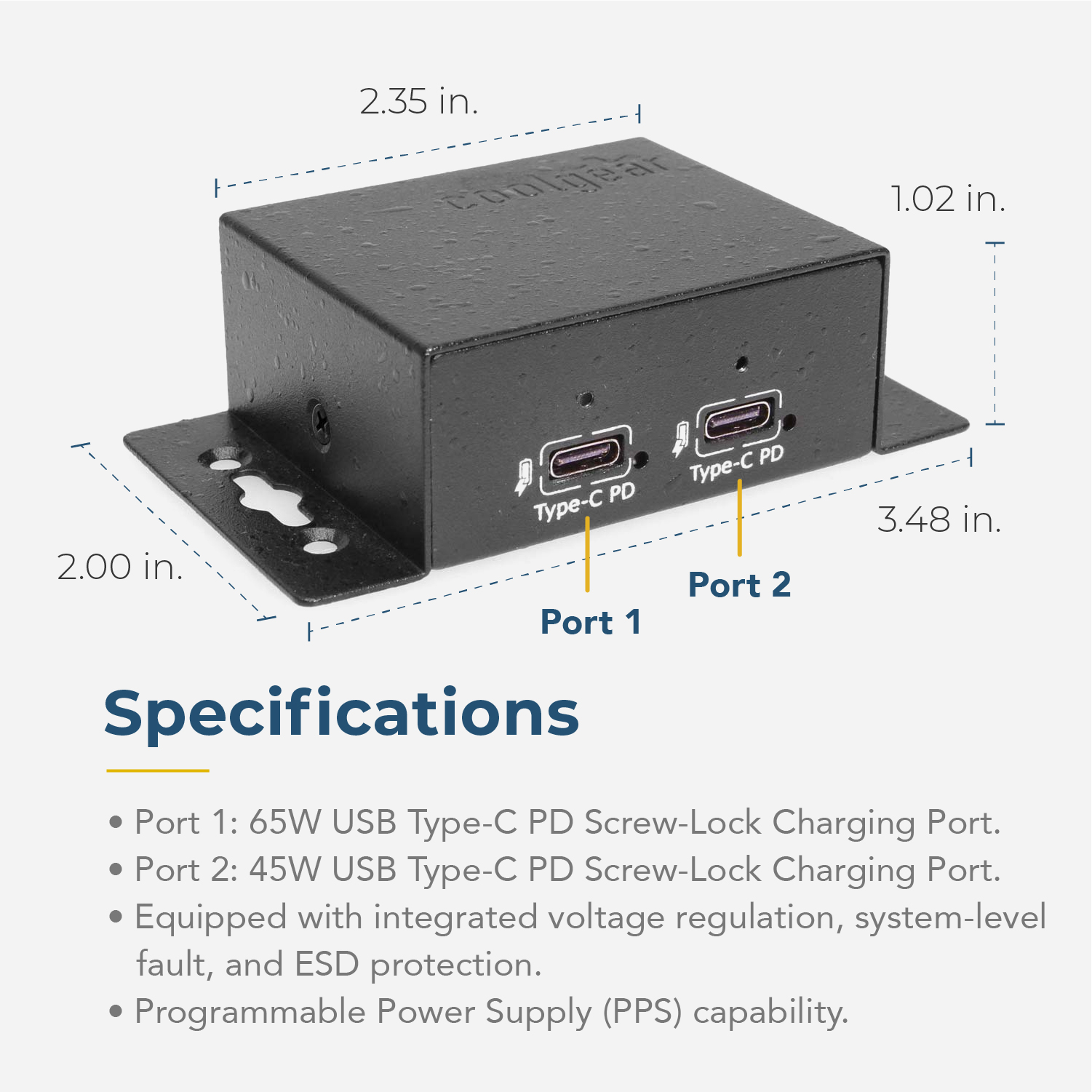

Quick Specs:
- Port 1: 65W USB Type-C PD
- Port 2: 45W USB Type-C PD
- 110 Watt Buck-Boost Dual Type-C PD 3.0
- Supports output line compensation function to get stable output voltage
- Synchronous-rectified Buck-Boost converter
- Supports multi-protection on input: Over voltage, under voltage, output over current, and short circuit protection. ESD Surge protection of 4kV.
- Input voltage range: 12 ~ 24V (11.4 ~ 30V Min ~ Max)
- Compatible with screw-lock USB-C cables to keep your connections secure.
Type-C and PD Protocol:
- Support 5V/9V/12V/15V/20V output
- Support PD2.0/PD3.0(PPS) protocol
- Support 3.3V-21V, 20mV/step PPS
- Support E-MARK cable
Fast charge output
- Support Type-C and PD protocol
- Support BC1.2 and Apple protocol
- Support QC2.0/ QC3.0/ QC3+ protocol
- Support FCP/SCP protocol
- Support AFC protocol
Package Contents:
- ChargeIt! Mini 110W Dual Type-C PD Charger
- 2-Pin Terminal Block
Use Cases
Use Cases:
Workstations & Offices
- Simultaneous Charging: Power laptops and tablets simultaneously, ensuring your devices stay charged and ready for use throughout the day.
- Device Flexibility: Ideal for providing efficient power to various USB-C devices in office setups.
Labs & R&D
- Stable Power Delivery: Deliver consistent power to research and testing equipment, ensuring reliable performance in lab environments.
- Device Support: Perfect for powering multiple devices required during experiments or product testing.
Outdoor Enthusiasts & Mobile Setups
- RV Installations: Perfect for charging essential devices in RVs or mobile workstations during long trips.
- Off-Grid Living: Ideal for solar-powered setups, delivering consistent charging for devices in off-grid environments.
Optional Accessories
Optional Accessories
Super Fast Speeds: This USB cable is 3.2 Gen 2 compliant, ensuring super-fast 10Gbps data transfer speeds. It supports super speed +, super speed, high…
Model# CG-G2CCTSSL-05M
$18.49In stock
Super Fast Speeds: This USB cable is 3.2 Gen 2 compliant, ensuring super-fast 10Gbps data transfer speeds. It supports super speed +, super speed, high…
Model# CG-G2CCTSSL-1M
$19.49In stock
Super Fast Speeds: This USB cable is 3.2 Gen 2 compliant, ensuring super-fast 10Gbps data transfer speeds. It supports super speed +, super speed, high…
Model# CG-G2CCTSSL-1.8M
$20.49In stock
Specifications
Product Specifications
| Power |
| ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Compliance |
| ||||||||||
| Physical Characteristics |
| ||||||||||
| What's in the Box |
| ||||||||||
| Product Information |
| ||||||||||
| Hardware |
| ||||||||||
| Performance & Safety |
| ||||||||||
| Other Data |
|
Support
Product Documentation & Drivers
Product Documents
Product Documentation
Need drawings, CAD files, or other compliance documentation? Click HERE
