ChargeIt! Mini 200W Dual Type-C PD Charger 100W output each port 24V Input

Industrial Grade | +24~28V DC Input | Over Voltage & Current Protection | Surface Mountable

  • Simultaneous Charging: Charge 2 laptops, tablets, phones, or other USB-charged in charge mode devices, while the built in PD chipset dynamically detects devices to deliver optimum power level for maximum battery life and performance.
  • Quick Charging: Provides up to 200W of combined charging.
  • PPS: Programmable power supply capability allows for small step-wise changes in voltage, current, and for constant current charging (with gradual voltage increase), followed by constant voltage charging (with gradual current reduction).
  • Superior Build Quality: Housed in a rugged metal chassis, the 2-port charger hub is perfect for installations in workstations, offices, labs, warehouses, classrooms, heavy machinery, automation equipment, and other industrial applications
  • Downstream: 2 USB Type-C PD Screw-Lock Compatible Ports

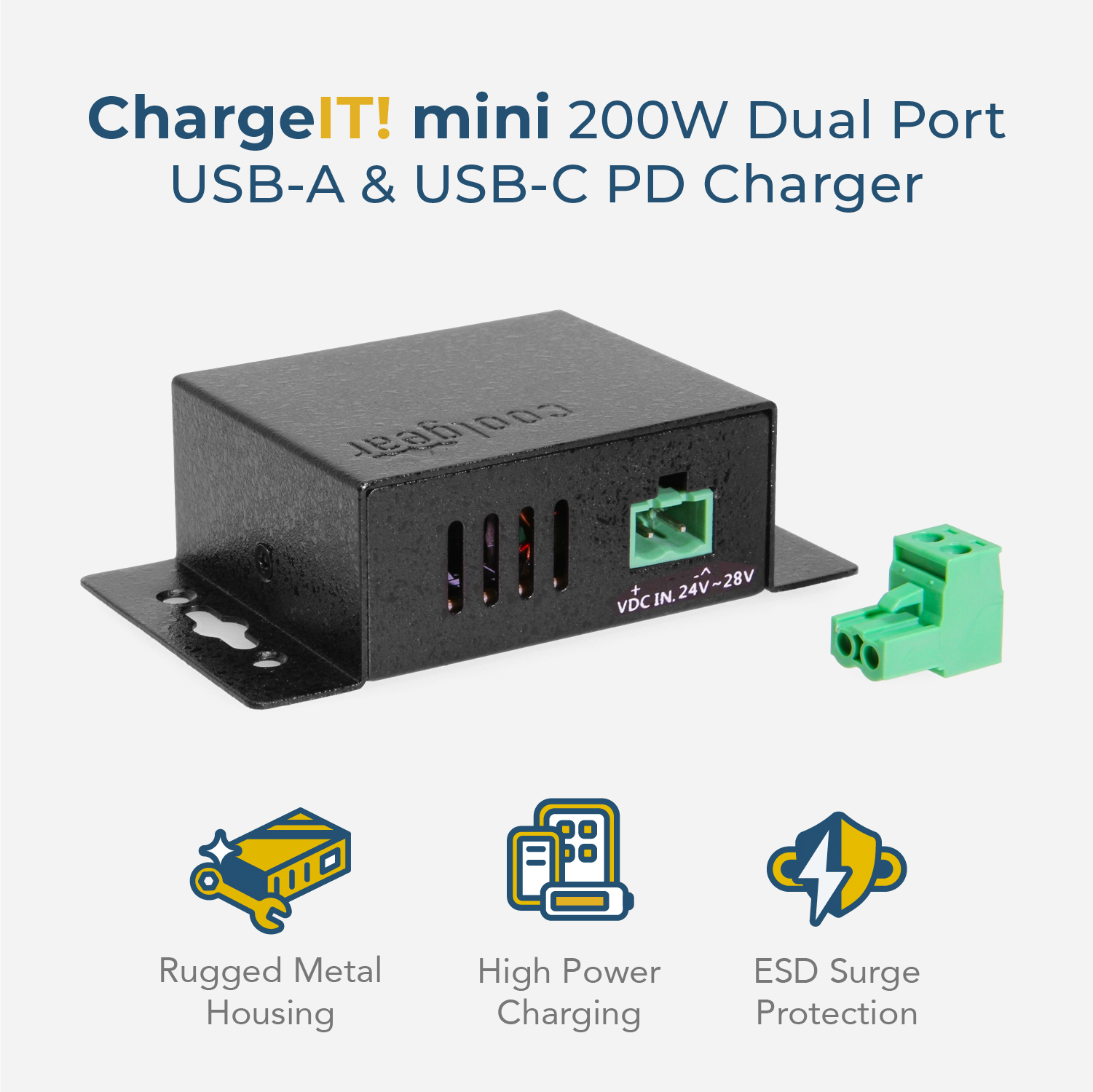

  • Power Connector: 2-Pin Terminal Block
  • Mounting Options: Wall & Surface
  • LED Indicators: Power

$69.99

Out of Stock

Model No. CG-PD200MAX

Quick Links:

Description

Introduction:

This High Power Dual Port USB Type-C Industrial PCBA complies with the latest USB-C and PD standards. Intended for use in PC power adapters, mobile chargers, car chargers and power bank applications. This charging board provides two 100W USB Type-C PD ports for a combined 200W of charging.

Specifications:

  • 200 Watt Buck-Boost Dual Type-C PD 3.0 100×2
  • Supports output line compensation function to get stable output voltage
  • Synchronous-rectified Buck-Boost converter
  • Supports multi-protection on input: Over voltage, under voltage, output over current, and short circuit protection. ESD Surge protection of 4kV.
  • Input voltage range: 24~28V    ( 22min ~ 30V Max)

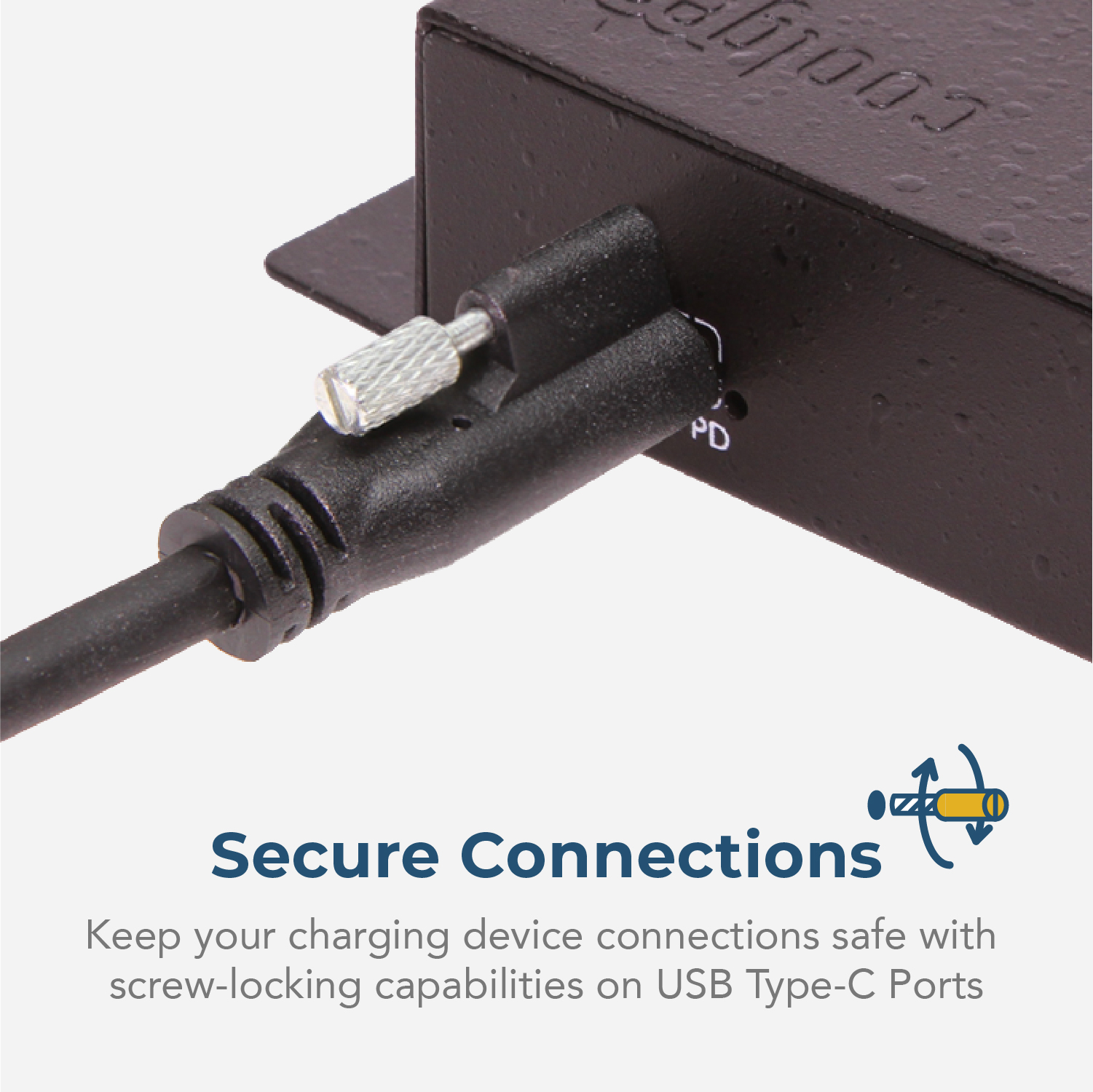

  • Compatible with screw-lock USB-C cables to keep your connections secure.

Type-C and PD Protocol:

  •  Support 5V/9V/12V/15V/20V output
  •  Support PD2.0/PD3.0(PPS) protocol
  •  Support 3.3V-21V, 20mV/step PPS
  •  Support E-MARK cable

Fast charge output

  •  Support Type-C and PD protocol
  •  Support BC1.2 and Apple protocol
  •  Support QC2.0/ QC3.0/ QC3+ protocol
  •  Support FCP/SCP protocol
  •  Support AFC protocol
Optional Accessories

Optional Accessories

Super Fast Speeds: This USB cable is 3.2 Gen 2 compliant, ensuring super-fast 10Gbps data transfer speeds. It supports super speed+, super speed, high speed…

Model# CG-CMCRM5A100

$7.99$9.99

In stock

$7.99$9.99
1ft 3ft 6ft
This option is required

Select options

Super Fast Speeds: This USB cable is 3.2 Gen 2 compliant, ensuring super-fast 10Gbps data transfer speeds. It supports super speed+, super speed, high speed and…

Model# CG-U3CMCF

$13.95$15.95

In stock

$13.95$15.95
8 inches 20 inches 36 inches
This option is required

Select options

Super Fast Speeds: This USB cable is 3.2 Gen 2 compliant, ensuring super-fast 10Gbps data transfer speeds. It supports super speed +, super speed, high…

Model# CG-G2CCTSSL

$17.95$19.95

In stock

$17.95$19.95
1.8 Meter 0.5 Meter 1 Meter
This option is required

Select options

Specifications

Product Specifications

Power
Input Voltage

+24~28V DC

Over Current Protection

Y

Over Voltage Protection

Y

Mechanical
Color

Black

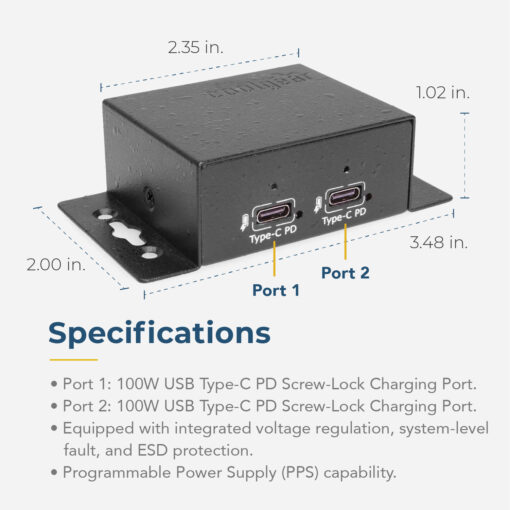

Item Dimensions (L × W × H)

3.48 × 2.00 × 1.03 in.

Item Weight

0.293 lbs.

Mounting Style

Surface / Wall Mount

Ports

2 USB-C Ports

Product Information
Warranty

1 year from date of purchase

Hardware
Charging Protocols

AFC, Apple 2.4A, BC 1.2, Dedicated Charging Port (DCP), QC3.0, SCP, QC2.0

LED Indicators

Power

What's in the Box
Package Contents

2-Pin Terminal Block, USB Charger

Performance
ESD Protection

4KV Surge Protection

Over Current Protection

Y

Over Voltage Protection

Y

Other Data
UPC

045079163720

Weight

0.281 lbs

Dimensions

3.48 × 1.99 × 1.03 in

UPC: 045079163720
