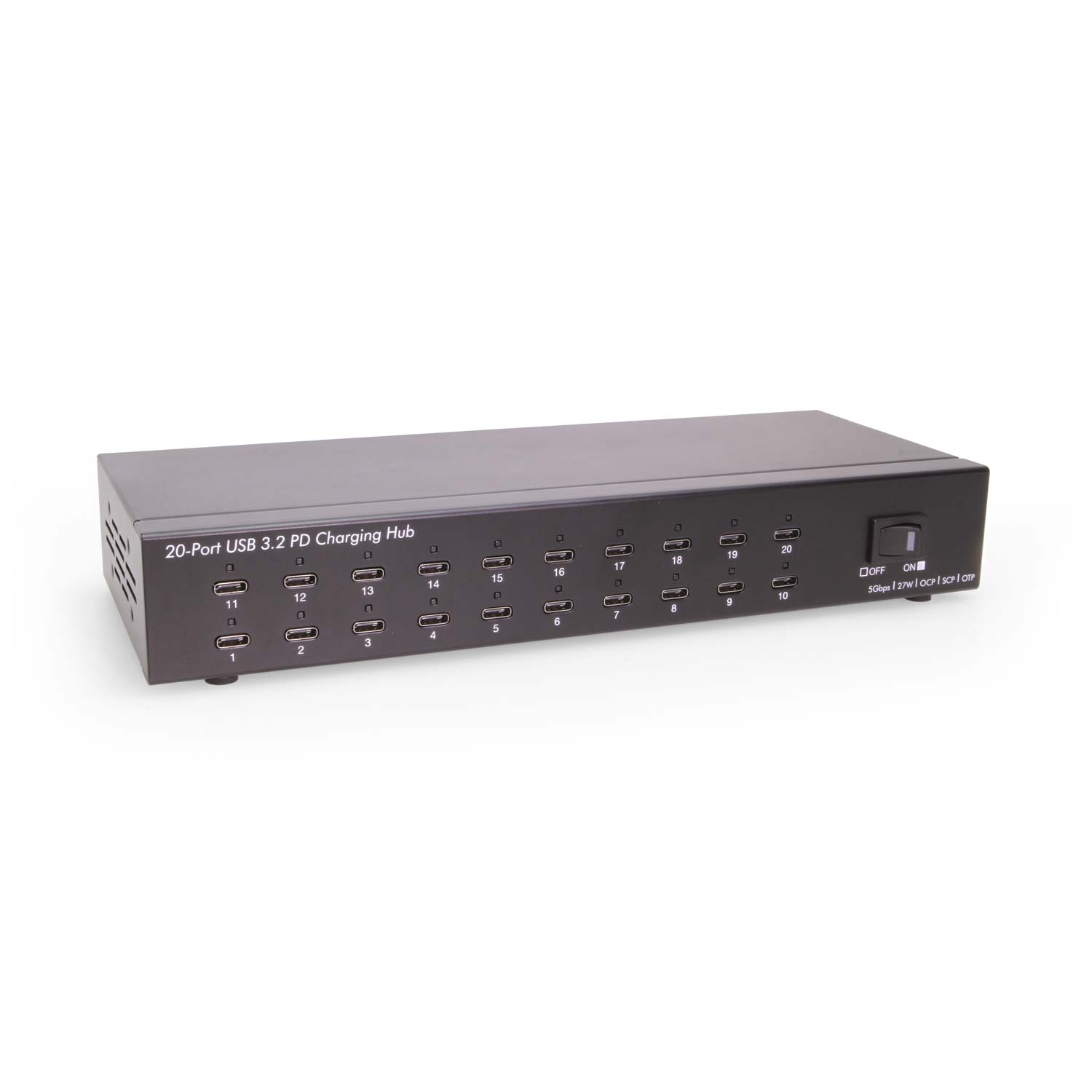

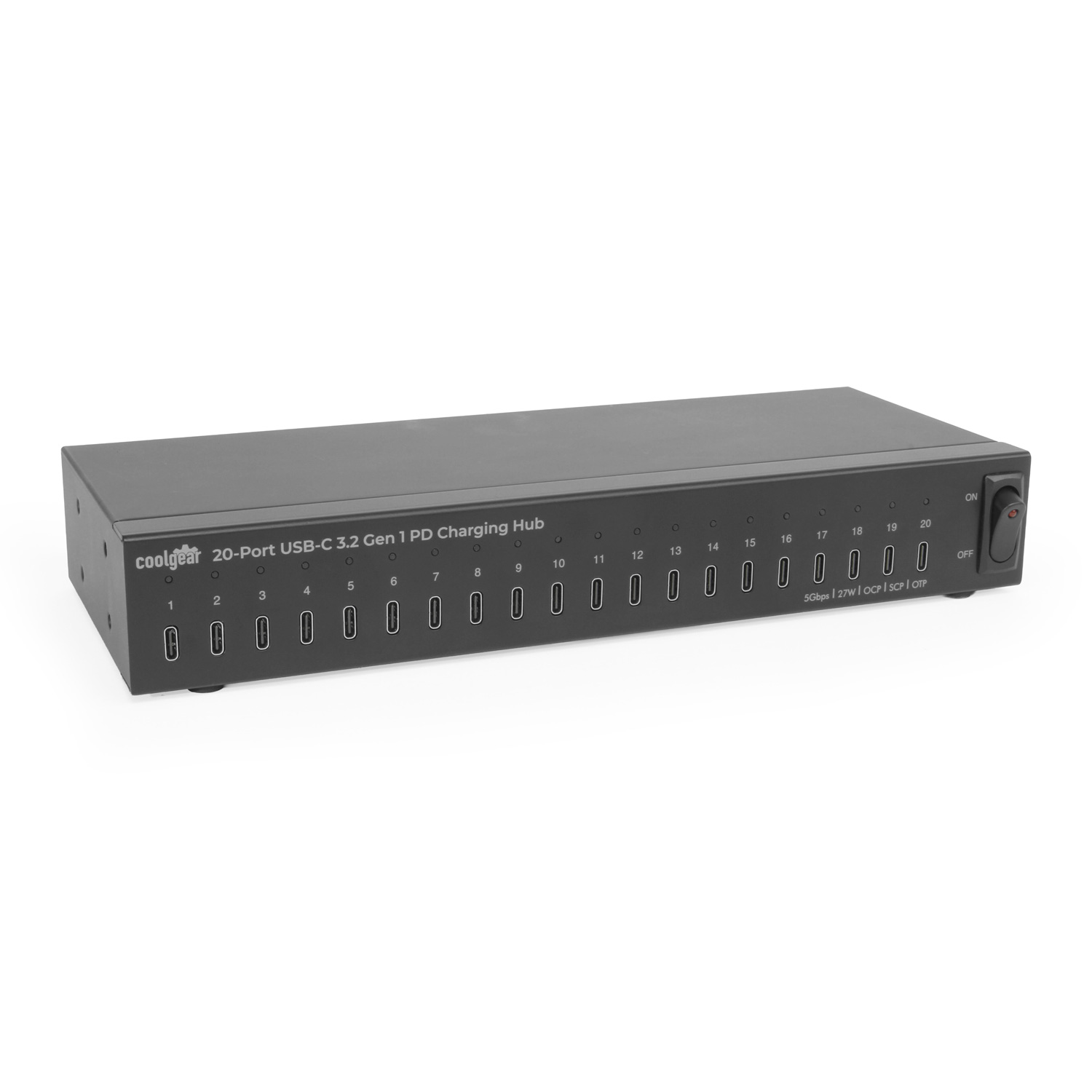

20 Port USB-C 3.2 Gen 1 Industrial Charging Hub w/ Max 27W Per-Port Power Delivery
Model No.
CG-20XU3CPD
Industrial Grade | +19V DC Input | Surge Protection | Surface Mountable | 5Gbps | Power Supply
- 20-port USB-C charging station for high-capacity charging in classrooms, businesses, and industrial environments
- Each port delivers up to 27W of power, supporting USB PD 2.0 / 3.0 and Quick Charge 3.0
- This USB hub is 3.2 Gen 1 compliant, ensuring super-fast 5Gbps data transfer speeds. It supports super speed, high speed, and full speed which enables it to be compatible with USB 2.0, and 1.1.
- Automatically recharges devices when battery drops below 90%
- ESD surge protection, over-current, and over-temperature safeguards on each port for device safety
- Port status LEDs for clear, real-time monitoring of charging status
- Includes mounting brackets for flexible installation on surfaces or integrated setups
- Green Energy function shuts down hub when not in use to conserve power
- LED Indicators: LEDs for each downstream port to check their status. (Red: Charge / Orange: Sync)
Description
Power up your devices with high-capacity performance
The 20-Port USB-C 2.0 Industrial High-Power Charging Hub is designed for schools, businesses, and industrial environments that need to charge multiple devices efficiently. This heavy-duty USB-C charging hub offers 20 USB-C ports, each delivering fast, reliable power to laptops, tablets, Chromebooks, and more, making it an essential tool for educational institutions, conference rooms, and commercial setups.

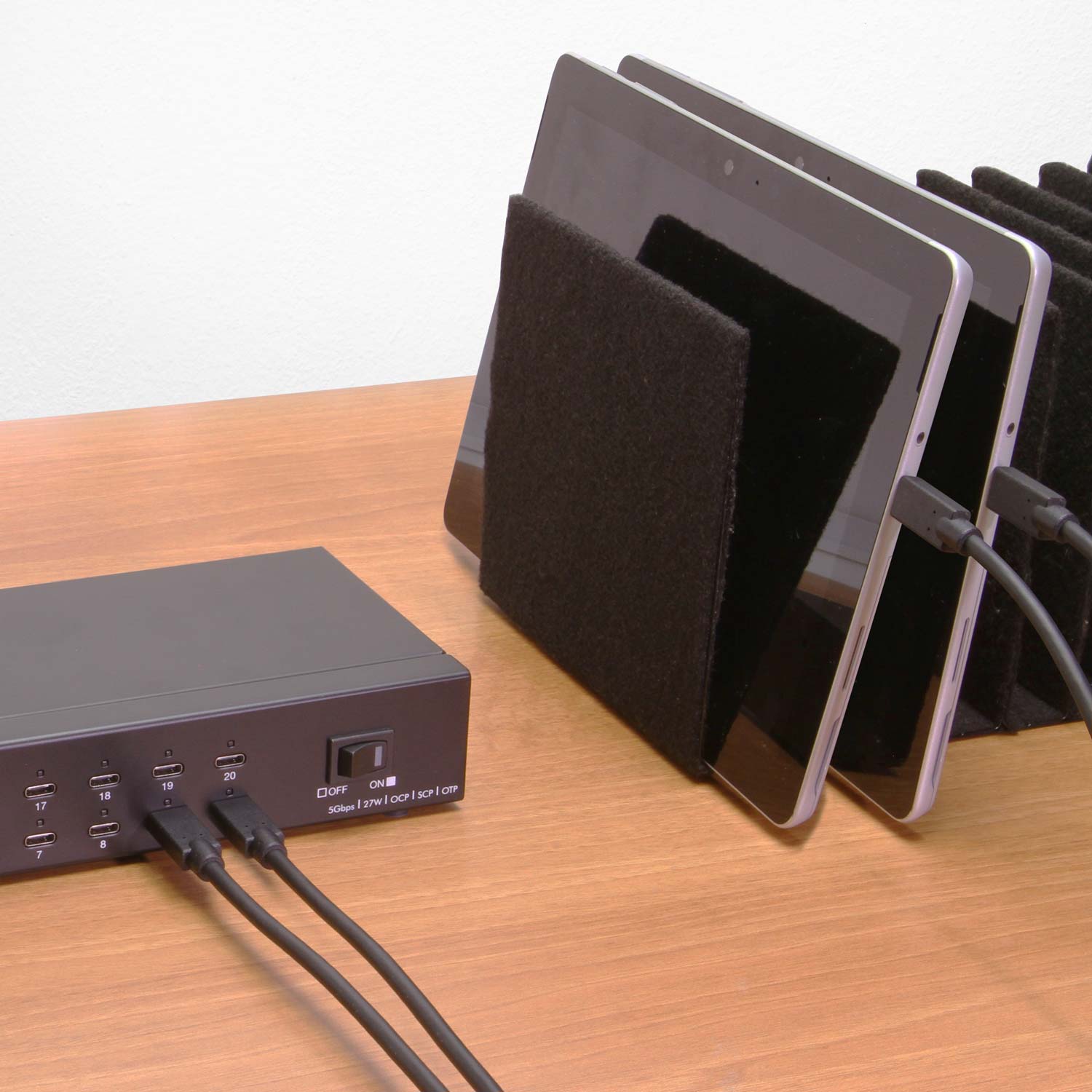

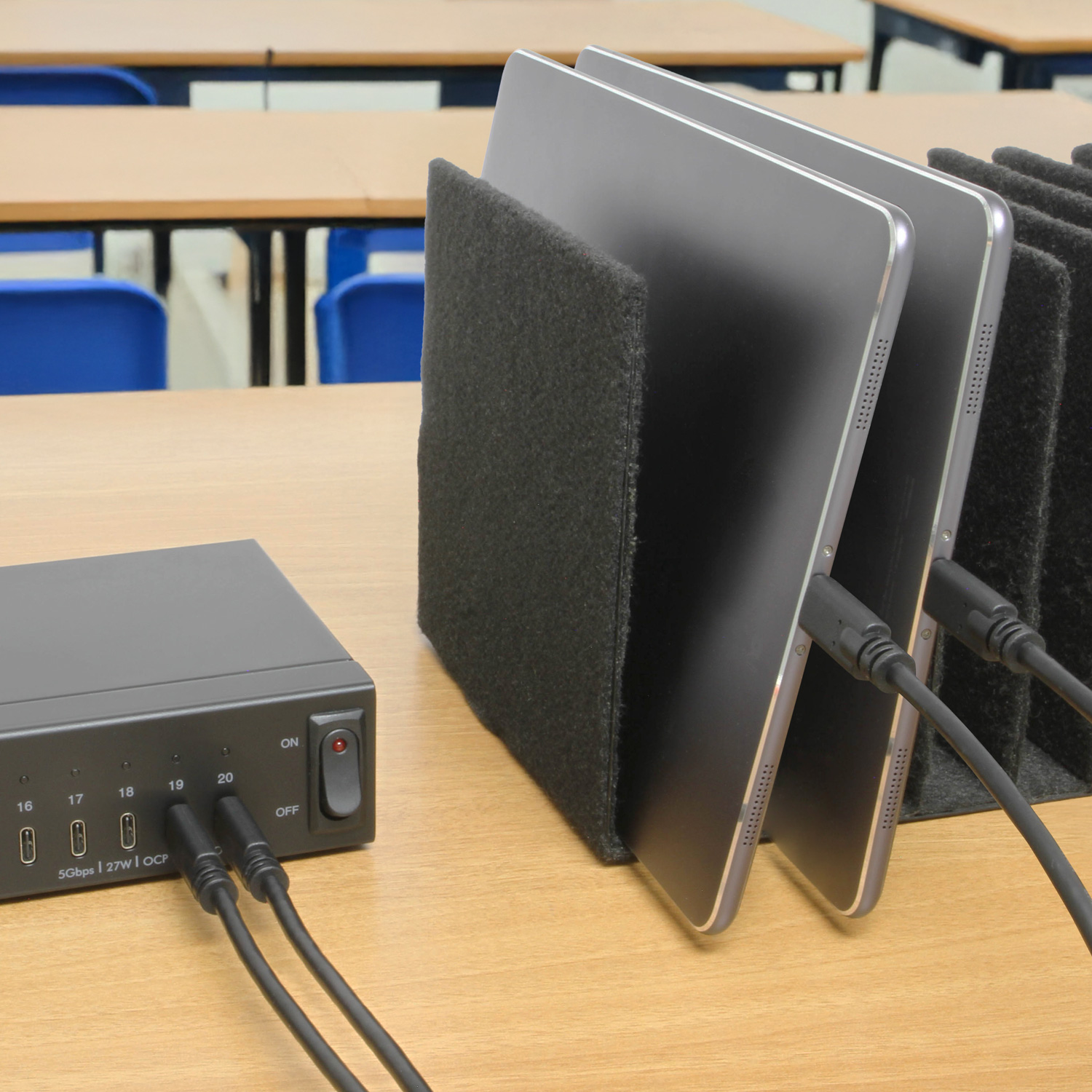

Perfect for classrooms and educational institutions
This classroom charging hub is ideal for managing a large number of devices, from laptops in classrooms to Chromebooks and tablets. Whether you’re outfitting a charging station for schools or setting up a tech-heavy lab, this hub can handle it all, ensuring all devices stay charged and ready for use.
High power and intelligent charging
With support for USB PD 2.0 / 3.0, and Quick Charge 3.0, each port can deliver up to 27W of power, making it perfect for charging devices quickly and efficiently. The hub automatically detects when a device’s battery drops below 90% and recharges it, ensuring that your equipment is always powered and ready to go. Its multi-port charger design simplifies the charging process, allowing schools and businesses to manage up to 20 devices from a single USB-C connection.
Built for durability and safety
Engineered for industrial and commercial USB-C charging solutions, this hub includes ESD surge protection, over-current, and over-temperature protection on every port, ensuring your devices are safe from electrical surges and spikes. The integrated port status LEDs provide real-time updates on charging progress, so you know when devices are fully charged.
Flexible installation options
Whether you’re setting up a charging station for industrial applications or a charging hub for schools, this USB-C hub can be mounted on surfaces or easily integrated into existing setups with the included mounting brackets. Plus, with fan-controlled temperature management, the hub stays cool even during high-demand use, making it perfect for intensive environments like schools, factories, and IT operations.

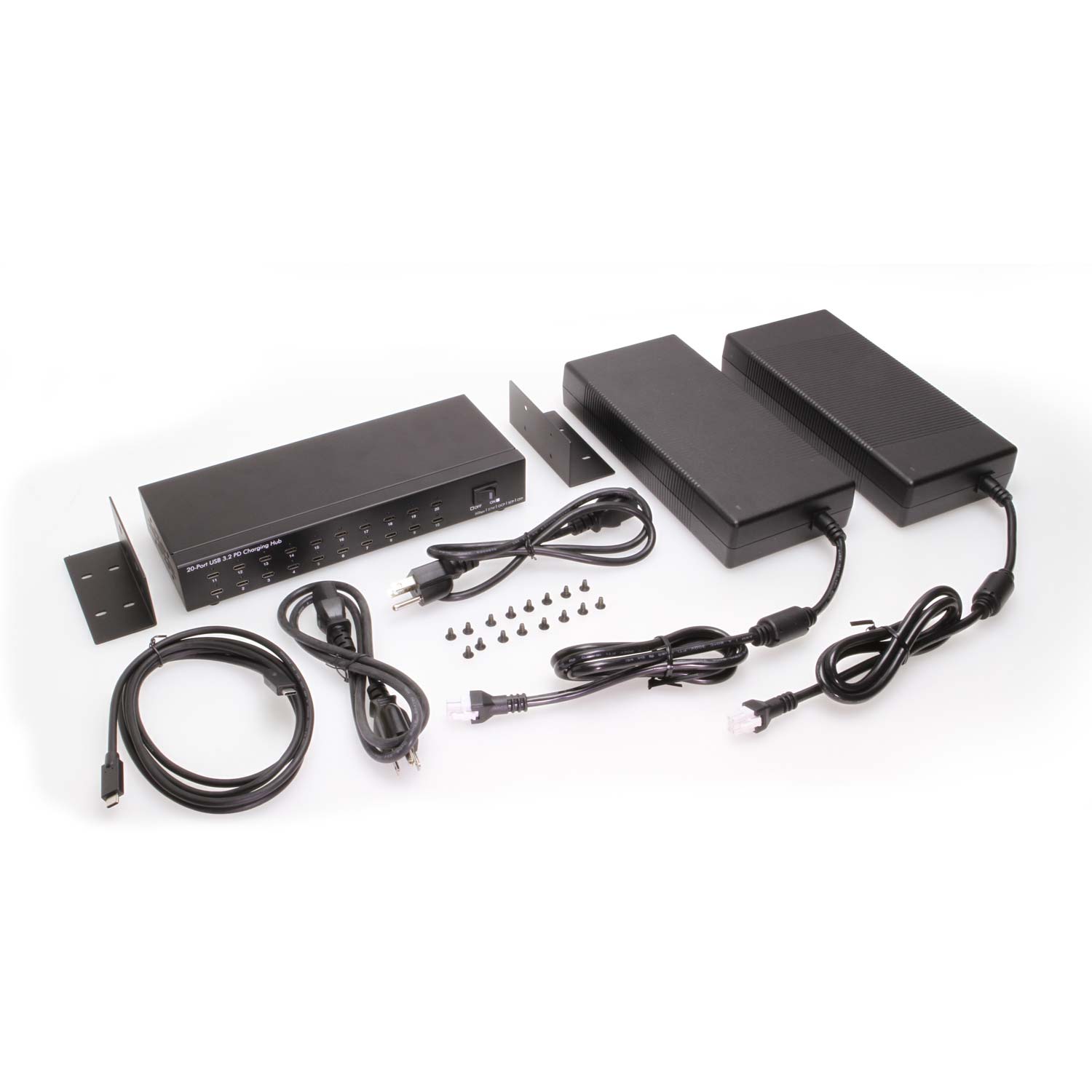

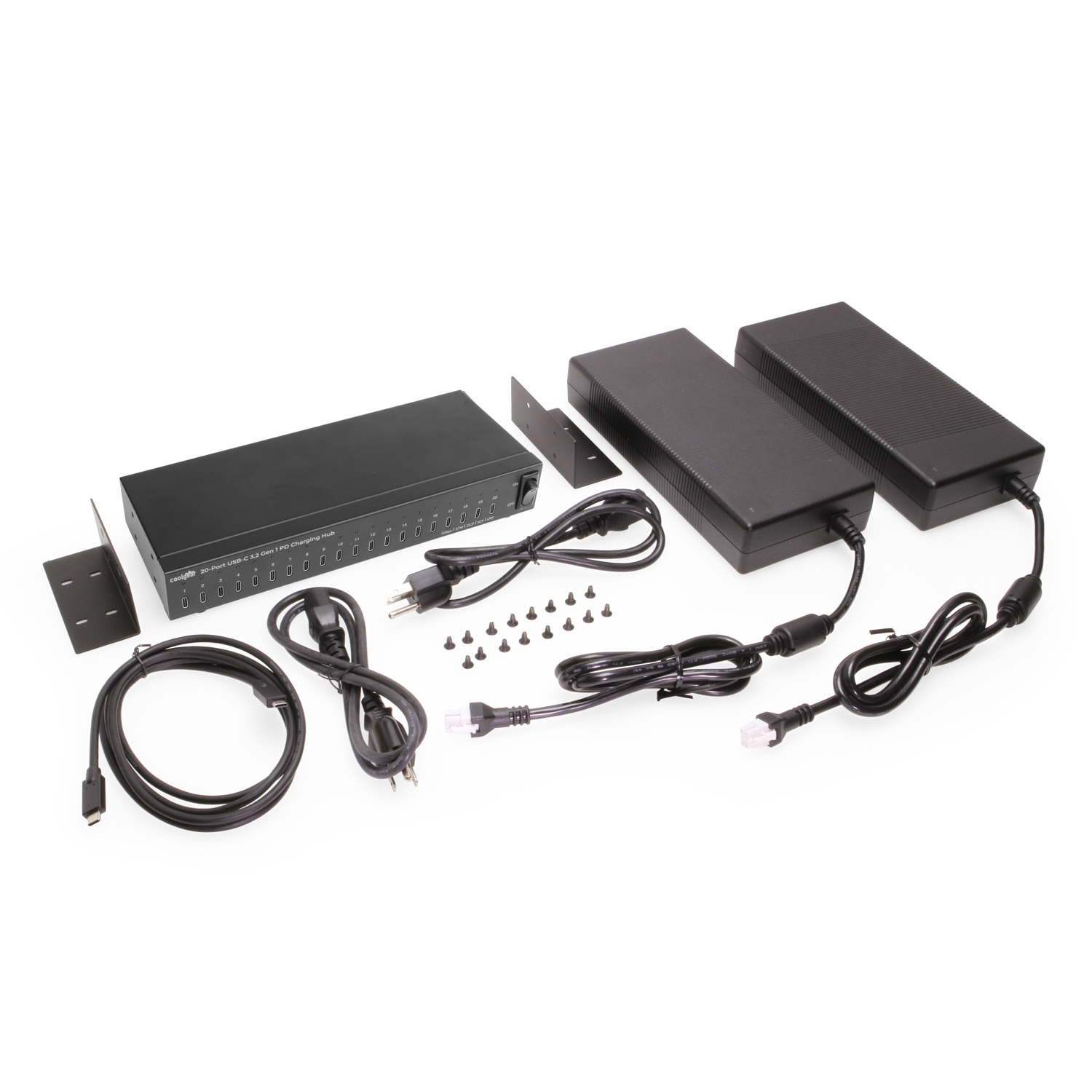

Package Contents:
- USB-C 3.2 Gen 1 charging hub
- 2x Power supplies with power cords
- USB C to C cable
- Mounting brackets with screws
*Surface Mounting screws not included.
Technical Features
Technical Features:
- Supports iOS and Android devices, as well as MacBook Air, MacBook Pro, and Chromebook, among others.
- Supports USB PD 2.0 / USB PD 3.0 (PPS) / QC 2.0 / QC 3.0 / USB Battery Charging Spec 1.2 at Sync & Charge mode.
- Each port can deliver an output current of up to 27W, supporting 5V 3A, 9V 3A, 12V 2.25A, and 15V 1.8A in both Sync and Charge modes.
- Supports USB PD 3.0 (PPS) 3.3 ~ 5.9V 3A / 3.3 ~ 11V 2.25A either at SYNC mode or Charge mode on each port.
- When the Green Energy function is activated (the button is pressed ON), the hub will shut down after 60 seconds if no devices are connected.
- Supports the connection of up to 20 or 40 USB 3.2 Gen 1 devices by utilizing the cascade port to link additional units.
- Allows Sync/Charge mode switching by manually connecting or disconnecting the host port.
- Activates the Green Energy function to automatically shut down the hub within 5 seconds when all devices are fully charged in Charge mode.
- Supports Over Current Protection and Short Circuit Protection on each port. When triggered, the specific LED will blink red, and the output power of that port will be cut off.
- Supports Over Temperature Protection on each port. When activated, the specific LED will blink green, indicating that the output power of that port has been cut off.
- Supports ±15kV (air), ±8kV (contact) ESD protection on each port.
- Supports 40A (5/50ns) & Peak Pulse Power 360W (8/20 us) Surge and Transient spike protection on each port.

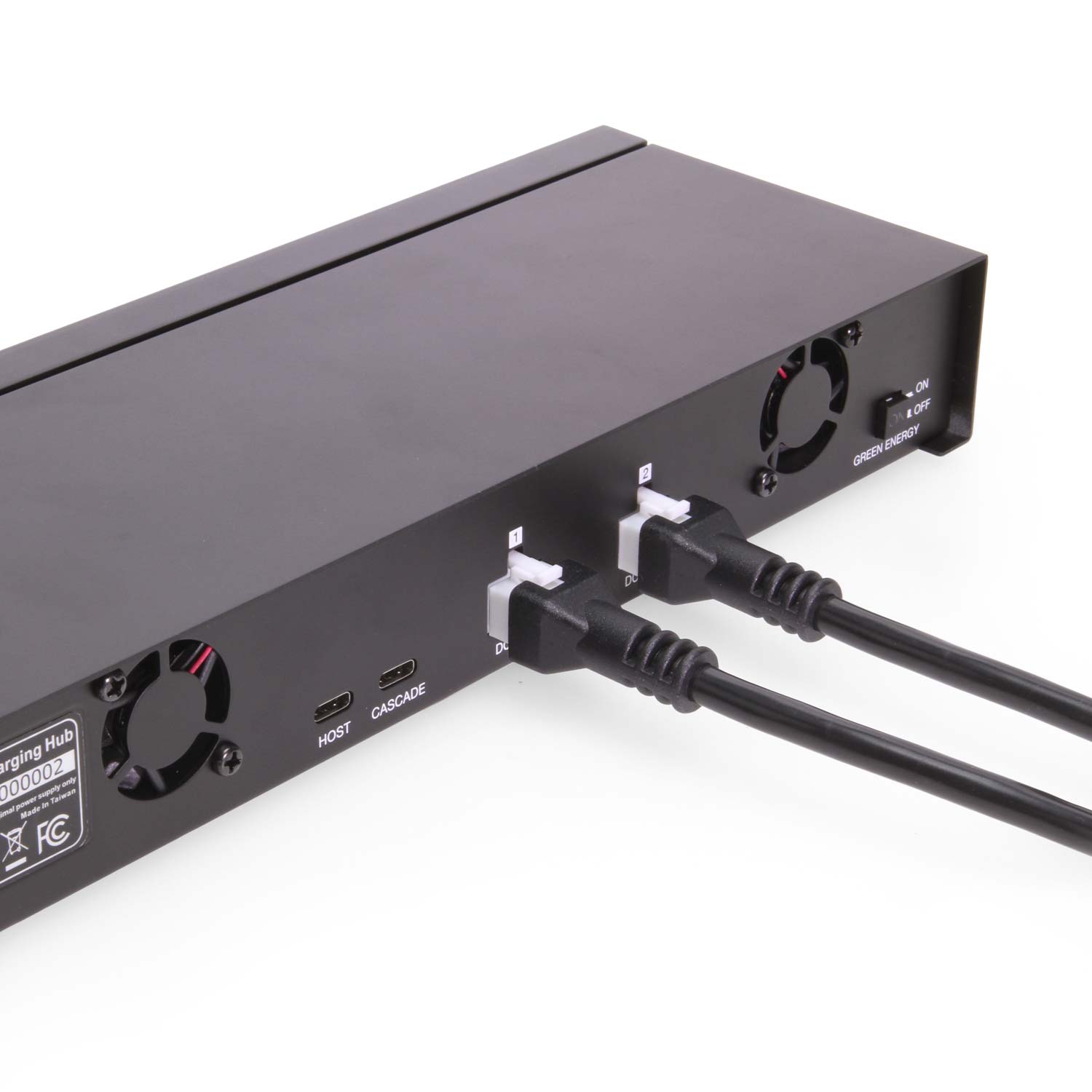

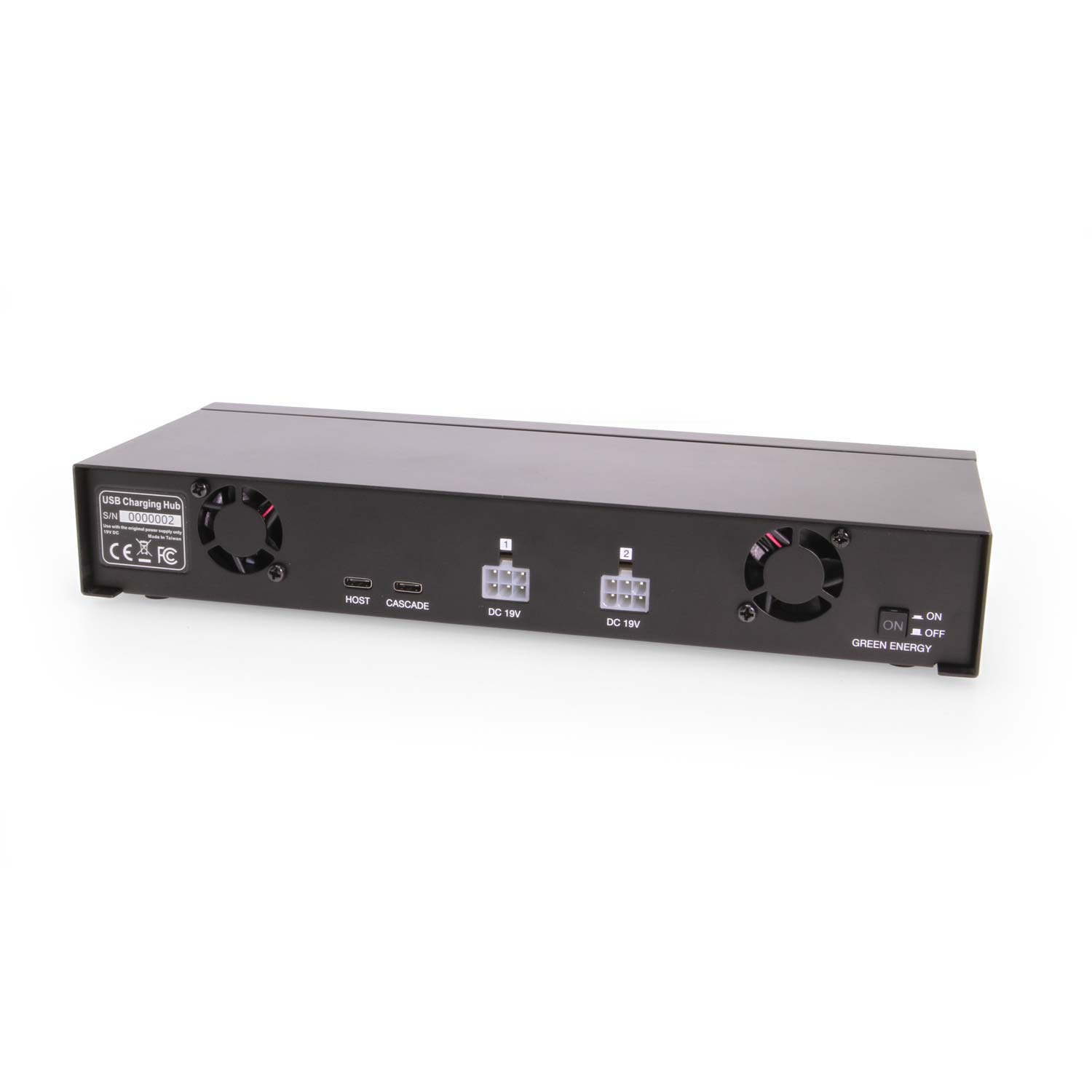

- 2 DC input ports enable powering ports 1 through 10 via DC input 1., and ports 11 through 20 through DC input 2 (DC input 2 can only be used when connected to the 20-port unit; it cannot be used individually.)
- The rear fan(s) spec: SUNON Vapo DC Fan; Life Expectancy: 60,000 hours.
- Automatically controls the fans based on the temperature settings. If the board’s temperature exceeds the set threshold, the fans will start automatically. Conversely, if the board’s temperature falls below the set threshold, the fans will turn off automatically.
Accessories & Replacement Parts
Accessories & Replacement Parts
Super Fast Speeds: This USB cable is 3.2 Gen 2 compliant, ensuring super-fast 10Gbps data transfer speeds. It supports super speed+, super speed, high speed…
Model# CG-CMCRM5A100-05M
$8.49In stock
USB 3 Type-C Cable With an 18 inch Reversible plug orientation, the USB 3.1 Type-C cable supplies Power and Ground regardless of orientation. Keeps with…
Model# CM-U31CMCM-18
$19.99Not in stock - Backorder allowed
24V – 12.5A External Power Supply with 6-Pin Molex connector for Coolgear USB commercial and industrial chargers. (Find a full compatibility list below). Input: AC…
Model# ATS300T-P240
$148.99In stock
Out of stock
USB 3 Type-C - 1 Meter Cable Transmitting 5Gbps of data over 3 feet of cable with the new USB 3.1 first generation C-Type cable…
Model# CM-U31CMCM-1M
$24.99Out of stock
Specifications
Product Specifications
| Identifier |
| ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Power |
| ||||||||||||||||||
| Compliance |
| ||||||||||||||||||
| Physical Characteristics |
| ||||||||||||||||||
| What's in the Box |
| ||||||||||||||||||
| Software |
| ||||||||||||||||||
| Environmental |
| ||||||||||||||||||
| Product Information |
| ||||||||||||||||||
| Hardware |
| ||||||||||||||||||
| Performance & Safety |
| ||||||||||||||||||
| Other Data |
|
Reviews (0)
Be the first to review “20 Port USB-C 3.2 Gen 1 Industrial Charging Hub w/ Max 27W Per-Port Power Delivery”
Support
Product Documentation & Drivers
Product Documents
Need drawings, CAD files, or other compliance documentation? Click HERE
Relevant Articles & F.A.Q.
Relevant Articles
Product F.A.Q.
View frequently asked product questions below. Still need help? Reach out!
-
Can the hub be used without a power supply?
View AnswerIn some cases, yes. USB peripherals that only require low power (i.e. keyboards & mice) can be used without a power adapter. Power in this case is drawn from the host’s USB port.
When high-power USB peripherals are used, a power supply for the USB hub may be required. In other cases, the USB peripheral may require their own power adapters, in this case, a power supply for the hub may not be required. Without ample power though, the USB hub or connected peripherals may not operate correctly. It is recommended to use an included power supply when possible.
-
After waking up from sleep mode, my computer/host no longer recognizes my USB device.
View AnswerIf the USB device does not function properly after your computer or host has been in sleep mode, it is likely that Windows turned off the USB Root hub in order to save power.
To prevent this, follow the steps below (depending on your operating system).
Windows 10 / 8
- On your keyboard, press the Windows key + X and select Control Panel.
- Click Hardware and Sound, then click Power Options.
- Click Change plan settings for the plan you want to change.
- Click Change advanced power settings.
- Click the plus sign (+) next to “USB settings” and “USB selective suspend setting” to expand the options and change the setting to Disabled.
- Click OK to apply the setting.
Note: You may need to disconnect and re-connect your USB device after applying these settings.
Windows 7 / Vista
- Click the Start button and select Control Panel.
- Click Hardware and Sound, then click Power Options.
- Click Change plan settings for the plan you want to change.
- Click Change advanced power settings.
- Click the plus sign (+) next to “USB settings” and “USB selective suspend setting” to expand the options and change the setting to Disabled.
- Click OK to apply the setting.
Note: You may need to disconnect and re-connect your USB device after applying these settings.
Windows XP
- On your desktop, right-click the My Computer icon and select Properties.
- Click the Device Manager tab.
- Expand Universal Serial Bus controllers by clicking the arrow to the left of it.
- Right-click the first USB Root Hub device and select Properties.
- Click the Power Management tab.
- Clear the box next to Allow the computer to turn off this device to save power.
- Click OK to apply the setting.
- Repeat steps 4-7 for any remaining devices in the Universal Serial Bus Controllers section with “Root Hub” in the name.
Note: You may need to disconnect and re-connect your USB device after applying these settings.
-
The hub is properly hooked up, but is not functioning correctly. What can I do?
View AnswerTesting all setup components is the best place to begin troubleshooting. To determine the source of the issue, individually test your:
- USB Cable by using it in another setup, or trying another cable.
- Host USB Port by connecting another device or thumb drive.
- Connected Peripherals by connecting directly to the host.
Moving on to troubleshooting the hub itself. Attach a USB peripheral. The USB hub itself will not appear in hardware listings on your host’s system. USB devices connected however, will appear when connected. If the connected device is still not being found, try:
- Installing the required drivers for the USB peripheral.
- Install the most recent drivers for the USB controller and/or motherboard chipset.
USB hubs do not require drivers or software.
Troubleshooting the desired USB peripheral may be in order. If the peripheral is still not being recognized, attempt:
- Attaching external power to the peripheral, if required.
- Confirming if the peripheral functions on a standard USB port.
- Testing if basic USB peripherals work, such as keyboards or mice.
-
How can external power be connected to the industrial USB hub?
External power is supplied by connecting to the terminal block located on the hub. For when an external power adapter is required check out the Accessories & Replacement Parts section on this product page. To view all of our hub accessories and power supplies, visit the category here.
How to properly choose a power supply.To determine the power requirements, the equation to use is P = 5 * I * N, where:
P is the power wattage.
5 is the USB port voltage.
I is the current of the USB port in Amps (USB 2.0 is 0.5A, USB 3.0 is 0.9A.
N is the number of USB ports.
As an example using the equation, a 4 port hub would reflect a minimum wattage of 18 watts.
Knowing the minimum requirement, a proper power adapter can be chosen. In this case the voltage of a power supply should be within 7 to 24 or 7 to 40 Volts DC, depending on the specifications of the USB hub. Also, the power supply must convert AC to DC (no AC output).
Power supplies often come with a voltage (V) rating and an amperage (A) rating. To determine the current in amps, use I = P / V, where the following is true:
I is the current of the power supply.
P is the calculated power of the hub.
V is the chosen voltage of the power supply
Continuing the example, the 4 port hub requires 18 W and the power supply you choose is 12V, the current of the power supply would be I = 18/12, I = 1.5A.
Our full collection of power adapters can be found here.
