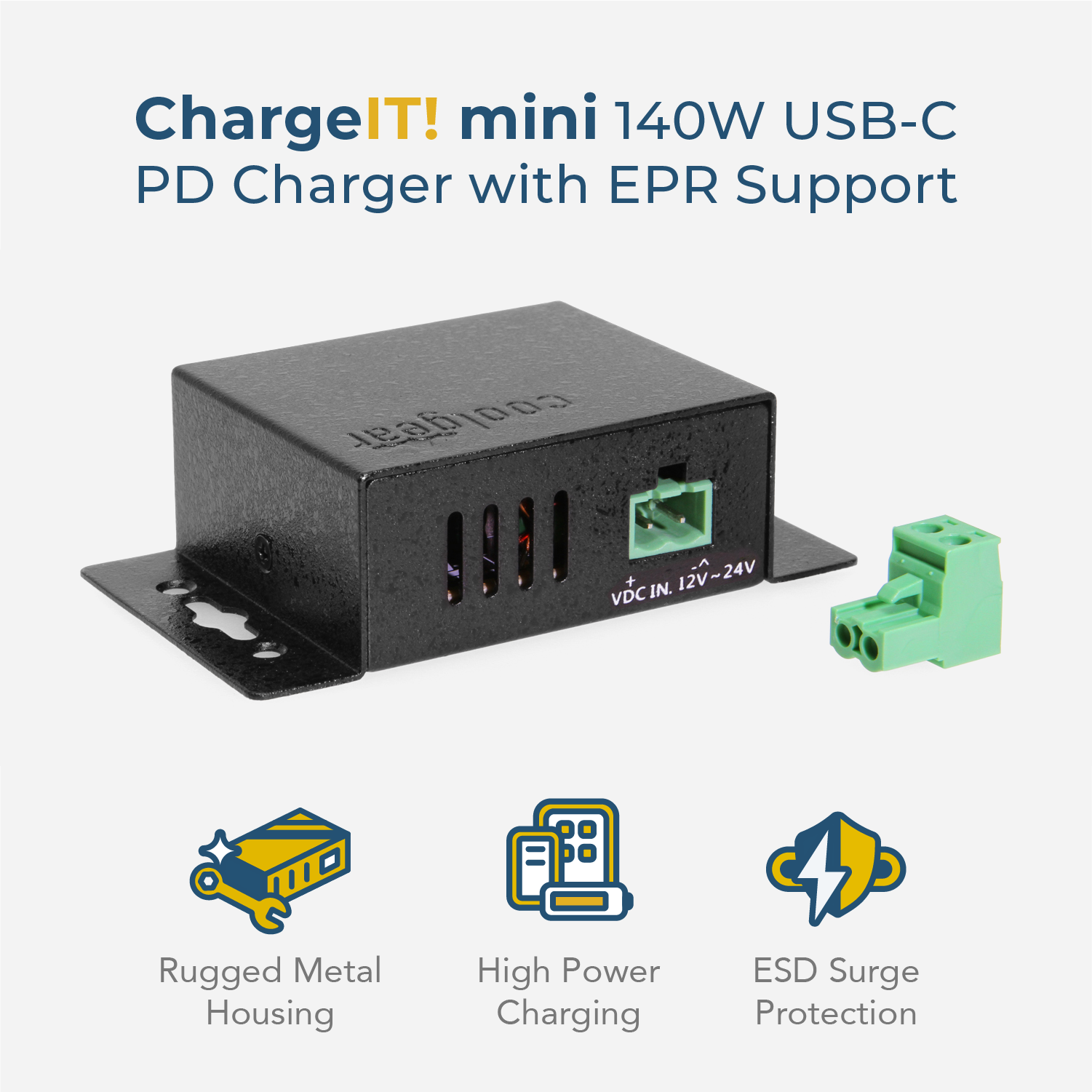

ChargeIT! Mini 140W USB Type-C PD Charger w/ EPR Support

This High Power Single Port USB Type-C Industrial hub that complies with the latest USB-C and PD standards. Intended for use in PC power adapters, mobile chargers, car chargers and power bank applications. This charging hub provides one 140W USB Type-C PD port with EPR support

  • 140W USB PD3.1 Single Port Type C EPR 28V capable Buck-boost DC adapter
  • Variable voltage input range of 16 ~ 28V DC
  • Output Voltage and Current: SPR: 5V3A / 9V3A / 12V3A / 15V3A / 20V5A EPR: 28V5A
  • Supports most PD protocols including PD3.1, PPS, QC4.0+, BC1.2, etc.
  • Compatible with screw-lock USB-C cables to keep your connections secure.

(Note: USB-C to MagSafe 3 Cable required for 140W PD output is NOT included)

$99.99

Out of Stock

Model No. CG-PD140EPR

Quick Links:

Description

Features:

  • 140W USB PD3.1 Single Port Type C EPR 28V capable Buck-boost DC adapter
  • Output Voltage and Current: SPR: 5V3A / 9V3A / 12V3A / 15V3A / 20V5A EPR: 28V5A
  • Supports most PD protocols including PD3.1, PPS, QC4.0+, BC1.2, etc.
  • Comprehensive system protections such as OVP, OCP, SCP, and open loop

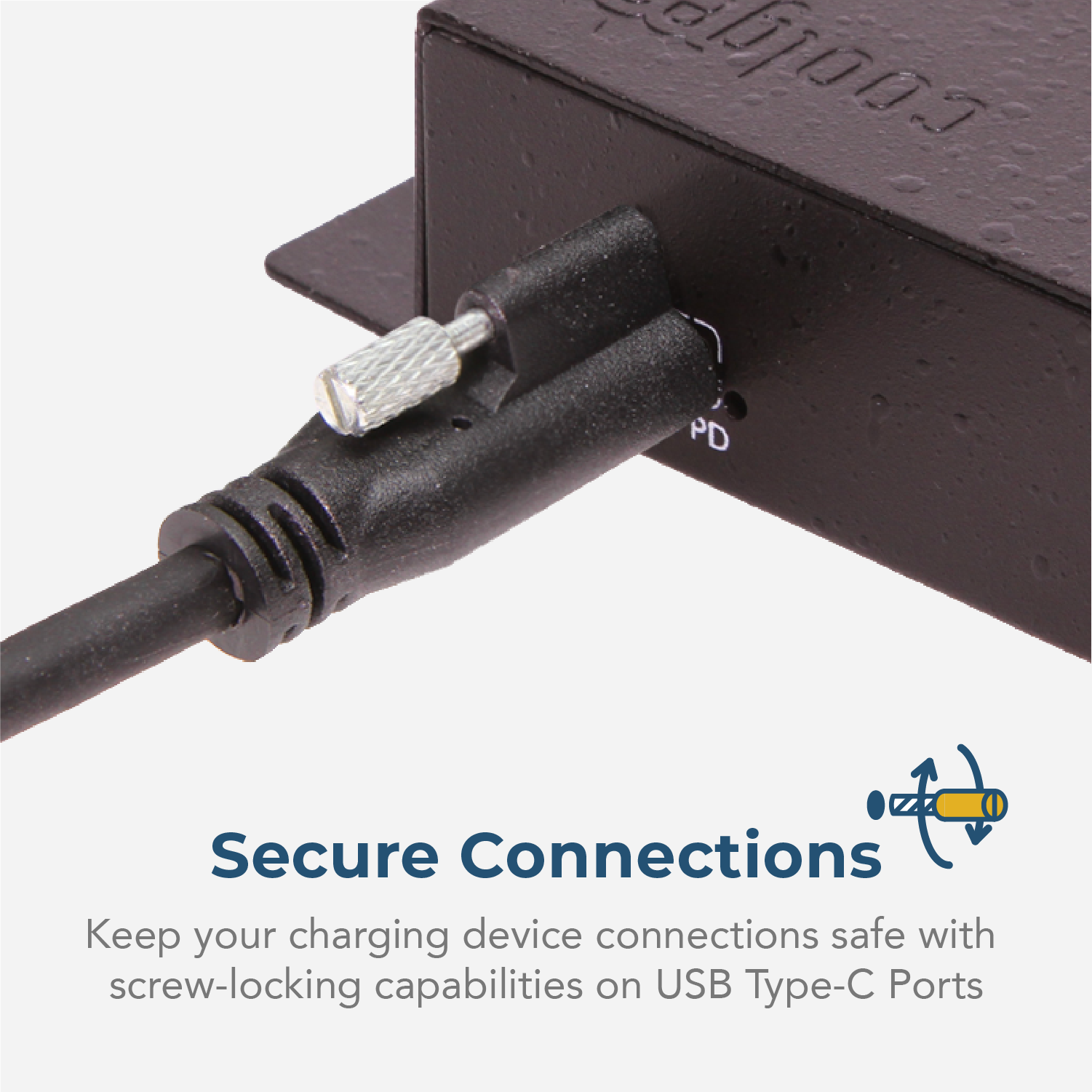

  • Compatible with screw-lock USB-C cables to keep your connections secure.
  • With Introduction of Extended Power Range “EPR” USB Power Delivery this super compact 16-28V DC Input 140W USB C Power Adapter offers the fastest possible charging speed for your MacBook Pro 16” 2021

(Note: USB-C to MagSafe 3 Cable required for 140W PD output is NOT included)

Optional Accessories

Optional Accessories

Super Fast Speeds: This USB cable is 3.2 Gen 2 compliant, ensuring super-fast 10Gbps data transfer speeds. It supports super speed+, super speed, high speed…

Model# CG-CMCRM5A100

$7.99$9.99

In stock

$7.99$9.99
1ft 3ft 6ft
This option is required

Select options

Super Fast Speeds: This USB cable is 3.2 Gen 2 compliant, ensuring super-fast 10Gbps data transfer speeds. It supports super speed+, super speed, high speed and…

Model# CG-U3CMCF

$13.95$15.95

In stock

$13.95$15.95
8 inches 20 inches 36 inches
This option is required

Select options

Super Fast Speeds: This USB cable is 3.2 Gen 2 compliant, ensuring super-fast 10Gbps data transfer speeds. It supports super speed +, super speed, high…

Model# CG-G2CCTSSL

$17.95$19.95

In stock

$17.95$19.95
1.8 Meter 0.5 Meter 1 Meter
This option is required

Select options

Specifications

Product Specifications

Power
Input Voltage

+16 ~ 28V DC

Over Current Protection

Y

Over Voltage Protection

Y

Power Source

2-Pin Terminal Block

Mechanical

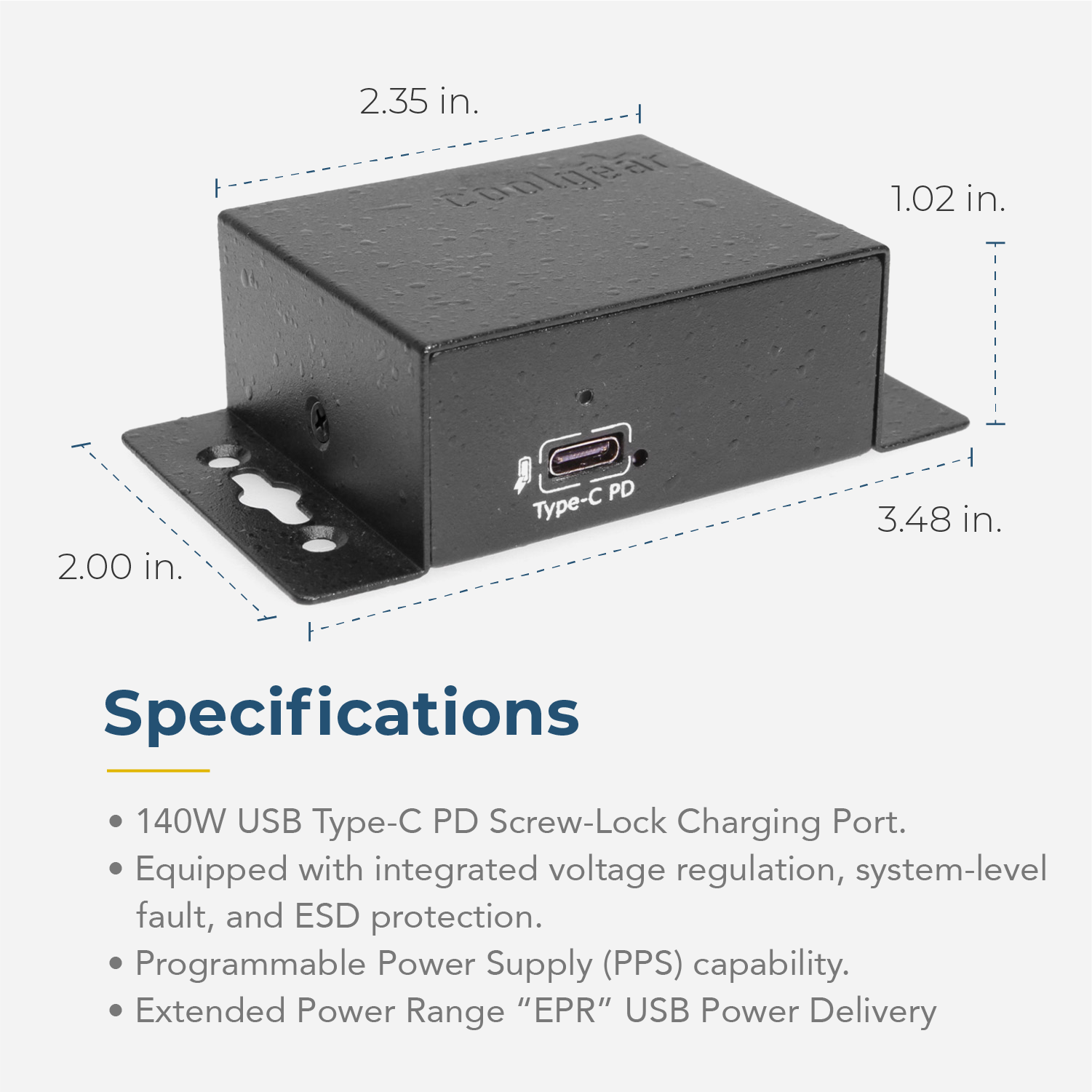

Item Dimensions (L × W × H)

3.48 × 2.00 × 1.03 in.

Item Weight

0.293 lbs.

USB
USB Type

Type-C

Product Information
Warranty

1 year from date of purchase

Hardware
Charging Protocols

AFC, Apple 2.4A, BC 1.2, Dedicated Charging Port (DCP), FCP, QC3.0, QC4.0, SCP, VOOC

PD Profile Support
Voltage Profiles

5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A, 20V/5A, EPR: 28V5A

Performance
ESD Protection

15KV Surge Protection

Over Current Protection

Y

Over Voltage Protection

Y

Other Data
UPC

045079163744

EPR Support

Yes

Weight

0.037 lbs

Dimensions

3.48 × 2.00 × 1.03 in

UPC: 045079163744
