Coolgear Slim Series 180W USB-C PD Hub | 3× USB-C 60W + 2× USB-A | +12~24V DC Input | Compact Design

Model No. CG-U3CASLIM180W-4PH

Industrial Grade | +12~24V DC Input | Surge Protection | Surface Mountable | 5 Gbps

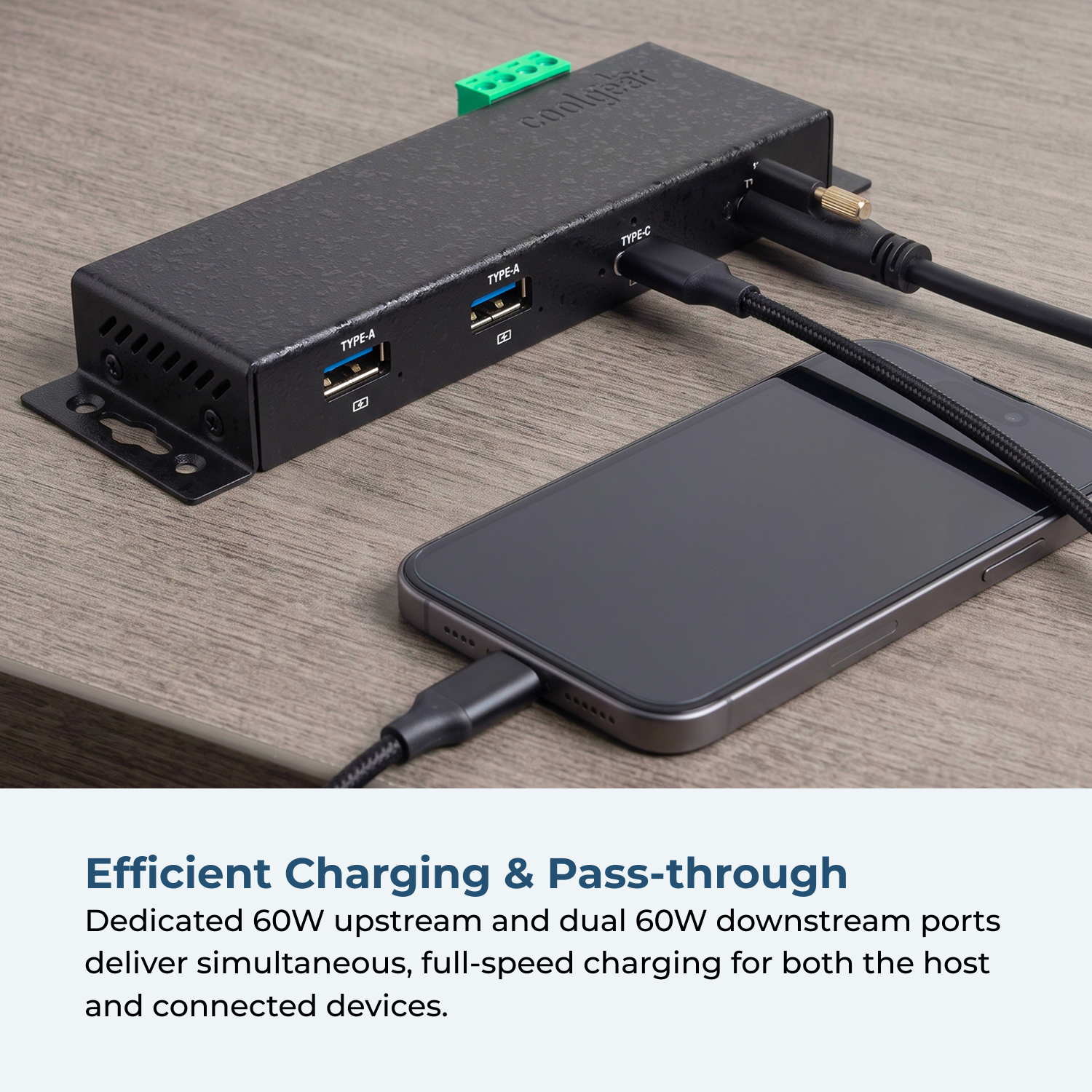

High-Power Charging: Dual dedicated 60W downstream ports plus a dedicated 60W upstream PD output enables full-speed, simultaneous charging for the host device as well as downstream laptops, tablets, or peripherals.
Protect Your Equipment: The 4-port hub features 15kV ESD surge protection to keep your connected peripherals safe from harm.
Super Fast Speeds: This USB hub is 3.2 Gen 1 compliant, ensuring super-fast 5Gbps data transfer speeds. It supports super speed, high speed and full speed which enables it to be compatible with USB 2.0 / 1.1.
Small-Scale Quality: Housed in a slim steel chassis, the 4-port hub is perfect for discreet installations in offices, labs, warehouses, automotive, heavy machinery, automation equipment, and other industrial applications.

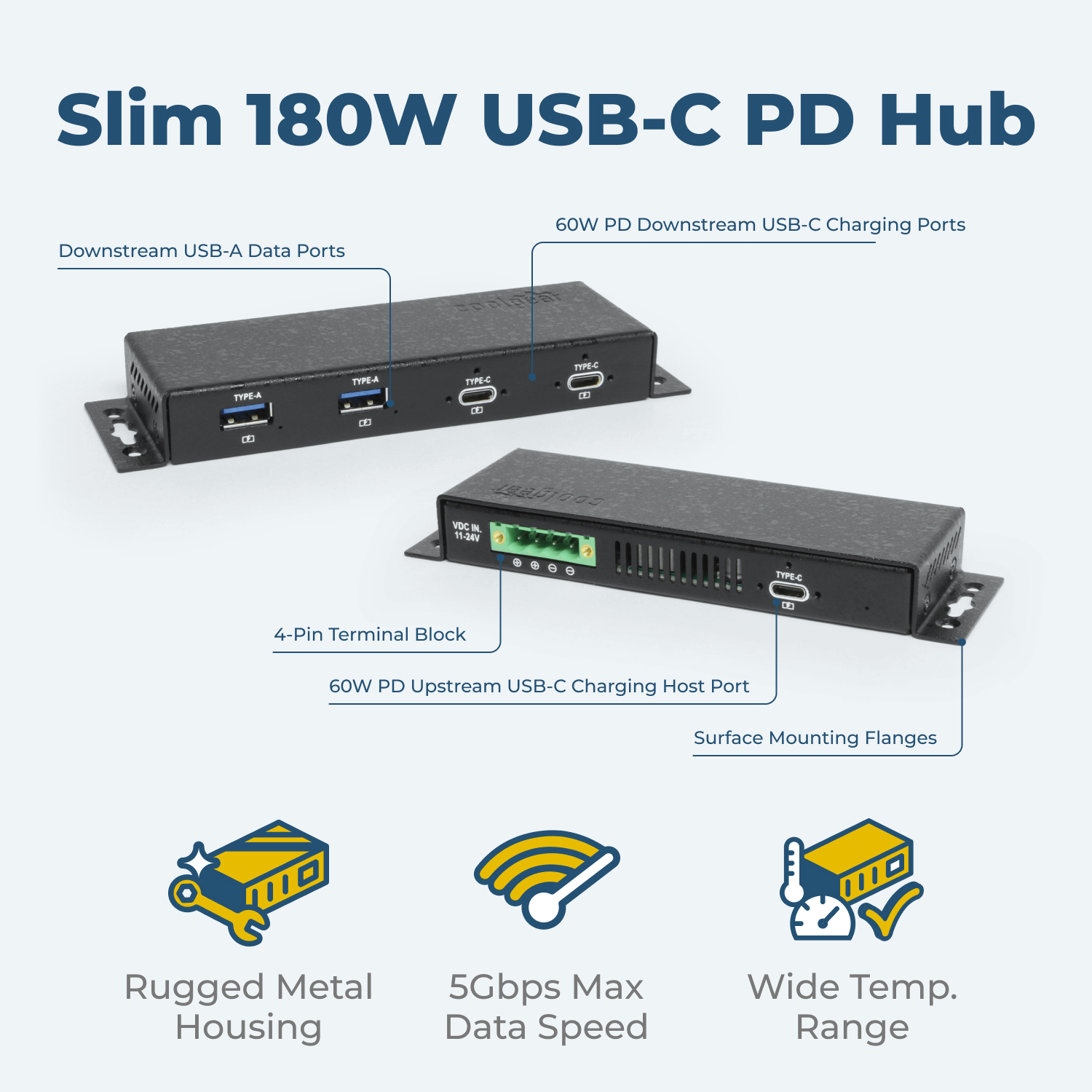

Upstream: 1 USB-C port, Screw-Lock Compatible
Downstream: 2 USB-A ports, 2 USB-C ports, Screw-Lock Compatible
Power Connector: 4-Pin Terminal Block

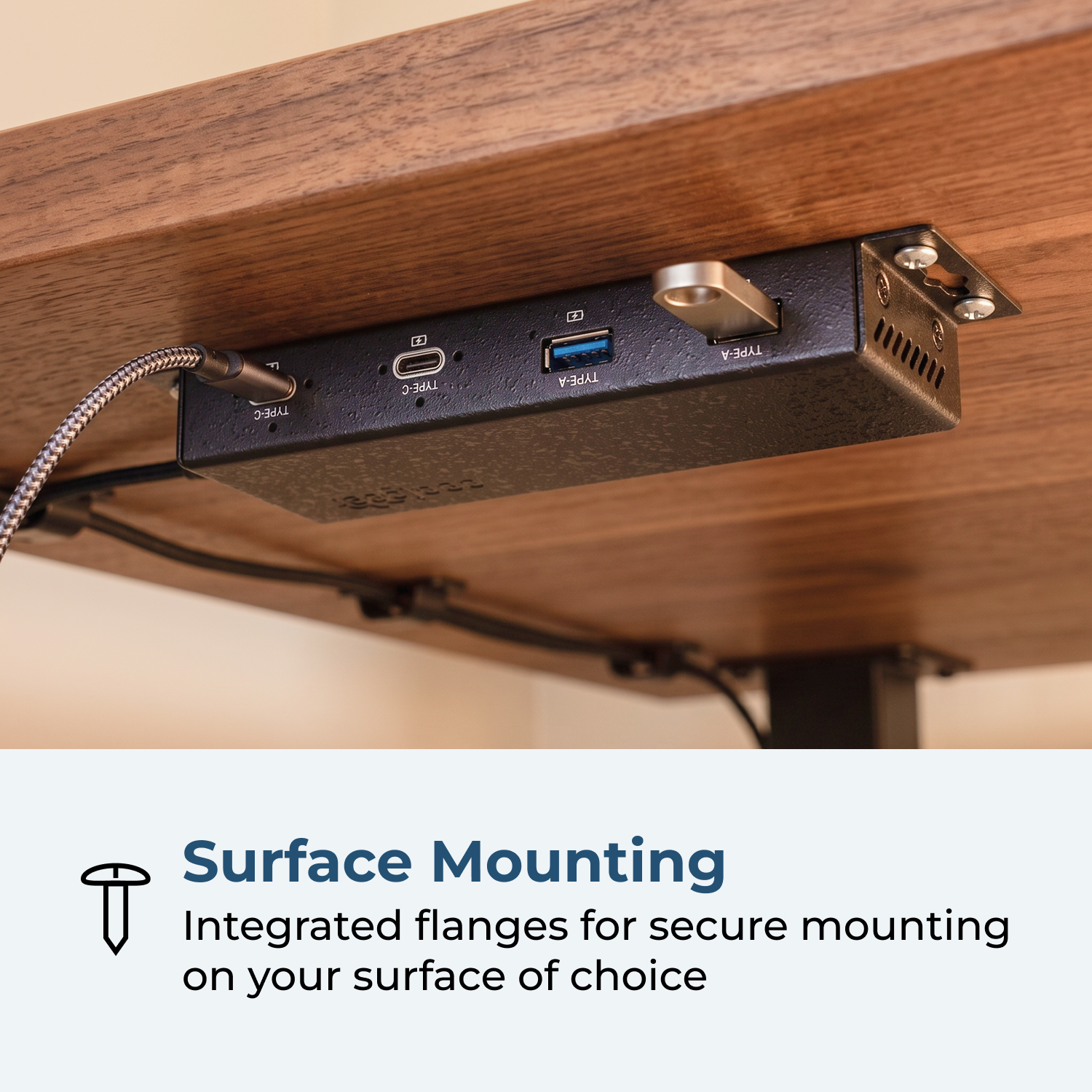

Mounting Options: Wall & Surface

$169.99

Model No. CG-U3CASLIM180W-4PH

In stock

Export Product as PDF

Need some help? Contact us.

Product Documents

CG-U3CASLIM180W-4PH - Technical Data Sheet

Quick Links:

Description

Slim Series 180W USB-C PD Hub

Designed for compact installations that still demand serious power, the Slim Series 180W USB-C PD Hub delivers reliable charging and connectivity across multiple devices. With three USB-C ports capable of up to 60W Power Delivery and two USB-A ports for legacy support, this hub is well-suited for workstations, embedded systems, and mobile deployments where space and performance both matter.

Key Features and Benefits

High-Power USB-C Output: Three USB-C ports each support up to 60W Power Delivery, ideal for laptops, tablets, and other high-draw devices.
Mixed Port Compatibility: Includes two USB-A ports to support a wide range of existing peripherals alongside modern USB-C devices.
180W Total Power Budget: Provides sufficient power distribution across all ports for simultaneous charging without performance throttling.
Wide Voltage Input Range: Accepts +12~24V DC input, making it suitable for automotive, industrial, and off-grid power systems.
Compact Slim Design: Space-saving form factor allows for easy integration into tight enclosures, kiosks, or mobile setups.

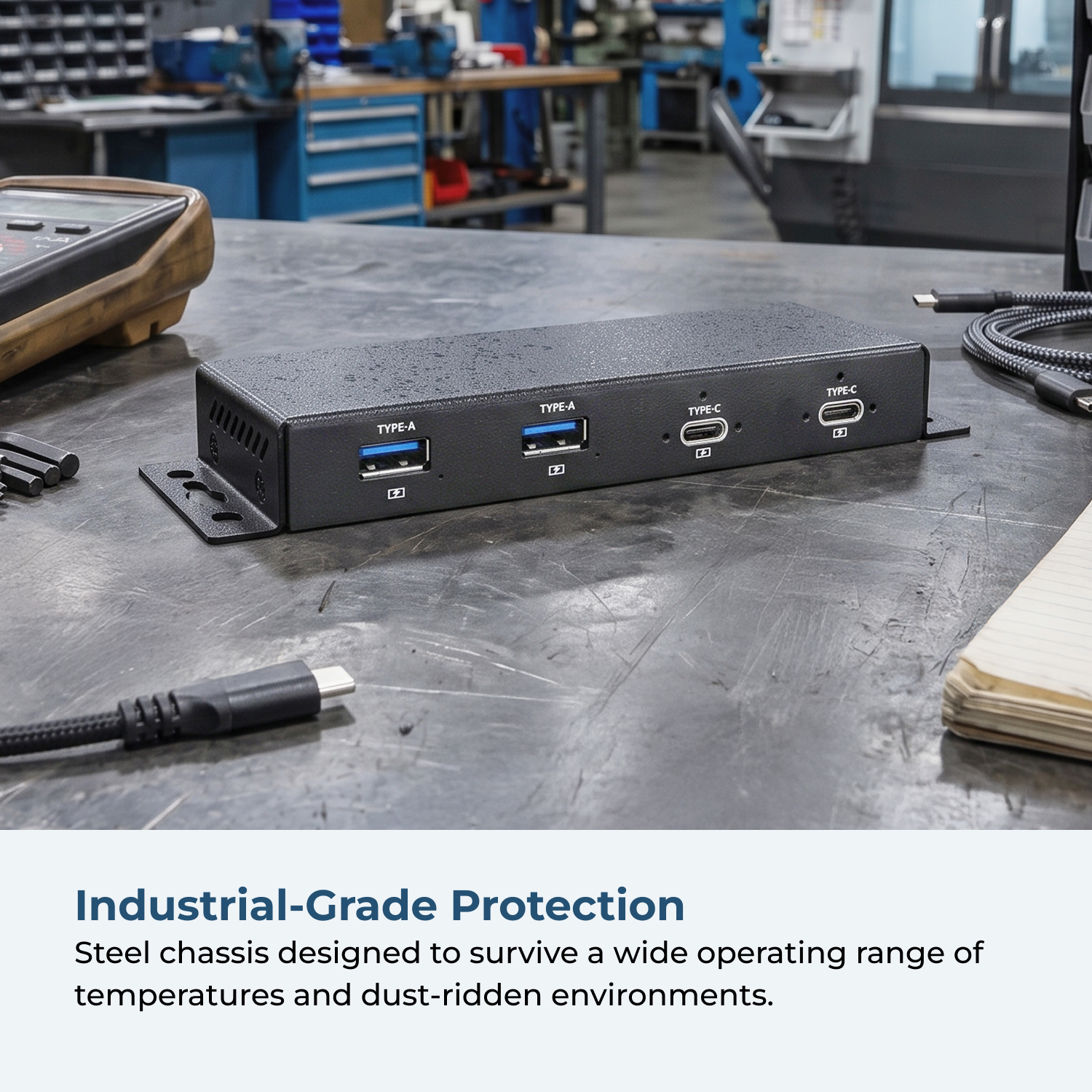

Industrial-Grade Reliability: Built for consistent operation in demanding environments, supporting stable power delivery across connected devices.
Flexible Integration: Ideal for embedded applications, system integrators, and OEM deployments requiring dependable USB charging infrastructure.

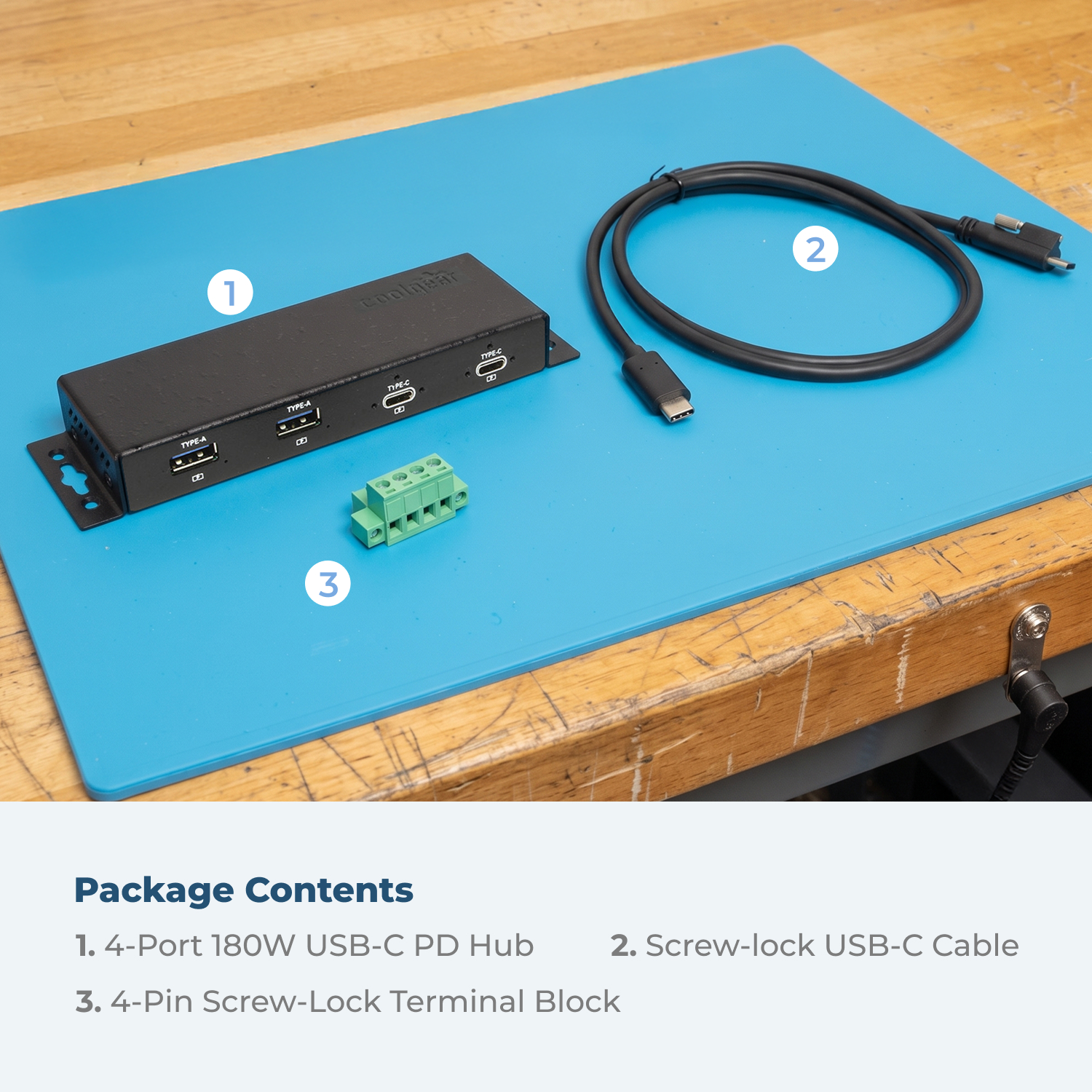

Package Contents

Slim Series 180W USB-C PD Hub
Single Screw-Lock USB-C to USB-C Cable
4-Pin Terminal Block

Use Cases

Use Cases:

Embedded & OEM Integration

System Integration: Embed into kiosks, control panels, and custom enclosures for centralized USB power distribution.
Device Consolidation: Power multiple USB-C and USB-A devices within compact, purpose-built systems.

Mobile & Vehicle Applications

In-Vehicle Power: Utilize 12–24V DC input to charge laptops, tablets, and accessories in service vehicles and fleets.
Field Operations: Support mobile workstations with reliable multi-device charging in transit or remote environments.

Workstations & Office Setups

Multi-Device Charging: Power several high-draw devices from a single hub, reducing cable clutter and power adapters.
Mixed Device Support: Maintain compatibility across USB-C and USB-A devices in modern office environments.

Industrial & Field Deployments

Space-Constrained Installs: Deploy in tight industrial enclosures where compact size and reliability are critical.
Technician Support: Provide dependable charging for tools, tablets, and diagnostic equipment in the field.

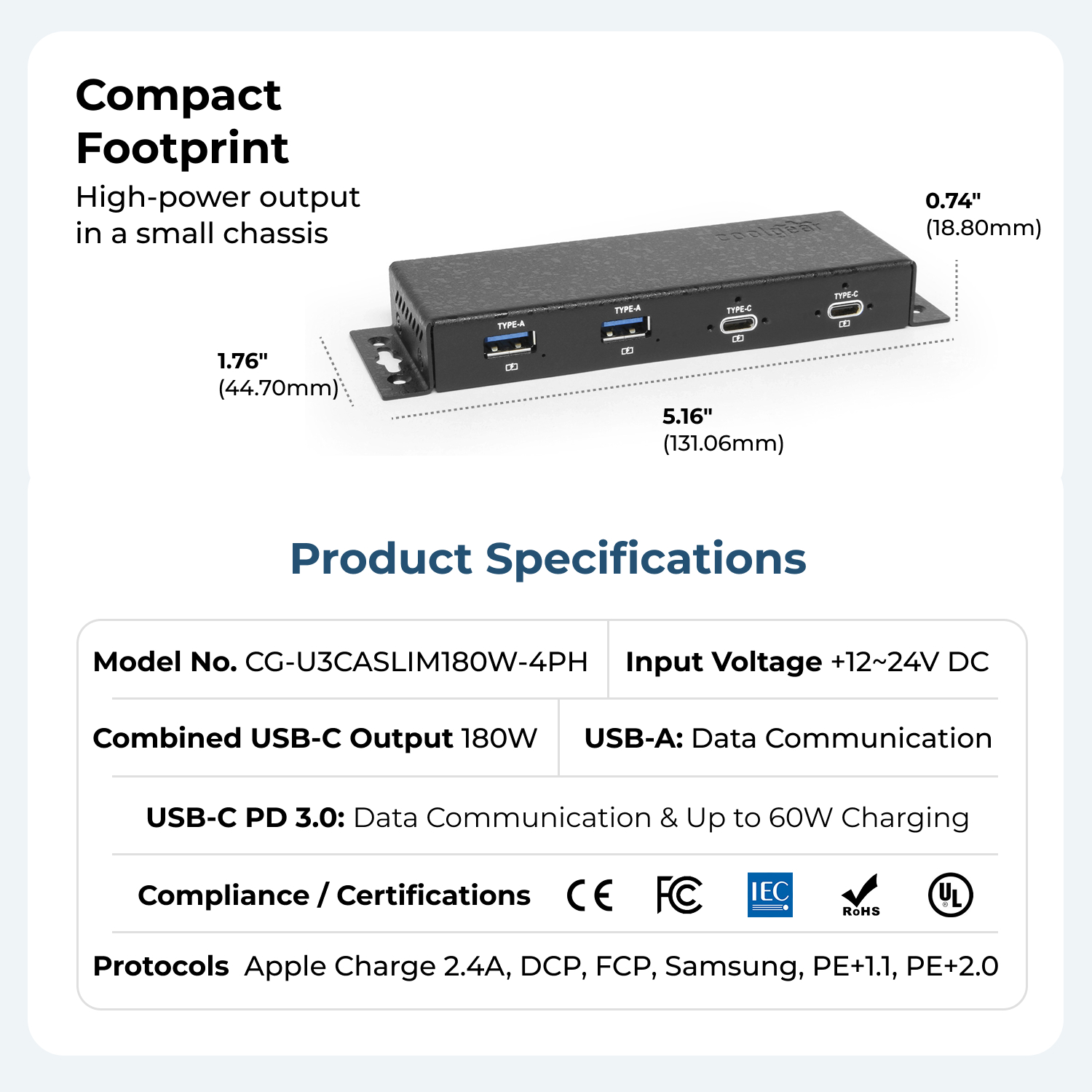

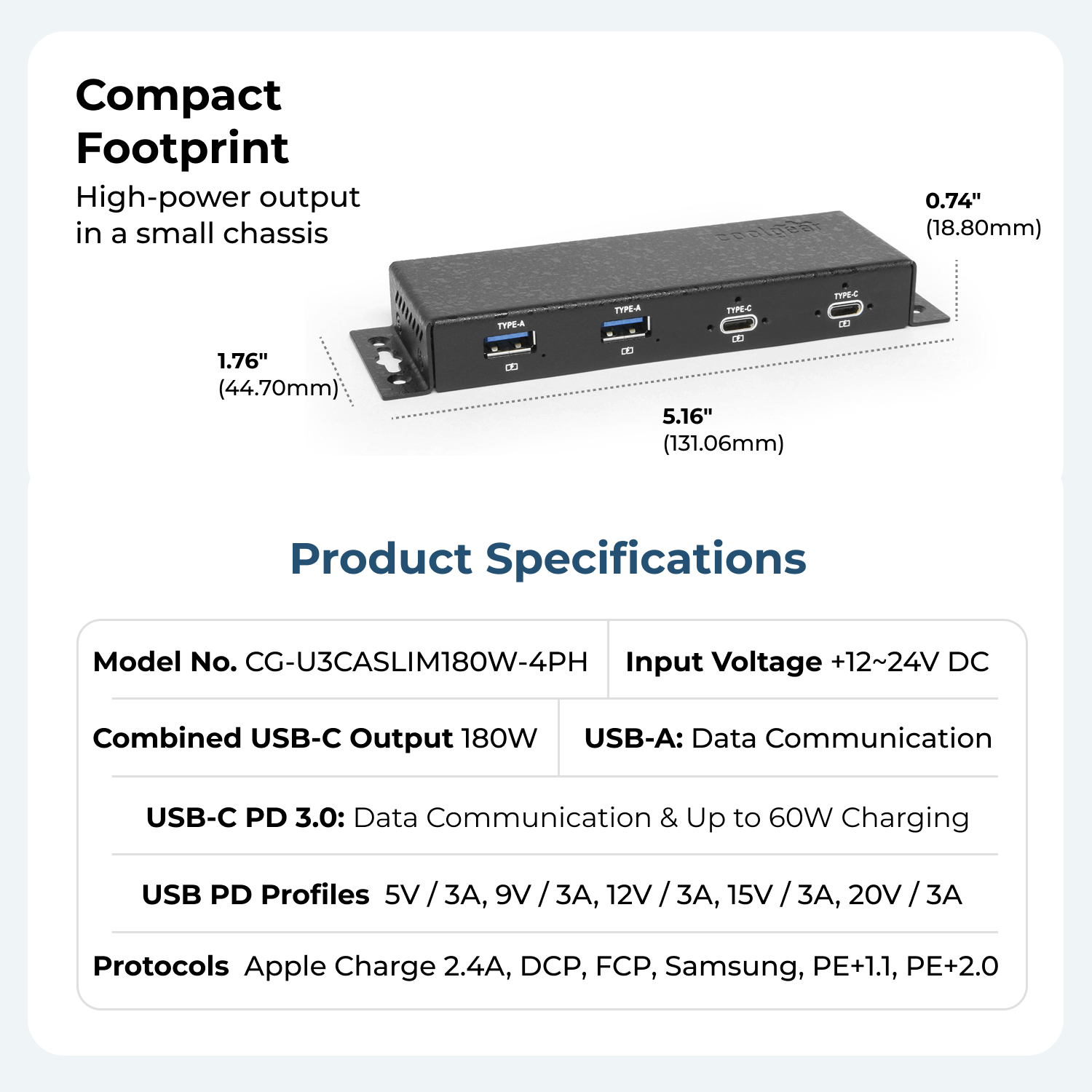

Specifications

Product Specifications

Power	Input Voltage Range: +12~24V DC Power Source: 4-Pin Terminal Block Maximum Power(W): 180W Charging Specifications: 5V/3A, 9V/3A, 15V/3A, 20V/3A
Physical Characteristics	Color: Black Item Dimensions (L × W × H): 5.16 × 1.76 × 0.74 in. Item Weight (Oz.): 0.45 lbs. Mounting Style: Surface Mount, Wall Mount Ports: 2 USB-A Ports, 2 USB-C Ports Material of Construction: Steel Screw Lock Compatible: Yes
Product Information	Warranty: 1 year from date of purchase
Hardware	Chipset: VL817-Q7 Downstream USB Ports: 2x Type C (Charging), 2x Type A (Charging ) Upstream Port Types: 1 Type-C Female USB
Performance & Safety	ESD Protection: 15kV
Additional Details	UPC: 045079165618 Weight: 0.75 lbs Dimensions: 9.00 × 6.60 × 1.75 in
