16 Port USB 3.2 Gen 1 Hub w/ ESD Surge Protection

Industrial Grade | +12~24V DC Input | Surge Protection | Surface Mountable | DIN Rail | Rack Mount | 5 Gbps | Screw Lock

  • Protect Your Equipment: The 16-port USB 3.2 Gen 1 features 350 Watts of surge protection and 15kV ESD protection to keep your connected peripherals safe from harm.
  • Super Fast Speeds: This USB hub is 3.2 Gen 1 compliant, ensuring super-fast 5Gbps data transfer speeds. It supports super speed, high speed and full speed which enables it to be compatible with USB 2.0 / 1.1.
  • Superior Build Quality: Housed in a rugged steel chassis with built in mountable flanges, the 16-port hub is perfect for installations in offices, labs, warehouses, heavy machinery, automation equipment, and other industrial applications.
  • Upstream: 2 Selectable USB ports, Type B connector, Screw-lock type
  • Downstream: 16 USB ports, Type A connectors, Screw-lock type
  • Power Connector: 2-Pin Terminal Block

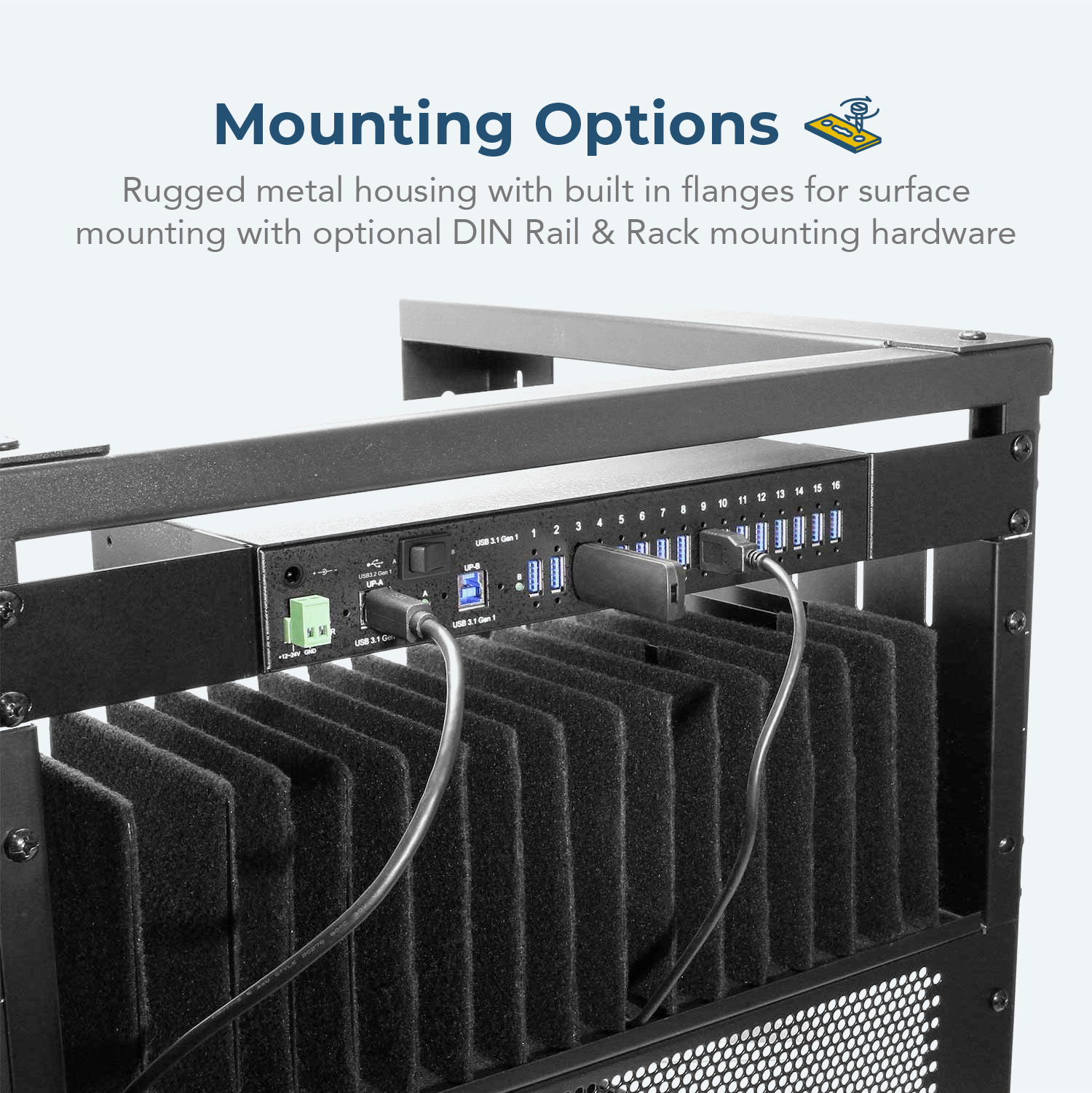

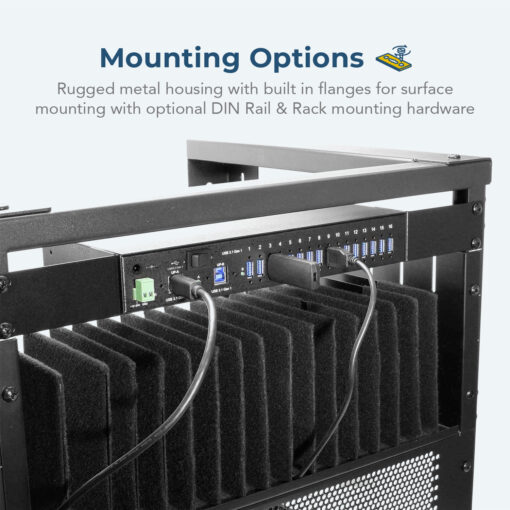

  • Mounting Options: Wall, Surface, and DIN Rail
  • Supply Current: 0.9A USB Bus Power for Each Down-stream Port

$399.95

(1 customer review)

In stock

View Volume Pricing

Units Price
1 - 4 $399.95
5 - 11 $391.95
12 - 24 $379.95
25 - 49 $371.95
50+ $359.96

Also available from:

Model No. USB3-16U1

Description

USB3-16U1 Product Description

Introduction:

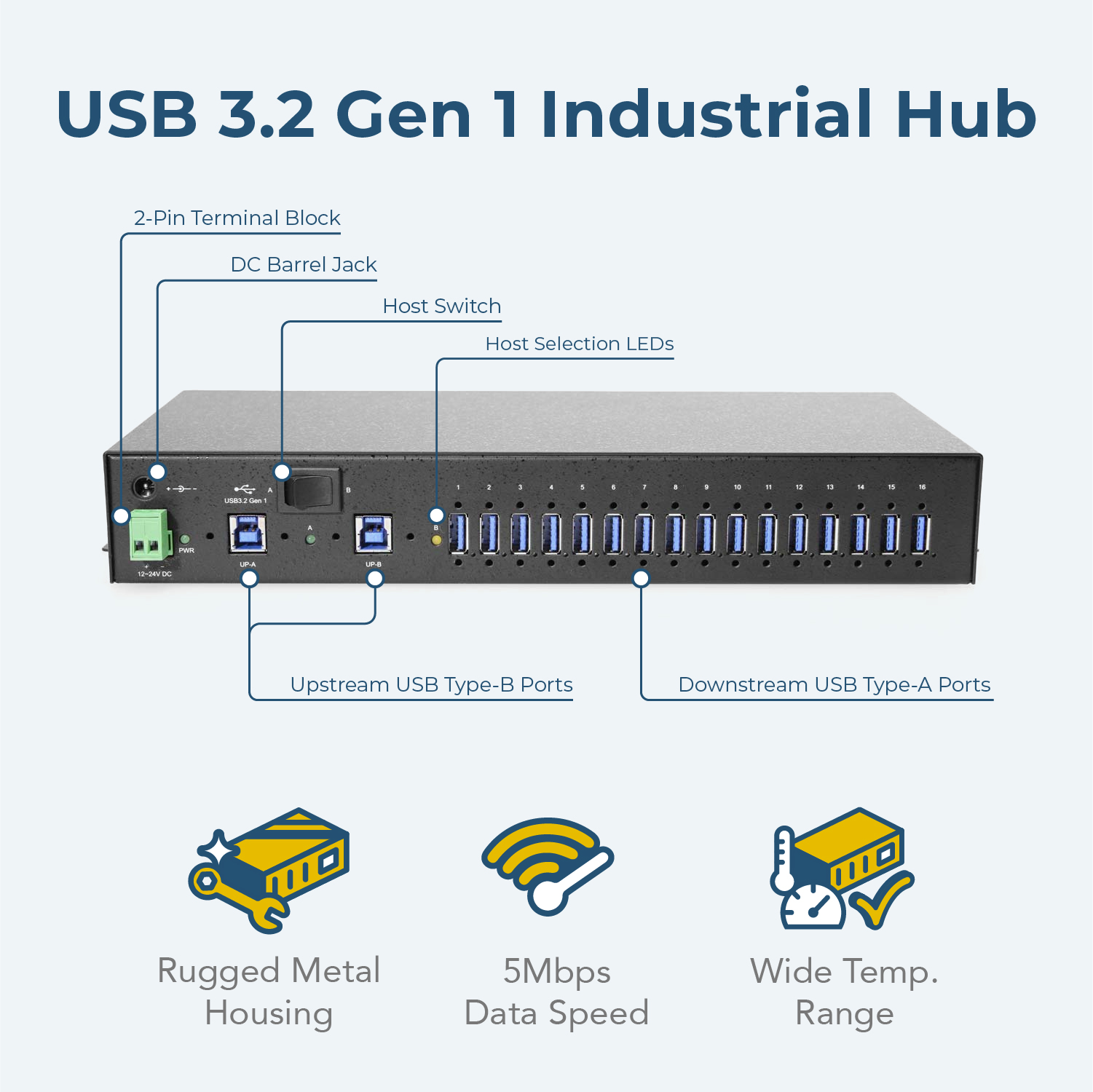

The USB3-16U1 16 Port USB USB 3.2 Gen 1 rack mount metal hub features 16 Type-A downstream port connectors for USB USB 3.2 Gen 1, USB 2.0, USB 1.1 devices. All ports support Sync and Charge functions simultaneously, standard and screw-lock type USB cables for a secure connection. The 2-Pin self power input connector uses 1 pin for positive voltage and the other pin for a GND connection. The terminal block connector is used to connect strong power in order to self-power the hub (Power supply not included). The voltage can be in the range from +12V to 24V DC.

There are 2 Type-B upstream connectors on the 16 Port USB 3.2 Gen 1 Metal Hub that offer a selectable rocker switch. Either Port A or Port B can be used to control the downstream ports on the device. Both ports can be connected to a host or another USB 3.2 Gen 1 Hub. These connectors support standard and screw-lock type USB cables.

Features:

  • Compliant with USB specification Revision USB 3.2 Gen 1
  • Sync and Charges Simultaneously through Type-A ports
  • Rigid and Rack Mountable metal case
  • Provides 2 selectable upstream and 16 downstream USB 3.2 Gen 1 facing ports
  • Supports 5Gbps (super-speed), 480MBps (high-speed), 12Mbps (full-speed) and 1.5Mbps (low-speed)
  • Supports 16 Port 350 Watt Surge Protection
  • ESD Surge protection ±15kV (air), ±8kV (contact)
  • Multi Transaction Translators (TT) per hub
  • Supports USB Screw-Lock cable mechanism
  • includes DIN-Rail mounting clips
  • Rack Mount Brackets Included

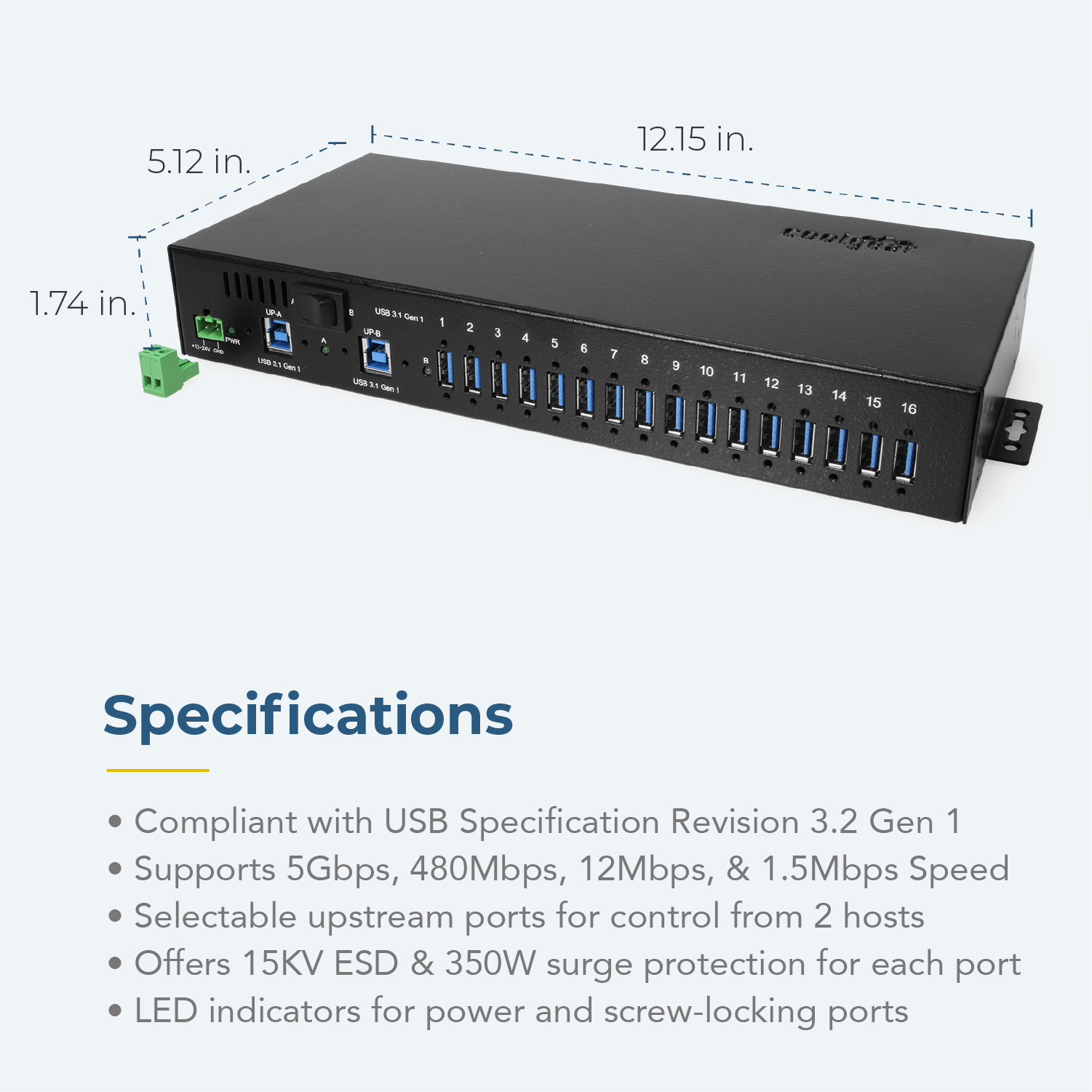

  • Item Dimensions: 12.15in(L) x5.12in(W) x1.74in(H), (30.85 x 13.02 x 4.42 cm)
OS Support:
  • Windows 7, 8, 8.1, & Windows 10
  • Linux and Mac OS 10.X
Environmental:
  • Operating Temperature: 0° to 55° C (32° to 131° F)
  • Operating Humidity: 5 to 95% RH

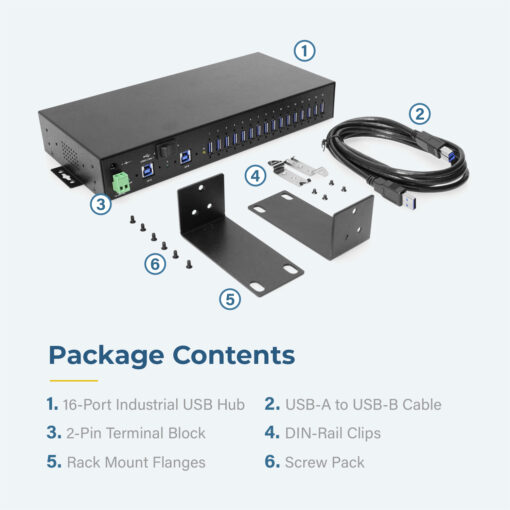

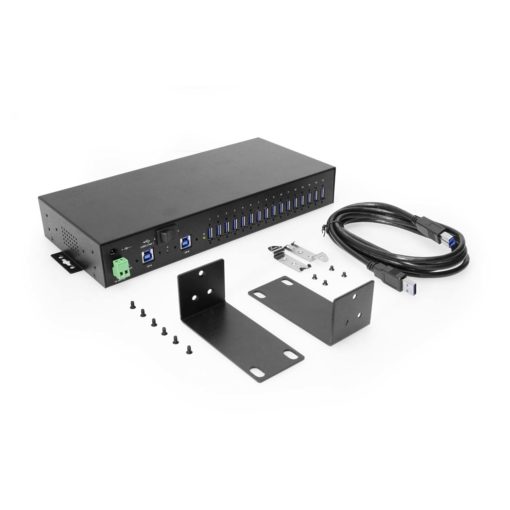

Package Contents:

  • USB3-16U1 16 Port USB 3.2 Gen 1 Hub (Does not include power supply)
  • 6ft. USB 3.2 Gen 1 cable type “A” to “B””
  • Mounting Brackets
  • Din-Rail Clips
  • Mounting Screws
  • *Power Supply not included; available as an optional accessory: Model# 12V7A2P-B for low power charging. For full high capacity power charging, the PS-UHC24V10A is needed.

*Surface Mounting screws not included.

Specifications

Product Specifications

Power
Input Voltage

+12~24V DC

Over Voltage Protection

Y per buck

Power Source

2-Pin Terminal Block, AC Adapter Not Included

Idle Consumption

.70mA @ 24V Terminal Power, 13.98mA Bus Powered, 343.7mA @ 12V Terminal Power

External Power Required

Yes

Compliance
Country of Origin

Taiwan

Certifications

,

Mechanical
Color

Black

Item Dimensions (L × W × H)

12.15 × 5.12 × 1.74 in.

Item Weight

2.05 lbs.

Mounting Style

Surface / Wall Mount, Din-Rail Mount, Rack Mount

Ports

16 USB Ports

Material of Construction

Galvanized Steel

USB
USB Type

USB 3.0

Upstream USB Ports

2 Type-B Female USB

Downstream USB Ports

16 Type-A Female USB

Isolated/Surge Protected

Yes

Screw Lock Compatible

Yes

Software
OS Support

Win 11, Linux, Mac OSX, Win 10, Win 7, Win 8

Environmental
Operating Temperature

0°C to 55°C (32°F to 131°F)

Storage Temperature

-20 to 75°C (-4 to 167°F)

Humidity

5% ~ 95% (non-condensing)

Product Information
Warranty

1 year from date of purchase

Hardware
Chipset

GL 3522

Charging Protocols

Apple 2.4A, Charging Downstream Port (CDP), Dedicated Charging Port (DCP)

LED Indicators

Power

Overall Power Per USB Port

5V per port

Per USB Port Current

0.9A

What's in the Box
Package Contents

2-Pin Terminal Block, DIN Rail Clip(s), Hub, Rack Mounting Flanges, Screw Pack, USB-A to USB-B Cable

Performance
ESD Protection

15KV Surge Protection for Each Port

Isolated/Surge Protected

Yes

Max Data Transfer Rate

5Gbps

Over Voltage Protection

Y per buck

Surge Protection

350W

Other Data
UPC

729440692094

Weight

3.75 lbs

Dimensions

14.5 × 10.75 × 4 in

UPC: 729440692094
Reviews (1)

1 review for 16 Port USB 3.2 Gen 1 Hub w/ ESD Surge Protection

  1. james linville

    excellent !

Add a review

Hubs F.A.Q.

Product F.A.Q.

View frequently asked product questions below. Still need help? Reach out!

  • Can the hub be used without a power supply?
    In some cases, yes. USB peripherals that only require low power (i.e. keyboards & mice) can be used without a power adapter. Power in this case is drawn from the host’s USB port.

    When high-power USB peripherals are used, a power supply for the USB hub may be required. In other cases, the USB peripheral may require their own power adapters, in this case, a power supply for the hub may not be required. Without ample power though, the USB hub or connected peripherals may not operate correctly. It is recommended to use an included power supply when possible.

  • After waking up from sleep mode, my computer/host no longer recognizes my USB device.
    If the USB device does not function properly after your computer or host has been in sleep mode, it is likely that Windows turned off the USB Root hub in order to save power.

    To prevent this, follow the steps below (depending on your operating system).

    Windows 10 / 8

    1. On your keyboard, press the Windows key + X and select Control Panel.
    2. Click Hardware and Sound, then click Power Options.
    3. Click Change plan settings for the plan you want to change.
    4. Click Change advanced power settings.
    5. Click the plus sign (+) next to “USB settings” and “USB selective suspend setting” to expand the options and change the setting to Disabled.
    6. Click OK to apply the setting.

    Note: You may need to disconnect and re-connect your USB device after applying these settings.

    Windows 7 / Vista

    1. Click the Start button and select Control Panel.
    2. Click Hardware and Sound, then click Power Options.
    3. Click Change plan settings for the plan you want to change.
    4. Click Change advanced power settings.
    5. Click the plus sign (+) next to “USB settings” and “USB selective suspend setting” to expand the options and change the setting to Disabled.
    6. Click OK to apply the setting.

    Note: You may need to disconnect and re-connect your USB device after applying these settings.

    Windows XP

    1. On your desktop, right-click the My Computer icon and select Properties.
    2. Click the Device Manager tab.
    3. Expand Universal Serial Bus controllers by clicking the arrow to the left of it.
    4. Right-click the first USB Root Hub device and select Properties.
    5. Click the Power Management tab.
    6. Clear the box next to Allow the computer to turn off this device to save power.
    7. Click OK to apply the setting.
    8. Repeat steps 4-7 for any remaining devices in the Universal Serial Bus Controllers section with “Root Hub” in the name.

    Note: You may need to disconnect and re-connect your USB device after applying these settings.

  • The hub is properly hooked up, but is not functioning correctly. What can I do?
    Testing all setup components is the best place to begin troubleshooting. To determine the source of the issue, individually test your:

    • USB Cable by using it in another setup, or trying another cable.
    • Host USB Port by connecting another device or thumb drive.
    • Connected Peripherals by connecting directly to the host.

    Moving on to troubleshooting the hub itself. Attach a USB peripheral. The USB hub itself will not appear in hardware listings on your host’s system. USB devices connected however, will appear when connected. If the connected device is still not being found, try:

    • Installing the required drivers for the USB peripheral.
    • Install the most recent drivers for the USB controller and/or motherboard chipset.

    USB hubs do not require drivers or software.

    Troubleshooting the desired USB peripheral may be in order. If the peripheral is still not being recognized, attempt:

    • Attaching external power to the peripheral, if required.
    • Confirming if the peripheral functions on a standard USB port.
    • Testing if basic USB peripherals work, such as keyboards or mice.
  • How can external power be connected to the industrial USB hub?

    External power is supplied by connecting to the terminal block located on the hub. For when an external power adapter is required check out the Accessories & Replacement Parts section on this product page. To view all of our hub accessories and power supplies, visit the category here.

    To determine the power requirements, the equation to use is P = 5 * I * N, where:

    P is the power wattage.

    is the USB port voltage.

    I is the current of the USB port in Amps (USB 2.0 is 0.5A, USB 3.0 is 0.9A.

    N is the number of USB ports.



    As an example using the equation, a 4 port hub would reflect a minimum wattage of 18 watts.

    Knowing the minimum requirement, a proper power adapter can be chosen. In this case the voltage of a power supply should be within 7 to 24 or 7 to 40 Volts DC, depending on the specifications of the USB hub. Also, the power supply must convert AC to DC (no AC output).

    Power supplies often come with a voltage (V) rating and an amperage (A) rating. To determine the current in amps, use I = P / V, where the following is true:

    I is the current of the power supply.

    P is the calculated power of the hub.

    V is the chosen voltage of the power supply

    Continuing the example, the 4 port hub requires 18 W and the power supply you choose is 12V, the current of the power supply would be I = 18/12, I = 1.5A.



    Our full collection of power adapters can be found here.
