DEV Product | 4-Port 240W USB 3.2 Gen 2 PD 3.0 Hub w/ 60W Power per Port & ESD Surge Protection

DEV Product | 4-Port 240W USB 3.2 Gen 2 PD 3.0 Hub w/ 60W Power per Port & ESD Surge Protection - Image 2

DEV Product | 4-Port 240W USB 3.2 Gen 2 PD 3.0 Hub w/ 60W Power per Port & ESD Surge Protection

Notice: You must be logged into an account with a business domain email to purchase this product.
This product is intended for initial testing, evaluation, and integration planning. This product is currently restricted for sale to B2B customers only. It is not designed for direct deployment or single-use applications.
Orders may be limited to 1-3 units unless approved by Coolgear Support. To place a bulk order or proceed with system integration, please contact our support team to discuss your requirements. For full terms, refer to our DEVELOPMENT PRODUCT TERMS. 

Upstream Female Port: 1x USB-C PD USB 3.2 Gen 1 Connector
Downstream Female Port: 4x USB-C PD connectors
Supply 60W of power to all connected peripherals as well as the host computer
Supports 5 PD profiles 20V / 15V / 12V / 9V / 5V
USB 3.2 Compliant to Gen 1 Specifications
Variable Voltage Input of +12~24V DC

* Notice: This product does NOT support USB-C DisplayPort (DP/Video Alt Mode) and is intended for data and power functionality only

$329.99

Model No. CG-PD5_GL_3590_V01-DEV

This product is currently restricted to shipping within the US only.

Not in stock - Backorder allowed

Submit Product Inquiry

Product Documentation

Quick Links:

Project Inquiries

Description

Introduction:

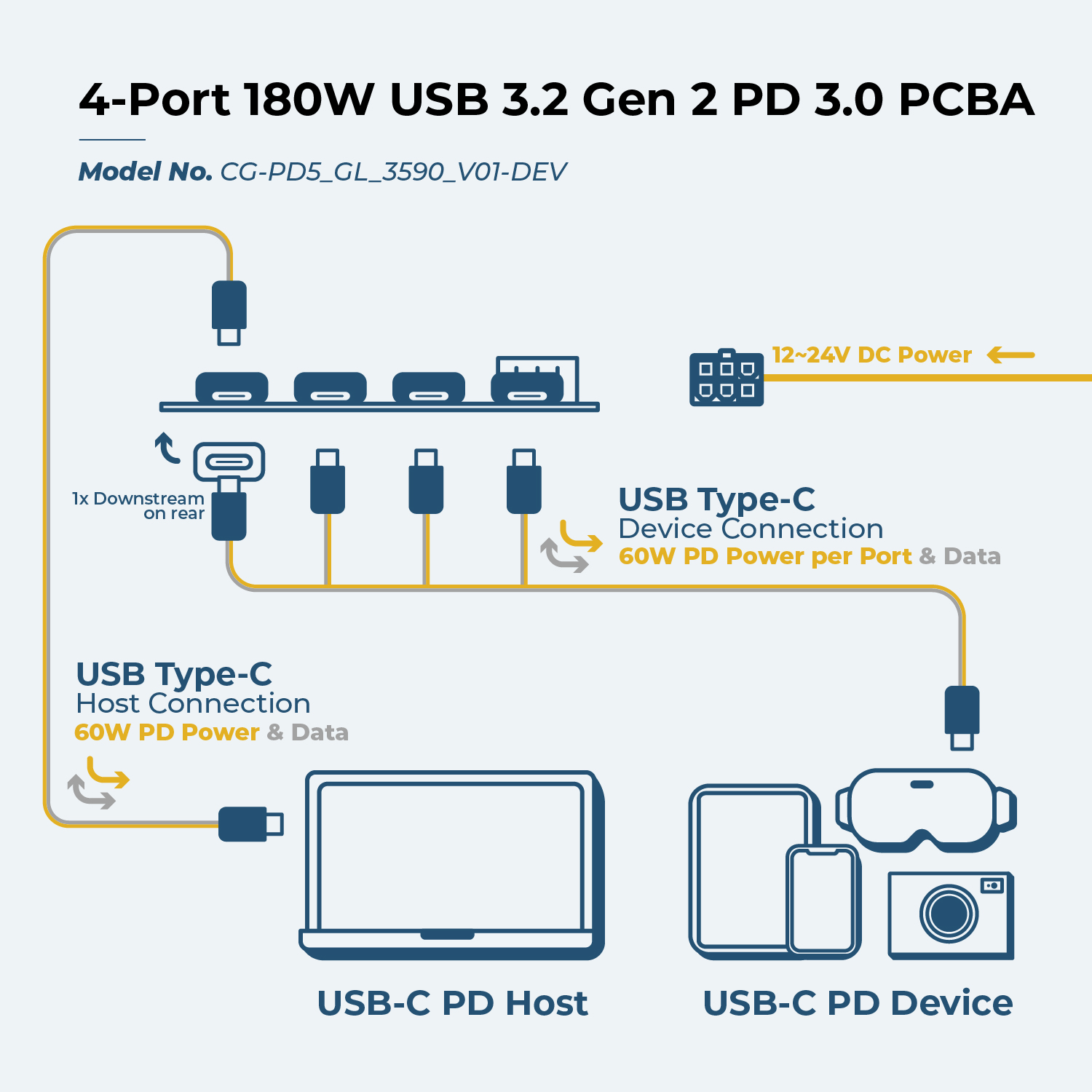

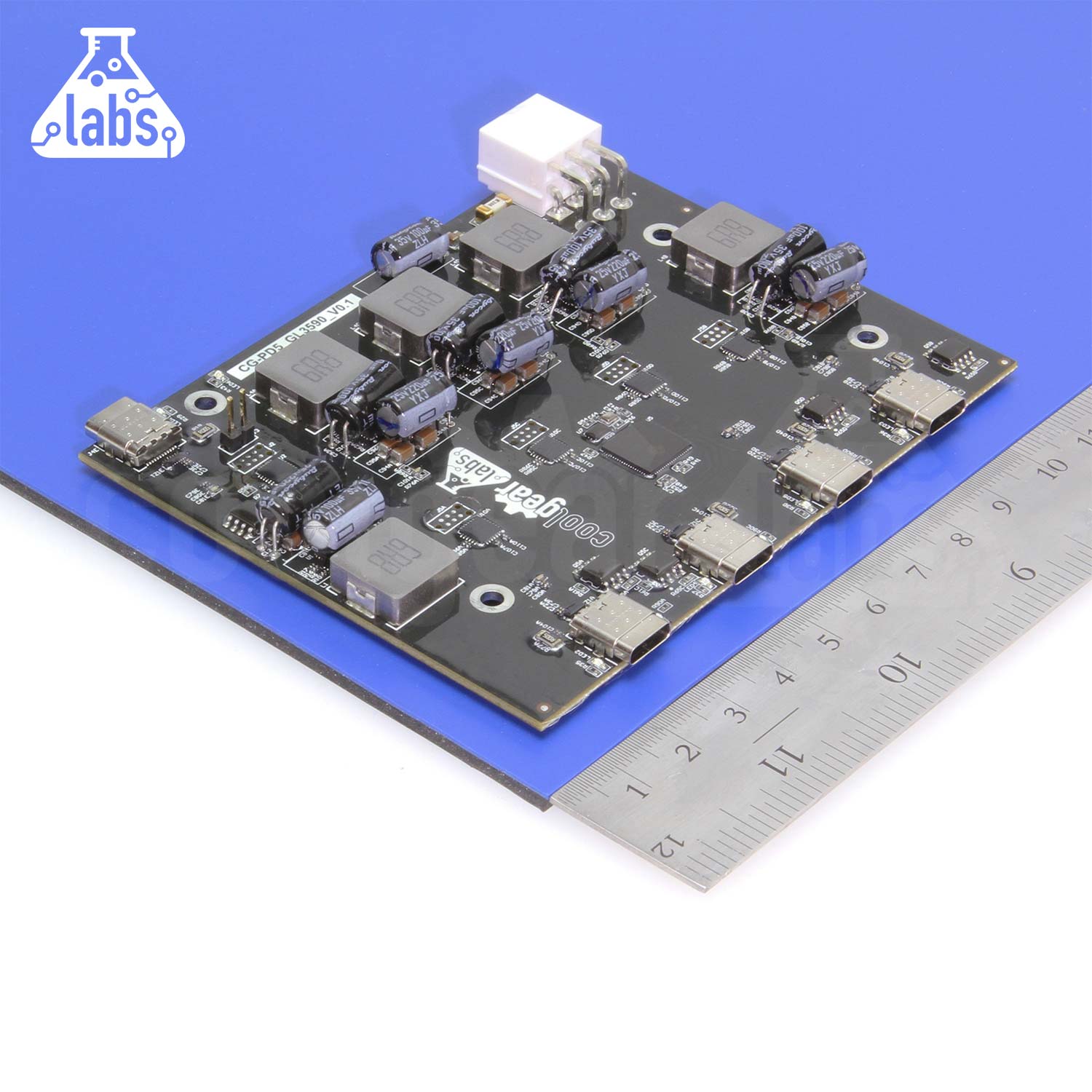

Coolgear’s CG-PD5_GL_3590_V01-DEV USB 3.2 Gen 2 USB hub board features ESD protection and 60 Watts of power per port. The CG-PD5_GL_3590_V01-DEV PCBA features a variable voltage input range of 12~24V DC supplied through a 6-Pin Molex Connector. Each port is individually protected to help protect your peripheral investments. Provide 60 Watts of power to each connected peripheral as well as the host computer.

Features:

Upstream female port: 1x USB-C PD USB 3.2 Gen 1 Connector
Downstream female port: 4x USB-C PD connectors
Power Delivery 3.0 present on downstream and upstream ports
Supports 5 PD profiles 20V / 15V / 12V / 9V / 5V
USB 3.2 Compliant to Gen 1 Specifications
Multi-platform compatible with a wide range of laptops that use USB-C
Supports 5Gbps, 480Mbps, 12Mbps, and 1.5Mbps speeds
ESD protection per port: ±15 kV(Air), ±15 kV(Contact)
Input Voltage of +12~24V DC
DC Input through 6-Pin Molex Mini-Fit Jr. connector
Quickly check your ports’ status with built in LED indicators

Accessories & Replacement Parts

Out of stock

6 Pin Power Connector and RoHS Wire

Power connector and RoHS wire for Coolgear USB PD Integrator boards 180 and 240W versions.

Model# 0116-17-M

$9.29

Out of stock

300 Watt 24 Volt / 12.5 Amp AC Power Supply

24V – 12.5A External Power Supply with 6-Pin Molex connector for Coolgear USB commercial and industrial chargers. (Find a full compatibility list below). Input: AC…

Model# ATS300T-P240

$148.99

In stock

6-Pin 12in. Power Connector & RoHS Wire

Power connector and RoHS wire for Coolgear USB PD Integrator boards and high power USB PD chargers. For Use With: CGL-PD4-GL3590V106-DEV CG-PD5_GL_3590_V01-DEV CG-4PDU3-3PH CG-5PDU3EPR-4PH CG-5PDU3-4PH…

Model# 0116-16-M

$9.99

In stock

Specifications

Product Specifications

Power

Input Voltage	+12~24V DC
Power Source	6-Pin Molex Power Connector

Physical Characteristics

Item Dimensions (L × W × H)	5.65 × 3.46 × 1.00 in.
Item Weight	0.206 lbs., 0.594 lbs.
Mounting Style	Surface Mount, Wall Mount

Hardware

Downstream USB Ports	4 Type-C Female USB
Upstream USB Ports	1 Type-C Female USB

Performance & Safety

Max Data Transfer Rate

5Gbps

Other Data

USB Interface	USB 3.2 Gen 1
Weight	0.594 lbs
Dimensions	5.65 × 3.46 × 1.00 in

Support

Product Documentation & Drivers

Need drawings, CAD files, or other compliance documentation? Click HERE
