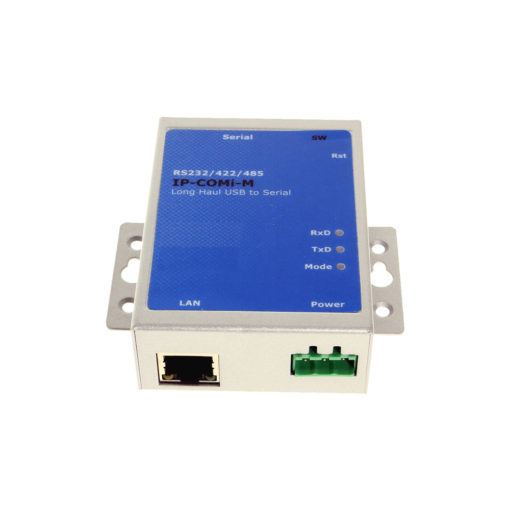

Industrial 1 Port DB9 RS-232/422/485 Serial over RJ45 Device Server

Serial Device Server – RS232 over RJ45

The Industrial 1 Port DB9 RS-232, RS422, or RS-485 serial port adapter can be installed 100 meters away from the host computer! It is designed to add  1 serial port over 10/100/1000Mbps Ethernet network running TCP/IP furthering your communication distance.

  • Installs a virtual COM Port in the system device manager to allow communication with devices.
  • Can be installed 100 meters away from the host, additional switching hubs can be added.
  • Allows the serial device to communication over a LAN or Intranet network
  • Supports wide input power range: DC 9V ~ DC 35V.

$98.95

In stock

View Volume Pricing

Units Price
1 - 4 $98.95
5 - 11 $95.98
12 - 24 $94.00
25 - 49 $92.02
50+ $89.06

Also available from:

Model No. USBG-IPcom-113

Quick Links:

Description

Introduction:

The USBG-IPcom-113 Industrial 1 Port DB9 RS-232/422/485 Serial over RJ45 Device Server is designed to add  1 serial port over 10/100/1000Mbps Ethernet network running TCP/IP.

Connecting an Adapter to the Ethernet port on the computer or router, running the Manager Utility software, you can add a virtual COM port to your PC. The serial port functions as a native Windows COM port and is compatible with Windows serial communication applications.

Device server RJ45 Connection

The Virtual COM port is installed in the Device Manager of the operating system. This in turn will allow communications with the connected serial device in the same manner as a device connected to the COM port on a PC. The serial port supports high serial speeds up to 921.6Kbps in RS-232 mode. The LAN becomes transparent to the serial device and the software running on the PC.

The Adapter supports multiple users and multiple tasks operation over the same network. Plugging the Adapter to a network of multiple users, all of them may use the high speed RS-232/422/485 serial port of the Adapter.

The serial port can be installed 100 meters away from the host. To further extend communication distance, the adapter supports extend mode by adding a switching hub between your computer and the Adapter to extend the distance by another 100 meters. Extra switching hubs can be added in between to increase the distance further.

DIP Switch Serial signal control

Features:

  • Extends serial communication distance.
  • Allows the serial device to communication over a LAN or Intranet network
  • Supports multiple users and multiple tasks operation over LAN.
  • Supports multiple function serial port RS-232/422/485 over LAN.
  • Installed as standard Windows COM port
  • Provides virtual COM port same as on board COM port.
  • Access and monitor serial devices over a Manager Utility interface software.
  • RS-422 data signals: Tx-, Tx+, Rx+, Rx-, GND, RTS-, RTS+, CTS+, CTS-
  • RS-485 data signals: Tx-, Tx+, Rx+, Rx- (4 wire), and data-, data+ (2 wire)
  • Industrial metal case with DIN rail mounting brackets.
  • Supports wide input power range: DC 9V ~ DC 35V.
  • High speed serial port with the baud rate up to 921.6K bps
  • Non-standard baudrates supported
  • LEDs of Power, TxD and RxD for easy port monitoring and diagnostics
  • Supports Windows 10, 8, 7, Vista, 2003, XP
  • Item Dimensions: 3.28(L) x 2.436(W) x 1.08in(H)

OS Support:

  • Windows 10, 8, 7, Vista, 2003, XP
  • Linux and Mac OS 10.X

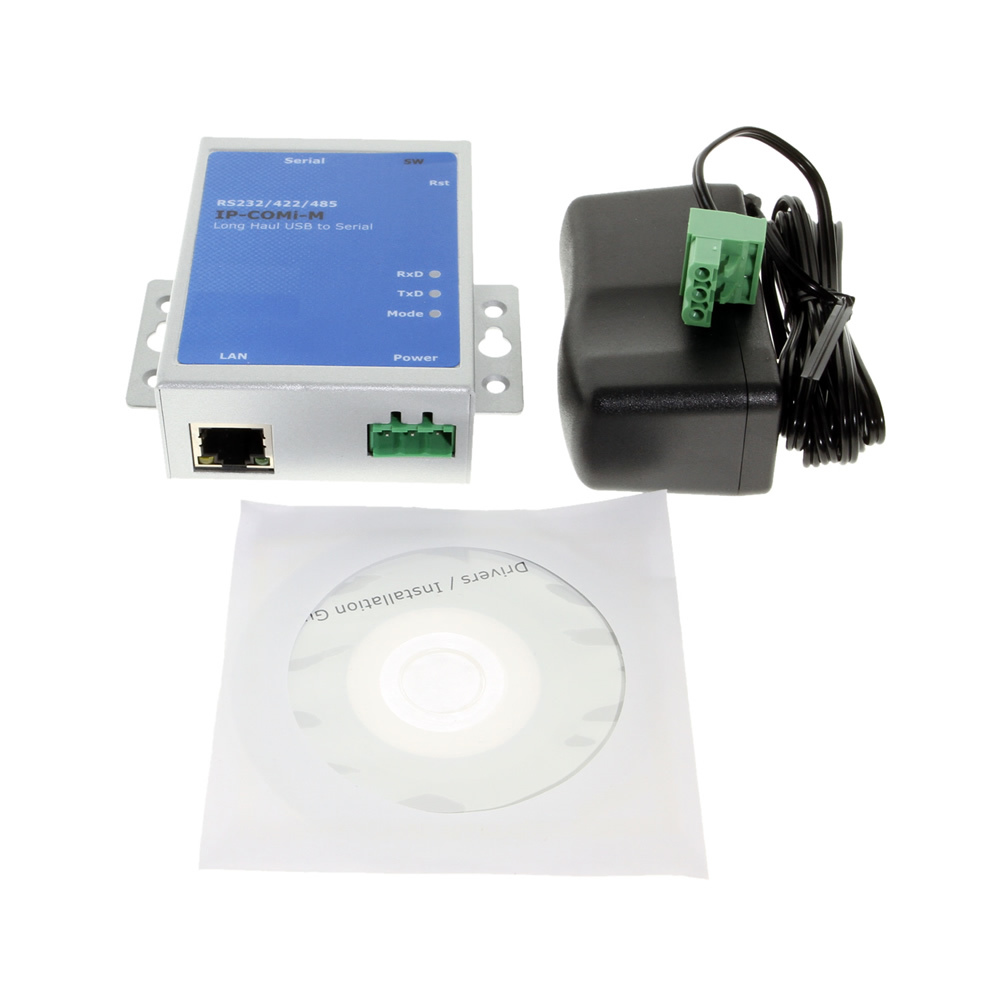

Package Contents:

  • Single port RS232/422/485 serial adapter
  • Power adapter
  • Driver Disc

*Surface Mounting screws not included.

Specifications

Product Specifications

Power
Input Voltage

9 – 35 VDC

Compliance
Country of Origin

Taiwan

Certifications

,

Compliance

RoHS, TAA

Mechanical
Color

Silver

Mounting Style

Din-Rail, Surface Mount

Ports

1 Serial Port

Serial Attributes
Serial Standards

RS232, RS422, RS485

Software
OS Support

Linux, Mac OSX, Win 10, Win 7, Win 8, Win Vista, Win XP

Environmental
Operating Temperature

0C to 55C

Hardware
Chipset

FTDI

Other Data
Connector

DB9 Male w/ Nuts

Chip Model

E2866-B, EPM3032, FT232RL, MAX3089E, ZT213LFEA

Warranty

1 year from date of purchase

Weight

1.1 lbs

UPC: 736983900326
Technical

Technical Specifications

USB Bus
Compliance USB 1.0/1.1 compliant, USB 2.0 compatible
Speed 12 Mbps, full-speed USB
FIFO 128 byte transmit FIFO
384 receive FIFO
Serial Interface
Port Type RS-232
Number of Ports 1
Connectors DB9 male
Serial Port Speed
Baudrate 300 bps to 921.6k bps
Serial Communication Parameters
Data Bits 7, 8
Stop Bits 1, 1.5, 2
Parity None, Even, Odd, Space, Mark
Flow Control RTS/CTS, XON/XOFF
Serial Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI
Driver Support
OS Windows 8, Windows 7, Vista, 2003, XP (WHQL certified) and 2000
Power Supply
Input Self-powered
Power adapter of 12VDC, 1A, terminal type
Mechanical
Chassis SECC metal chassis with DIN rail bracket
Environmental
Operating Temperature 0 to 55 °C (32 to 131 °F)
Operating Humidity 5 to 95% RH
Storage Temperature -20 to 75 °C (-4 to 167 °F)
Safety Approvals EN55022 Class B, EN55024, EN61000-3-2, EN61000-3
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5,
IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11.
CISPR PUB. 22 and FCC Part 15 Class B.
Optional Accessories

Optional Accessories

The 1 Port DB9 RS-232/422/485 Serial Adapter has certain accessories that work with it. These accessories are what you can order if needed.

RS232 Male to Female Serial Data Cable Complete your serial data connection with this 5ft. RS232 DB-9 Male to Female data cable for fast reliable…

Model# 9DBMF5FT

$2.95

In stock

Add to cart

Support

Product Documentation & Drivers


Need drawings, CAD files, or other compliance documentation? Click HERE

Serial F.A.Q.

Product F.A.Q.

View frequently asked product questions below. For all serial troubleshooting, visit this page.
Still need help? Reach out!

  • How do I clean and reinstall my FTDI drivers?
      1. Download the CDM Uninstaller HERE.
      2. Extract the zip file, or open the “CDMuninstallerGUI.exe” utility.
      3. Leave the ‘Vendor ID’ set to 0403 and ‘Product ID’ set to 6001.
      4. Click Add.
      5. Click Remove Devices.
      6. Download the corresponding driver for your operating system and follow on-screen prompts. Windows Driver | MacOS Driver

    Video tutorial here.

  • How can I change my device’s COM port?
      1. Click on Start and navigate to the Control Panel
      2. Locate and click on Device Manager
      3. Under “Ports (COM & LPT)” you will find your serial device titled “USB Serial Port” along with its current COM Port.
      4. Right click on “USB Serial Port” and click on Properties.
      5. Navigate to the “Port Settings” tab and click on “Advanced…”
      6. Once there, the “COM Port Number:” can be changed with a dropdown menu to select the port number.
      7. Click your desired port number (i.e. COM2) and click “OK”.
      8. Click “OK” once more.
      9. Your serial device is now assigned to your chosen COM Port.



  • How do I check to ensure the COM port is listed properly in Windows?
    To ensure your serial device is installed properly, complete the following:

    1. Press Windows Key + R to open the Device Manager. Once Run comes up, type “devmgmt.msc” into the text field and press Enter.
    2. Expand the section labeled, Ports (COM & LPT).
    3. You should now see a COM number in brackets to the right of each port. If the device is installed properly, no exclamation points or question marks should be present next to the device.
  • I have everything hooked up, but nothing is functioning correctly.
    To rule out potential issues, quickly test your individual components to ensure that they are working correctly individually, and are not the source of the problem:

    • Serial cables
    • Serial ports
    • Serial devices

    Test your components by:

    • Hook up the serial cable(s), serial port(s), and serial device(s) in a different setup to see if the issue stems from a particular component, or the setup as a whole.
    • Replace the serial cable, port, or device within your setup to further troubleshoot the issue’s origin.

    When testing cables:

    • Test each cable individually.
    • Use short cables when you are testing.

    When testing serial ports and devices:

    • Press the Windows key + R, in Run, type devmgmt.msc, and press Enter to open the Device Manager. You can then check to see if your device is listed under Ports (COM & LPT).
    • Ensure that the COM port number is the correct number for the serial device and that the software being used to connect the computer to the serial device uses the correct COM port number.
    • If the device is listed with an error, follow the instructions on the website to reinstall the drivers.
  • Serial communication is not functioning correctly, how can I tell if the problem caused by the adapter or my serial software application?
    Older serial communication applications make use of legacy hardware addresses, often incompatible with PCI, PCIe, and USB to Serial products. Contact the software provider to troubleshoot.
  • I am receiving an error when I try to install the drivers in Windows 8 64 bit.
    Driver Signature Enforcement in Windows 8 may need to be disabled in order to use various drivers. After disabling this feature, the driver will be allowed to install.

    Note: You are required to restart your computer after disabling the Driver Signature Enforcement. Save all open work on your computer.

    Disable driver signature enforcement:

    1. Press the Windows key + C.
    2. Click Settings > Change PC Settings.
    3. In the left pane, click General.
    4. In the right pane, under Advanced startup, click Restart now.

    When your system restarts:

    1. Click Troubleshoot > Advanced options > Startup Settings > Restart.
    2. Press 7.

    When your computer restarts, Driver Signature Enforcement will be disabled and you can install the drivers.

  • I am receiving an error when I try to install the drivers in Windows 10 64 bit.
    Driver Signature Enforcement in Windows 10 may need to be disabled in order to use various drivers. After disabling this feature, the driver will be allowed to install.

    Note: You are required to restart your computer after disabling the Driver Signature Enforcement. Save all open work on your computer.

    Disable Driver Signature Enforcement:

    1. Click the Windows icon in the taskbar.
    2. Click Power.
    3. Press and hold the Shift key and click Restart.

    After your computer restarts:

    1. Click Troubleshoot Advanced Options Startup Settings Restart.
    2. Press 7.

    When your computer restarts, Driver Signature Enforcement will be disabled and you can install the drivers.

  • Why did the software not install properly in macOS High Sierra (10.13) or later?
    High Sierra 10.13 and later versions of macOS enforce strict security policy revisions. In order for the device to operate, software packages like those used in this installation must be allowed in macOS Security and Privacy settings once the software is installed.

    Once the driver/software is installed, follow these steps to allow the software:

    1. Open System Preferences.
    2. Open Security & Privacy.
    3. Click the Allow button near the bottom of the General tab.
