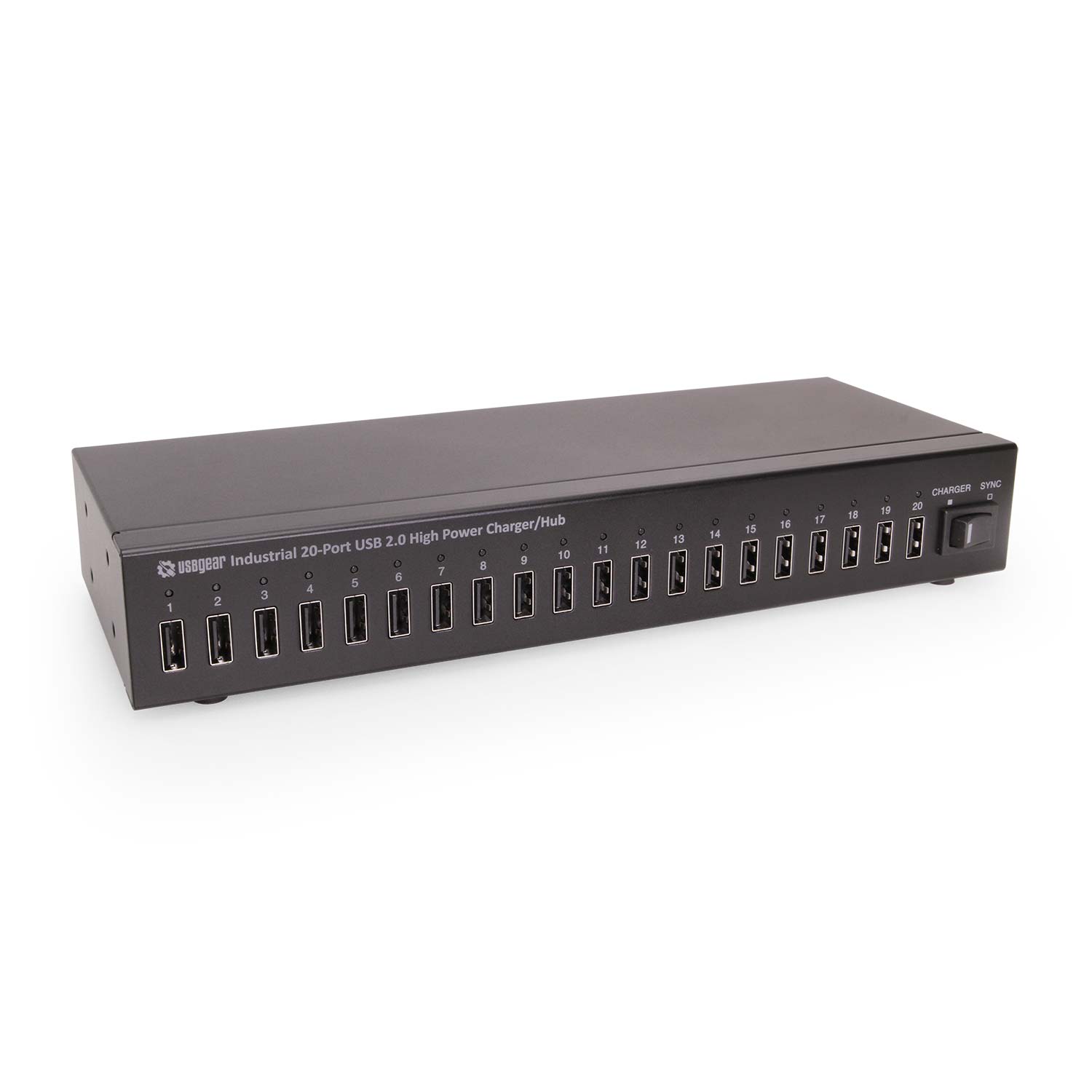

20 Port USB 2.0 Industrial High Power 1.1A Charger Hub w/ ESD Surge Protection & Port Status LEDs

Industrial Grade | +100~240V AC Input | Surge Protection | Surface Mountable | 480 Mbps | 150W Power Supply

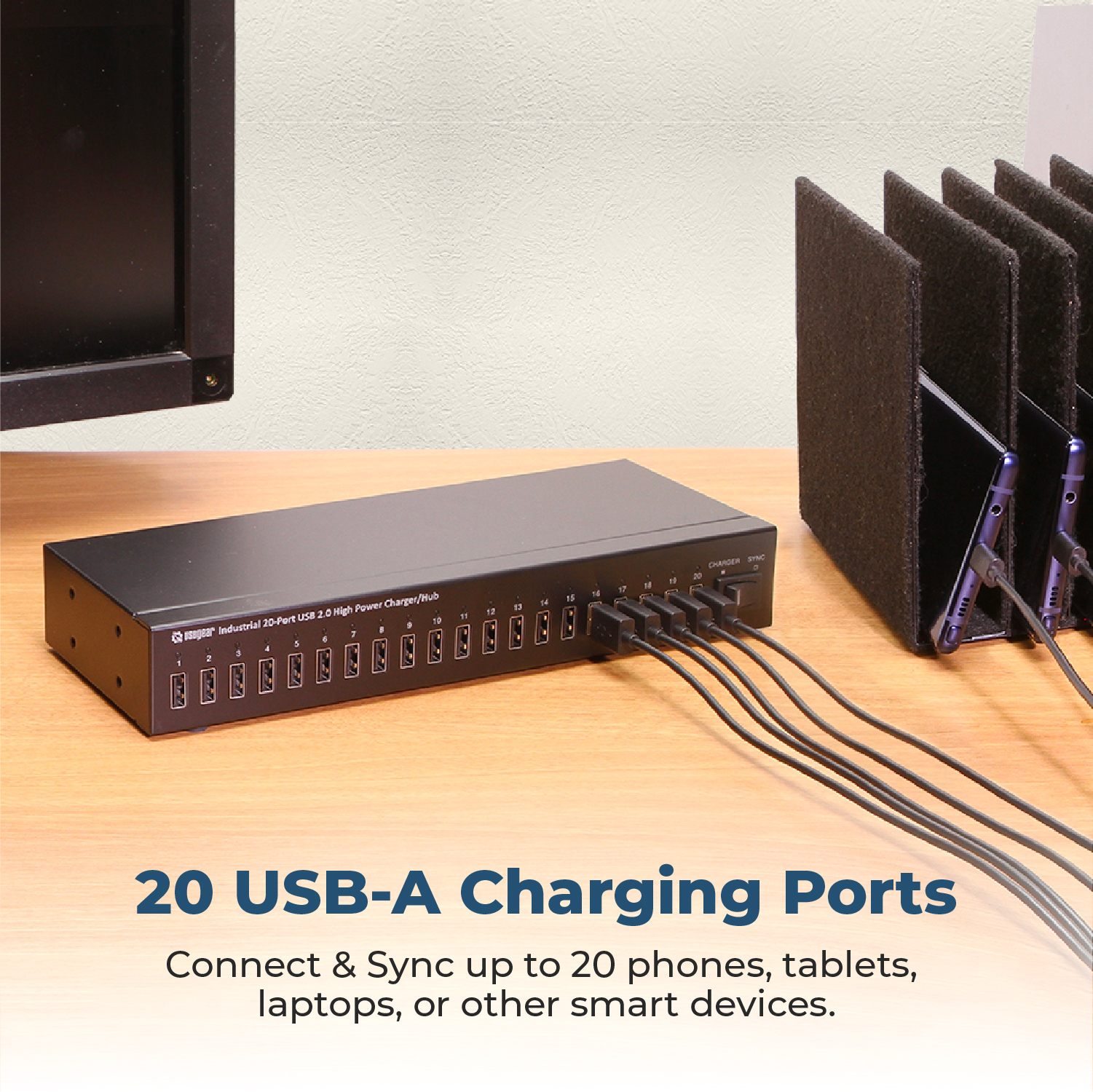

  • Simultaneous Charging: Charge and sync up to 20 iPads, iPhones or other USB-charged in charge mode devices, providing each USB port with the optimum charge level for each device.
  • Protect Your Equipment: The 20-port USB 2.0 Charger Hub features 15kV ESD protection to keep your connected peripherals safe from harm.
  • High Speeds: This USB hub is 2.0 compliant, ensuring super-fast 480 Mbps data transfer speeds. It supports super speed, high speed and full speed which enables it to be compatible with USB 1.1.
  • Superior Build Quality: Housed in a rugged metal chassis, the 20-port charger hub is perfect for installations in offices, labs, warehouses, classrooms, heavy machinery, automation equipment, and other industrial applications.
  • Upstream: 1 USB port, Type B connector
  • Downstream: 20 USB ports, Type A connectors
  • Power Connector: DC Barrel 2.5mm ID × 5.5mm OD
  • Mounting Options: Desktop & Surface
  • LED Indicators: LEDs for each downstream port to check their status. (Red: Charge / Orange: Sync)
  • Supply Current: 1.1A USB Bus Power for Each Down-stream Port

$307.95

In stock

Volume Pricing

Units Discount Price
1 - 4 $307.95
5 - 11 2 % $301.79
12 - 24 3 % $298.71
25 - 49 5 % $292.55
50+ 7 % $286.39

Also available from:

Model No. USBG-20XU1

Description

Introduction:

USBG-20XU1 Industrial USB 2.0 20-Port Fast Charge/Hub features a rugged metal enclosure with USB charger features 20 powered USB ports that allow you to plug in multiple devices with just a USB cable. Offering a single point of charge and sync for all of today’s modern USB electronic devices!

20-port USB Hub with Charger, a solution for charging and syncs of several iPads, iPhones iPods and USB charging devices operating simultaneously this is a perfect tool to eliminate the jumble of wires and chargers and also is ideal for large capacity USB station in-house for automated duplication tasks. Places such as school class room, businesses conference or meeting in organizations, 20-Port Universal USB 2.0 Hub To Sync and Charge Chromebooks, Tablets, iPads and Mobile Phones.

Features:

  • Compliant with USB specification revision 2.0
  • Charges and syncs up to 20 Chromebooks, iPads, iPods, iPhones or other USB-charged in charge mode devices, providing each USB port with the optimum charge level for each device (up to 1.1A, as needed for quick-charging iPads).
  • Will also charge virtually any other device that can be charged through a powered USB port.
  • Supports High Speed 480Mbps, full speed 12Mbps and low speed 1.5Mbps operation
  • Fully compatible with all USB compliant devices
  • Twenty ( 20 ) Hi-Speed USB 2.0 downstream ports
  • Over-current detection and protection
  • Surge & ESD Protection.
  • Extend up to optimum 30 USB devices by connecting cascade port with other USB 2.0 charge hub(s)
  • 150W High Capacity Power Adapter supporting industrial usage (included)
  • Can act as a laptop or Chromebook charging station with a slower charging rate than smaller devices.
  • Charging Chromebooks, Tablets, and Cell phones from 0%–100% will take on average 5-6 hours.
System Information:
  • Note 1 – Support optimum 26 (A to Z) storage devices in Windows System
  • Note 2 – Support optimum 30 iOS devices by Apple Configurator provided by Apple in Mac System
  • Note 3 – With the USB 3.0 interface, the maximum cascading level may differ according to the endpoint
    buffer capacity of specific USB 3.0 host controllers. Should the device be unidentifiable, please switch to the
    USB 2.0 interface instead.
  • Support Windows 2000 / XP / Vista / 7 / 8 / 10 and Mac OS 8.6 / 9.X / 10.X and higher.
  • Complies with USB-IF battery charging specification rev1.1, which can support fast charging function, allowing portable device can draw up to 1.1A per port. (great for Charging USB phones and Apple Ipad,
    GoPro, Cameras, Samsung tablets, Kindle, ETC.)
  • CDP, charging downstream port, the Battery Charging Rev.1.1-compliant USB port that does data communication and charges device up to 1.1A.
  • Operating temperature is: 0-70 degrees C

Product Dimensions: 10.562in(L) x 4.096in(W) x 1.759in(H)

Compatibility:

Supports compatibility for iPhones, iPods, Kindle and Kindle Fire, Galaxy Tablet, and Nook Devices. Slow charging as a laptop or Chromebook charger.

Package Content:

  • USBG-20XU1 20 port Industrial USB 2.0 Charger unit.
  • 6ft. USB 2.0 A male to B male Cable
  • 2 metal mounting brackets with screws
  • 150W High Capacity Power Adapter and Power Cord
  • Paper User Manual

*Surface Mounting screws not included.

Specifications

Product Specifications

Environmental
Operating Temperature

0°C to 70°C (32°F to 158°F)

Storage Temperature

-20 to 75°C (-4 to 167°F)

Humidity

5% ~ 95% (non-condensing)

Performance
ESD Protection

15KV Surge Protection for Each Port

Isolated/Surge Protected

Yes

Max Data Transfer Rate

480Mbps

Over Current Protection

Y

Over Voltage Protection

Y per buck

Surge Protection

350W

Hardware
Chipset

FE1.1s, FE2.1

Charging Protocols

Apple 2.4A

LED Indicators

Port Status, Power

Per USB Port Current

1.1A

Product Information
Warranty

1 year from date of purchase

Power
Input Voltage

100 – 240V AC

Over Current Protection

Y

Over Voltage Protection

Y per buck

Power Source

DC Barrel Jack 2.5mm ID × 5.5mm OD

Adapter Input Current

1.1A

Adapter Input Voltage

100~240V AC

Adapter Output Current

6.25A

Adapter Output Voltage

24V DC

External Power Required

Yes

Software
OS Support

Win 11, Linux, Mac OSX, Win 10, Win 7, Win 8

What's in the Box
Package Contents

Hub, Power Adapter, Screw Pack, Surface Mounting Flanges, USB-A to USB-B Cable

USB
USB Type

USB 2.0

Upstream USB Ports

1 Type-B Female USB

Downstream USB Ports

20 Type-A Female USB

Isolated/Surge Protected

Yes

Mechanical
Color

Black

Item Dimensions (L × W × H)

10.6 x 4.15 x 1.75in (LxWxH)

Item Weight

2.056 lbs.

Mounting Style

Desktop, Surface / Wall Mount

Ports

20 USB Ports

Material of Construction

Metal

Compliance
Country of Origin

Taiwan

Certifications

Other Data
UPC

736983900319

Series

Weight

5.5 lbs

Dimensions

11.5 × 7 × 4.5 in

UPC: 736983900319
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “20 Port USB 2.0 Industrial High Power 1.1A Charger Hub w/ ESD Surge Protection & Port Status LEDs”

Support

Product Documentation & Drivers


Need drawings, CAD files, or other compliance documentation? Click HERE

Hubs F.A.Q.

Product F.A.Q.

View frequently asked product questions below. Still need help? Reach out!

  • Can the hub be used without a power supply?
    In some cases, yes. USB peripherals that only require low power (i.e. keyboards & mice) can be used without a power adapter. Power in this case is drawn from the host’s USB port.

    When high-power USB peripherals are used, a power supply for the USB hub may be required. In other cases, the USB peripheral may require their own power adapters, in this case, a power supply for the hub may not be required. Without ample power though, the USB hub or connected peripherals may not operate correctly. It is recommended to use an included power supply when possible.

  • After waking up from sleep mode, my computer/host no longer recognizes my USB device.
    If the USB device does not function properly after your computer or host has been in sleep mode, it is likely that Windows turned off the USB Root hub in order to save power.

    To prevent this, follow the steps below (depending on your operating system).

    Windows 10 / 8

    1. On your keyboard, press the Windows key + X and select Control Panel.
    2. Click Hardware and Sound, then click Power Options.
    3. Click Change plan settings for the plan you want to change.
    4. Click Change advanced power settings.
    5. Click the plus sign (+) next to “USB settings” and “USB selective suspend setting” to expand the options and change the setting to Disabled.
    6. Click OK to apply the setting.

    Note: You may need to disconnect and re-connect your USB device after applying these settings.

    Windows 7 / Vista

    1. Click the Start button and select Control Panel.
    2. Click Hardware and Sound, then click Power Options.
    3. Click Change plan settings for the plan you want to change.
    4. Click Change advanced power settings.
    5. Click the plus sign (+) next to “USB settings” and “USB selective suspend setting” to expand the options and change the setting to Disabled.
    6. Click OK to apply the setting.

    Note: You may need to disconnect and re-connect your USB device after applying these settings.

    Windows XP

    1. On your desktop, right-click the My Computer icon and select Properties.
    2. Click the Device Manager tab.
    3. Expand Universal Serial Bus controllers by clicking the arrow to the left of it.
    4. Right-click the first USB Root Hub device and select Properties.
    5. Click the Power Management tab.
    6. Clear the box next to Allow the computer to turn off this device to save power.
    7. Click OK to apply the setting.
    8. Repeat steps 4-7 for any remaining devices in the Universal Serial Bus Controllers section with “Root Hub” in the name.

    Note: You may need to disconnect and re-connect your USB device after applying these settings.

  • The hub is properly hooked up, but is not functioning correctly. What can I do?
    Testing all setup components is the best place to begin troubleshooting. To determine the source of the issue, individually test your:

    • USB Cable by using it in another setup, or trying another cable.
    • Host USB Port by connecting another device or thumb drive.
    • Connected Peripherals by connecting directly to the host.

    Moving on to troubleshooting the hub itself. Attach a USB peripheral. The USB hub itself will not appear in hardware listings on your host’s system. USB devices connected however, will appear when connected. If the connected device is still not being found, try:

    • Installing the required drivers for the USB peripheral.
    • Install the most recent drivers for the USB controller and/or motherboard chipset.

    USB hubs do not require drivers or software.

    Troubleshooting the desired USB peripheral may be in order. If the peripheral is still not being recognized, attempt:

    • Attaching external power to the peripheral, if required.
    • Confirming if the peripheral functions on a standard USB port.
    • Testing if basic USB peripherals work, such as keyboards or mice.
  • How can external power be connected to the industrial USB hub?

    External power is supplied by connecting to the terminal block located on the hub. For when an external power adapter is required check out the Accessories & Replacement Parts section on this product page. To view all of our hub accessories and power supplies, visit the category here.

    To determine the power requirements, the equation to use is P = 5 * I * N, where:

    P is the power wattage.

    is the USB port voltage.

    I is the current of the USB port in Amps (USB 2.0 is 0.5A, USB 3.0 is 0.9A.

    N is the number of USB ports.



    As an example using the equation, a 4 port hub would reflect a minimum wattage of 18 watts.

    Knowing the minimum requirement, a proper power adapter can be chosen. In this case the voltage of a power supply should be within 7 to 24 or 7 to 40 Volts DC, depending on the specifications of the USB hub. Also, the power supply must convert AC to DC (no AC output).

    Power supplies often come with a voltage (V) rating and an amperage (A) rating. To determine the current in amps, use I = P / V, where the following is true:

    I is the current of the power supply.

    P is the calculated power of the hub.

    V is the chosen voltage of the power supply

    Continuing the example, the 4 port hub requires 18 W and the power supply you choose is 12V, the current of the power supply would be I = 18/12, I = 1.5A.



    Our full collection of power adapters can be found here.
