7 Port USB 2.0 Hub w/ Surge Protection & Screw Locking Ports

Industrial Grade | +7~24V DC Input | Surge Protection | Surface Mountable | DIN Rail | 480 Mbps | Screw Lock

  • Protect Your Equipment: The 7-port USB 2.0 hub features 350 Watts of surge protection to keep your connected peripherals safe from harm.
  • High Speeds: This USB hub is 2.0 compliant, ensuring fast 480Mbps data transfer speeds. It supports high speed and full speed which enables it to be compatible with USB 1.1.
  • Superior Build Quality: Housed in a rugged steel chassis with built in mountable flanges, the 7-port hub is perfect for installations in offices, labs, warehouses, heavy machinery, automation equipment, and other industrial applications.
  • Upstream: 1 USB port, Type B connector, Screw-lock type
  • Downstream: 7 USB ports, Type A connectors, Screw-lock type
  • Power Connector: 2-Pin Terminal Block

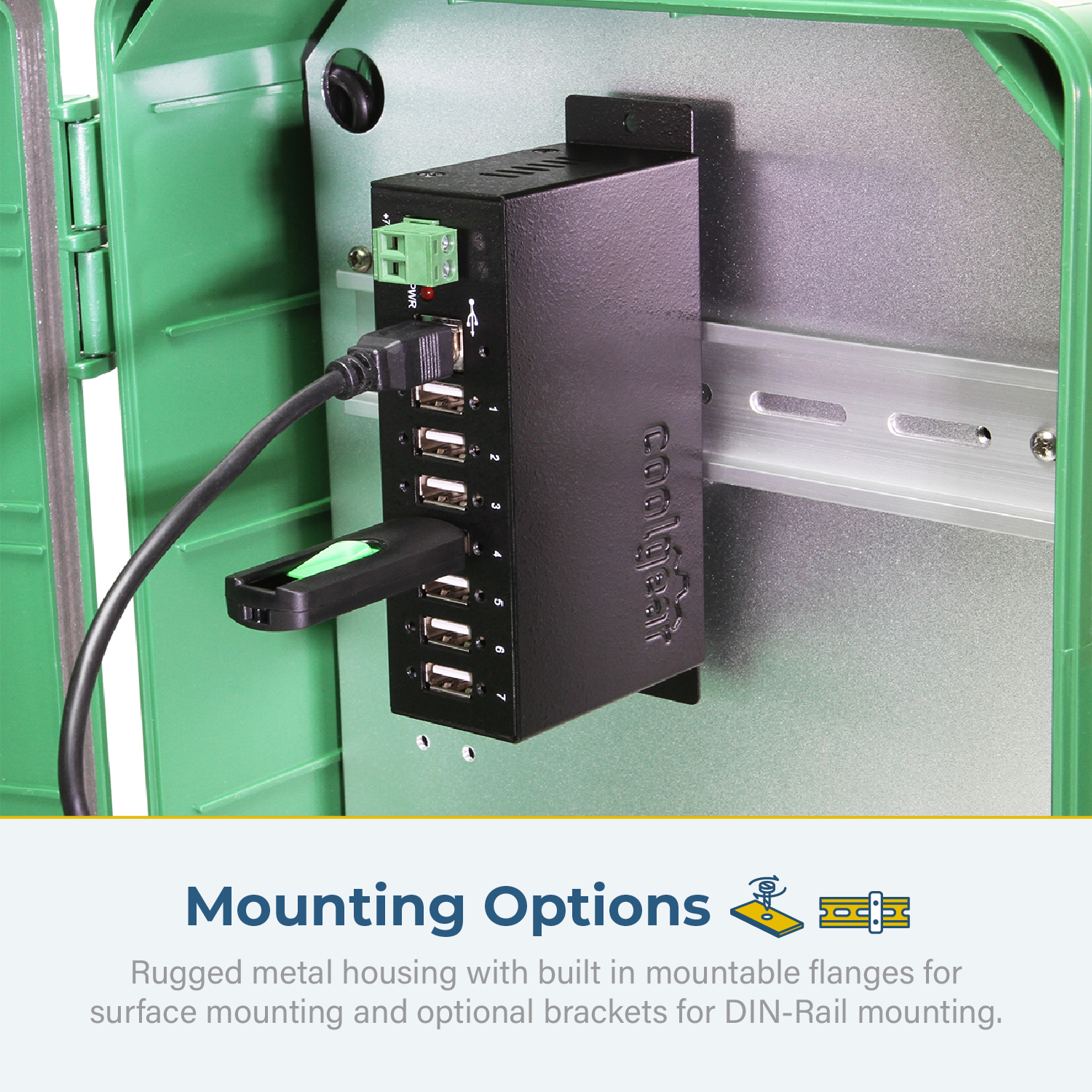

  • Mounting Options: Wall, Surface, & DIN Rail

$93.95

In stock

View Volume Pricing

Units Price
1 - 4 $93.95
5 - 11 $92.07
12 - 24 $89.25
25 - 49 $87.37
50+ $84.56

Also available from:

Model No. USBG-7DU2i

Description

Introduction:

The USBG-7DU2i 7-Port USB 2.0 is very convenient for light power consumption USB devices yet rugged enough to handle industrial environments with 350-Watt Surge Protection for each port. The hub is DIN-Rail mountable and includes unique feature to work in bus-powered mode without an external AC power adapter.

If you need more power on the 7 downstream ports, it also features an external 2-pin Terminal Block Connector for self-powered mode with +7~24VDC. This power supply is available and sold separately.

Since the USB is the most popular external port for devices to connect to PCs, the USBG-7DU2i provides an ideal solution to expand your USB ports immediately and save your investment. The USBG-7DU2i is a USB Hub that complies with the Universal Serial Bus (USB) Specifications Revision 2.0 and can work up to 480Mbps.

It provides 7 downstream facing ports with standard A-type USB 2.0 connectors. With NEC uPD720113 USB 2.0 controller, it is backward compatible with USB 1.0 and 1.1. The USBG-7Du2i 7-Port USB 2.0 hub provides an out of the box industry standard that allows connection of up to seven USB peripherals or devices to your USB ready PC or Mac.

Features:

  • Provides 7 USB 2.0 downstream facing ports which managing up to 480Mbps:
  • Compliant with USB Specifications 2.0
  • High-speed or Full-speed Packet Protocol Sequencer for Endpoint 0/1
  • 350-Watt Surge Protection for each port
  • All USB Connectors Support Screw-Lock Feature
  • Supports DIN-Rail mounting
  • Supports 480Mbps, 12Mbps and 1.5Mbps Speed
  • One Transaction Translator per Hub and Supports 4 Concurrent Non-periodic Transactions
  • Supports Self-powered and Bus-powered Mode
  • 2-pin Terminal Block Power Input Connector +7~24VDC
  • 7 Port 350-Watt Surge Protection
USB Devices:
  • Supports keyboard, mouse, monitor, scanner, printer, PC Camera, telephone, CD-ROM drive, joystick, virtual reality helmet, modem, PBX and many more USB devices.

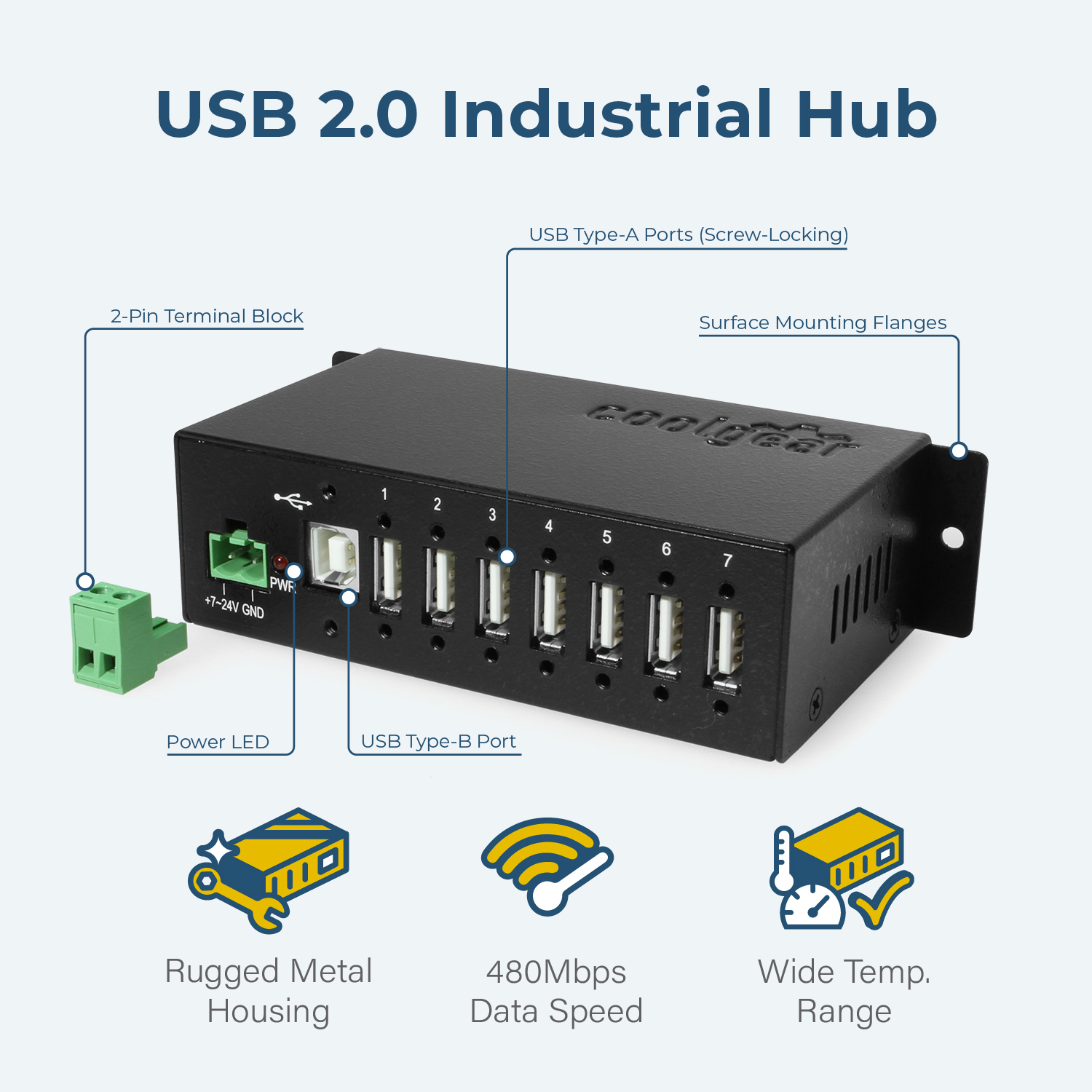

I/O Hardware:
  • Supports 7 external USB 2.0 Type-A connectors and 1 Type-B Upstream connector.
  • Supports a 2-pin Terminal Block
  • Connector for external DC power input
Environmental:
  • Operating Temp.: 0 to 55°C (32 to 131°F)
  • Storage Temp: -20 to 85°C (-4 to 185°F)
  • Operating Humidity: 5 to 95% RHOS Support:
OS Support:
  • Windows 98, Me, XP, 2000, 2003, CE, Vista, Windows 7, 8, Windows 10
  • Linux and Mac OS 10.X

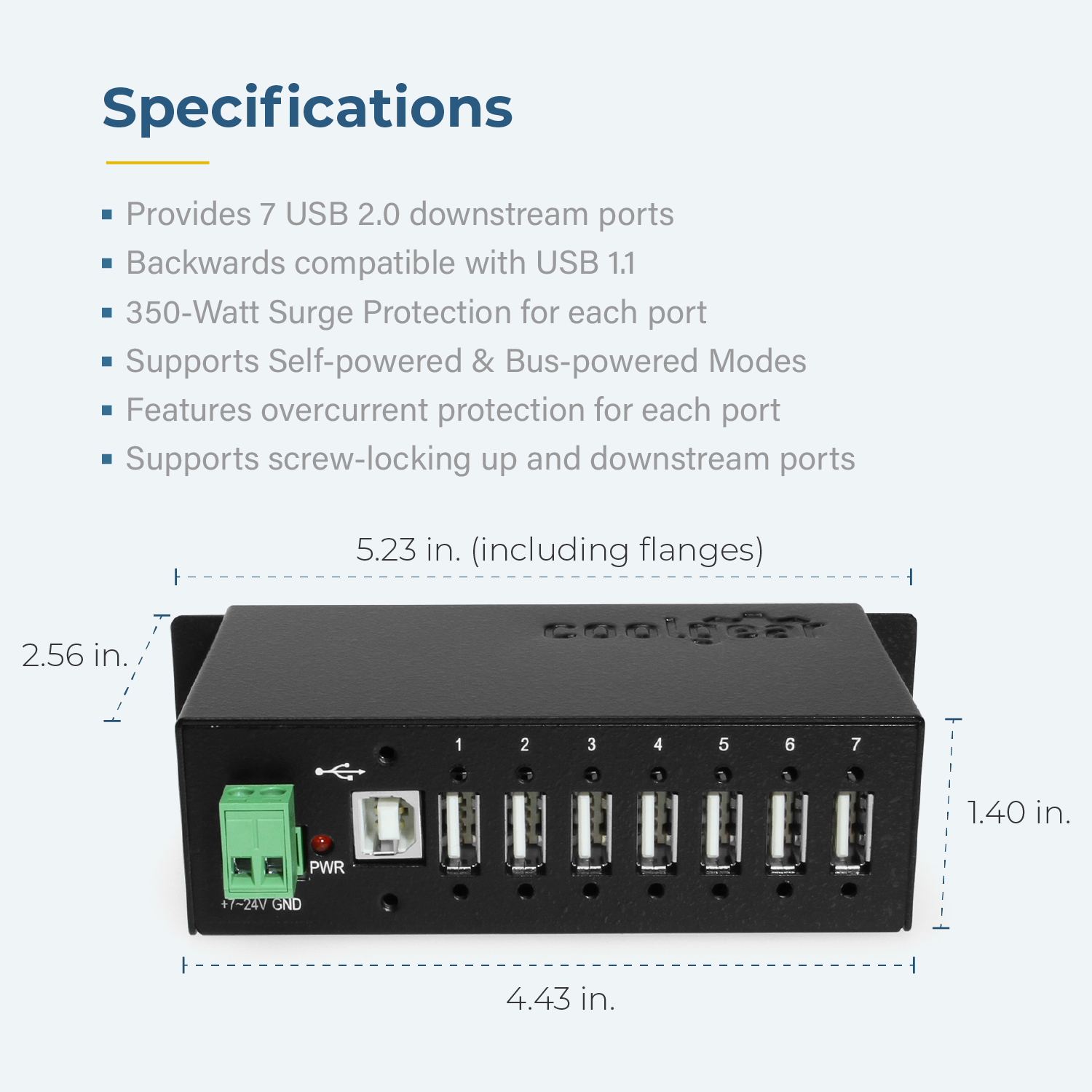

Form Factor:
  • 4.46(L)x2.42(W)x1.43(H)(length with ears 5.23in)
  • (13.30×6.15×3.63 cm)
  • Hub Weight: .625 lbs.

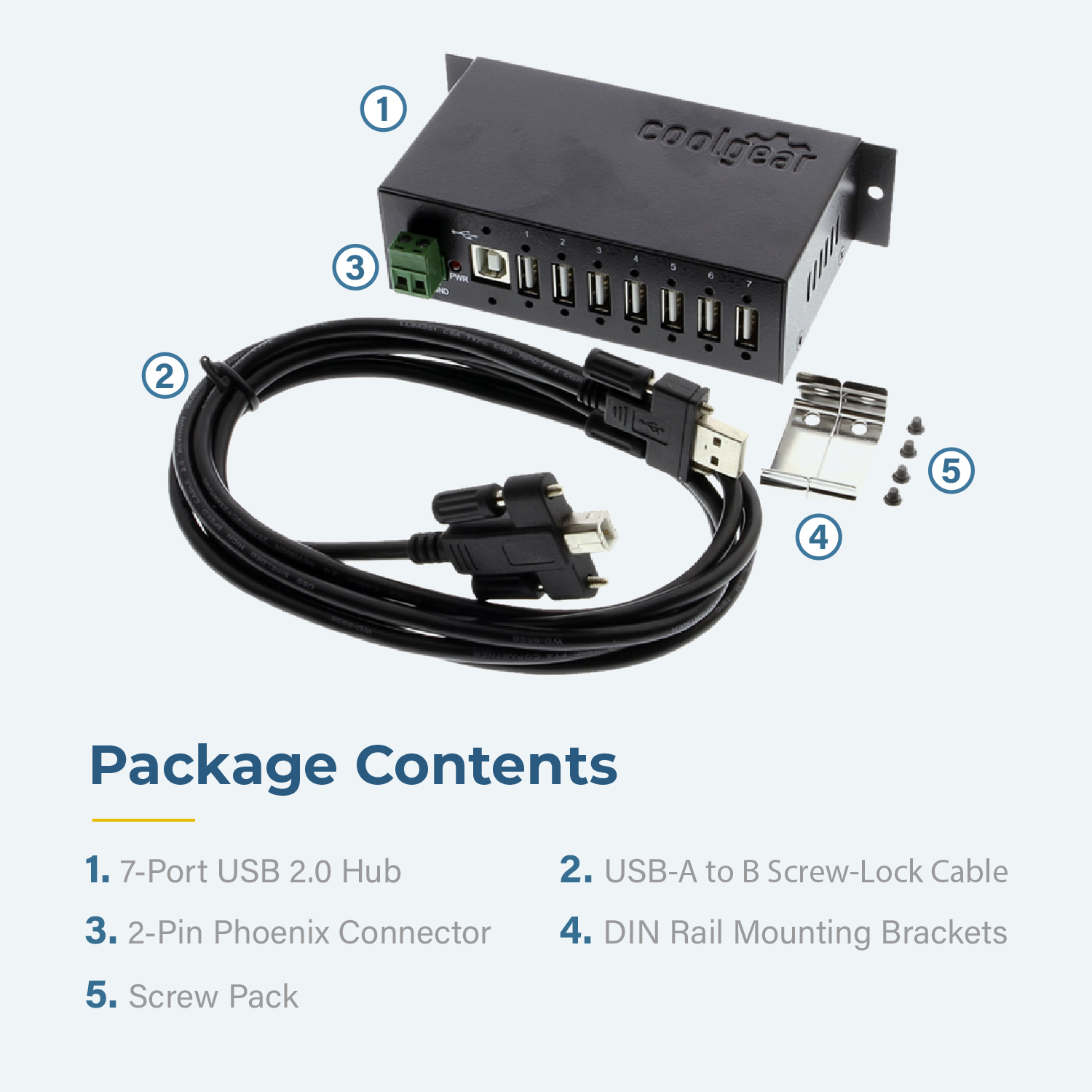

Package Contents:

  • USB 2.0 7 Port Surge Protected hub
  • Din Rail Clips and screws
  • USB 2.0 A to B cable with screw lock
  • Paper installation guide
  • *Power Supply not included; available as an optional accessory: Model No. 12V7A2P-B

*Surface Mounting screws not included.

Specifications

Product Specifications

Power
Input Voltage

+7~24V DC

Over Current Protection

Y

Over Voltage Protection

Y per buck

Power Source

2-Pin Terminal Block, AC Adapter Not Included

Idle Consumption

23.82mA Bus Powered, 36.7 mA @ 12V Terminal Power

External Power Required

No

Compliance
Country of Origin

Taiwan

Certifications

,

Mechanical
Color

Black

Item Dimensions (L × W × H)

5.2 × 2.42 × 1.43 in.

Item Weight

0.625 lbs.

Mounting Style

Surface / Wall Mount, Din-Rail Mount

Ports

7 USB Ports

Material of Construction

Galvanized Steel

USB
USB Type

USB 2.0

Upstream USB Ports

1 Type-B Female USB

Downstream USB Ports

7 Type-A Female USB

Isolated/Surge Protected

Yes

Screw Lock Compatible

Yes

Software
OS Support

Win 11, Linux, Mac OSX, Win 10, Win 7, Win 8

Environmental
Operating Temperature

0°C to 55°C (32°F to 131°F)

Storage Temperature

-20°C to 85°C (-4°F to 185°F)

Humidity

5% ~ 95% (non-condensing)

Product Information
Warranty

1 year from date of purchase

Hardware
Chipset

NEC D720113GK

Charging Protocols

Dedicated Charging Port (DCP)

LED Indicators

Power

What's in the Box
Package Contents

2-Pin Terminal Block, DIN Rail Clip(s), Hub, Screw Lock USB-A to Screw Lock USB-B Cable, Screw Pack

Performance
ESD Protection

15KV Surge Protection for Each Port

Isolated/Surge Protected

Yes

Max Data Transfer Rate

480Mbps

Over Current Protection

Y

Over Voltage Protection

Y per buck

Surge Protection

350W

Other Data
UPC

729440625153

Weight

1.25 lbs

Dimensions

11 × 6.25 × 2 in

UPC: 729440625153
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “7 Port USB 2.0 Hub w/ Surge Protection & Screw Locking Ports”

Hubs F.A.Q.

Product F.A.Q.

View frequently asked product questions below. Still need help? Reach out!

  • Can the hub be used without a power supply?
    In some cases, yes. USB peripherals that only require low power (i.e. keyboards & mice) can be used without a power adapter. Power in this case is drawn from the host’s USB port.

    When high-power USB peripherals are used, a power supply for the USB hub may be required. In other cases, the USB peripheral may require their own power adapters, in this case, a power supply for the hub may not be required. Without ample power though, the USB hub or connected peripherals may not operate correctly. It is recommended to use an included power supply when possible.

  • After waking up from sleep mode, my computer/host no longer recognizes my USB device.
    If the USB device does not function properly after your computer or host has been in sleep mode, it is likely that Windows turned off the USB Root hub in order to save power.

    To prevent this, follow the steps below (depending on your operating system).

    Windows 10 / 8

    1. On your keyboard, press the Windows key + X and select Control Panel.
    2. Click Hardware and Sound, then click Power Options.
    3. Click Change plan settings for the plan you want to change.
    4. Click Change advanced power settings.
    5. Click the plus sign (+) next to “USB settings” and “USB selective suspend setting” to expand the options and change the setting to Disabled.
    6. Click OK to apply the setting.

    Note: You may need to disconnect and re-connect your USB device after applying these settings.

    Windows 7 / Vista

    1. Click the Start button and select Control Panel.
    2. Click Hardware and Sound, then click Power Options.
    3. Click Change plan settings for the plan you want to change.
    4. Click Change advanced power settings.
    5. Click the plus sign (+) next to “USB settings” and “USB selective suspend setting” to expand the options and change the setting to Disabled.
    6. Click OK to apply the setting.

    Note: You may need to disconnect and re-connect your USB device after applying these settings.

    Windows XP

    1. On your desktop, right-click the My Computer icon and select Properties.
    2. Click the Device Manager tab.
    3. Expand Universal Serial Bus controllers by clicking the arrow to the left of it.
    4. Right-click the first USB Root Hub device and select Properties.
    5. Click the Power Management tab.
    6. Clear the box next to Allow the computer to turn off this device to save power.
    7. Click OK to apply the setting.
    8. Repeat steps 4-7 for any remaining devices in the Universal Serial Bus Controllers section with “Root Hub” in the name.

    Note: You may need to disconnect and re-connect your USB device after applying these settings.

  • The hub is properly hooked up, but is not functioning correctly. What can I do?
    Testing all setup components is the best place to begin troubleshooting. To determine the source of the issue, individually test your:

    • USB Cable by using it in another setup, or trying another cable.
    • Host USB Port by connecting another device or thumb drive.
    • Connected Peripherals by connecting directly to the host.

    Moving on to troubleshooting the hub itself. Attach a USB peripheral. The USB hub itself will not appear in hardware listings on your host’s system. USB devices connected however, will appear when connected. If the connected device is still not being found, try:

    • Installing the required drivers for the USB peripheral.
    • Install the most recent drivers for the USB controller and/or motherboard chipset.

    USB hubs do not require drivers or software.

    Troubleshooting the desired USB peripheral may be in order. If the peripheral is still not being recognized, attempt:

    • Attaching external power to the peripheral, if required.
    • Confirming if the peripheral functions on a standard USB port.
    • Testing if basic USB peripherals work, such as keyboards or mice.
  • How can external power be connected to the industrial USB hub?

    External power is supplied by connecting to the terminal block located on the hub. For when an external power adapter is required check out the Accessories & Replacement Parts section on this product page. To view all of our hub accessories and power supplies, visit the category here.

    To determine the power requirements, the equation to use is P = 5 * I * N, where:

    P is the power wattage.

    is the USB port voltage.

    I is the current of the USB port in Amps (USB 2.0 is 0.5A, USB 3.0 is 0.9A.

    N is the number of USB ports.



    As an example using the equation, a 4 port hub would reflect a minimum wattage of 18 watts.

    Knowing the minimum requirement, a proper power adapter can be chosen. In this case the voltage of a power supply should be within 7 to 24 or 7 to 40 Volts DC, depending on the specifications of the USB hub. Also, the power supply must convert AC to DC (no AC output).

    Power supplies often come with a voltage (V) rating and an amperage (A) rating. To determine the current in amps, use I = P / V, where the following is true:

    I is the current of the power supply.

    P is the calculated power of the hub.

    V is the chosen voltage of the power supply

    Continuing the example, the 4 port hub requires 18 W and the power supply you choose is 12V, the current of the power supply would be I = 18/12, I = 1.5A.



    Our full collection of power adapters can be found here.
