4 Port PCI Express RS422/485 w/ Breakout Cable

PCI Express Card – 4 Port Serial

The SG-PCIE4S422485OCT 4 Port PCI Express RS422 RS485 Card adds four new serial ports to your Work Station, Thin Client, Server, or PC. This PCI Express Card supports a high-performance, point-to-point serial bus at speeds of 250Mbytes/sec to 4GBytes/sec.

  • Supports high performance serial bus speeds for point to point applications.
  • Designed for PC, Workstation, Thin Client, or Server applications.
  • Supports 4 DB9-male Connectors over an Octopus Cable.
  • 128-byte deep FIFO per transmitter and receivers.

$197.95

Out of Stock

Model No. SG-PCIE4S422485OCT

Quick Links:

Description

The Coolgear SG-PCIE4S422485OCT RS422 / 485 to 4 Port PCI Express card incorporates 4 new serial ports that are designed for your PC, workstation, thin client, or server to provide instant RS422 / 485 Serial communication port expansion via the PCI Express bus.

Also available from the following online retailers:



The SG-PCIE4S422485OCT 4 Port PCI Express card provides 4 additional serial ports via breakout cable connected to your new PCI Express Card. This card introduces a scalable, high-speed, serial I/O bus that maintains backward compatibility with PCI applications and drivers. Its architecture defines a high-performance, point-to-point serial bus at speeds of 250Mbytes/sec to 4GBytes/sec.

4 Port PCI Express RS422 /485 - SG-PCIE4S422485OCT

Coolgear’s SG-PCIE4S422485OCT is easy to install and use with its plug-and-play feature and immediately provides necessary scalability to quickly adapt to new serial technologies. The PCI Express Card’s complete product line offers you many choices in helping you to expand with its compatibility features to new and legacy RS422/485 devices.

With the PCI Express Plug-and-Play feature and drivers, simply follow the instructions of the Install Wizard and your installation is complete. No need for configuration with I/O address, IRQ jumpers, DMA and others when you are connecting your devices, the computer system will recognize the device and install the drivers automatically. This is an ideal solution for your expanding your serial applications.

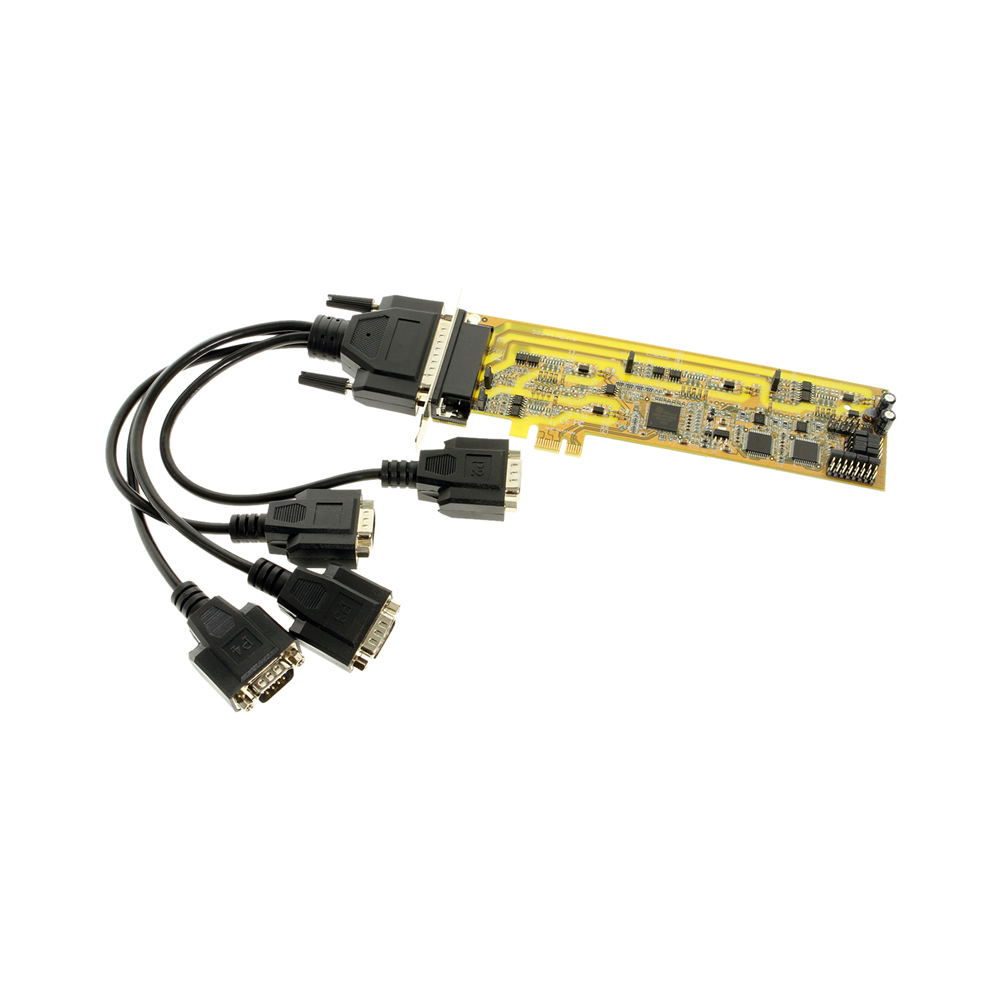

SG-PCIE4S422485OCT_kit 4 Port PCI Express RS422 /485 w/ Breakout Cables

Features

  • Full x1 PCI Express Throughput, 250Mbytes/sec
  • Fully Compliant with PCI Express Base Specifications, Revision 1.1
  • Supports RS485 Auto Transceiver Turn Around by Unique Featured ATTATM Hardware
  • 128-byte deep FIFO per transmitter and receivers

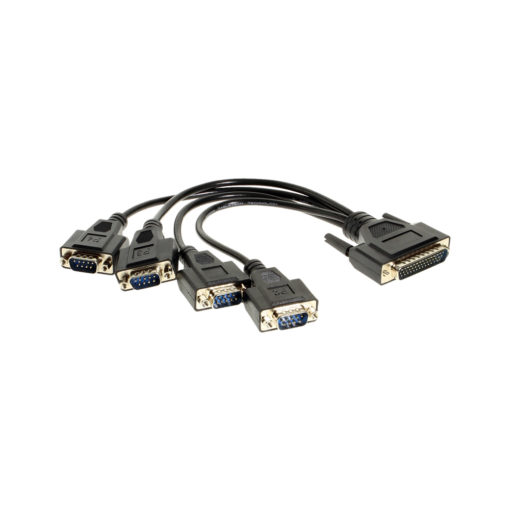

  • Supports 4 DB9-male Connectors over an Octopus Cable
  • Supports Low Profile Form Factor with Optional Low Profile Bracket
  • Support 4-wire RS422/485 and 2-wire RS485 Modes
  • Supports RS422/485 Speed up to 921.6Kpbs
  • Optional Model: Isolated and 15KV ESD Surge Protection
  • Supports Windows 10, 8, 7, Vista, 2008, 2003, 2000, XP, NT, Me, 95/98, and Linux



Additional Features & Specifications:

System

  • Fully Compliant with x1 PCI Express Base Specifications 1.1

Serial Ports

Four DB9-male RS422/485 Connectors with an Octopus Cable, the key benefits are:

  • Connector: Four DB9 Male Connectors over a DB44 Octopus Cable
  • Interface: 3 modes are selectable: 4-wire RS422 (TXD+/-, RxD+/-). 4-wire RS485 (TxD+/-, RxD+/-). 2-wire RS485 (Data+/-)
  • Parity: None, Even, Odd
  • Data bits: 5,67,8,9 bits Data Frames
  • Speed: up to 921.6Kbps
  • Terminator: 120 OHM, can be Enabled/Disabled by a Jumper
  • ATTATM: Auto RS485 Transmitter buffer direction control by the ATTATM Hardware. Guarantee Fast Turn Around the Transceiver.

I/O Hardware

  • Four DB9-male Connectors over a DB44 Octopus Cable

OS Support

  • Windows 10, 8, 7, Vista, 2008, 2003, 2000, XP, NT, Me, 95/98, and Linux

Environmental Specifications

Operating Temperature: 0 to 55°C (32 to 131°F), 10% to 90% relative humidity (non-condensing)

Storage Temperature: -40 to 75°C (-40 to 167°F), 5% to 95% relative humidity (non-condensing)

Form Factor

  • 7.56” x 2.63” (19.20cm x 6.68cm)
Specifications

Product Specifications

Identifier
UPC

736983900081

Software
OS Support

Win-2000, Win-98/se/Me, Win-Vista/Win-NT up 5.0 Ver, Linux, Mac OSX, Win 10, Win 7, Win 8, Win Vista, Win XP

Serial Attributes
Serial Standards

RS422/RS485

Mechanical
Ports

4 Serial Ports

Other Data
Warranty

1 year from date of purchase.

Connector

DB9 Male w/ Nuts, PCIe

Weight

1 lbs

Dimensions

11.25 × 6.25 × 2 in

UPC: 736983900081
Support

Product Documentation & Drivers


Need drawings, CAD files, or other compliance documentation? Click HERE
