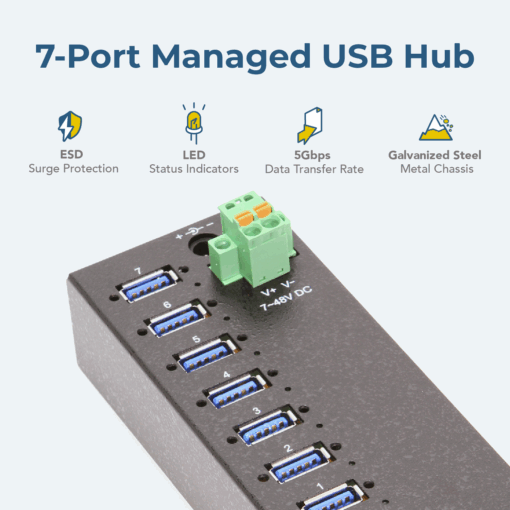

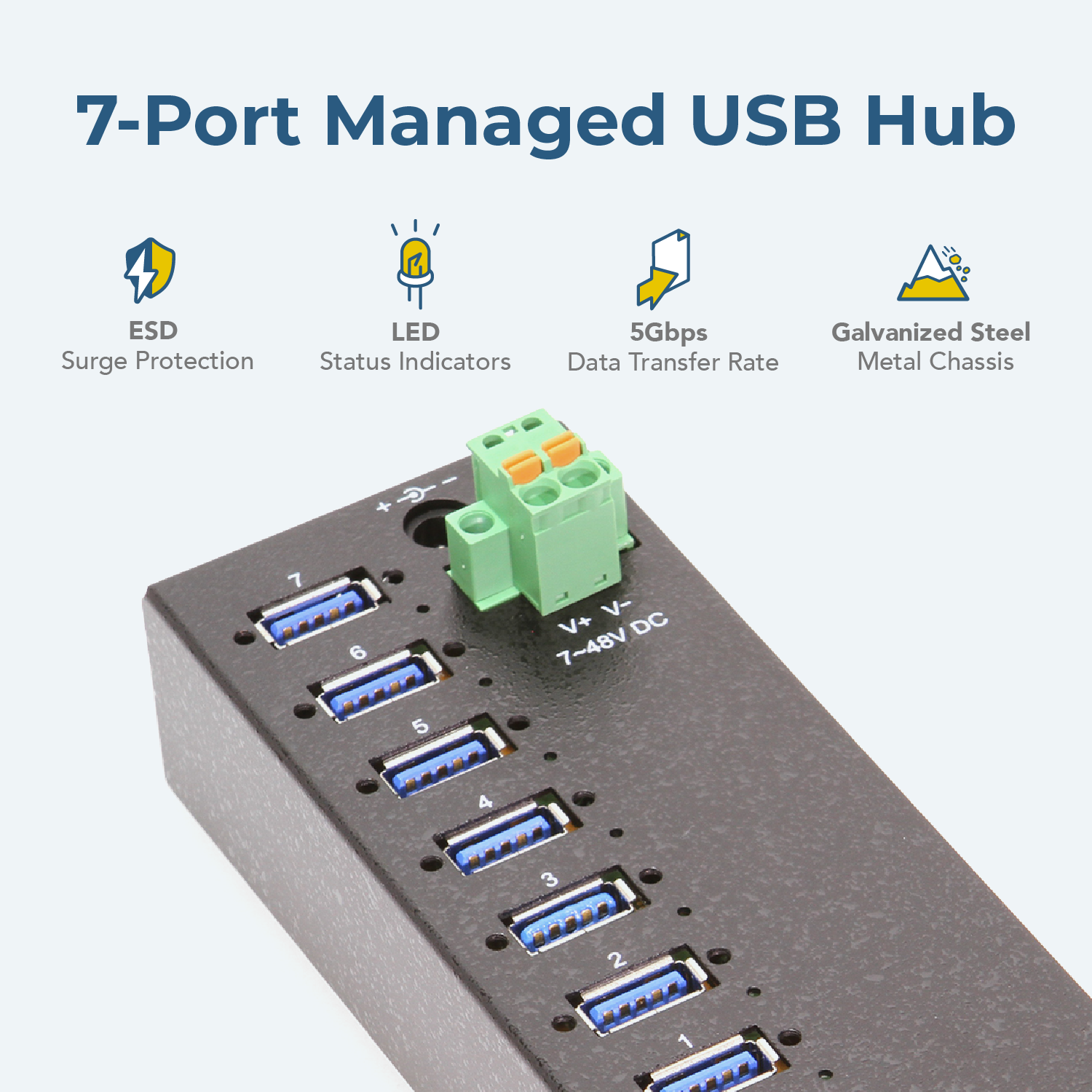

7 Port Managed USB 3.2 Gen 1 Hub w/ 15KV ESD Surge Protection

Industrial Grade | +7~24V DC Input | Surface Mountable | DIN Rail | 5 Gbps | Screw Lock

  • Advanced Protection: The 7-port USB 3.2 Gen 1 hub protects your device with advanced ESD protection. Built-in 15kV ESD surge protection offers you security and assurance that your connected devices will be protected.
  • Super Fast Speeds: This USB hub is 3.2 Gen 1 compliant, ensuring super-fast 5Gbps data transfer speeds. It supports super speed, high speed and full speed which enables it to be compatible with USB 2.0 / 1.1.
  • Port Management Software: Control each individual ports’ status, turn bus power on/off, and even reset the entire hub through the hub’s management software which supports Windows, Mac, and Linux operating systems

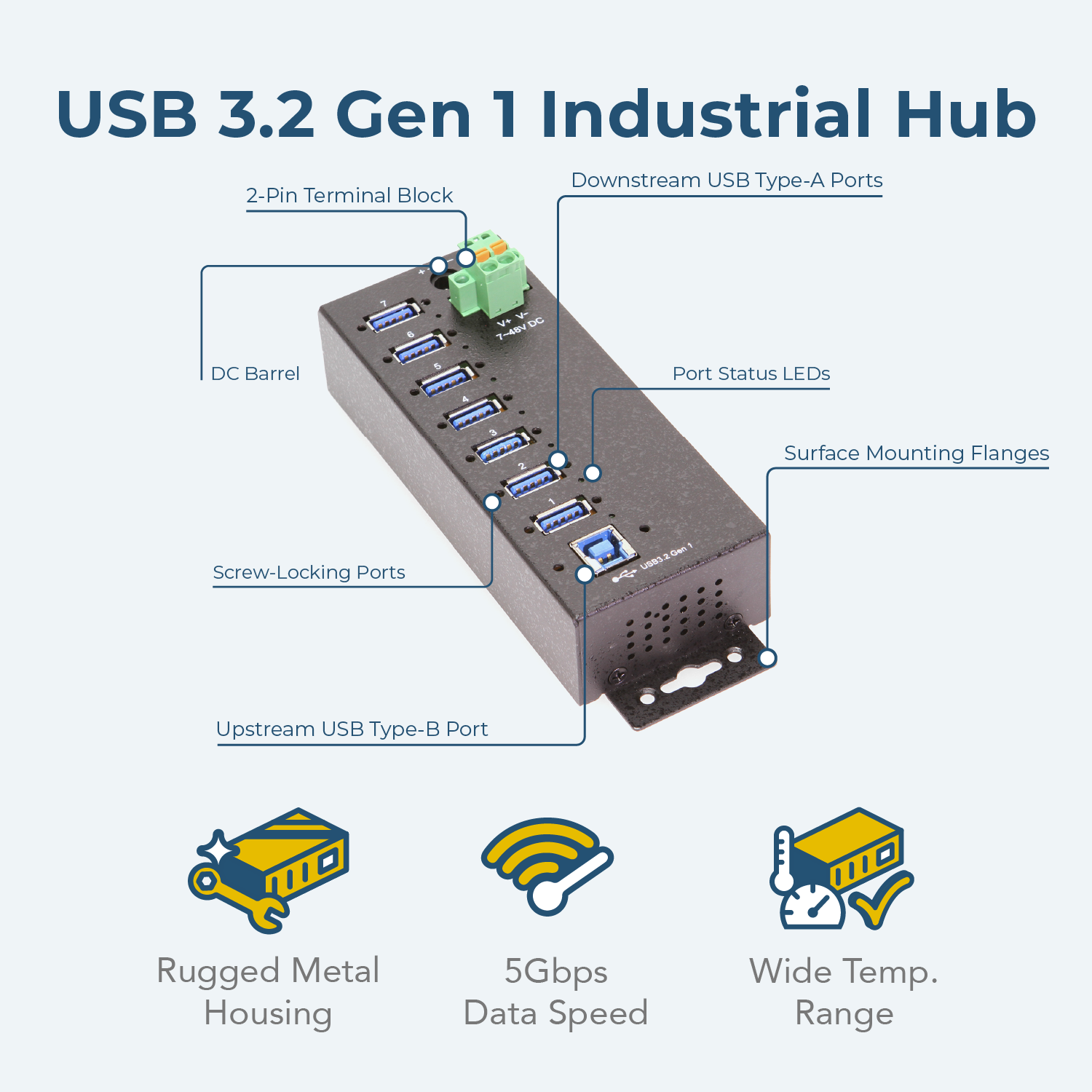

  • Upstream: 1 USB port, Type B connector, Screw-lock type
  • Downstream: 7 USB ports, Type A connectors, Screw-lock type
  • LED Indicators: 7 LEDs for each downstream port to indicate the current bus

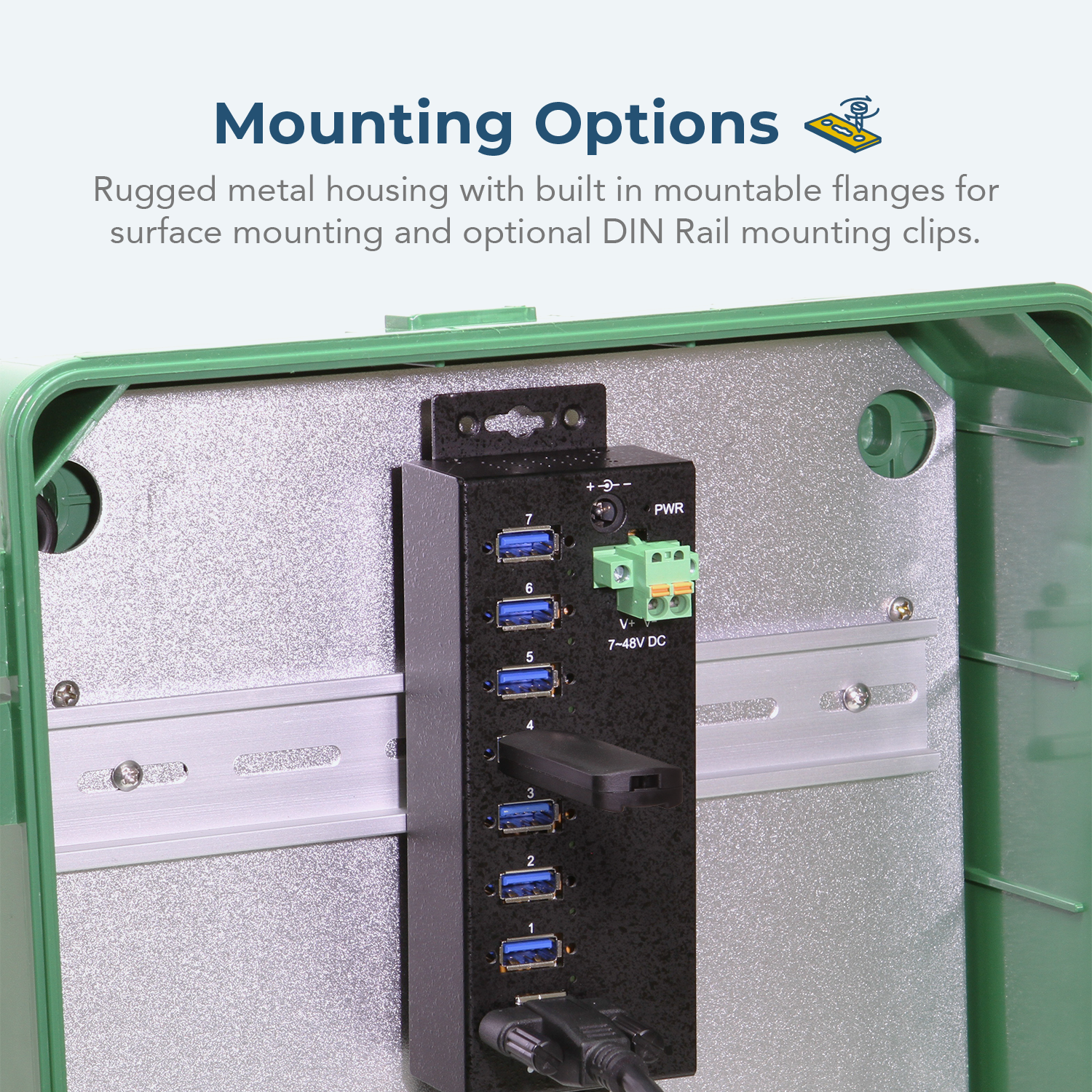

  • Mounting Options: Wall, Surface, and DIN Rail
  • Supply Current: 1.5A max. per channel


In stock

Volume Pricing

Units Price
1 - 4 $164.95
5 - 11 $161.65
12 - 24 $156.70
25 - 49 $153.40
50+ $148.46

Model No. CG-7PU3MGD



CG-7PU3MGD from our MDS-UH Port Management Series is a USB3.2 Gen 1 Hub that complies with the Universal Serial Bus (USB) Specifications Revision 3.1 Gen 1 and works up to 5Gbps. It provides 7 downstream facing ports with standard A-type USB3.2 screw-lock connectors.

The CG-7PU3MGD provides a unique self-power mode to work with a wide range (+7~48V) input DC power from its terminal blocks. It supports USB charging specifications by turning its downstream ports from a Standard Downstream Port (SDP) into Charging Downstream Port (CDP) or Dedicated Charging Ports (DCP).

Since the USB is the most popular external port for the devices to connect to PCs, the CG-7PU3MGD provides an ideal solution to expand your USB ports immediately and save your investment.

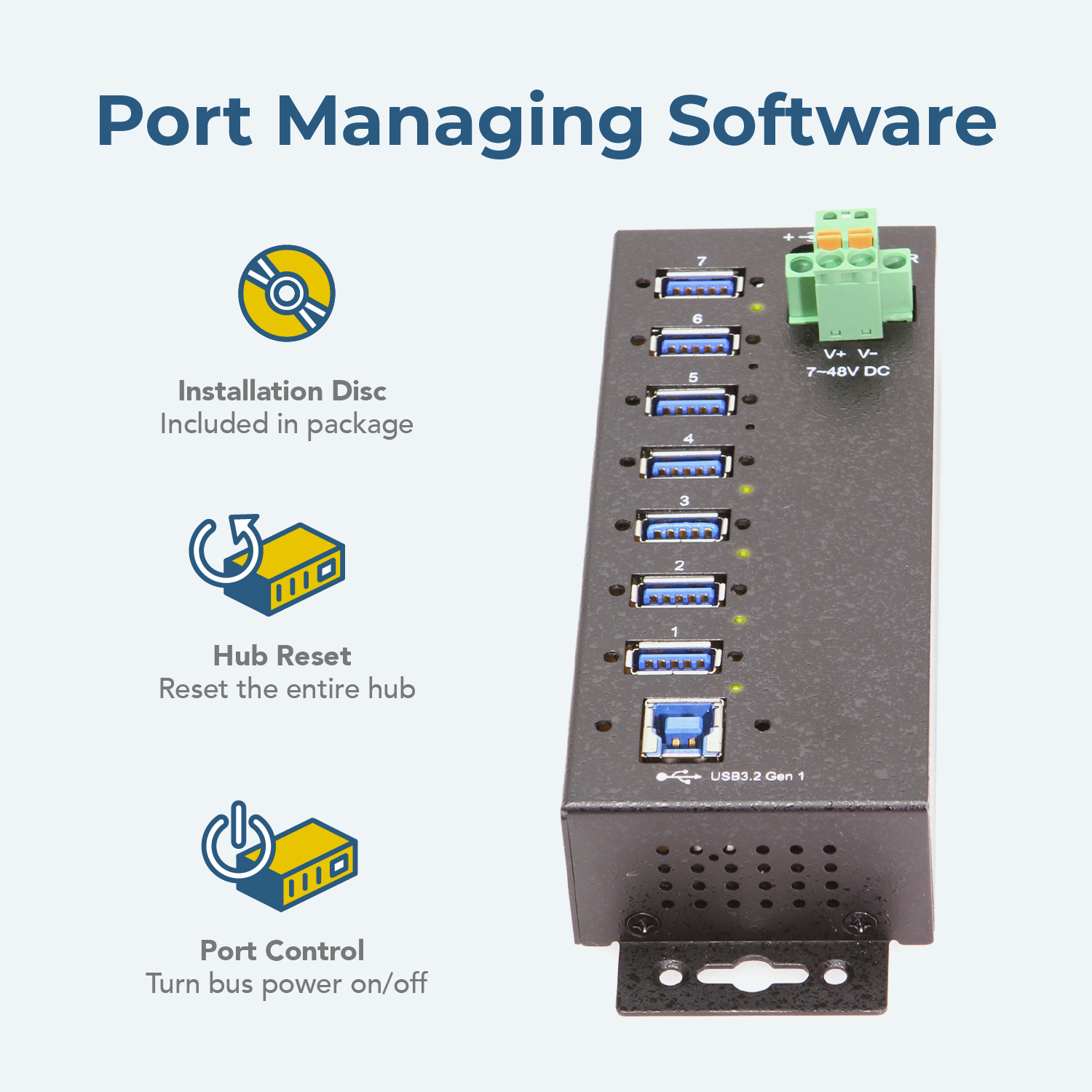

Managing Software:

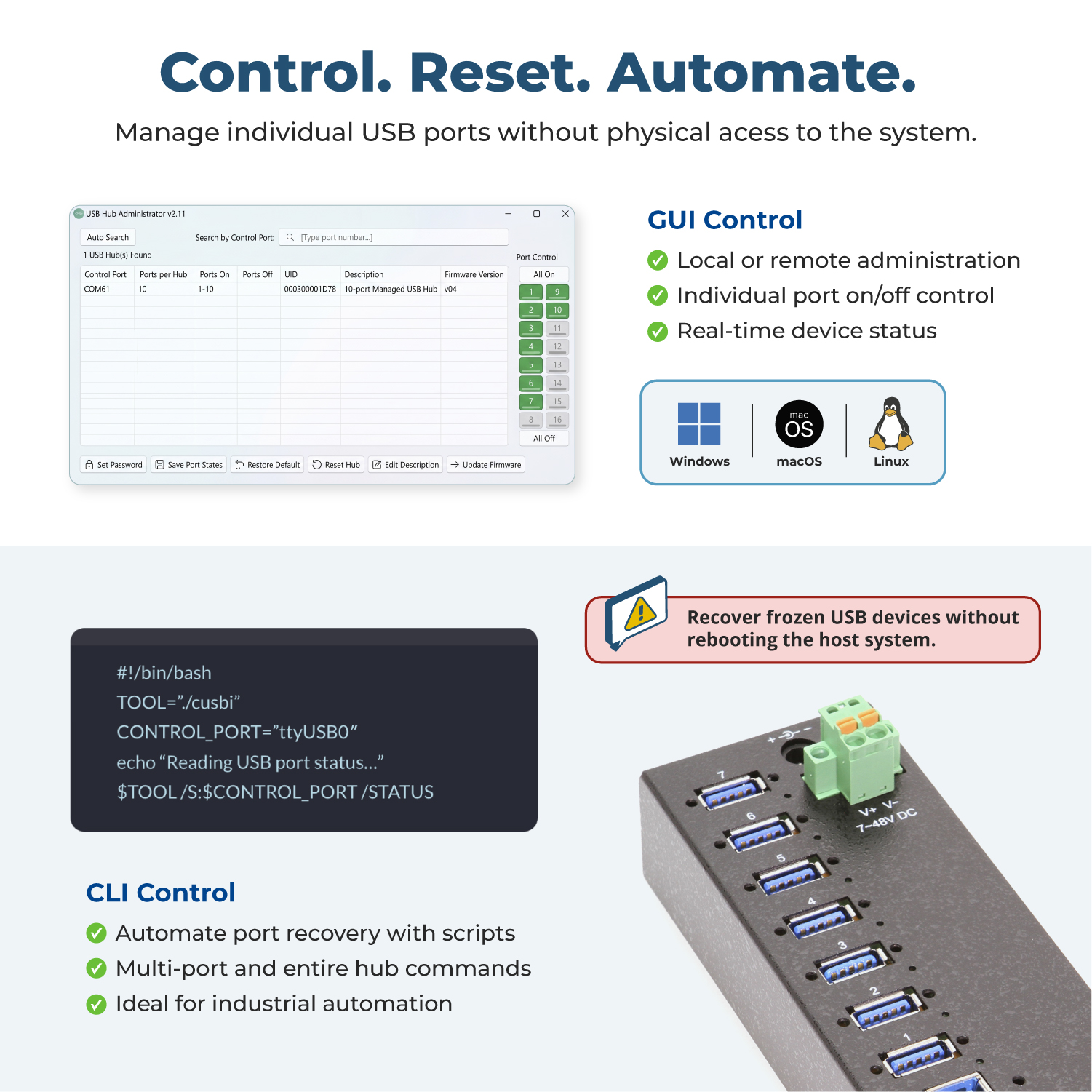

The CG-7PU3MGD software package contains several managing software utilities that support different platforms allowing better control over each individual ports’ status. A GUI (Graphical User Interface) and console command prompt utilities for all major Microsoft Windows. It also includes utilities for different Linux versions. The utilities were written to easily operate with the applications software written with different language such as C#, C++, VB, Python, or even a PHP server scripting language.

Image: Port managing software displaying the On/Off status of each port.


  • Compliant with USB Specification 3.2 Gen 1
  • Metal Case with DIN RAIL Mounting Kit for
  • Industrial Critical Applications
  • Built-in RISC-like USB3.2 Gen 1 Hub Controllers
  • Provides 7 Downstream USB 3.2 Gen 1 Facing Ports
  • Supports 5Gbps (Super-speed), 480Mbps (High-speed),
  • 12Mbps (Full-speed) and 1.5Mbps (Low-speed) Speed
  • Supports 15KV ESD Surge Protection for Each Port
  • Supports +7~48V DC Wide Range Self-power Input
  • Multi Transaction Translators (TT) per Hub
  • Support USB Battery Charging: CDP and DCP modes
  • Supports Push-In, Screw-Lock Power Terminal Blocks
  • DC Jack and Terminal Blocks Power Input Connectors
  • Supports USB Screw-Lock Cable Mechanism

Note: The last USB port of this hub (Port 7) does NOT support USB 2.0 / 1.1 devices. It is used to communicate with managing utilities. However, it still supports USB 3.2 Gen 1 devices.

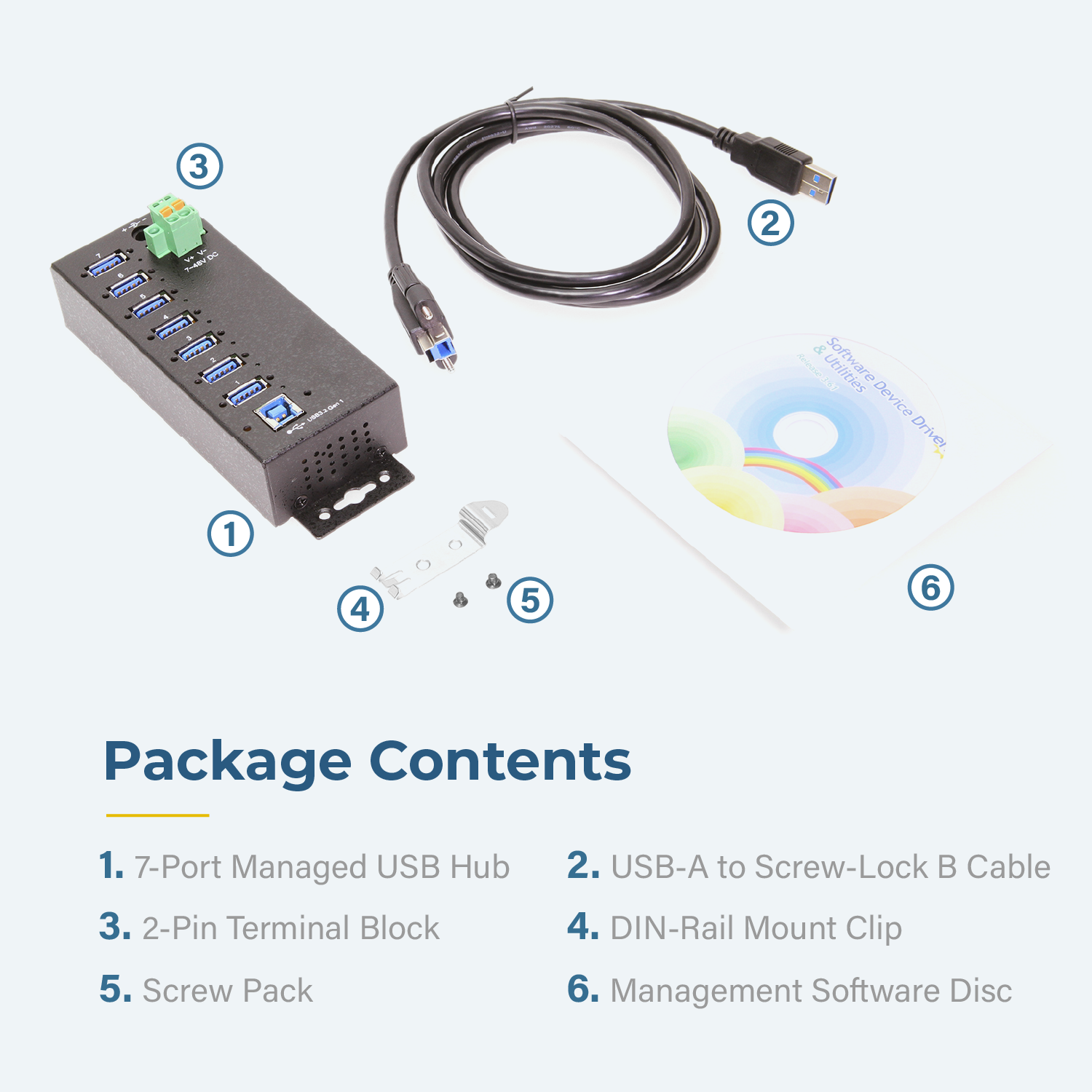

Package Contents:

  • 7 Port Managed USB 3.2 Gen 1 Hub
  • 5ft. USB-A to Screw Lock USB-B Cable
  • 2-Pin Terminal Block
  • DIN Rail Clips
  • Screw Pack

*Surface Mounting screws not included.


Product Specifications

Input Voltage

+7~48V DC

Over Current Protection


Power Source

2-Pin Terminal Block, AC Adapter Not Included, DC Barrel Jack 2.1mm ID x 5.5mm OD

Idle Consumption

1.49mA @ 12V Terminal Power

External Power Required


Country of Origin





Item Dimensions (L × W × H)

6.41× 2.16 × 1.22 in.

Item Weight

0.625 lbs.

Mounting Style

Surface / Wall Mount, Din-Rail Mount

Material of Construction

Galvanized Steel

USB Type

USB 3.2 Gen 1

Upstream USB Ports

1 Type-B Female USB

Downstream USB Ports

7 Type-A Female USB

Screw Lock Compatible


OS Support

Win 11, Linux, Mac OSX, Win 10, Win 7, Win 8

Managing Software Utilities

cusba: ARM Based Linux Controller Utility, CUSBC: Windows Console Command Control Utility, cusbi: Intel x86-64 Based Linux Control Utility, USBCTL: Windows GUI

Operating Temperature

0°C to 60°C (32 to 140°F)

Storage Temperature

-20 to 75°C (-4 to 167°F)


5% ~ 95% (non-condensing)


Up to 2000m

Product Information

1 year from date of purchase


GL 3523

Charging Protocols

Apple 2.4A, BC 1.2, Charging Downstream Port (CDP), Dedicated Charging Port (DCP), Samsung

LED Indicators

Port Status, Power

Per USB Port Current

1.5 A

What's in the Box
Package Contents

2-Pin Terminal Block, DIN Rail Clip(s), Hub, Screw Pack, USB-A to Screw Lock USB-B Cable

ESD Protection

15KV Surge Protection for Each Port

Max Data Transfer Rate


Over Current Protection


Other Data




1.1063 lbs


9.649 × 6.655 × 2.249 in

UPC: 045079163102
Hubs F.A.Q.

Product F.A.Q.

View frequently asked product questions below. Still need help? Reach out!

  • Can the hub be used without a power supply?
    In some cases, yes. USB peripherals that only require low power (i.e. keyboards & mice) can be used without a power adapter. Power in this case is drawn from the host’s USB port.

    When high-power USB peripherals are used, a power supply for the USB hub may be required. In other cases, the USB peripheral may require their own power adapters, in this case, a power supply for the hub may not be required. Without ample power though, the USB hub or connected peripherals may not operate correctly. It is recommended to use an included power supply when possible.

  • After waking up from sleep mode, my computer/host no longer recognizes my USB device.
    If the USB device does not function properly after your computer or host has been in sleep mode, it is likely that Windows turned off the USB Root hub in order to save power.

    To prevent this, follow the steps below (depending on your operating system).

    Windows 10 / 8

    1. On your keyboard, press the Windows key + X and select Control Panel.
    2. Click Hardware and Sound, then click Power Options.
    3. Click Change plan settings for the plan you want to change.
    4. Click Change advanced power settings.
    5. Click the plus sign (+) next to “USB settings” and “USB selective suspend setting” to expand the options and change the setting to Disabled.
    6. Click OK to apply the setting.

    Note: You may need to disconnect and re-connect your USB device after applying these settings.

    Windows 7 / Vista

    1. Click the Start button and select Control Panel.
    2. Click Hardware and Sound, then click Power Options.
    3. Click Change plan settings for the plan you want to change.
    4. Click Change advanced power settings.
    5. Click the plus sign (+) next to “USB settings” and “USB selective suspend setting” to expand the options and change the setting to Disabled.
    6. Click OK to apply the setting.

    Note: You may need to disconnect and re-connect your USB device after applying these settings.

    Windows XP

    1. On your desktop, right-click the My Computer icon and select Properties.
    2. Click the Device Manager tab.
    3. Expand Universal Serial Bus controllers by clicking the arrow to the left of it.
    4. Right-click the first USB Root Hub device and select Properties.
    5. Click the Power Management tab.
    6. Clear the box next to Allow the computer to turn off this device to save power.
    7. Click OK to apply the setting.
    8. Repeat steps 4-7 for any remaining devices in the Universal Serial Bus Controllers section with “Root Hub” in the name.

    Note: You may need to disconnect and re-connect your USB device after applying these settings.

  • The hub is properly hooked up, but is not functioning correctly. What can I do?
    Testing all setup components is the best place to begin troubleshooting. To determine the source of the issue, individually test your:

    • USB Cable by using it in another setup, or trying another cable.
    • Host USB Port by connecting another device or thumb drive.
    • Connected Peripherals by connecting directly to the host.

    Moving on to troubleshooting the hub itself. Attach a USB peripheral. The USB hub itself will not appear in hardware listings on your host’s system. USB devices connected however, will appear when connected. If the connected device is still not being found, try:

    • Installing the required drivers for the USB peripheral.
    • Install the most recent drivers for the USB controller and/or motherboard chipset.

    USB hubs do not require drivers or software.

    Troubleshooting the desired USB peripheral may be in order. If the peripheral is still not being recognized, attempt:

    • Attaching external power to the peripheral, if required.
    • Confirming if the peripheral functions on a standard USB port.
    • Testing if basic USB peripherals work, such as keyboards or mice.
  • How can external power be connected to the industrial USB hub?

    External power is supplied by connecting to the terminal block located on the hub. For when an external power adapter is required check out the Accessories & Replacement Parts section on this product page. To view all of our hub accessories and power supplies, visit the category here.

    To determine the power requirements, the equation to use is P = 5 * I * N, where:

    P is the power wattage.

    is the USB port voltage.

    I is the current of the USB port in Amps (USB 2.0 is 0.5A, USB 3.0 is 0.9A.

    N is the number of USB ports.


    As an example using the equation, a 4 port hub would reflect a minimum wattage of 18 watts.

    Knowing the minimum requirement, a proper power adapter can be chosen. In this case the voltage of a power supply should be within 7 to 24 or 7 to 40 Volts DC, depending on the specifications of the USB hub. Also, the power supply must convert AC to DC (no AC output).

    Power supplies often come with a voltage (V) rating and an amperage (A) rating. To determine the current in amps, use I = P / V, where the following is true:

    I is the current of the power supply.

    P is the calculated power of the hub.

    V is the chosen voltage of the power supply

    Continuing the example, the 4 port hub requires 18 W and the power supply you choose is 12V, the current of the power supply would be I = 18/12, I = 1.5A.


    Our full collection of power adapters can be found here.
