7 Port USB 3.2 Gen 1 Hub w/ Surge Protection & Screw-Locking Ports

(3 customer reviews)

Model No. USBG-7U3ML

Industrial Grade | +7~24V DC Input | Surge Protection | Surface Mountable | DIN Rail | 5 Gbps | Screw Lock

  • Protect Your Equipment: The 7-port USB 3.2 Gen 1 features 350 Watts of surge protection to keep your connected peripherals safe from harm.
  • Super Fast Speeds: This USB hub is 3.2 Gen 1 compliant, ensuring super-fast 5Gbps data transfer speeds. It supports super speed, high speed and full speed which enables it to be compatible with USB 2.0 / 1.1.
  • Superior Build Quality: Housed in a rugged steel chassis with built in mountable flanges, the 7-port hub is perfect for installations in offices, labs, warehouses, heavy machinery, automation equipment, and other industrial applications.

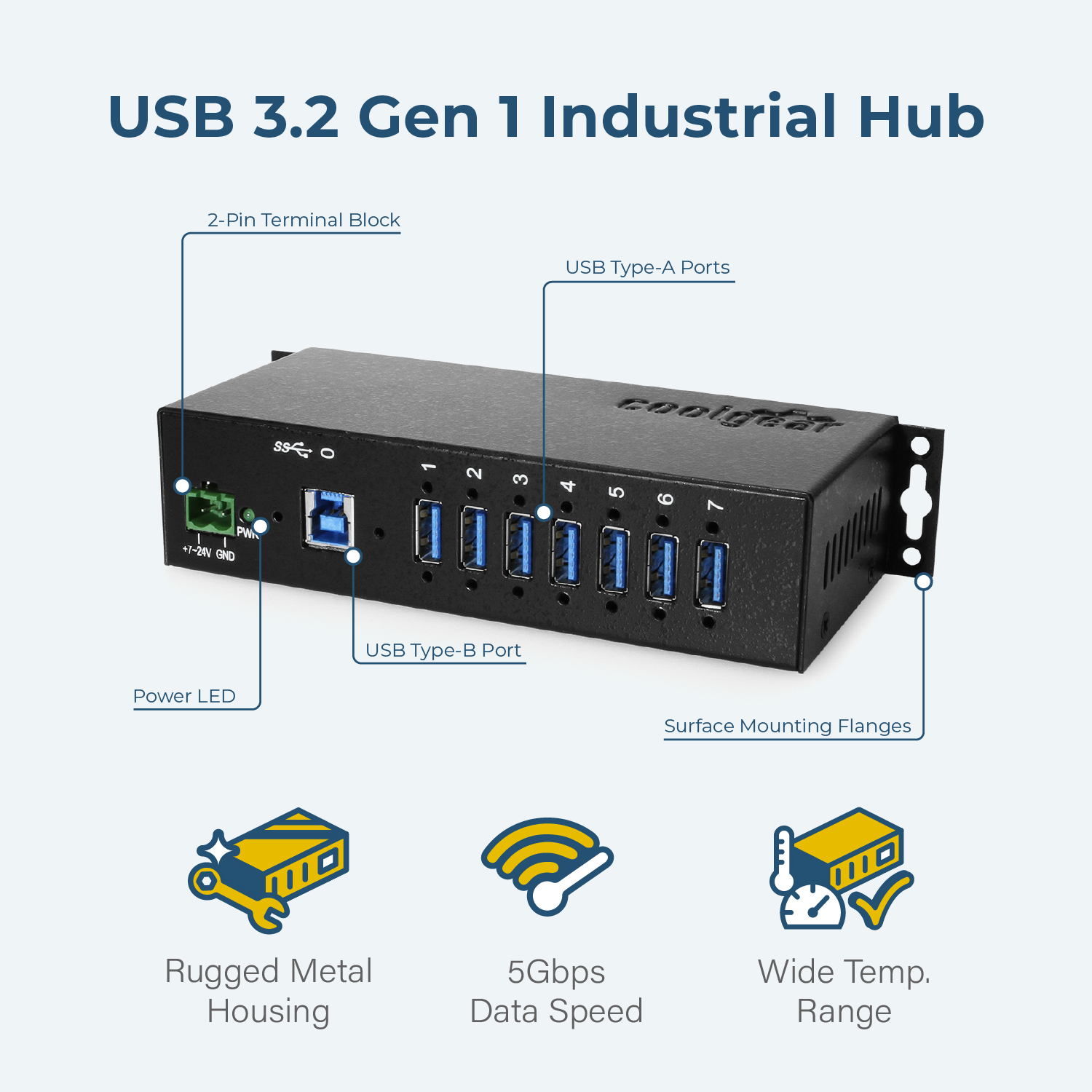

  • Upstream: 1 USB port, Type B connector, Screw-lock type
  • Downstream: 7 USB ports, Type A connectors, Screw-lock type
  • Power Connector: 2-Pin Terminal Block

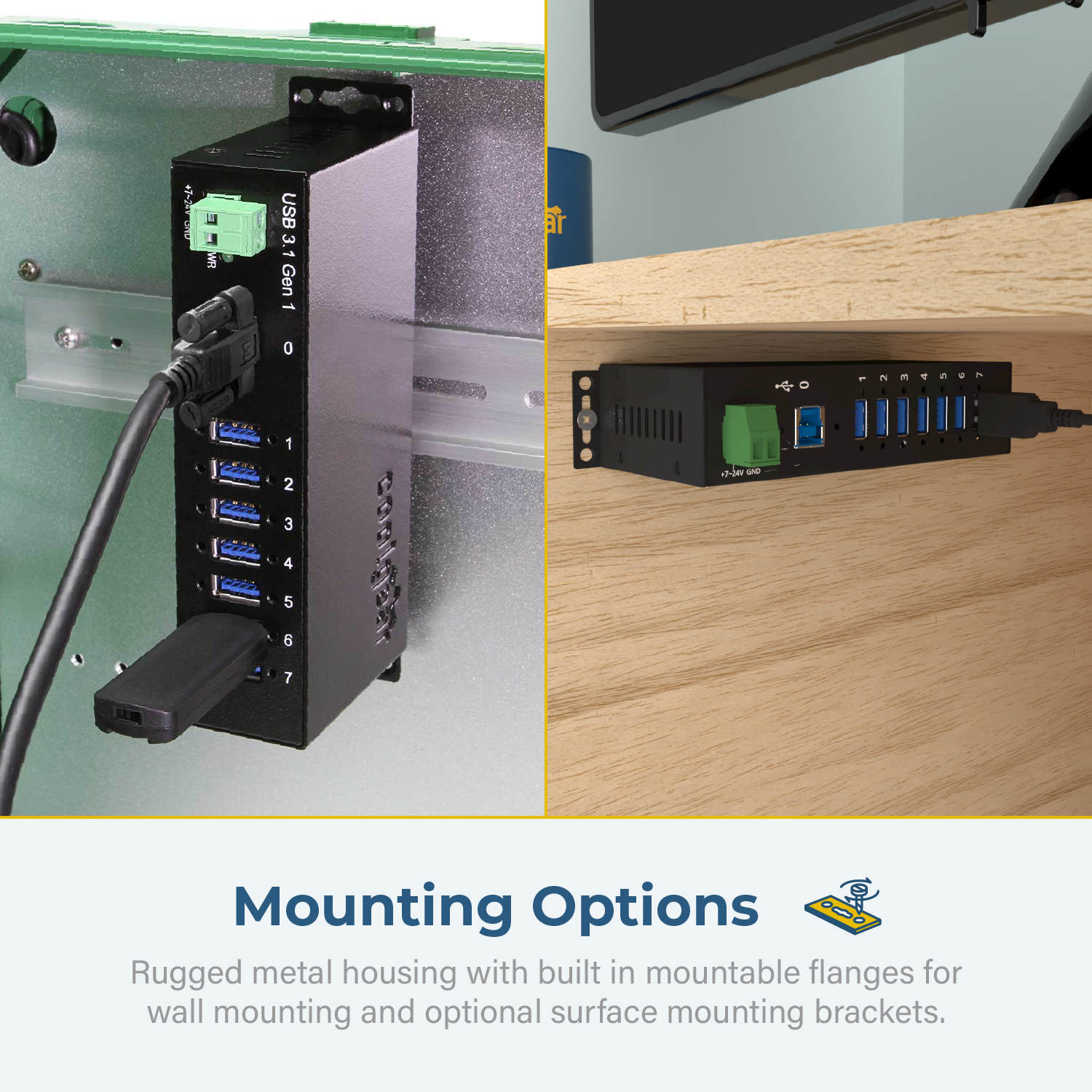

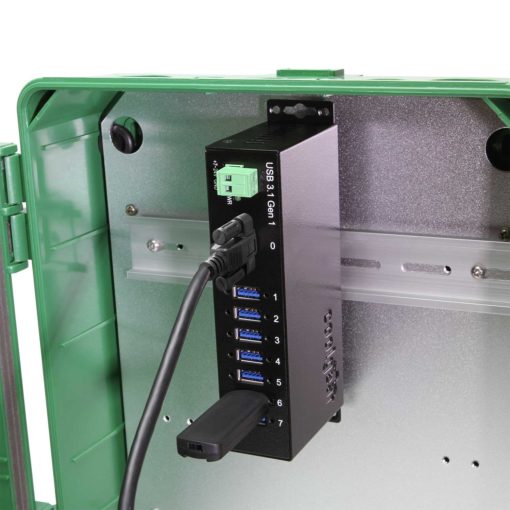

  • Mounting Options: Wall, Surface, and DIN Rail
  • Supply Current: 1.5A USB Bus Power for Each Down-stream Port

$131.94

Bulk Pricing

Model No. USBG-7U3ML

In stock

Also available from:

Need some help? Contact us.
Description

Introducing the 7-Port USB 3.2 Gen 1 Hub w/ Surge Protection & Screw-Locking Ports

Maximize your USB connectivity with Coolgear’s 7-Port USB 3.2 Gen 1 Hub, specifically engineered for industrial-grade performance. Designed to support demanding applications, this hub delivers reliable 5Gbps data transfer speeds and offers secure mounting options, including surface, wall, and DIN-Rail installations. Equipped with screw-locking USB ports and robust surge protection, this hub is an ideal solution for environments where durability and stability are paramount.

Key Features and Benefits:

  • USB 3.2 Gen 1 Speed: Supports data transfer rates up to 5Gbps, ensuring high-speed communication for modern USB devices.
  • Secure Screw-Locking Ports: Both upstream (Type-B) and downstream (Type-A) ports feature screw-lock mechanisms to prevent accidental disconnections during use.
  • Surge Protection: Each of the seven ports is protected with 350-watt surge protection, safeguarding connected devices from electrical spikes and surges.
  • Versatile Power Options: Operates in bus-powered mode for low-power devices or can be powered through a +7V to 24V DC input for devices requiring more power.
  • Mounting Flexibility: Offers multiple installation options with surface, wall, and DIN-Rail mounting, making it adaptable to various industrial setups.
  • Backward Compatibility: Fully backward compatible with USB 2.0 and 1.1 devices, ensuring seamless integration with legacy equipment.
  • Durable Metal Housing: Built to withstand industrial environments, this hub features a rugged metal enclosure for added durability and longevity.

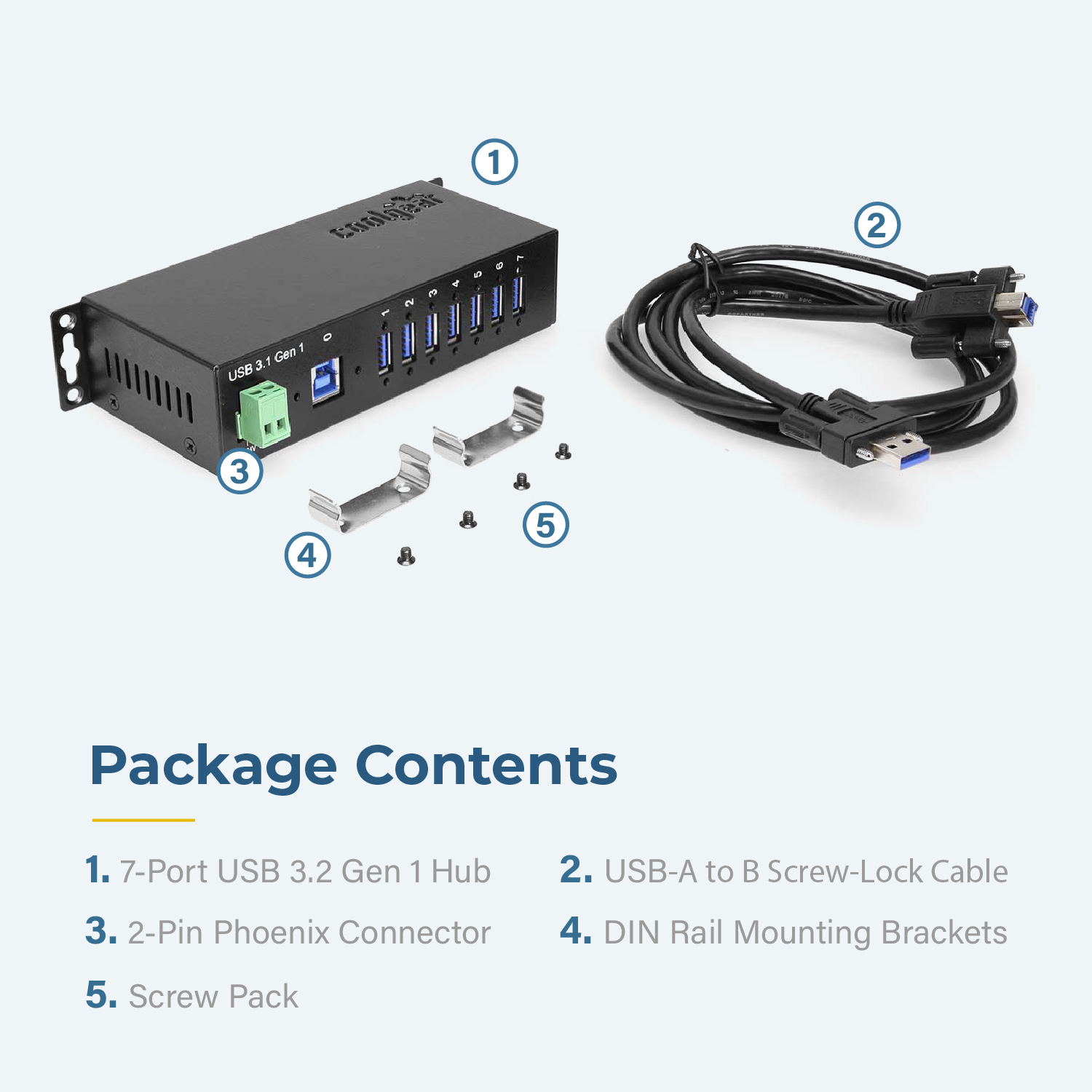

Package Contents:

  • USBG-7U3ML 7-Port Industrial USB 3.2 Gen 1 Hub
  • 6 ft.USB-A to USB-B Screw Lock Cable
  • DIN Rail Mounting Brackets w/ screws

*Surface Mounting screws not included.

Use Cases

Use Cases:

Industrial Environments

  • Manufacturing Control: Connect multiple sensors, PLCs, and other industrial devices securely, with screw-locking ports ensuring uninterrupted operation in high-vibration environments.
  • Factory Automation: Utilize high-speed data transfer for machine control systems while maintaining protection from power surges.

Laboratories & Testing Facilities

  • Precision Instrumentation: Securely connect high-end testing equipment such as oscilloscopes, analyzers, or diagnostic tools, with the added protection of surge suppression and screw-lock connections.
  • Device Prototyping: Use the hub’s high bandwidth to interface with new USB-enabled prototypes, ensuring stable, high-speed data exchange during critical testing phases.

Commercial & Retail Setups

  • Kiosk Management: Maintain reliable connections for interactive kiosks, digital signage, or point-of-sale systems in busy retail environments where disconnections are not an option.
  • Public Access Points: Power and manage multiple public-facing devices in airports, hotels, or other high-traffic areas, with mounting options that keep the setup clean and secure.
Quick Specs

Quick Specifications:

System:
  • For Systems with USB 3.2 Gen 1, USB 2.0 or USB 1.1 Ports
  • Provides 7 USB 3.2 Gen 1 downstream ports which managing up to 5Gbps:
  • Compliant with USB 3.2 Gen 1 Specifications Revision 1.0
  • Voltage range is +7V to 24V DC input
  • Provides 7 Downstream Facing Ports for Super-speed, High-speed, Full-speed and Low-speed traffic
  • 1 Upstream Port for Super-speed, High-speed and Full-speed traffic
  • Supports 5Gbps (USB 3.2 Gen 1), 480Mbps(USB 2.0), 12Mbps (USB 1.1) and 1.5Mbps (USB 1.0) Speed
  • Supports USB Screw-lock Mechanism for Secure Cable Connection
  • Multi Transaction Translators (TT) per hub
  • Supports Self-powered and Bus-powered Mode
  • Built-in 350-Watt Surge Protection for each port
  • Supports up to 1.5A USB Bus Power for Each Down-stream Port

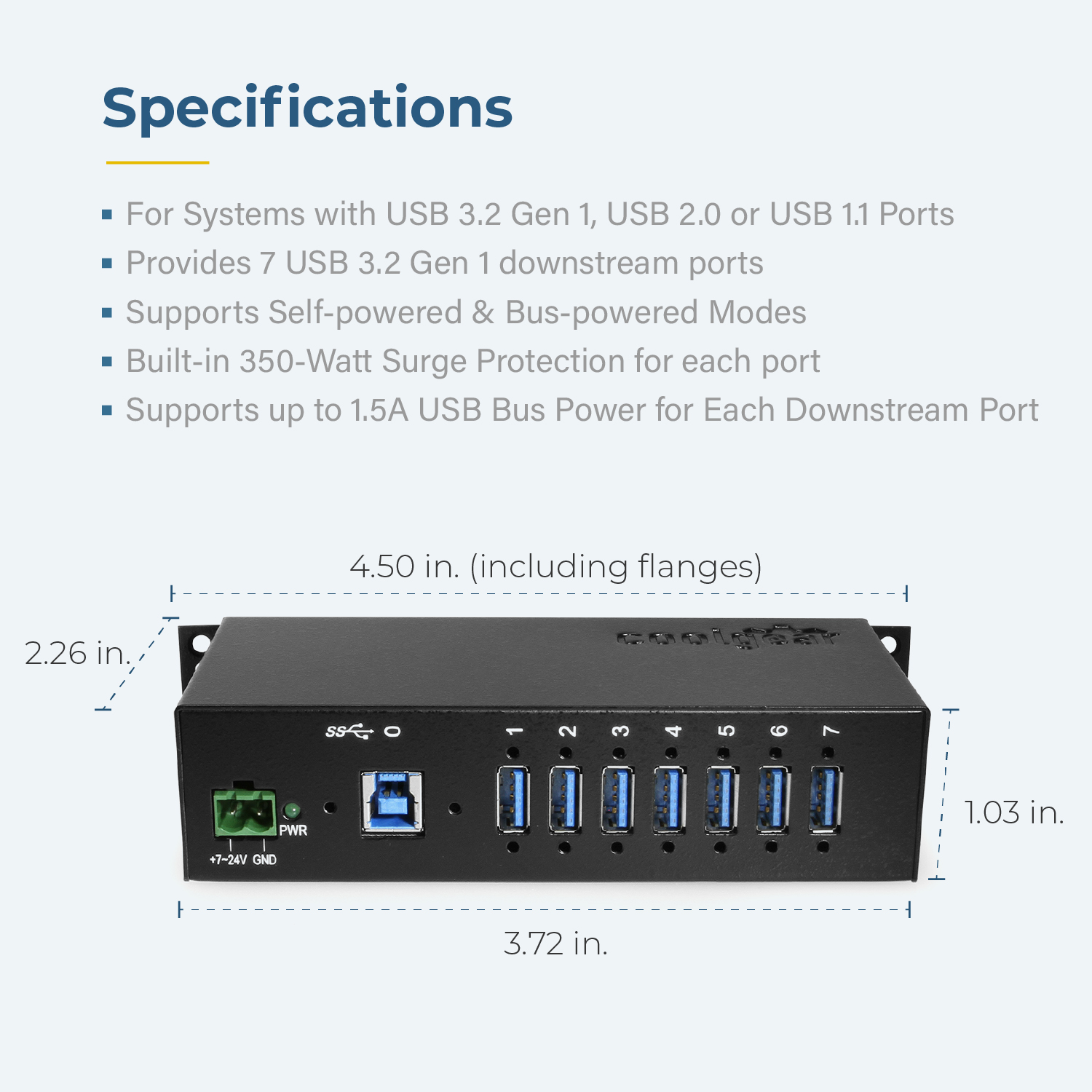

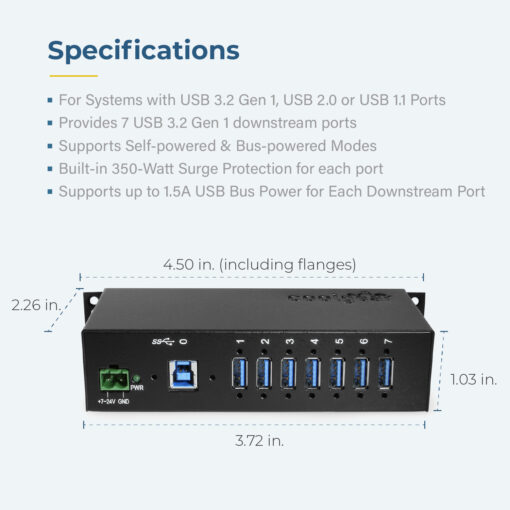

  • Dimensions: 5.66″(L)x2.60″(W)x1.42″(H) (16.20×6.60×3.61 cm)(Length with ears 6.44″
  • Hub Weight: 0.775 lbs.
  • Supports Downstream Port Status with LED
  • Supports Battery Charging Protocol Rev 1.2
USB Devices:
  • Supports keyboard, mouse, monitor, scanner, printer, PC Camera, telephone, CD-ROM drive, Pen-drives, SATA enclosures, joystick, virtual reality helmet, modem, PBX and many more
 OS Support:
  • Windows 7, 8, 10, & Windows 11
  • Linux and Mac OS 10.X
I/O Hardware:
  • Supports 7 external USB 3.2 Gen 1 Type-A connectors and 1 Type-B Upstream connector, supports screw lock features with screw lock type cables
  • Supports 1 DC Jack and 1 2-pin Terminal Blocks for external power input

External Power supplies are sold separately:

Environmental Specifications:

  • Operating Temp: 0 to 55°C (32 to 131°F)
  • Operating Humidity: 5 to 95% RH
Specifications

Product Specifications

Power
Input Voltage

+7~24V DC

Power Source

2-Pin Terminal Block, AC Adapter Not Included

Max Wattage

50W

Charging Protocols

Apple 2.4A, Charging Downstream Port (CDP), Dedicated Charging Port (DCP)

Per USB Port Current

1.5 Amp

Compliance
Country of Origin

Taiwan

Certifications

,

Physical Characteristics
Color

Black

Item Dimensions (L × W × H)

6.37 × 2.60 × 1.42 in.

Item Weight

0.775 lbs.

Mounting Style

Surface / Wall Mount, Din-Rail Mount

Ports

7 USB Ports

Material of Construction

Galvanized Steel

Screw Lock Compatible

Yes

What's in the Box
Package Contents

2-Pin Terminal Block, DIN Rail Clip(s), Hub, Screw Lock USB-A to Screw Lock USB-B Cable, Screw Pack

Software
OS Support

Win 11, Linux, Mac OSX, Win 10, Win 7, Win 8

Environmental
Operating Temperature

0°C to 55°C (32°F to 131°F)

Storage Temperature

-20°C to 85°C (-4°F to 185°F)

Humidity

5% ~ 95% (non-condensing)

Product Information
Warranty

1 year from date of purchase

Hardware
Chipset

GL 3523

LED Indicators

Power

Downstream USB Ports

7 Type-A Female USB

Upstream USB Ports

1 Type-B Female USB

Performance & Safety
Max Data Transfer Rate

5Gbps

Surge Protection

350W

Other Data
USB Interface

USB 3.2 Gen 1

UPC

729440691479

Series

Weight

1.200 lbs

Dimensions

11.25 × 6.25 × 2.00 in

UPC: 729440691479
Hubs F.A.Q.

Product F.A.Q.

View frequently asked product questions below. Still need help? Reach out!

  • Can the hub be used without a power supply?
    In some cases, yes. USB peripherals that only require low power (i.e. keyboards & mice) can be used without a power adapter. Power in this case is drawn from the host’s USB port.

    When high-power USB peripherals are used, a power supply for the USB hub may be required. In other cases, the USB peripheral may require their own power adapters, in this case, a power supply for the hub may not be required. Without ample power though, the USB hub or connected peripherals may not operate correctly. It is recommended to use an included power supply when possible.

  • After waking up from sleep mode, my computer/host no longer recognizes my USB device.
    If the USB device does not function properly after your computer or host has been in sleep mode, it is likely that Windows turned off the USB Root hub in order to save power.

    To prevent this, follow the steps below (depending on your operating system).

    Windows 10 / 8

    1. On your keyboard, press the Windows key + X and select Control Panel.
    2. Click Hardware and Sound, then click Power Options.
    3. Click Change plan settings for the plan you want to change.
    4. Click Change advanced power settings.
    5. Click the plus sign (+) next to “USB settings” and “USB selective suspend setting” to expand the options and change the setting to Disabled.
    6. Click OK to apply the setting.

    Note: You may need to disconnect and re-connect your USB device after applying these settings.

    Windows 7 / Vista

    1. Click the Start button and select Control Panel.
    2. Click Hardware and Sound, then click Power Options.
    3. Click Change plan settings for the plan you want to change.
    4. Click Change advanced power settings.
    5. Click the plus sign (+) next to “USB settings” and “USB selective suspend setting” to expand the options and change the setting to Disabled.
    6. Click OK to apply the setting.

    Note: You may need to disconnect and re-connect your USB device after applying these settings.

    Windows XP

    1. On your desktop, right-click the My Computer icon and select Properties.
    2. Click the Device Manager tab.
    3. Expand Universal Serial Bus controllers by clicking the arrow to the left of it.
    4. Right-click the first USB Root Hub device and select Properties.
    5. Click the Power Management tab.
    6. Clear the box next to Allow the computer to turn off this device to save power.
    7. Click OK to apply the setting.
    8. Repeat steps 4-7 for any remaining devices in the Universal Serial Bus Controllers section with “Root Hub” in the name.

    Note: You may need to disconnect and re-connect your USB device after applying these settings.

  • The hub is properly hooked up, but is not functioning correctly. What can I do?
    Testing all setup components is the best place to begin troubleshooting. To determine the source of the issue, individually test your:

    • USB Cable by using it in another setup, or trying another cable.
    • Host USB Port by connecting another device or thumb drive.
    • Connected Peripherals by connecting directly to the host.

    Moving on to troubleshooting the hub itself. Attach a USB peripheral. The USB hub itself will not appear in hardware listings on your host’s system. USB devices connected however, will appear when connected. If the connected device is still not being found, try:

    • Installing the required drivers for the USB peripheral.
    • Install the most recent drivers for the USB controller and/or motherboard chipset.

    USB hubs do not require drivers or software.

    Troubleshooting the desired USB peripheral may be in order. If the peripheral is still not being recognized, attempt:

    • Attaching external power to the peripheral, if required.
    • Confirming if the peripheral functions on a standard USB port.
    • Testing if basic USB peripherals work, such as keyboards or mice.
  • How can external power be connected to the industrial USB hub?

    External power is supplied by connecting to the terminal block located on the hub. For when an external power adapter is required check out the Accessories & Replacement Parts section on this product page. To view all of our hub accessories and power supplies, visit the category here.

    To determine the power requirements, the equation to use is P = 5 * I * N, where:

    P is the power wattage.

    is the USB port voltage.

    I is the current of the USB port in Amps (USB 2.0 is 0.5A, USB 3.0 is 0.9A.

    N is the number of USB ports.



    As an example using the equation, a 4 port hub would reflect a minimum wattage of 18 watts.

    Knowing the minimum requirement, a proper power adapter can be chosen. In this case the voltage of a power supply should be within 7 to 24 or 7 to 40 Volts DC, depending on the specifications of the USB hub. Also, the power supply must convert AC to DC (no AC output).

    Power supplies often come with a voltage (V) rating and an amperage (A) rating. To determine the current in amps, use I = P / V, where the following is true:

    I is the current of the power supply.

    P is the calculated power of the hub.

    V is the chosen voltage of the power supply

    Continuing the example, the 4 port hub requires 18 W and the power supply you choose is 12V, the current of the power supply would be I = 18/12, I = 1.5A.



    Our full collection of power adapters can be found here.
