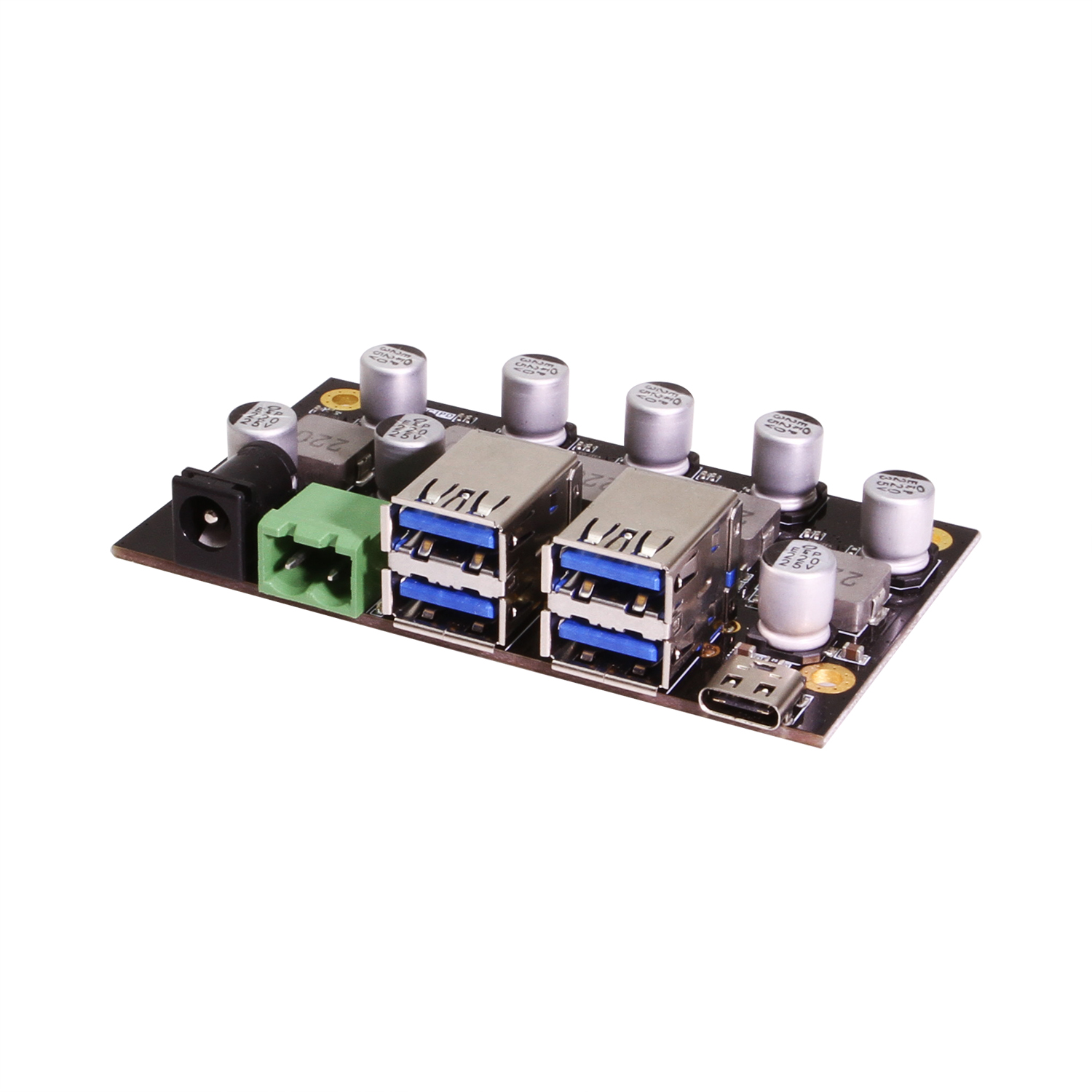

88 Watt USB 5 Port Charger 4 USB Type-A ports 3 Amps per port and 1 USB-C PD Port 12V at 2.3 Amps

5 Port USB Charger Features

• Compliant with Qualcomm QC2.0/3.0 Quick Charging specifications
• Provides four USB Type-A and one USB Type-C port
• USB Type-A ports can provide up to 3 Amps per port
• USB-C port supports BC 1.2, DCP, QC3.0, AFC, FCP, SCP, Samsung and Apple Fast Charge
• PD 2.0 Profiles:  5V/2.39A, 9V/2.39A, 12V/2.31A
• 4 Type-A 5V x 15 Watts = 60 watts + 1 USB Type-C PD 28 Watts = 88 Watts total Combined Power output
• Flat surface mountable
• Over Voltage Protection
• Under Voltage Protection
• Over Temperature Protection
• Support BC1.2, Apple, Samsung
• Support MTK PE+1.1 and MTK PE+2.0
• Support Huawei Fast charge: FCP and SCP
• Support Samsung fast charge: AFC
• Support Spreadtrum fast charge: SFCP
• Operating Temperature: 10 to 60°C
• Humidity: 5-90%
• Item Dimensions: 3.76 in(L) x 2.24 in(W) x 1.27 in(H)
• Recommended minimum power input of 12V
• 7~28V DC input

Package Contents

• 5 port charger board
• 2 pin phoenix connector

Additional Information

Product Documentation & Drivers

Need drawings, CAD files, or other compliance documentation? Click HERE
