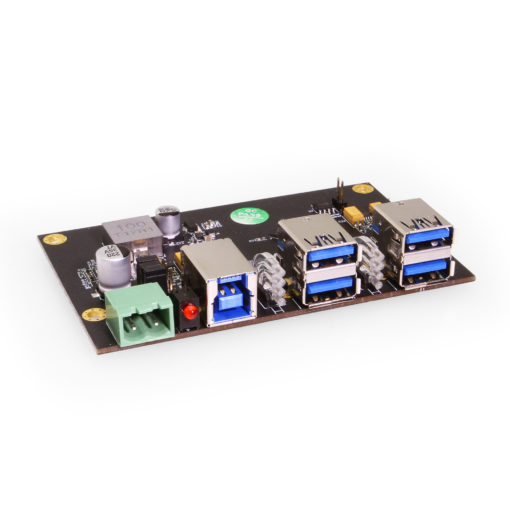

Coolgear Labs 4 Port USB 3.1 Gen1 Hub controller PCBA

Specifications:

• Supports Systems with USB 3.0, USB 2.0 or USB 1.1 Ports
• Provides 4 USB 3.1 Gen1 downstream ports which manage up to 5Gbps
• 4 Downstream Type-A ports support Super-speed, High-speed, Full-speed and Low-speed traffic
• 1 Upstream Type-B port for Super-speed, High-speed, Full-speed and Low-speed traffic
• Transfer rates supported 5Gbps, 480Mbps, 12Mbps, and 1.5Mbps speed
• Supports Self-powered Mode (DC power source required)
• DCP and CDP charging supported
• 5V @ 2A per port when self powered
• Supports up to 900mA USB Bus Power for Each Down-stream Port in standard charging mode
• Supports Downstream Port Status with LED including over current status
• Over voltage and over current protection

USB Devices:

•  Supports keyboard, mouse, monitor, cell phone, tablet, scanner, printer, camera, optical drive, memory sticks, external hard drive, joystick, VR headset, modem, PBX and many more.

OS Support:

• Windows 2000, 2003, CE, Vista, Windows 7, and Windows 8, 10
• Linux and Mac OS 10.x

I/O Hardware:

• Supports 4 external USB 3.0 Type-A connectors and 1 Type-B Upstream connector
• Supports 1 2-pin Phoenix connector Terminal Block for external power input.

Environmental Specifications:

• Operating Temp: 0 to 55°C (32 to 131°F)
• Operating Humidity: 5 to 95% RH

Chipset:

• GL3520

Power Specifications:

• 7~28V DC input

• 5V 2amp per port

Form Factor:

• 95.17 mm x 61.76 mm x 18.64 mm (LxWxH)

Package Contents

• CG-35204X3AB 4 port USB Hub board
• 2 pin Phoenix connector

*Power Supply not included; available as an optional accessory: Model# 12V7A2P-A
