Gigabit IEEE 802.3af/at PoE Injector (Variable Voltage)
Model No.
CG-POEiJVV

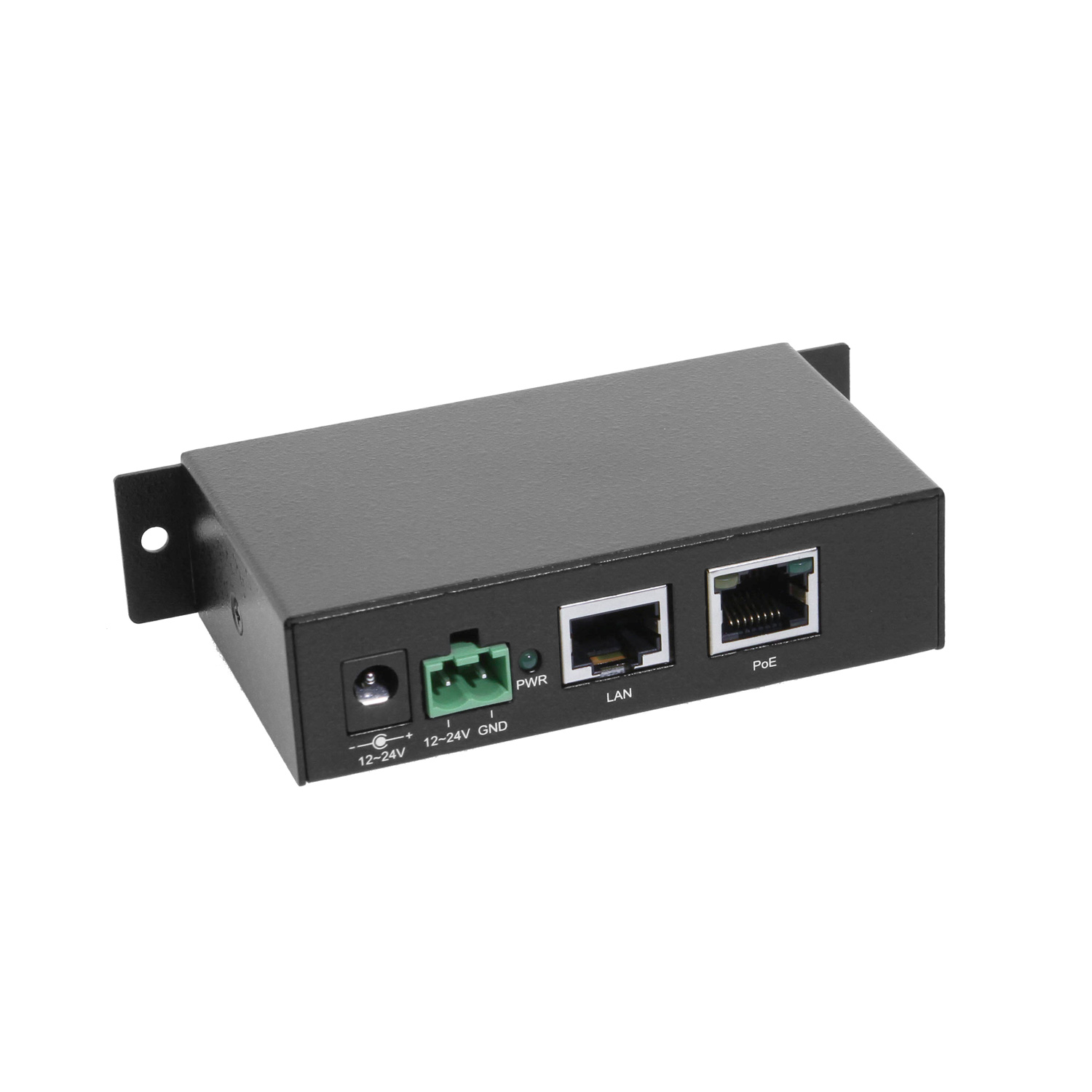

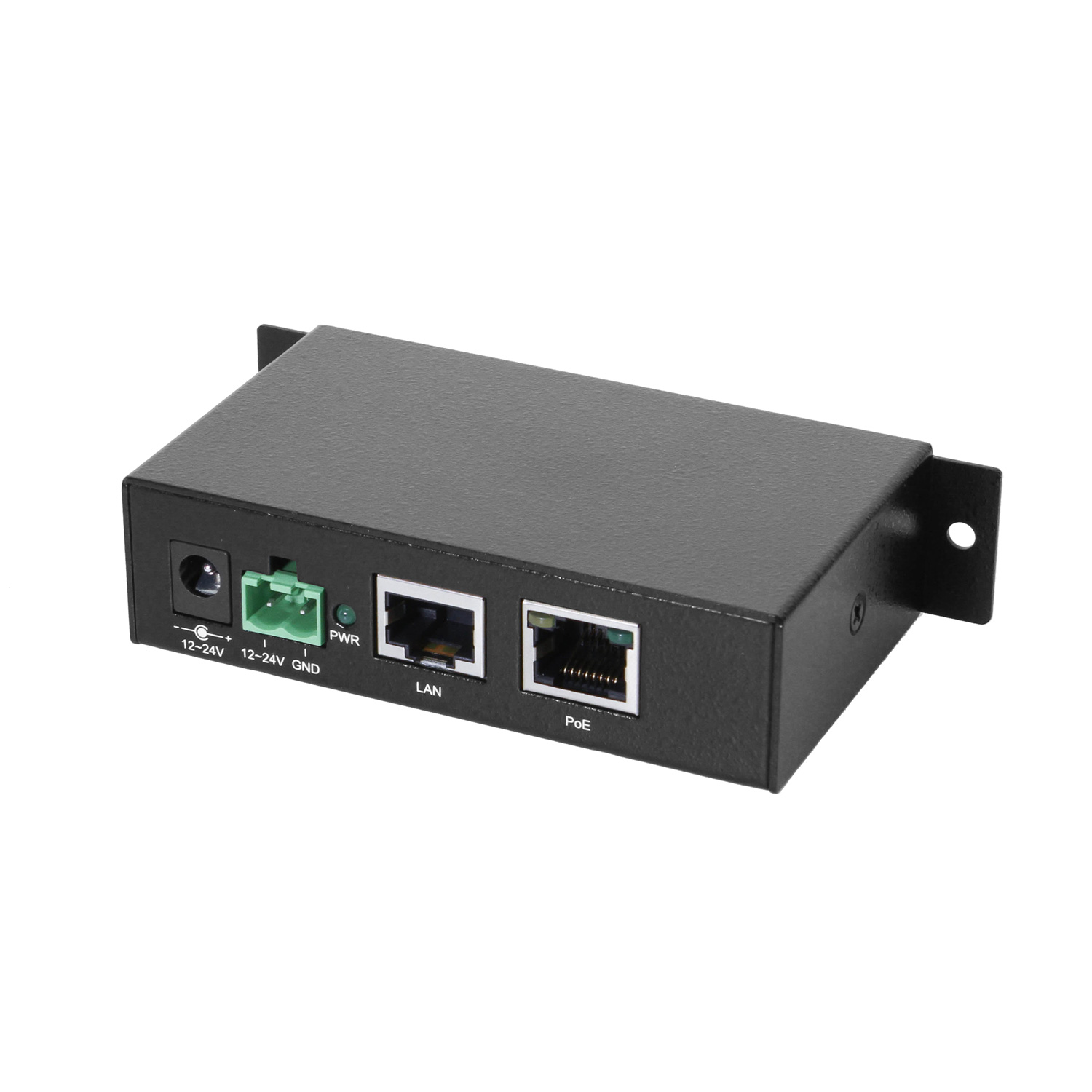

The CG-POEiJVV PoE power injector adds 52 VDC power to an Ethernet port so you can deliver power and data over a single Ethernet cable to your Ethernet device in the field.
Description
Introduction
The CG-POEiJVV PoE power injector adds 52 VDC power to an Ethernet port so you can deliver power and data over a single Ethernet cable to your Ethernet device in the field.
Features:
- Provides power to remote network devices
- Supports 10/100/1000 Base-T Ethernet standards
- Fully IEEE 802.3at compliant PoE (PSE) type 1 and 2 operation
- Maximum Power Delivered:
- Type 1: 15.40W
- Type 2: 34.20W
- A DC-Jack and a TB-2 for 12~24V DC power input
- Supports one PoE power enabled LED indicator
- One Ethernet Data and one PoE RJ45 connectors
- Built-in Boost converter for 52 VDC
- Built-in Isolated DC to DC converter
- Small Rugged Metal Housing for critical applications

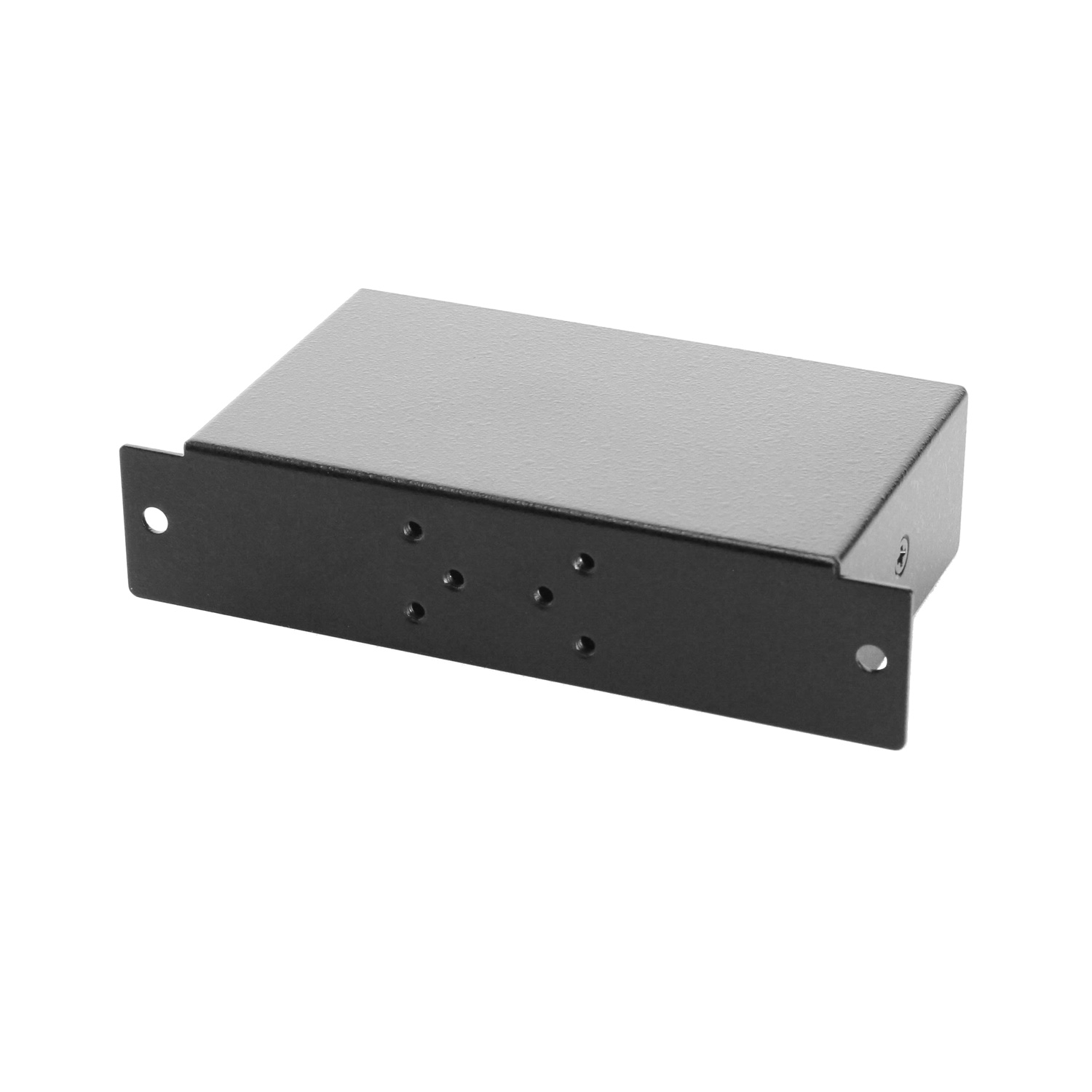

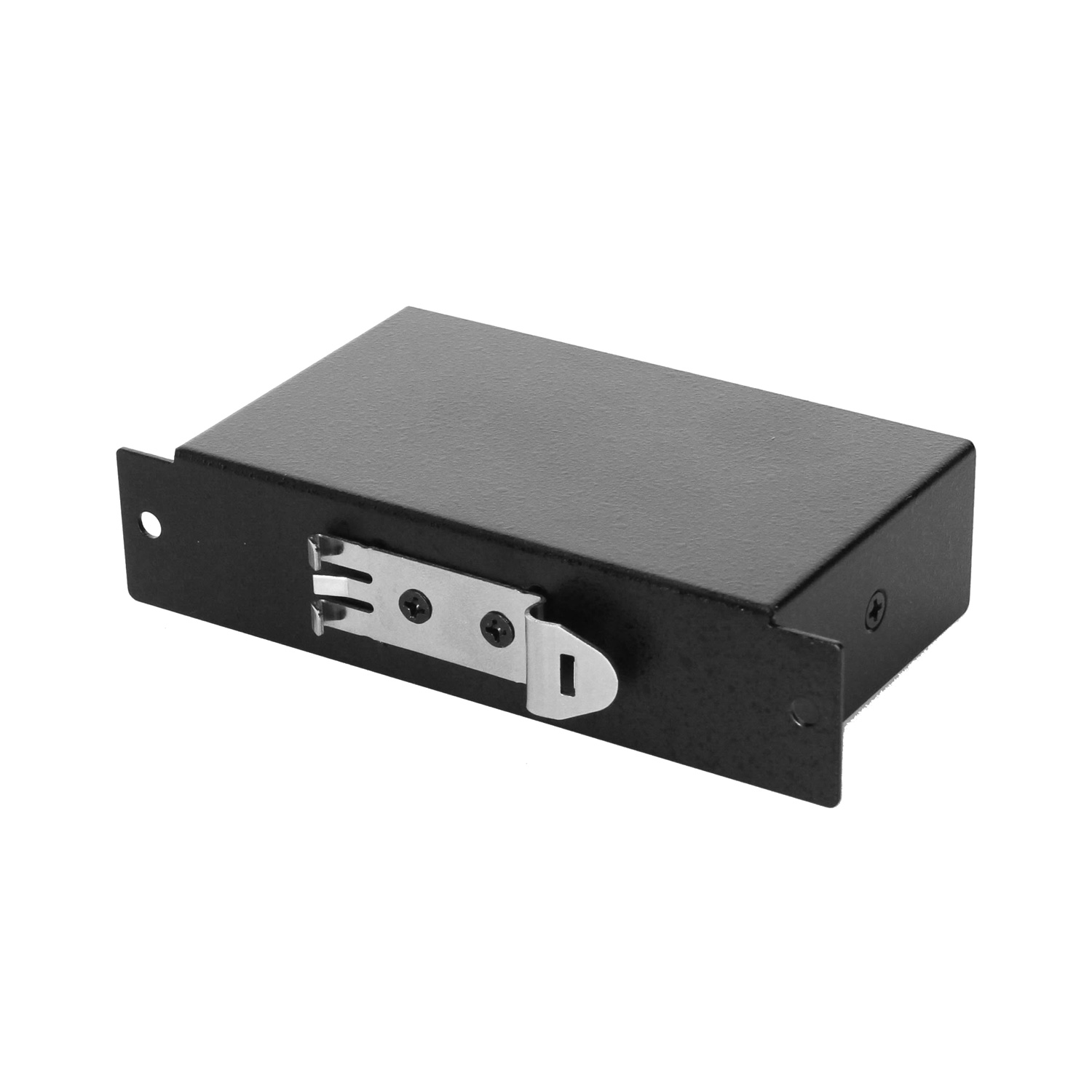

- Provides direct panel and DIN Rail mounting methods

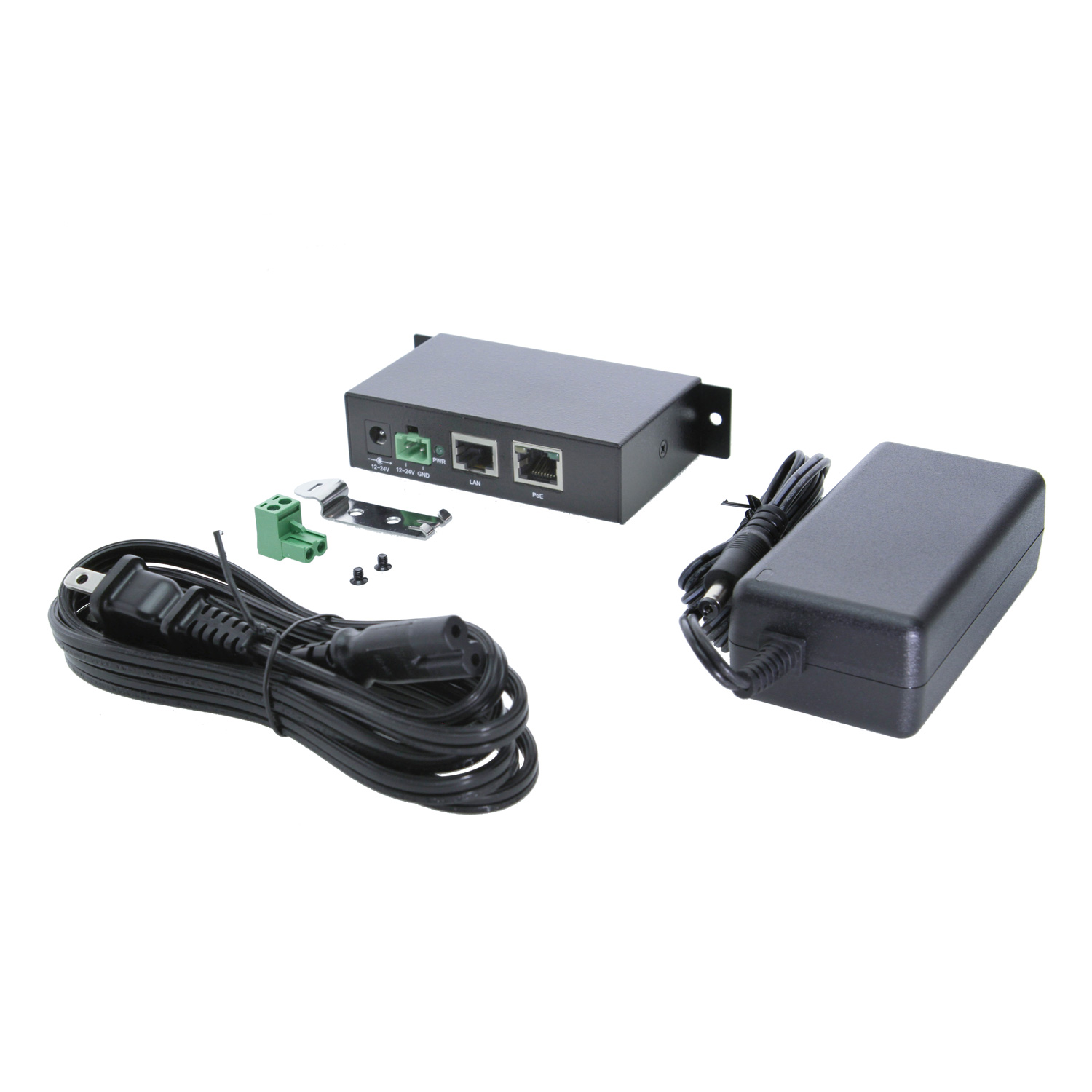

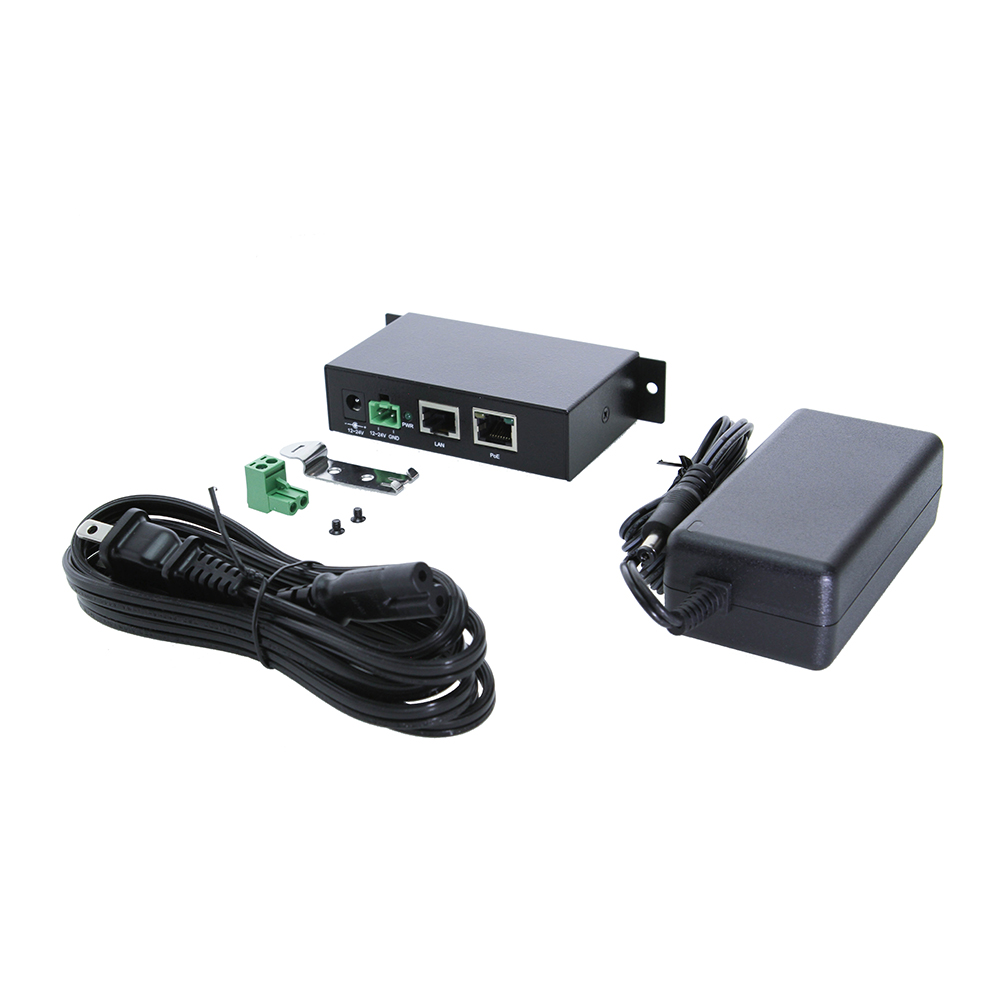

Package Contents
- PoE Power Injector
- Power Supply & Cable
- DIN-Rail Clip
- Screw Pack
Specifications
Product Specifications
| Power | Input Voltage Range: 12 ~ 24V DC Power Source: 2-Pin Terminal Block Per USB Port Current: 34.2W |
|---|---|
| Compliance | Country of Origin: Taiwan Certifications: IEEE 802.3 at, IEEE 802.3 af, CE, FCC, REACH, RoHS |
| Physical Characteristics | Color: Black Item Dimensions (L × W × H): 4.5 × 2.26 × 1.03 in. Mounting Style: Din-Rail Mount, Panel Mount Material of Construction: Steel Screw Lock Compatible: No |
| What's in the Box | Package Contents: 2-Pin Terminal Block, Power Supply |
| Software | OS Support / Compatibility: OS independent – No software or drivers required Managing Software Utilities?: N/A |
| Environmental | Operating Temperature Range: 0C ~ 55C Humidity: 5% to 95% RH |
| Product Information | Warranty: One Year |
| Hardware | LED Indicators: Port Status, Power Downstream USB Ports: RJ-45 |
| Network | Ethernet Compliance: IEEE 802.3 af |
| Additional Details | UPC: 736983901675 Weight: 1 lbs Dimensions: 9 × 6 × 3 in |
