50watt PoE to TYPE C PD Power Adapter, 802.3 BT Compliant

View Product Documentation, CADs, & Downloads

50watt PoE to TYPE C PD Power Adapter, 802.3 BT Compliant

Model No. CG-PoE-CESBT

Provide up to 50 Watts of power for Type0C PD devices such as tablets, laptops, and other high power USB-C PD devices
Supports intelligent variable power output depending on your Type-C PD device requirements
Data Speed: 10/100/1000Mbps
Input: 44-57Vdc IEEE802.3bt
Output: 5V/9V/12V/15V/20V (5V/3.4A, 9V/3A, 12V/3A, 15V/3A, 20V/2.5A)

$98.95

Bulk Pricing

Model No. CG-PoE-CESBT

In stock

Volume Pricing

Units	Discount	Price
1 - 9	—	$98.95
10 - 24	3 %	$95.98
25 - 49	5.5 %	$93.51
50 - 98	8.5 %	$90.54
99+	10.5 %	$88.56

Need some help? Contact us.

Product Documentation

CG-PoE-CESBT - Mechanical Drawing

Quick Links:

Description

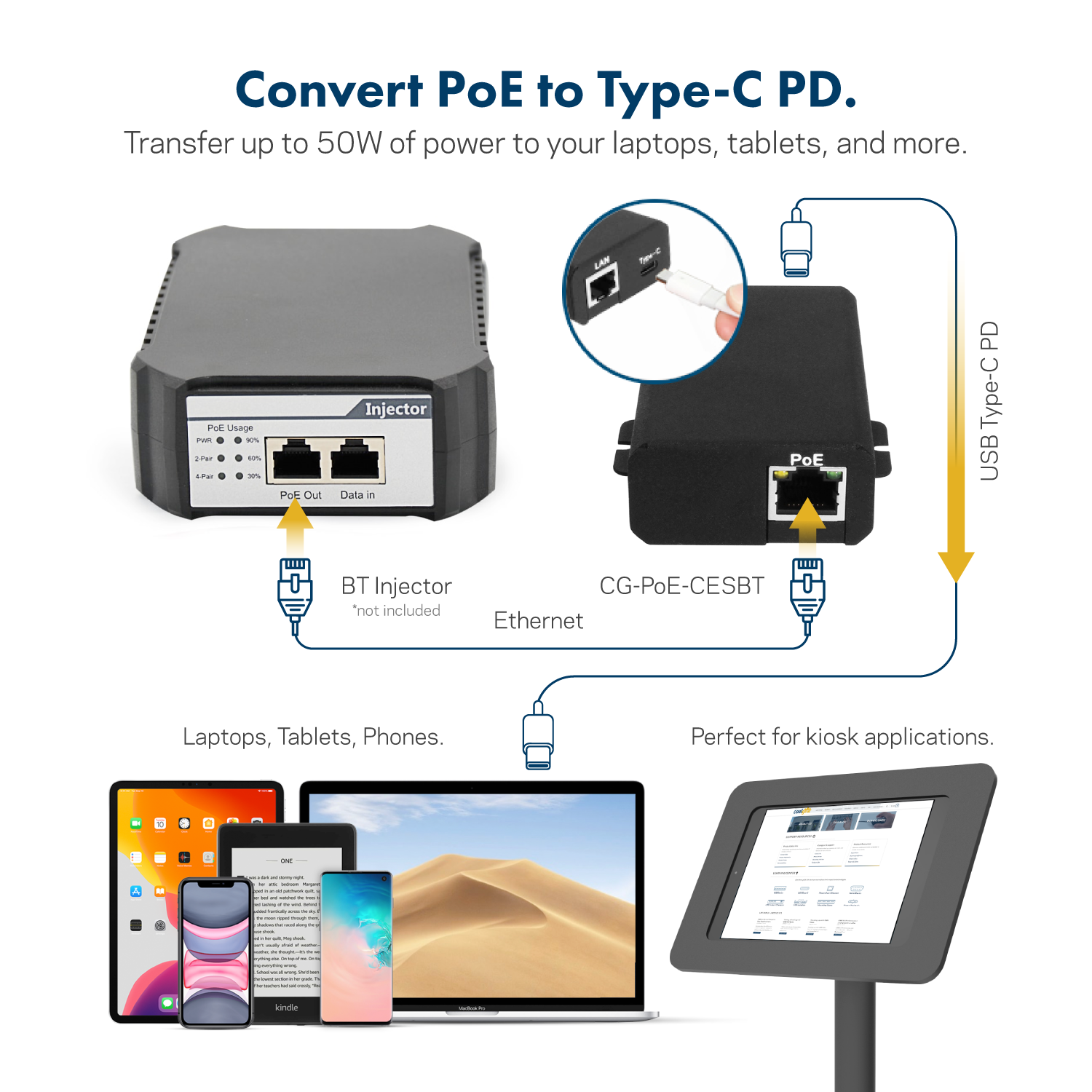

CG-POE-CESBT is an indoor PoE rated networking converter, designed to convert PoE to Type-C PD. Features 1 PoE port for 802.3bt standard input, 1 Type-C port for power output and 1 RJ45 port for data output. Data speed supported 10/100/1000 Mbps (Gigabit). The converter provides up to 50 watts of power for Type-C PD devices, supports intelligent variable power output depending on your Type-C PD device requirements. Designed with OVP, OCP, SCP, and works safely with tablets, cell phones and other common USB-C PD devices, such as Microsoft Surface, Apple IPad, Apple Macbook, Google Wifi (power only).

The CG-POE-CESBT is intended for indoor environments, designed to be powered from an IEEE802.3bt PoE switch or PoE injector (not included). Supports up to 100m distance from a PoE switch or injector to Type-C converter wired over Cat5/5e/6 cable. Enclosed in a compact, IP40 high-impact metal case, the CG-POE-CESBT is easy to pair with your devices.

IEEE802.3BT PoE to USB Type- C splitter

Data Speed: 10/100/1000Mbps
Input: 44-57Vdc IEEE802.3bt
Output: 5V/9V/12V/15V/20V (5V/3.4A, 9V/3A, 12V/3A, 15V/3A, 20V/2.5A)
Operating Temperature: 0°C to 40°C
**Poe Injector not included -Customer Supplied**

Specifications

Product Specifications

Power

Input Voltage	44V – 57V
Voltage Profiles	5V/3.4A, 9V/3A, 12V/3A, 15V/3A, 20V/2.5A

Physical Characteristics

Color	Black
Item Dimensions (L × W × H)	90mm x 64.22mm x 24mm (with flanges)
Item Weight	142g

Network

Ethernet Compliance

IEEE 802.3 bt

Other Data

UPC	045079162198
Weight	0.313056 lbs
Dimensions	3.54331 × 2.52835 × 0.94488 in

UPC: 045079162198

Reviews (1)

1 review for 50watt PoE to TYPE C PD Power Adapter, 802.3 BT Compliant

Rated 5 out of 5

David PAmazon – October 15, 2023

5.0 out of 5 stars

More pricey than identical units but it comes in days, not months. PERFECT for my EERO Pro6
I purchased an injector to power the central EERO 6 router for my mesh system. I recently relocated it for better Wi-Fi coverage and to allow me to spread signal across the house rather than keep it in a central location in my home.Doing so meant I lost the power management and battery backup/surge protection of my network closet. PoE was the best option to regain that security. EERO Pro 6 requires 30 watts of power, the injector can supply 50 and this PoE splitter can as well. My first go with a splitter turned out to be too weak for EERO Pro 6 so my router flashed a yellow LED and never came on.I switched to this splitter and have been running on it for 3 days without incident.There are a couple "from china" identical in appearance versions of this that were cheaper but would take a month or more to arrive that were better reviewed. I wanted to add to the reviews on this one that I am very happy with its performance for my needs. If you can’t wait this is the PoE splitter for you
