22watt PoE to TYPE C PD Power Adapter, 802.3 AT Compliant
Model No.
CG-PoE-CESAT

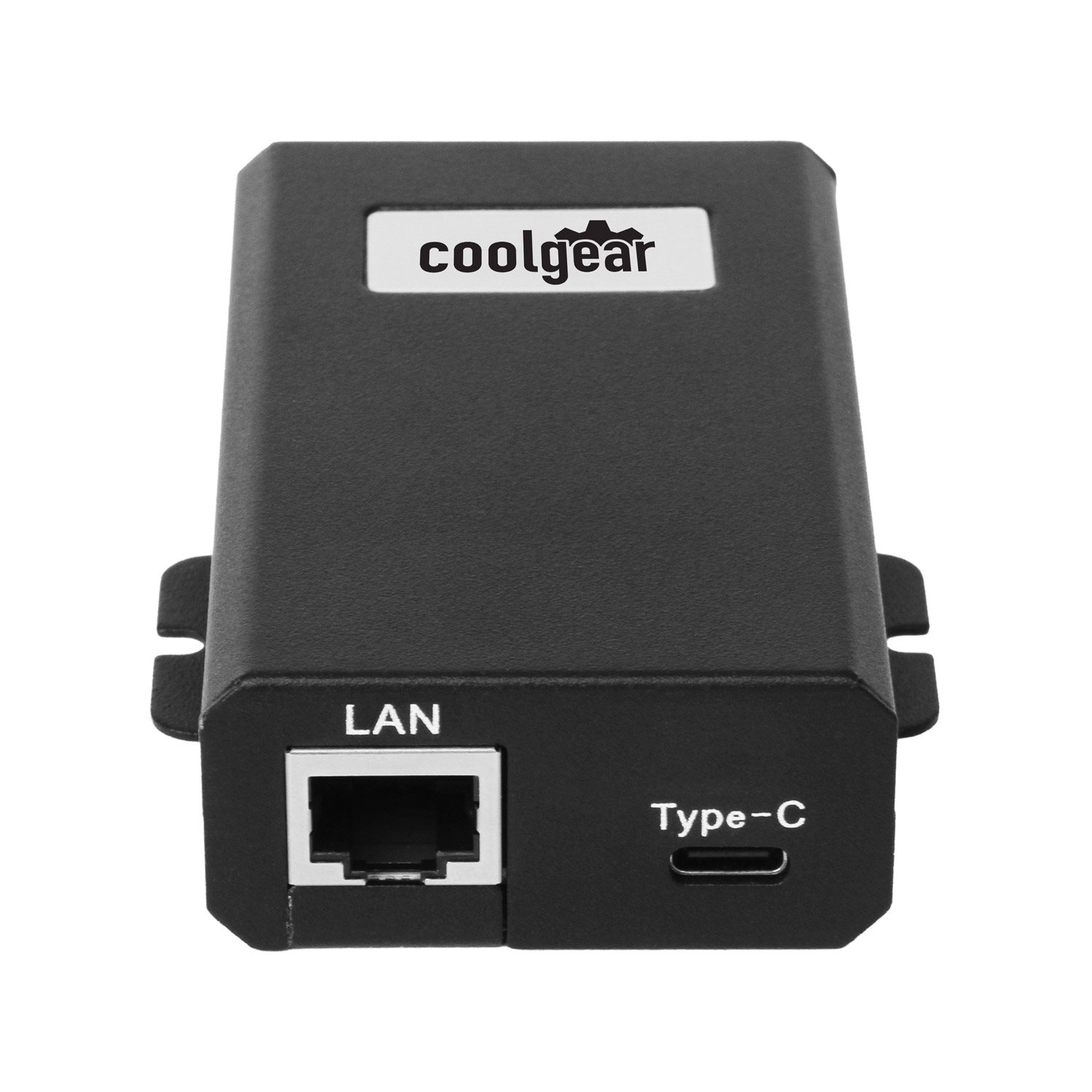

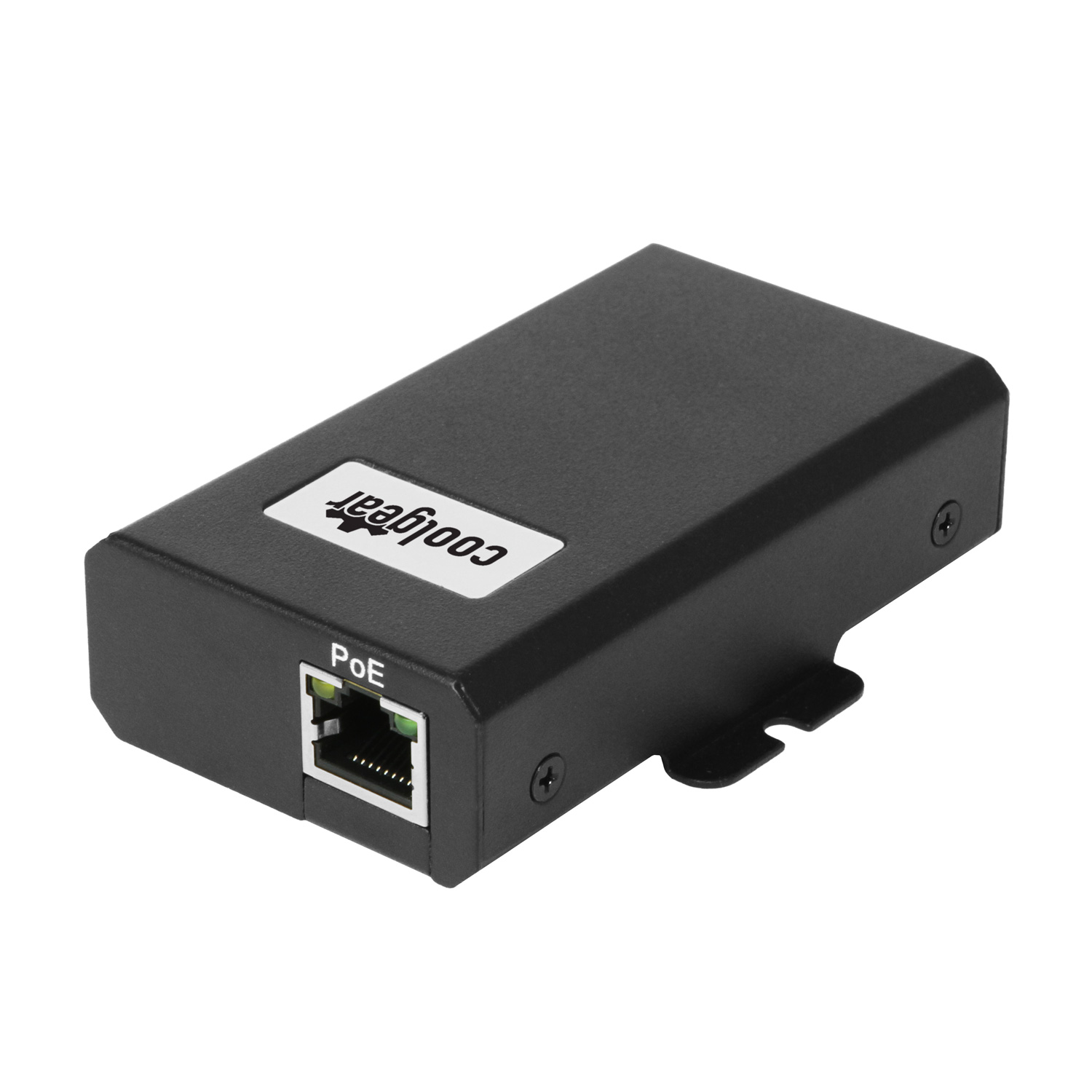

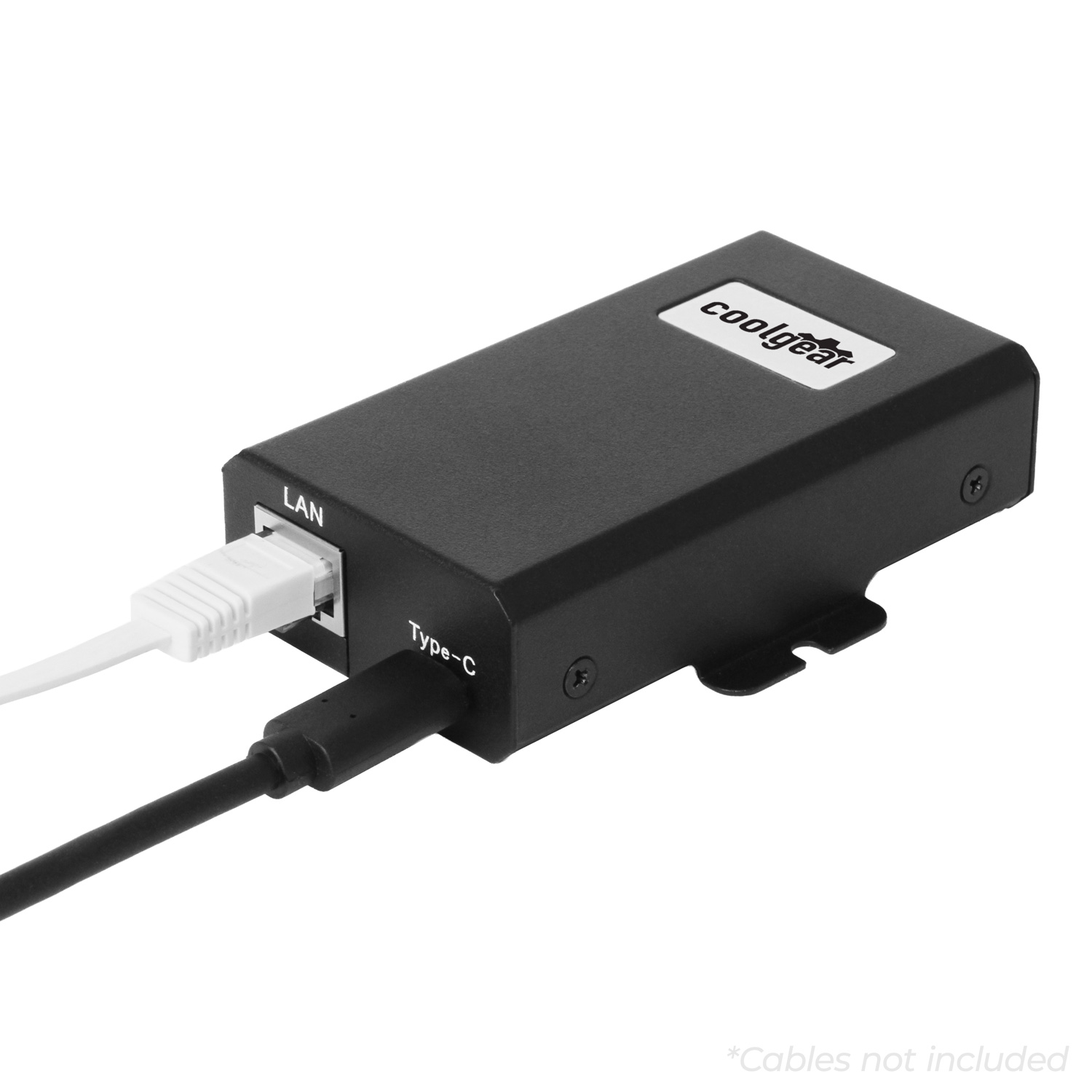

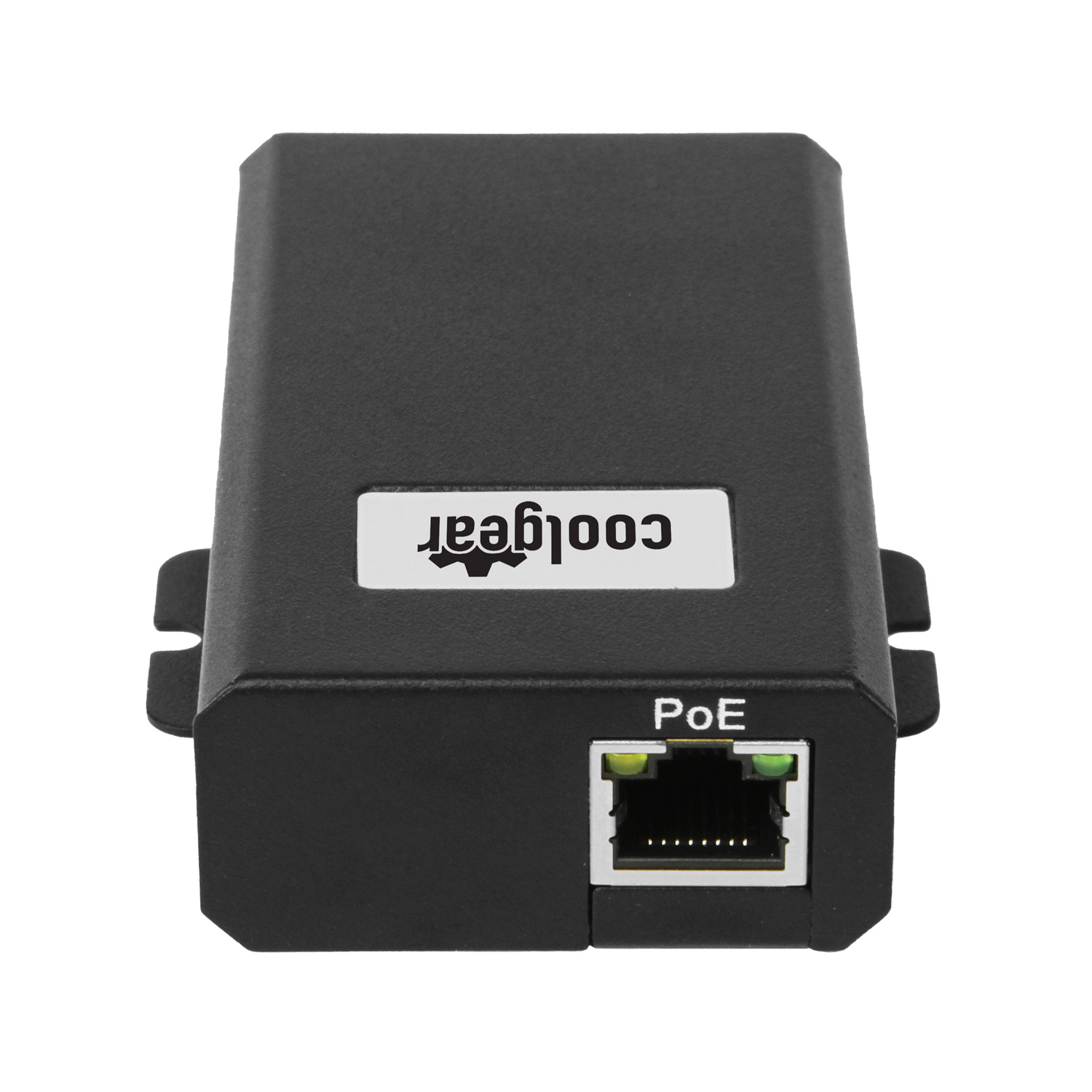

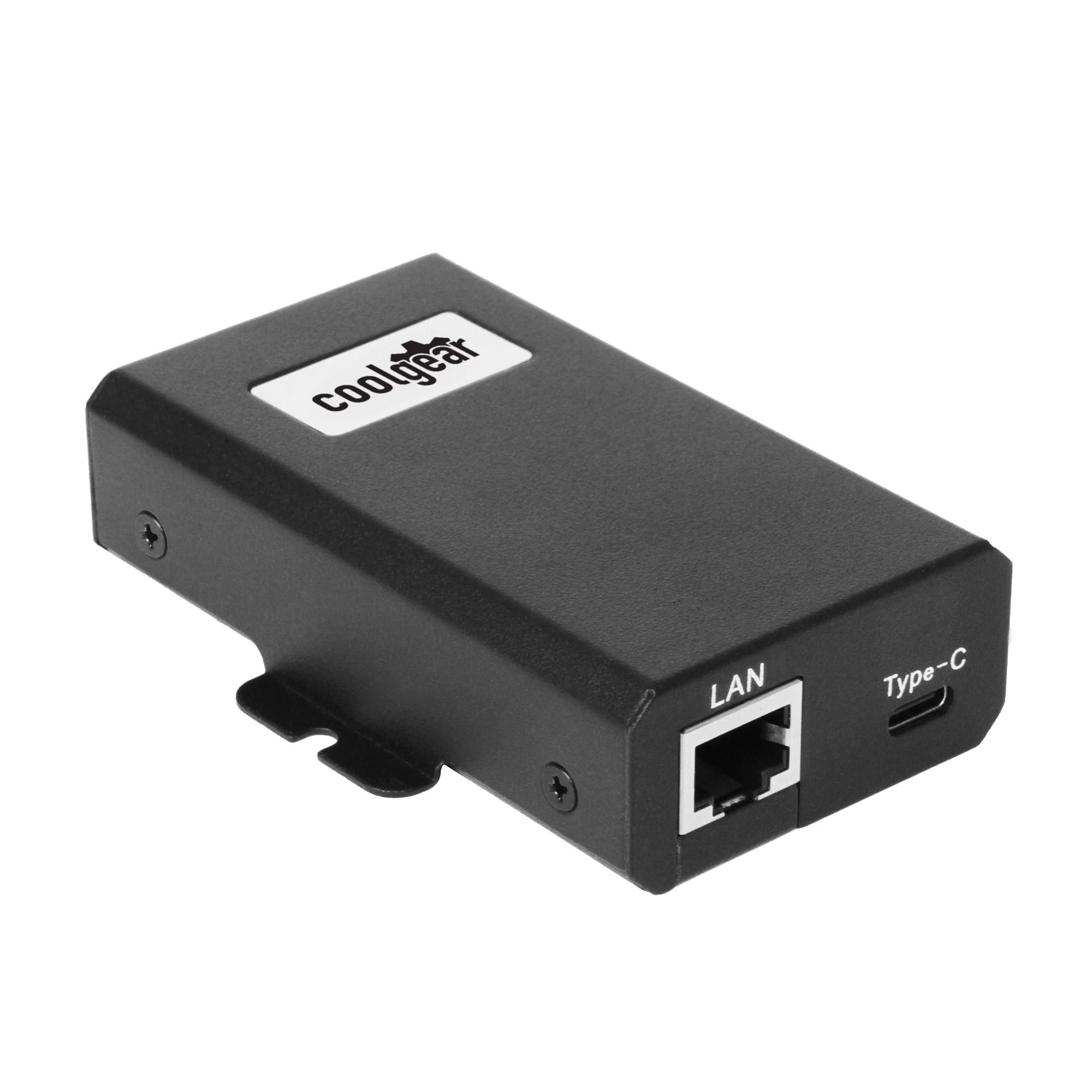

CG-POE-CESAT is an indoor PoE rated networking converter, designed to convert PoE to Type-C PD. Features 1 PoE port for 802.3at standard input, 1 Type-C port for power output and 1 RJ45 port for data output.
- Provide up to 22 Watts of power for Type-C PD devices such as tablets, cell phones, and other common USB-C PD devices
- Supports intelligent variable power output depending on your Type-C PD device requirements
- Data Speed: 10/100/1000Mbps
- Input :44-57Vdc IEEE802.3at
- Output: 5V/9V/12V/15V/20V (5V/2.39A, 9V/2.07A, 12V/1.51A, 15V/1.27A, 20.0V/1.11A)
Product Documentation
Quick Links:
Description
Introducing the CG-POE-CESAT PoE to USB-C PD Converter
Simplify your power and data management with the CG-POE-CESAT. Designed for indoor use, this compact PoE networking converter seamlessly converts Power over Ethernet (PoE) to Type-C Power Delivery (PD). Featuring support for IEEE 802.3at PoE input, it offers intelligent power output tailored to your devices, ensuring reliable operation for USB-C powered equipment like tablets, smartphones, and laptops.
Features 1 PoE port for 802.3at standard input, 1 Type-C port for power output and 1 RJ45 port for data output. Data speed supported 10/100/1000 Mbps (Gigabit). The converter provides up to 22 watts of power for Type-C PD devices, supports intelligent variable power output depending on your Type-C PD device requirements. Designed with OVP, OCP, SCP, and works safely with tablets, cell phones and other common USB-C PD devices, such as Microsoft Surface, Apple IPad, Apple Macbook, Google Wifi (power only).

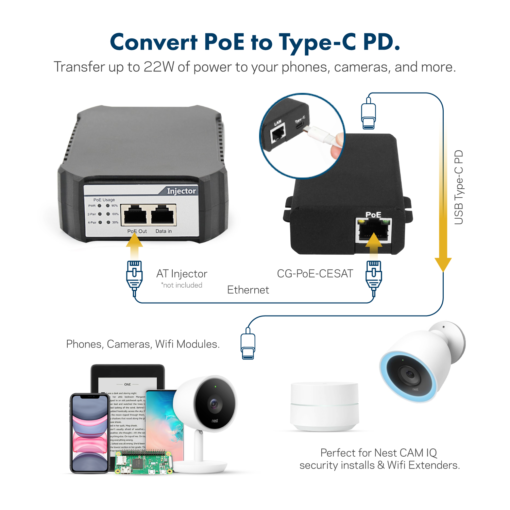

The CG-POE-CESAT is intended for indoor environments, designed to be powered from an IEEE802.3at PoE switch or PoE injector (not included). Supports up to 100m distance from a PoE switch or injector to Type-C converter wired over Cat5/5e/6 cable. Enclosed in a compact, IP40 high-impact metal case, the CG-POE-CESAT is easy to pair with your devices.
Key Features and Benefits
- PoE to USB-C PD Conversion: Converts PoE input into USB-C Power Delivery, making it ideal for powering a range of USB-C devices, including Microsoft Surface, Apple iPad, and MacBook.
- Gigabit Data Transmission: Supports data speeds of 10/100/1000 Mbps for reliable and high-speed networking.
- Intelligent Power Output: Delivers up to 22W with variable power levels (5V, 9V, 12V, 15V, 20V) to match your device’s needs.
- Comprehensive Protection: Equipped with Over Voltage Protection (OVP), Over Current Protection (OCP), and Short Circuit Protection (SCP) for safe and stable operation.
- Compact and Durable Design: Housed in an IP40-rated metal enclosure, ensuring longevity and impact resistance for indoor environments.
- Extended Distance Support: Operates effectively up to 100 meters from a PoE switch or injector via Cat5/5e/6 cabling.
Package Contents
- CG-POE-CESAT PoE to USB-C Converter
- User Manual
Use Cases
Use Cases:
Smart Offices and Remote Workspaces
- Power and Connectivity Solutions: Power laptops, tablets, or phones through USB-C using PoE infrastructure.
- Seamless Data Transfer: Use in offices or coworking spaces for connecting USB-C laptops while delivering Gigabit Ethernet access.
Retail and Commercial Spaces
- Kiosk and POS Systems: Provide power to tablets or digital signage through existing PoE networks, eliminating the need for additional power adapters.
Home Automation and Networking
- Smart Home Devices: Power Google Wi-Fi hubs and other smart home accessories with the converter’s USB-C port.
- Optimized Cable Management: Reduce clutter by powering devices through a single Cat5/6 Ethernet cable.
Smart Home and Security Systems
- NEST CAM IQ Installation: Deliver reliable PoE-to-Type-C power for continuous camera operation without bulky adapters.
Specifications
Product Specifications
| Power | Input Voltage Range: 44 ~ 57V DC Per USB Port Current: Up to 22W with variable power levels (5V, 9V, 12V, 15V, 20V) Charging Specifications: 5V/2.39A, 9V/2.07A, 12V/1.51A, 15V/1.27A, 20.0V/1.11A |
|---|---|
| Compliance | Country of Origin: China Certifications: IEEE 802.3 at |
| Physical Characteristics | Color: Black Item Dimensions (L × W × H): 90mm x 64.22mm x 24mm (with flanges) Item Weight (Oz.): 142g Material of Construction: Steel Screw Lock Compatible: No |
| What's in the Box | Package Contents: Adapter, User Manual |
| Software | OS Support / Compatibility: OS independent – No software or drivers required Managing Software Utilities?: N/A |
| Environmental | Operating Temperature Range: 10C ~ 60C |
| Product Information | Warranty: One Year |
| Hardware | Downstream USB Ports: RJ-45 |
| Network | Ethernet Compliance: IEEE 802.3 at |
| Additional Details | UPC: 045079162181 USB Specification: Charging Only Power Delivery Support: Yes Weight: 0.3100 lbs Dimensions: 3.54 × 2.53 × 0.94 in |
