Mini PCIe 2-Port Card RS422-485 DB9 Male Connectors

Mini PCIe Serial Card

Jumper configurable Mini PCIe card for RS422 and RS485 serial applications. High speed PCI Express Bus based and Plug-and-play compliant supports 9-bit Data Framing as well as 5,6,7 and 8bits.

  • Fully compliant with PCI Express Base specifications, revision 1.1
  • Full x1 Mini PCI Express Throughput, 250Mbytes/sec
  • Supports RS485 Auto Transceiver Turn Around by Unique Featured ATTA™ Hardware
  • Supports 4-wire RS422/485 and 2-wire RS485 modes
  • Supports 2 DB9-male connectors over plat cables

$76.95

In stock

View Volume Pricing

Units Price
1 - 4 $76.95
5 - 11 $74.64
12 - 24 $73.10
25 - 49 $71.56
50+ $69.26

Model No. CG-2PRT4MPC

Quick Links:

Description

2-Port Mini PCIe Card for Serial Connection

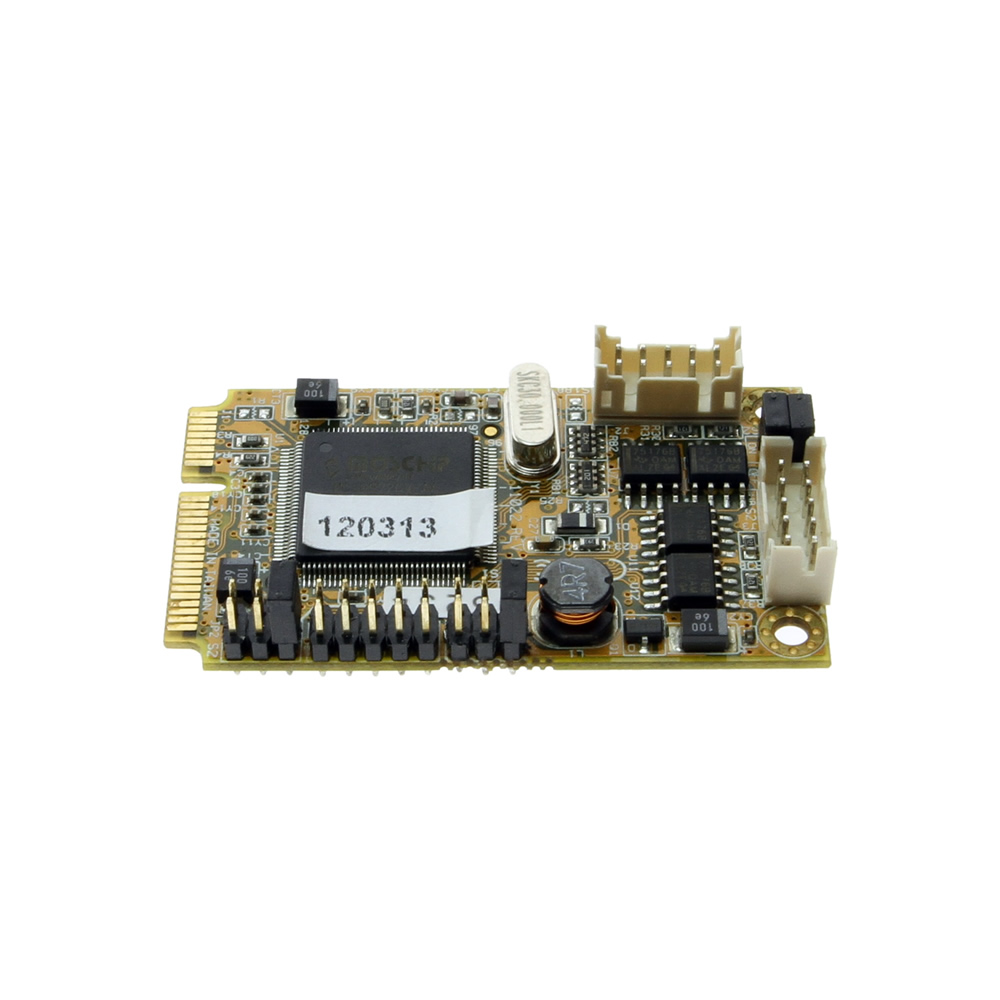

The CG-2PRT4MPC is a high performance Mini PCIe (PCI Express) card for RS422 and RS485 serial configurations. The card is high-speed PCI Express bus based and plug-and-play compliant.

Both the serial ports are enhanced (256-byte deep FIFO) are jumper configurable for RS422, 4-wire RS485 and 2-wire RS485 modes.

Mini PCIe card Features

  • Full x1 Mini PCI Express Throughput, 250Mbytes/sec
  • Fully compliant with PCI Express Base specifications, revision 1.1
  • Supports RS485 Auto Transceiver Turn Around by Unique Featured ATTA™ Hardware

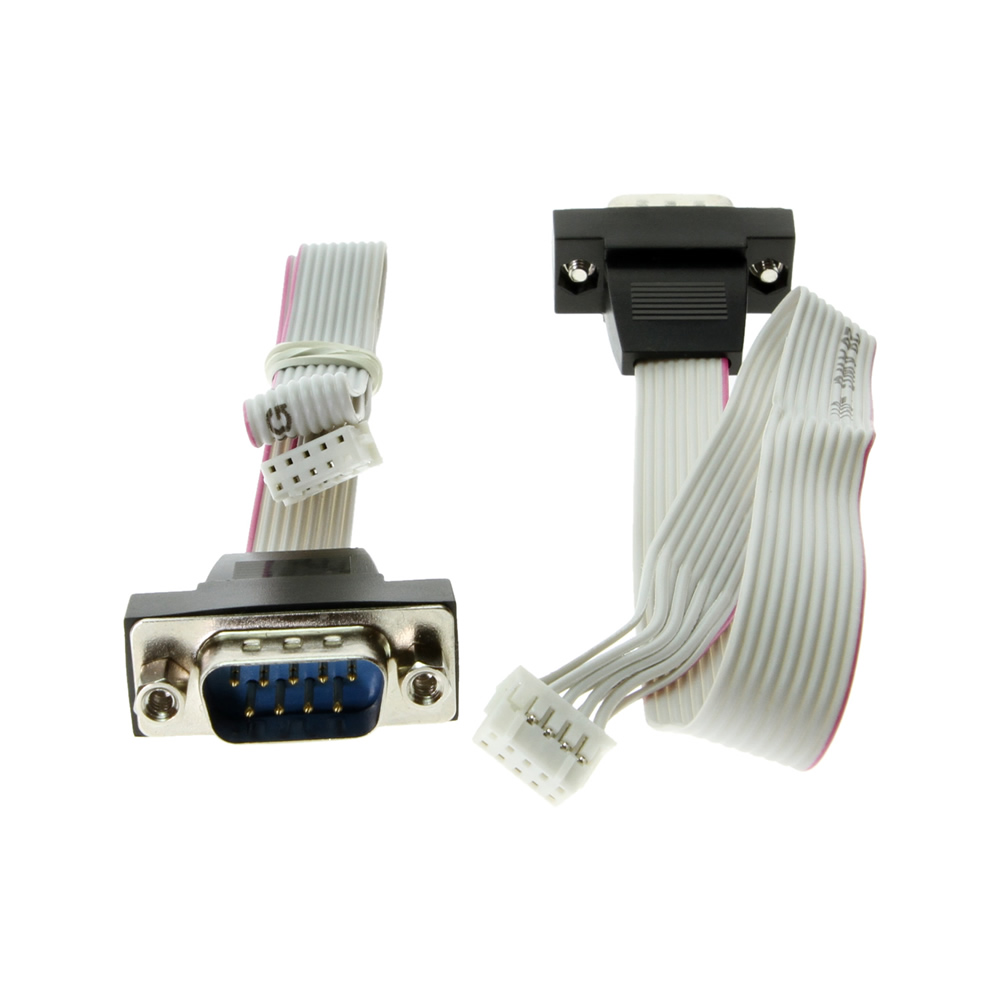

  • Supports 2 DB9-male connectors over plat cables
  • Supports 4-wire RS422/485 and 2-wire RS485 modes
  • Supports RS422/485 Speed up to 921.6Kpbs
  • 9-bit Data Framing, as well as 5,6,7 and 8bits

OS Support:

  • Windows 10, 8, 7, Vista, 2008, 2003, Win2000, and Linux
  • Linux and Mac OS 10.X

Package Contents

  • 1x Mini PCIe Card
  • 2x DB9 male connectors
  • Installation Guide
Specifications

Product Specifications

Identifier
UPC

045079157736

Mechanical
Ports

2 Serial Ports

Serial Attributes
Serial Standards

RS422/RS485

Software
OS Support

Win-2000, Linux, Mac OSX, Win 10, Win 7, Win 8, Win Vista, Win XP

Other Data
Connector

DB9 Male

Weight

0.325 lbs

Dimensions

9.00 × 6.250 × 1.750 in

UPC: 045079157736
