8 Port USB Charging Station, 4 Type C PD 60w ports and 4 Type A 15w Ports 240W

Charge OLD and NEW USB Devices at the same time, with Type C and Legacy type A ports all in one charger.

Coolgear’s CG-4P240WUC is a Coolgear designed and manufactured High power charging station. Each USB Type-C port has an output of 60W supporting USB-PD applications. It’s wide range of USB power delivery voltages are from 5V to 20V. The USB-C ports voltages are 5/9/12/15/20 and its Type-A ports are QC 3.0 with 15W per port.

Power delivery levels of the High Power 240W USB Type-C charger station include 10/15/27/36/45/60W. We have designed the Type-C USB PD charging station with high charging demands in mind, this makes it an EXCELLENT choice for USB-C device charging support!

Applications:

• Mobile multi port device charging using USB Type-C Power Delivery.
• Laptop charging carts, cases and systems.
• HP,Dell,Asus, Apple MacBook or Chromebook charging stations.
• Retail displays for the latest USB type C devices.

Features:

• Works with ALL USB PD Device as well as Legacy Type A devices.
• 4x Downstream USB Type-C Power Delivery ports supporting up to 60W per port.
• 4x Downstream USB Type-A Legacy Port with QC 3.0/AppleFast Charge supporting up to 15W per port.
• Can charge 4 Apple MacBook’s, Chromebook’s or other USB Type-C PD power hungry products.
• Supports all USB-PD Power Delivery voltages from 5V to 20V. (5/9/12/15/20) on type C ports and up to 15 Watt per port on type A ports.
• Supports all USB Power Delivery power levels: 10/15/27/36/45/60W.
• Backwards compatible with all USB standards BC 1.2 and Apple Fast Charge as well as QC3.0.
• Supports USB-PD, SDP, CDP, DCP, BC1.x, SE1, Apple, Samsung, ACA-x, YD/T-1591, RIM etc.
• Product Dimensions: 197.55mm(L) x 66.56mm(W) x 39.72mm(H)

Product Safety:

• UL Listed Power Supply
• CE Tested and marked power supply.
• FCC Part 15 Tested and marked power supply.
• RoHS Compliant power supply.
• Over-voltage protection
• Over-current protection
• Over-temperature protection inside a Steel fireproof enclosure.

Environmental & Operation Ratings:

• Operating Temperature: 0 to 55 Degrees Celsius.
• Relative humidity: 5% to 95% non-condensing
• PSU AC Input: 100-240V / 3A Max / 47-63Hz.
• DC Input: 24V / 10.5A
• Variable DC Output as per USB Power Delivery Specification: 5 – 20V at up to 3A per USB port.

Package Contents:

• PD-Power Station 240W 4X60W Type-C

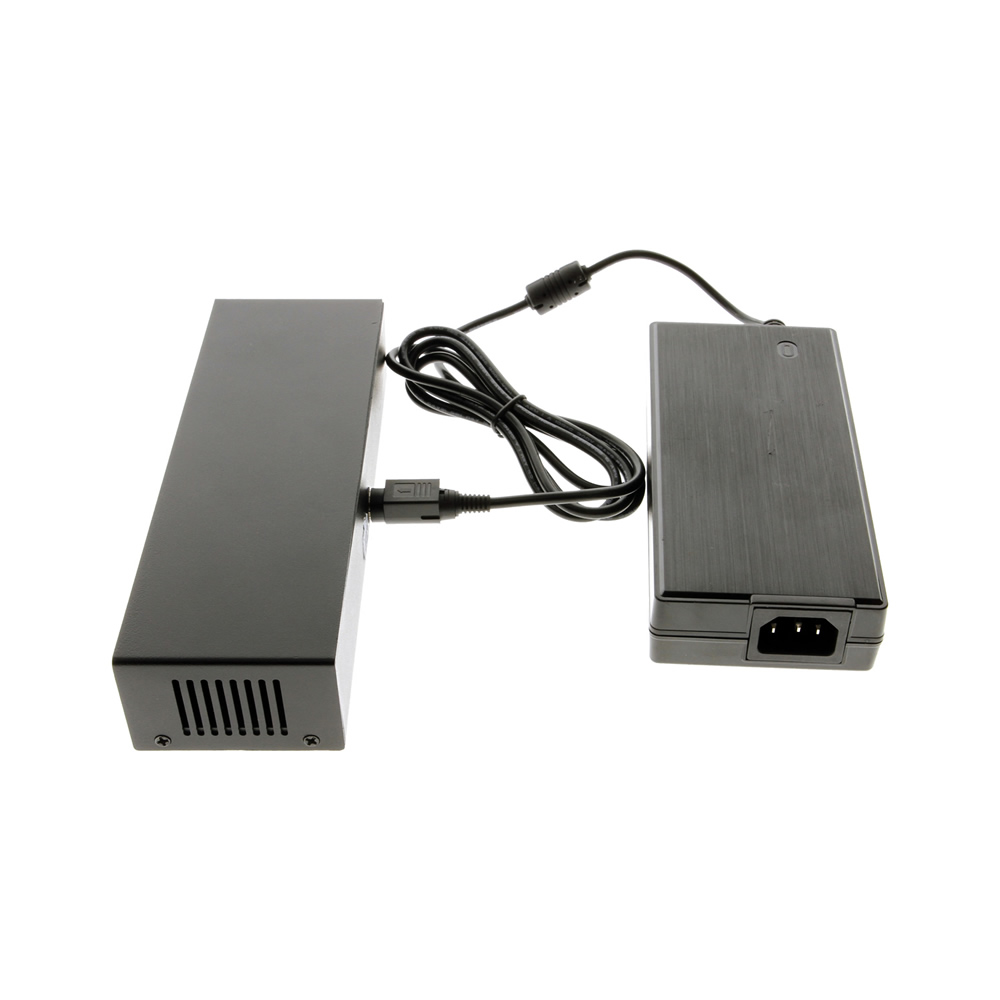

• 250W 24V Power adapter
• User Guide

*Surface Mounting screws not included.

Product Specifications

Product Documentation & Drivers

Need drawings, CAD files, or other compliance documentation? Click HERE
