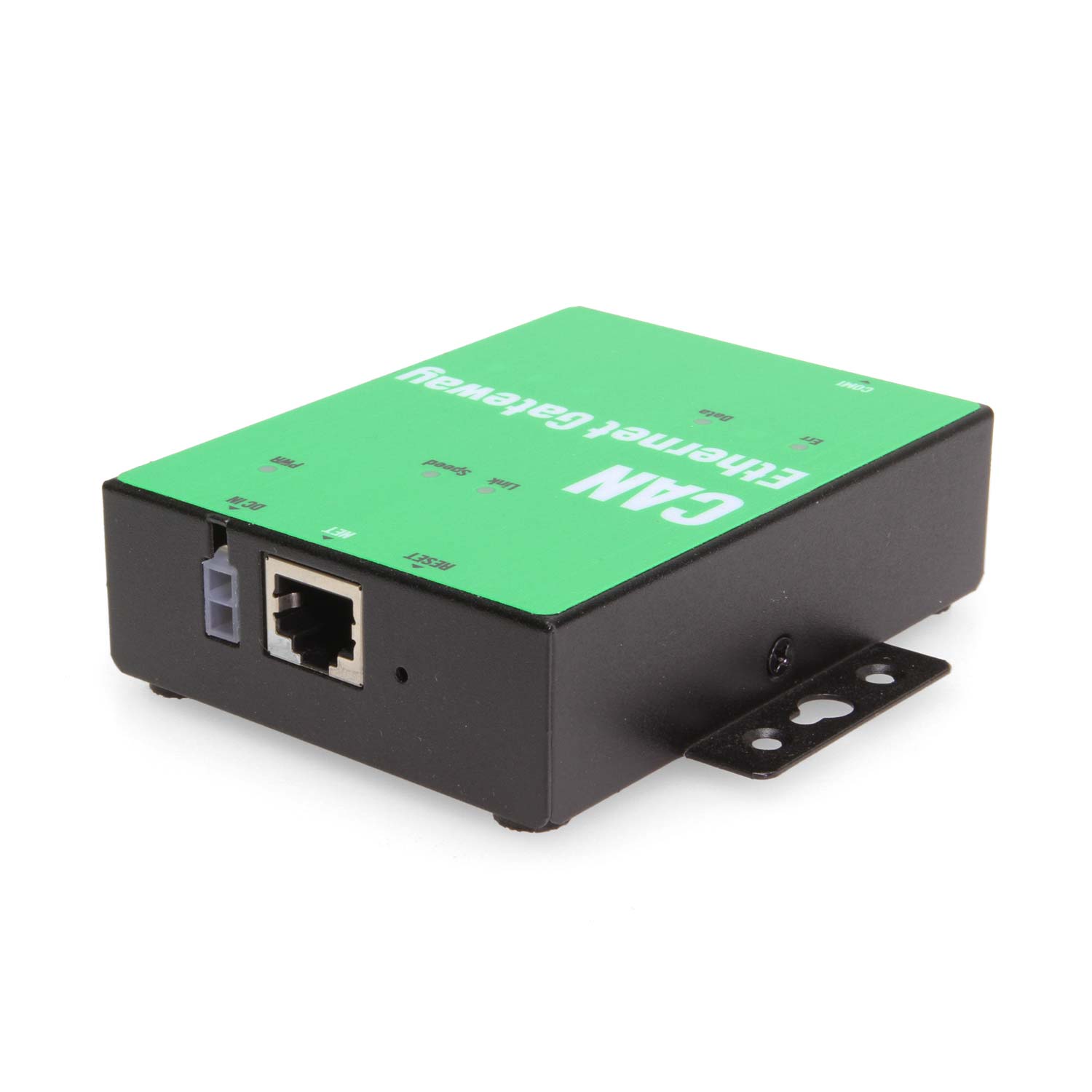

1 Port Ethernet to CAN Bus Adapter w/ 16kV ESD Surge Protection
Model No.
NCAN-1
The NCAN-1 is designed to make a fast, simple way to communicate with CAN bus devices. The NCAN-1 adds one industrial CAN bus channel to your host system with a transparent virtual serial port without limitations on operating systems and distances.
- Adds one virtual CAN port via network connection
- Supports network protocols such as TCP and UDP client/server
- CAN bus speed up to 1Mbits
- Provides DC +5V 100mA power for external devices
Product Documentation
Drivers & Software Downloads
Quick Links:
Description
Introduction
Simplify your connection to Controller Area Network (CAN) bus devices with the NCAN-1 Ethernet to CAN Bus Adapter. Designed for use in industrial and automotive environments, this adapter allows your host system to communicate with CAN bus devices over a network, using a transparent virtual serial port. With advanced support for multiple operating modes and protocols, the NCAN-1 offers flexibility and control for remote device management and data transmission across TCP/IP and UDP/IP networks.
NCAN supports several operation modes, including Driver mode, RFC2217 Server/Client mode, Pair Connection mode, TCP Server/Client mode and UDP mode. It also supports Windows virtual serial port driver, allowing you to add virtual serial ports in your Windows system to work over a TCP/IP network. The virtual serial port functions as a native Windows COM port and is compatible with Windows serial communication applications. It is installed in the Device Manager of the operating system.
Serial port operation mode can be easily changed in NCAN via software. This can be done using our Windows utility software or the web console interface.
NCAN CAN to Ethernet Gateway supports automatic IP configuration protocol (DHCP) and fixed static IP configuration via the handy web browser console. NCAN provides a utility software for Windows, called NCOM Virtual Serial Port Manager. This program can detect, manage and configure CAN to Ethernet Gateway in your network.
Key Features and Benefits
- Flexible CAN Connectivity: Adds a virtual CAN bus port to your system through a network connection, compatible with CAN 2.0A and CAN 2.0B standards.
- High-Speed Data Transmission: Supports CAN bus speeds up to 1Mbits, enabling fast and reliable communication between devices.
- Multiple Operating Modes: Includes Driver mode, RFC2217 Server/Client mode, TCP Server/Client mode, and UDP mode for versatile network setups.
- Industrial-Grade ESD Protection: Built-in ±16kV ESD protection ensures reliability and safeguards your system from electrical surges.
- Easy Configuration: Configure the device through an intuitive web console interface or use the included Windows utility software for quick setup and control.
- Virtual Serial Port Driver: Supports virtual serial port drivers for Windows systems, allowing remote access and control of CAN devices via network communication.
- Power Output for External Devices: Provides a DC +5V 100mA output, suitable for powering external equipment during operation.
- Firmware Upgradeable: Future-proof your setup with firmware upgrades, ensuring compatibility with evolving standards and features.
Quick Specs
View Quick Specs
- Adds one virtual CAN port via network connection
- Built-in +/-16kV ESD protection for all serial signals
- Supports network protocols such as TCP and UDP client/server
- CAN bus speed up to 1Mbits
- Provides DC +5V 100mA power for external devices
- Supports CAN 2.0A and CAN 2.0B protocols
- Supported CAN modes
- Standard mode: normal operation on CAN bus
- Listen mode: passive receiving of CAN frames
- Echo mode: transmitter also receives sent frames (for testing purposes)
- Operation mode can be easily changed via our Windows utility software or the web console interface
- Firmware upgradable for future firmware revisions
- Supports virtual CAN port driver for Windows OS (Win XP up to Win 11)
- NCAN supports Driver Mode, RFC2217 Server Mode, RFC2217 Client Mode, Pair Connection Mode, TCP Raw Server Mode, TCP Raw Client Mode and UDP Mode
- Gateway over a network without a PC
- Supports multiclient with four clients
- UDP Mode support Buffer Length and Timeout setting
- Easy-to-use Windows utility software for easy configuration and installation
- 10/100Mbps Ethernet with auto-detection
- Configuration via web console interface or utility software
- Windows utility software automatically finds NCAN CAN to Ethernet Gateway on the network
- Supports “reset” button for system reset and restoring to default settings
- LEDs indicating Ethernet port’s link and speed statuses
- LEDs indicate initialization and CAN bus status
- Virtual serial port drivers for Windows 11, 10, 8.1, 8, 7, Vista, 2003, XP

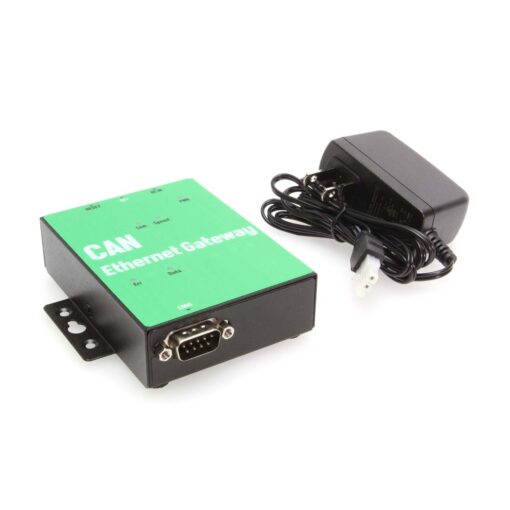

Package Contents
- Single Port Ethernet to CAN BUS Adapter
- Power Supply
Use Cases
Use Cases:
Automotive Diagnostics & Control
- Vehicle Diagnostics: Access vehicle systems remotely for diagnostics and monitoring via CAN bus communication.
- Remote Control: Control and manage in-vehicle systems from afar using network-based CAN connections.
Industrial Automation
- Machine Communication: Seamlessly integrate CAN-enabled devices into industrial automation systems for efficient data sharing and control.
- Network Expansion: Extend CAN networks to remote locations using Ethernet without needing proximity to the device.
R&D and Testing Labs
- Device Testing: Use for testing CAN devices in laboratories or research environments where network-based control is essential.
- Data Logging: Collect data from CAN-enabled devices over a network for analysis and review.
Specifications
Product Specifications
| Compliance |
| ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Physical Characteristics |
| ||||||||
| Software |
| ||||||||
| Environmental |
| ||||||||
| Hardware |
| ||||||||
| Performance & Safety |
| ||||||||
| Other Data |
|
