2-Port USB to CAN FD ISO Adapter
Model No.
CG-UCAN-2221
The Dual-Port USB to CAN FD ISO Adapter offers a seamless solution for connecting PCs to CAN and CAN FD networks. With support for ISO and Bosch standards, it delivers high-speed communication up to 8 Mbps and backward compatibility with classical CAN 2.0 A/B. Designed for industrial and R&D use, it features galvanic isolation, robust construction, and compatibility with Windows and Linux systems.
- High-Speed Communication: Supports CAN FD data rates up to 8 Mbps.
- Backward Compatibility: Works with classical CAN 2.0 A/B networks.
- Safe and Durable: Galvanic isolation up to 5700 Vrms for secure operation.
- Cross-Platform Support: Includes drivers for Windows and Linux, with SocketCAN compatibility.
- User-Friendly Design: Compact ABS enclosure with a 10-pin terminal block for easy connectivity.
Product Documents
Drivers & Software Downloads
Quick Links:
Description

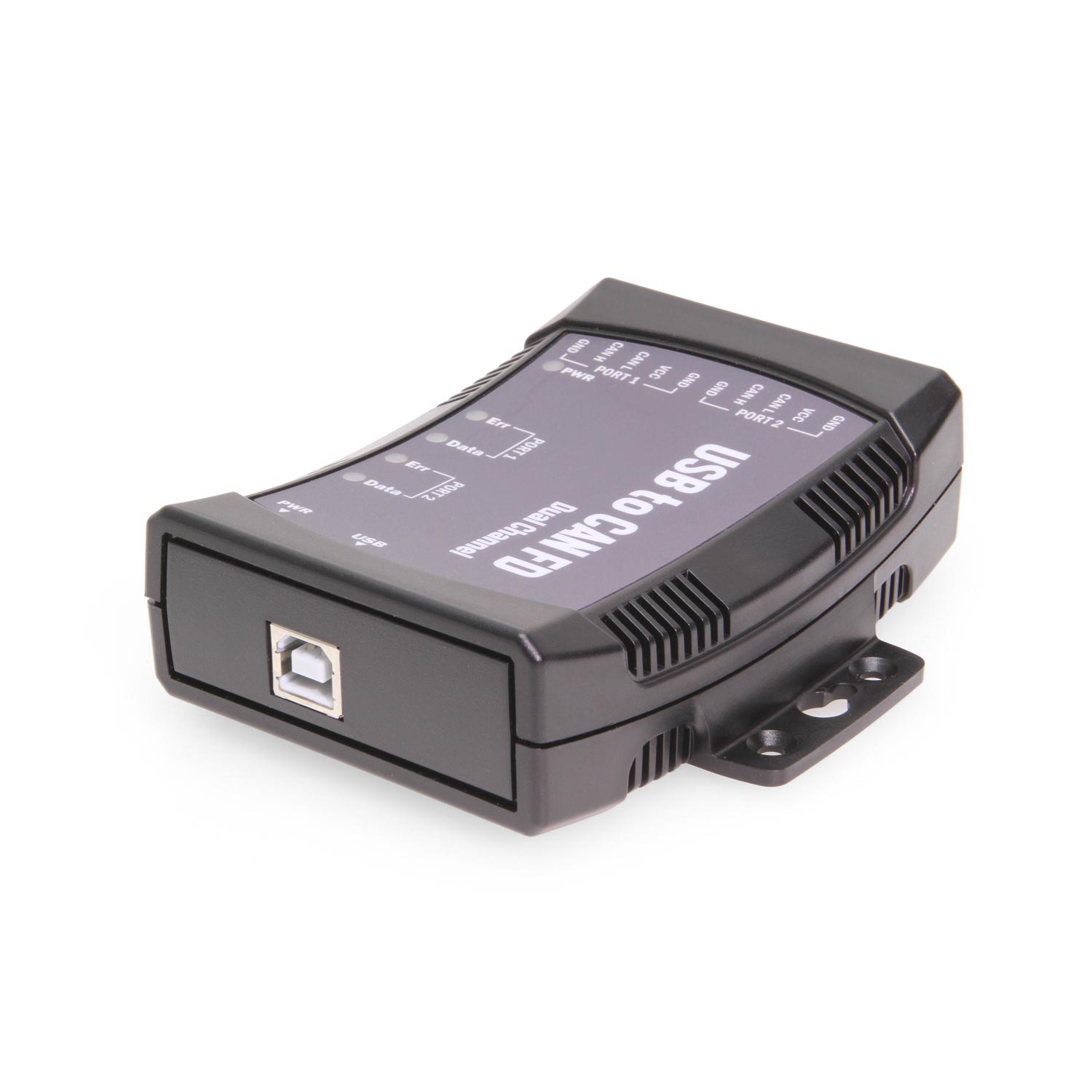

Dual-Port USB to CAN FD ISO Adapter
Experience seamless integration into CAN and CAN FD networks with this high-speed USB adapter. Perfect for industrial applications and R&D, this adapter supports dynamic data rate switching and compatibility with classical CAN 2.0 A/B and CAN FD frames, ensuring reliable and efficient communication for your systems.
Key Features and Benefits
- Single High-Speed CAN FD Interface: Adds two CAN FD channels via USB for straightforward network expansion.
- ISO & Non-ISO Standards Compliance: Supports ISO 11898-1:2015 and Bosch M_CAN standards for broad compatibility.
- Enhanced Data Throughput: Handles CAN FD data rates up to 8 Mbps with frames supporting up to 64 bytes of data.
- Backward Compatibility: Fully compatible with classical CAN 2.0 A/B, ensuring seamless integration into existing setups.
- User-Friendly Connectivity: Features a 10-pin terminal block connector for simplified installation.
- Galvanic Isolation: Provides up to 5700 Vrms isolation between the PC and CAN network for enhanced safety.
- Firmware Upgradeable: Stay updated with the latest enhancements through firmware upgrades.
- Comprehensive OS Support: Includes drivers for Windows 7–11, Windows Server, and Linux, with support for SocketCAN.
- Durable Construction: Compact ABS plastic enclosure designed for challenging environments.
- Advanced Testing Utilities: Supplied with TITAN CAN FD test utility for detailed CAN port analysis.
Package Contents
- Dual-Port USB to CAN FD ISO Adapter
- USB A/B Cable (90 cm)
- Quick Start Guide
Use Cases
Use Cases:
Industrial Automation
- Machine Monitoring: Interface seamlessly with PLCs and robotic systems.
- Network Diagnostics: Analyze and debug CAN networks efficiently.
R&D and Testing
- Protocol Development: Experiment with CAN FD and classical CAN protocols.
- Device Testing: Validate CAN-enabled devices in real-time.
Automotive Applications
- In-Vehicle Networks: Manage CAN bus systems in automotive setups.
- ECU Communication: Simplify Electronic Control Unit interactions.
Specifications
Product Specifications
| Compliance | Country of Origin: Taiwan Certifications: TAA, RoHS |
|---|---|
| Physical Characteristics | Color: Black Item Dimensions (L × W × H): 4 x 3.75 x 1 in Item Weight (Oz.): 0.181 lbs. Mounting Style: Surface Mount, Wall Mount |
| Serial Attributes | Serial Standards: CANBUS |
| What's in the Box | Package Contents: Adapter, USB Cable |
| Software | OS Support / Compatibility: Windows 10, Windows 11, Windows 7, Windows 8, Linux |
| Product Information | Warranty: One Year |
| Hardware | Chipset: M487KIDAE LED Indicators: Activity, Power, CAN Bus Data Activity |
| Performance & Safety | Isolated: Yes Max Data Transfer Rate: 8Mbps Surge Protection: Yes |
| Additional Details | UPC: 045079164673 USB Specification: USB 2.0 (480Mbps) UPC: 045079164673 Connector: 10-Pin Terminal Block Weight: 0.4300 lbs Dimensions: 5 × 4 × 2.5 in |
