4 Port USB to Quad RS-422 485 Optically Isolated Adapter

USB to Serial Adapter for RS422 and RS485 Applications

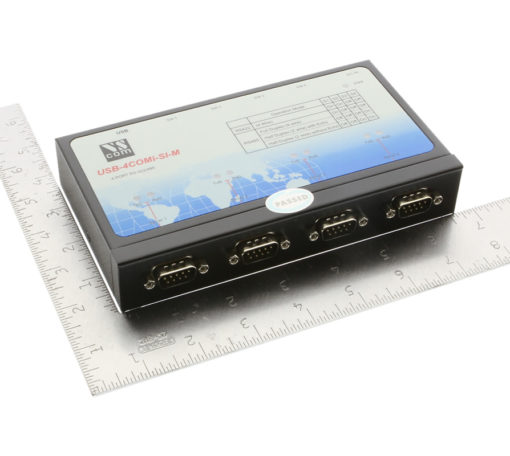

The USB-4COMi-SI-M is a USB to Quad RS-422 485 Optical isolated serial adapter and is designed for commercial and industrial communication applications where Optical Isolation is a must have. The USB-4COMi-SI-M Serial Adapter instantly adds four RS-422, or RS-485 serial communication ports to your system while offering optical isolation and surge protection.

  • Optically Isolates your RS-422 and RS-485 serial ports.
  • Incorporates DIP Switch control for independent control of serial signal to the port.
  • Has built-in surge and ESD protection of up to 25KV when abnormal electrical occurrences occur.
  • Self-powered, one switching power adapter of 5V, 2A provided.

$384.95

In stock

View Volume Pricing

Units Price
1 - 4 $384.95
5 - 11 $373.40
12 - 24 $365.70
25 - 49 $358.00
50+ $346.46

Also available from:

Model No. USB-4COMi-SI-M

Description

The USB-4COMi-SI-M is a USB to Quad RS-422 485 Optical isolated serial adapter and is designed for commercial and industrial communication applications where Optical Isolation is a must have. Serial RS-422 or RS-485 port expansion is made simple with the USB-4COMi-SI-M by connecting to a host USB port on your computer or USB hub for Plug-and-Play installation and automatic serial device detection.

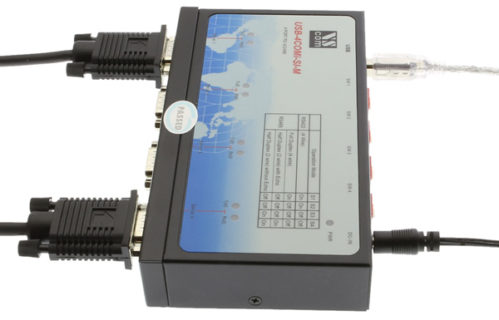

Serial Cable Connections of the 4 Port USB to Quad Rs-422 Adapter

The USB to Quad RS-422 485 does not require additional IRQ or DMA configuration so it does not use memory as a resource on the system, therefore there are no conflicts. The adapter is self-powered, and one power supply adapter of 6V/2.1 Amp is included.

The adapter is designed with a four external 4-pin dip switches (pictured below) to set RS-422 or RS-485 mode conveniently, without the need to open the metal chassis. Each port can be independently set to RS-422 or to RS-485, depending on your requirement in application.

DIP Switches for 4 Port USB to Quad Rs-422 Adapter

The USB-4COMi-SI-M USB to Quad RS-422 adapter has a built-in surge protector to withstand electrostatic discharges and power surges up to 25KV ESD. The USB to RS-422/485 Adapter provides instant connectivity to RS-422 or RS-485 communication devices for POS, factory automation equipment, multi-drop data collection devices, bar code readers, time clocks,  scales, data entry terminals, PC to PC long distance communications, ATMs and serial data communication in harsh environments. The adapter’s USB to Industrial I/O provides industrial solution requiring single node or multi-drop communications over short and long distance.



Additional Features:

  • Adds four RS-422 or RS-485 serial ports by connecting to a USB port
  • 2000V DC optical isolation
  • 25KV ESD surge protection
  • No need to open chassis to set operation modes- four external DIP switches for easy RS-422, RS-485 mode settings
  • Installed as standard Windows COM port
  • SECC metal chassis with DIN rail bracket
  • RS-422 data signals: TxD-, TxD+, RxD+, RxD-, GND, RTS-, RTS+, CTS+, CTS-
  • RS-485 4-wire data signals: TxD-, TxD+, RxD+, RxD-
  • RS-485 2-wire data signals: Data-, Data+
  • Automatic transmit and receive control for 2-wire RS-485 half-duplex mode
  • Built-in termination and biasing
  • High speed serial port with the baud rate up to 921.6K bps
  • Non-standard baudrates supported
  • LEDs of Power, TxD and RxD for easy port monitoring and diagnostics
  • Self-powered. One switching power adapter of 5V, 2A provided
  • Easy plug and play installation and RS-422/RS-485 device connection
  • COM port number assigned can be changed to any COM port number required
  • Works with USB 1.1 & 2.0 host port
  • Item Dimensions: 6.57(W) x 3.897(L) x 1.14in(H)

OS Support:

  • Windows 10, 8, 7, Vista, XP, 2003, 2000, ME and 98
  • Linux and Mac OS 10.X

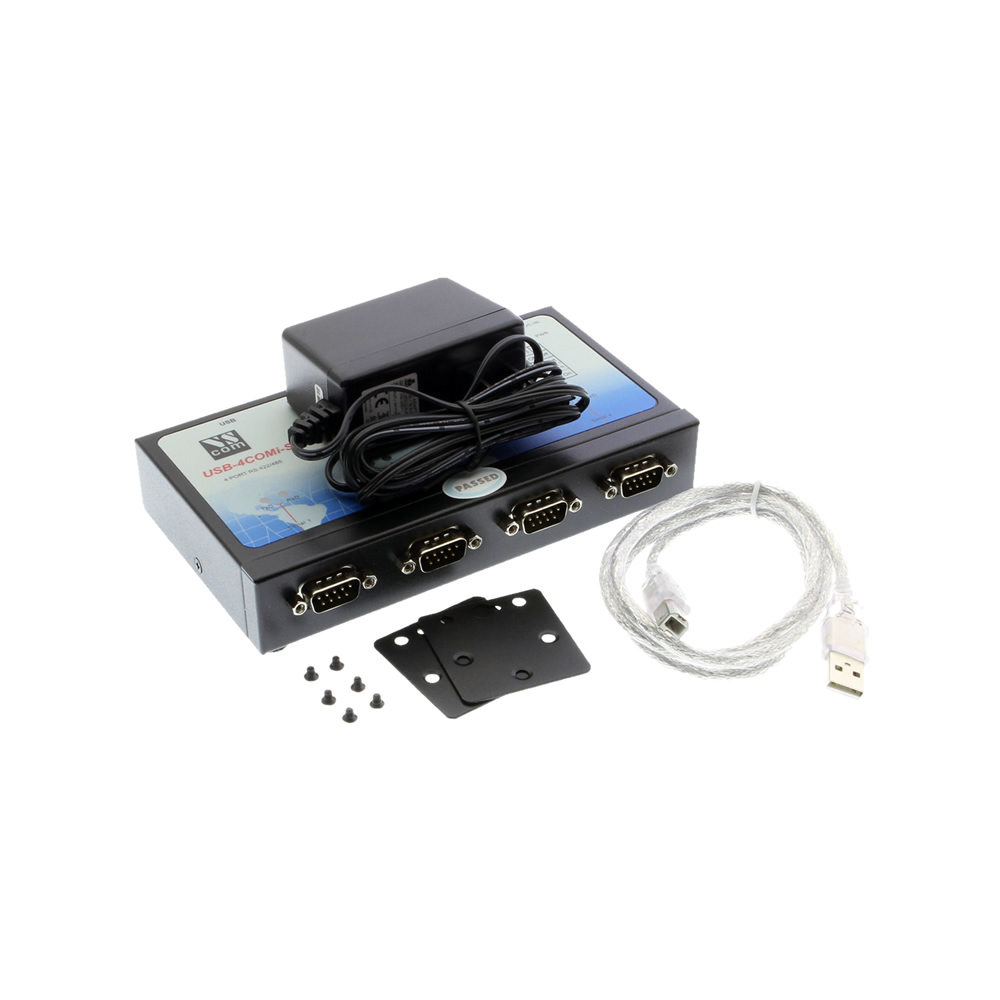

Package Contents

  • 4 port USB to RS422/485 isolated serial adapter
  • Din Rail mounting plates and screws
  • USB A to B Cable

*Surface Mounting screws not included.

Specifications

Product Specifications

Power
Input Voltage

+5V DC

Compliance
Country of Origin

Taiwan

Certifications

,

Compliance

RoHS, TAA

Mechanical
Color

White

Mounting Style

Din-Rail (Optional Bracket)

Ports

4 Serial Ports

USB
Isolated/Surge Protected

Yes

Screw Lock Compatible

Yes

Serial Attributes
Serial Standards

RS422, RS485

Serial Ports

4

Software
OS Support

Linux, Mac OSX, Win 10, Win 7, Win 8, Win Vista, Win XP

Environmental
Operating Temperature

0C to 55C

Hardware
Chipset

FTDI

Performance
Isolated/Surge Protected

Yes

Other Data
Connector

DB9 Male w/ Nuts

Chip Model

FT4232HL, MAX3089E

Warranty

1 year from date of purchase

Weight

2 lbs

Dimensions

12.75 × 6 × 2.75 in

UPC: 729440690922
Technical

Technical Specifications:

USB Bus
Compliance USB 1.0/1.1 compliant, USB 2.0 compatible
Speed 12 Mbps, full-speed USB
FIFO 128 byte transmit FIFO
384 receive FIFO
Serial Interface
Port Type RS-422/RS-485
Number of Ports 4
Connectors DB9 male
Serial Line Protection
ESD Protection 25KV
Optical isolation 2000V DC
Serial Port Speed
Baudrate 300 bps to 921.6k bps
Serial Communication Parameters
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity None, Even, Odd, Space, Mark
Flow Control RTS/CTS, XON/XOFF
Serial Signals
RS-422 TxD-(A), TxD+(B), RxD+(B), RxD-(A), GND, RTS-(A), RTS+(B), CTS+(B), CTS-(A)
RS-485-4 wire TxD-(A), TxD+(B), RxD+(B), RxD-(A), GND
RS-485-2 wire Data-(A), Data+(B), GND
Driver Support
OS Windows 7, Vista, 2003, XP (WHQL certified) and 2000
Linux Kernel 2.4 and up built-in support
Power Supply
Input Self-powered
Power adapter of 5VDC, 2A
Mechanical
Chassis SECC metal chassis with DIN rail bracket
Environmental
Operating Temperature 0 to 55 °C (32 to 131 °F)
Operating Humidity 5 to 95% RH
Storage Temperature -20 to 75 °C (-4 to 167 °F)
Safety Approvals EN55022 Class B, EN55024, EN61000-3-2, EN61000-3
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5,
IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11.
CISPR PUB. 22 and FCC Part 15 Class B.



RS-422 & RS-485 DB9 Male Connector Pin-outs

RS-422 and RS-485 DB9 Male Connector Pin-outs
RS-422 DB9 Male
    RS-422 Signal Pin-outs of DB-9 Male
  Pin Signal
  1 TxD- (A )
  2 TxD+(B)
  3 RxD+(B)
  4 RxD- (A)
  5 GND
  6 RTS- (A)
  7 RTS+(B)
  8 CTS+(B)
  9 CTS- (A)

RS-485 DB9 Male

    RS-485 4-Wire (Full duplex) Signal Pin-outs of DB-9 Male Connector

  Pin Signal
  1 TxD- (A)
  2 TxD+(B)
  3 RxD+(B)
  4 RxD- (A)
  5 GND


    RS-485 2-Wire (Half duplex) Signal Pin-outs of DB-9 Male Connector

  Pin Signal
  1 Data- (A)
  2 Data+(B)
  5 GND


RS-422 Signal Wiring

    Point-to-Point 4 Wire Full Duplex

USB-4COMi-SI-M                                    RS-422 Device
RS-422 Signal Wiring Point-to-Point 4 Wire Full Duplex

    RS-422 with Handshaking

USB-4COMi-SI-M                                   RS-422 Device
RS-422 Signal Wiring RS-422 with Handshaking

RS-485 Signal Wiring

    Point-to-Point 4-Wire Full Duplex

USB-4COMi-SI-M                               RS-485 Device
RS-485 Signal Wiring Point-to-Point 4-Wire Full Duplex

    Multidrop RS-485 2-Wire Half-duplex

USB-4COMi-SI-M                               RS-485 Device
RS-485 Signal Wiring Multidrop RS-485 2-Wire Half-duplex
Optional Accessories

Optional Accessories

The 4 port USB to RS422/485 isolated serial adapter has certain accessories that work with it. These accessories are what you can order if needed.

USB 2.0 Cable for close connections Use this USB 2.0 cable to connect your desktop or laptop using a USB hub, printer, or scanner. Transfer…

Model# USB2-AB
